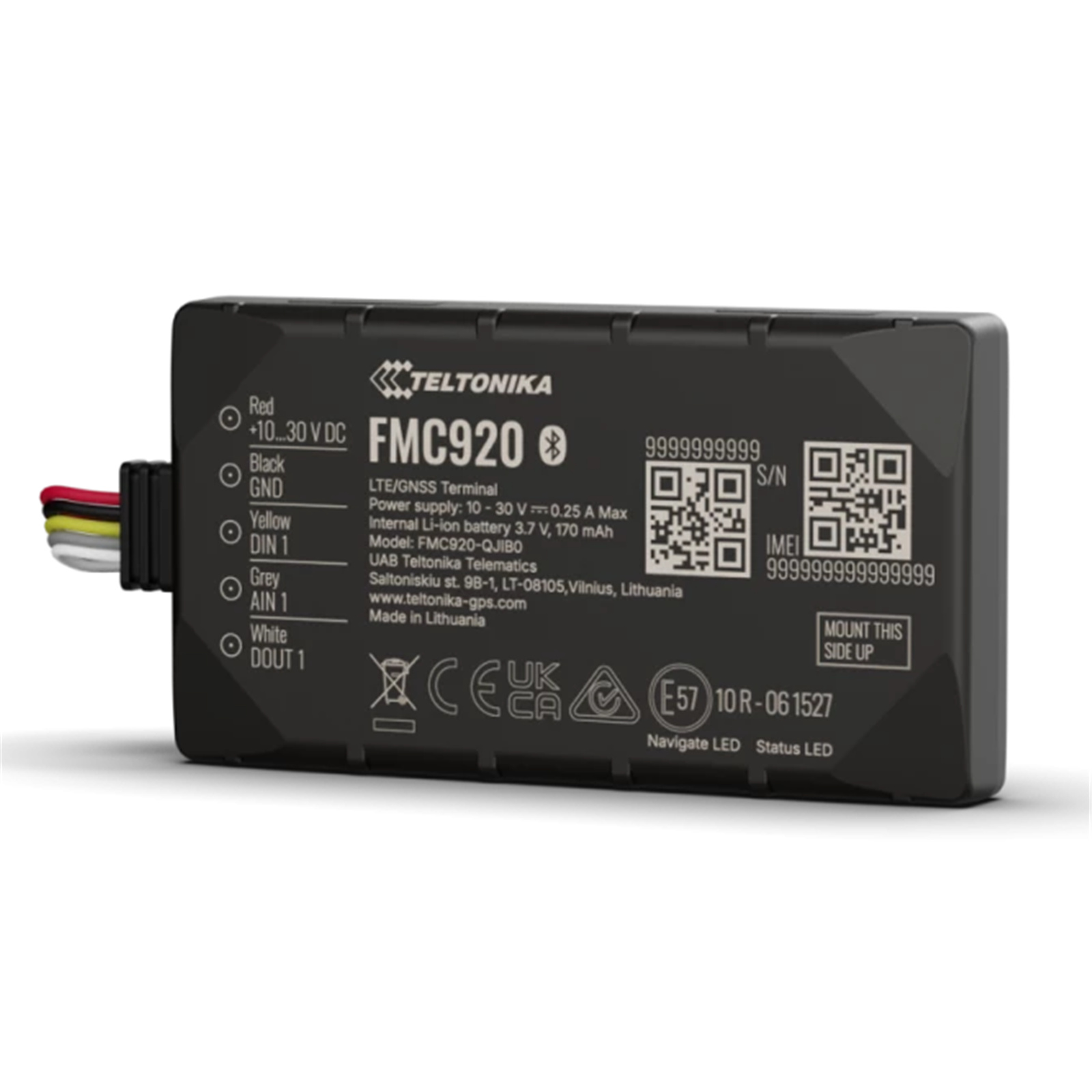

Teltonika FMC920 Small and Smart Advanced GPS Tracker With Future proofed 4G Connectivity, Bluetooth and a backup battery
Teltonika FMC920 Small and Smart Advanced GPS Tracker With Future proofed 4G Connectivity, Bluetooth and a backup battery
- Brand: Teltonika
- MPN: FMC920
- Part #: NETTTK9201
- UPC:
- Brand: Teltonika
- MPN: FMC920
- Part #: NETTTK9201
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking





Teltonika FMC920 Small and Smart Advanced GPS Tracker With Future proofed 4G Connectivity, Bluetooth and a backup battery
- Brand: Teltonika
- MPN: FMC920
- Part #: NETTTK9201

Product URL: https://www.pbtech.co.nz/product/NETTTK9201/Teltonika-FMC920-Small-and-Smart-Advanced-GPS-Trac
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Eco driving scenario for all-round better driving
Achieve efficient fuel consumption, prolong vehicle life and increase road safety with eco driving scenario

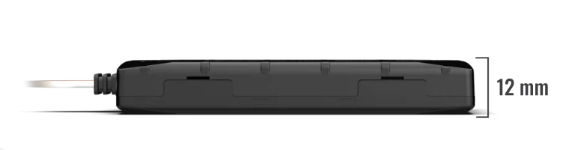

Slim design to fit the tightest spaces
12 mm-height device can be easily fitted in the tightest spaces

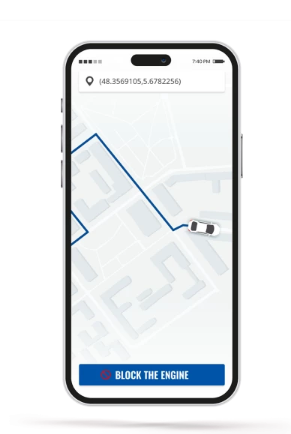

Extensive remote monitoring possibilities
Blocking engine remotely among the numerous available fleet control measures
Extended product usage scenarios
Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement
Specifications
GNSS
GNSS
GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver
33 tracking channel
99 acquisition channel
Tracking sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Hot start
< 1 s
Warm start
< 25 s
Cold start
< 35 s
Cellular
Technology
LTE Cat 1, GSM
2G bands
FMC920-QJIB0: GSM: B2/B3/B5/B8
FMC920-QKIB0: GSM: B2/B3/B5/B8
4G LTE bands
FMC920-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28
FMC920-QKIB0: LTE FDD: B2/B3/B4/B5/B7/B8/B28/ B66
Data transfer
LTE: LTE FDD : Max 10Mbps (DL)/Max 5Mbps (UL)
LTE TDD: Max 85.6 Mbps (DL)/Max 85.6 Mbps (UL)
GSM: GPRS: Max 85.6Kbps (DL)/ Max 85.6Kbps (UL)
Data support
SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, MQTT)
Power
Input voltage range
10 - 30 V DC with overvoltage protection
Internal Back-up battery
170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal fuse
3A, 125V
Power consumption
At 12V < 2 mA (Ultra Deep Sleep)
At 12V < 3 mA (Deep Sleep)
At 12V < 8mA (Online Deep Sleep)
At 12V < 12 mA (GPS Sleep)
At 12V < 28 mA (nominal with no load)
At 12V < 2 A Max. (with full Load / Peak)
Bluetooth® Technology
Specification
4.0 + LE
Supported peripherals

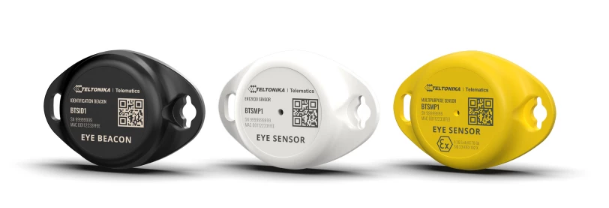

EYE beacon and sensor, OBDII dongle, Inateck Barcode Scanner,Unversal Bluetooth® LE beacons and sensors support
Physical specification
Dimensions
79 x 43 x 12 mm (L x W x H)
Weight
54 g
Operating environment
Operating temperature (without battery)
-40 °C to +85 °C
Storage temperature (without battery)
-40 °C to +85 °C
Operating temperature (with battery)
-20 °C to +40 °C
Storage temperature (with battery)
-20 °C to +60 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP54
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +60 °C
Battery storage temperature
-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
Interface
Digital Inputs
1
Digital Outputs
1
Analog Inputs
1
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
2.0 Micro-USB
LED indication
2 status LED lights
SIM
Micro-SIM
Memory
128MB internal flash memory
Features
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update
FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology)
SMS
Configuration, Events, DOUT control, Debug
GPRS commands
Configuration, DOUT control, Debug
Time Synchronization
GNSS, NITZ, NTP
Fuel monitoring
LLS (Analog), OBDII dongle
Ignition detection
Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
