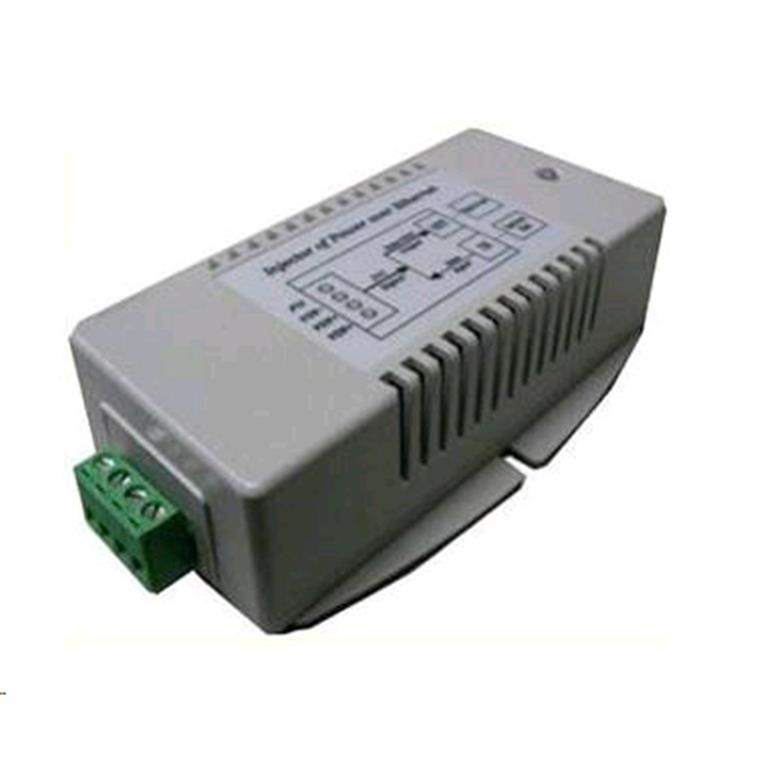

Tycon Systems TP-DCDC-2448GD-HP Tycon 18-36VDC In, 56VDC 802.3at 35W Out DC to DC Converter

PB Tech price
PB Tech price
$ 164 .35
 +GST
$ 189 .00
 inc GST
$164.35  +GST
$189.00

Tycon Systems TP-DCDC-2448GD-HP Tycon 18-36VDC In, 56VDC 802.3at 35W Out DC to DC Converter

  • Brand: Tycon Systems
  • MPN: TP-DCDC-2448GD-HP
  • Part #: NETTYC1020
  • UPC:
PB Tech price
$ 164 .35 $ 189 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 23 Sep When will I receive it?
$164.35  +GST
$189.00
  • Brand: Tycon Systems
  • MPN: TP-DCDC-2448GD-HP
  • Part #: NETTYC1020
  • UPC:

Features

The TP-DCDC Gigabit Series of DC to DC converters offered by Tycon Power Systems are a low cost and high efficiency solution for those requiring IEEE802.3af and IEEE802.3at Power Over Ethernet from a 18VDC - 36VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the 802.3af or 802.3at output to the CAT5 Ethernet cable. The output voltage is regulated 56VDC. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial applications. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 35W. If the remote device does not support 802.3af or 802.3at power over Ethernet, a TP-POE-1224 802.3xx converter is available to change the POE output to passive POE with 12V or 24VDC POE output.

- Input Voltage 18V - 36VDC
- IEEE 802.3af/at compliant POE output
- Dual Inputs for connecting 2 power sources
- Integrated 10/100/1000MB POE Inserter
- High Power up to 35W
- Low self consumption power
- Short Circuit, Over Current and Reverse/Over Voltage Protect
- High Temperature Operation
- Compact size - Maximize Available Space
- Applications: 12V / 24V Battery Systems, Vehicle Applications, Wireless Access Points and Client Devices, IP Phone and Security Camera Systems

Specifications

DC Input Voltage
18VDC - 36VDC

DC Input Connector
Removable Screw Type Compression Wire Terminal (12 AWG Max)

DC Output Voltage
56V (802.3af/at)

Data in & Data/POE Output Connector
RJ45 (Shielded)

Output Current (max)
0.625A

Output Power (max)
35W

Self Consumption Power
1W

Dimensions
Length
125 mm
Width
75 mm
Height
38 mm

Manufacturer Part No:
TP-DCDC-2448GD-HP
Brand:
Tycon Systems
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
NETTYC1020
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
