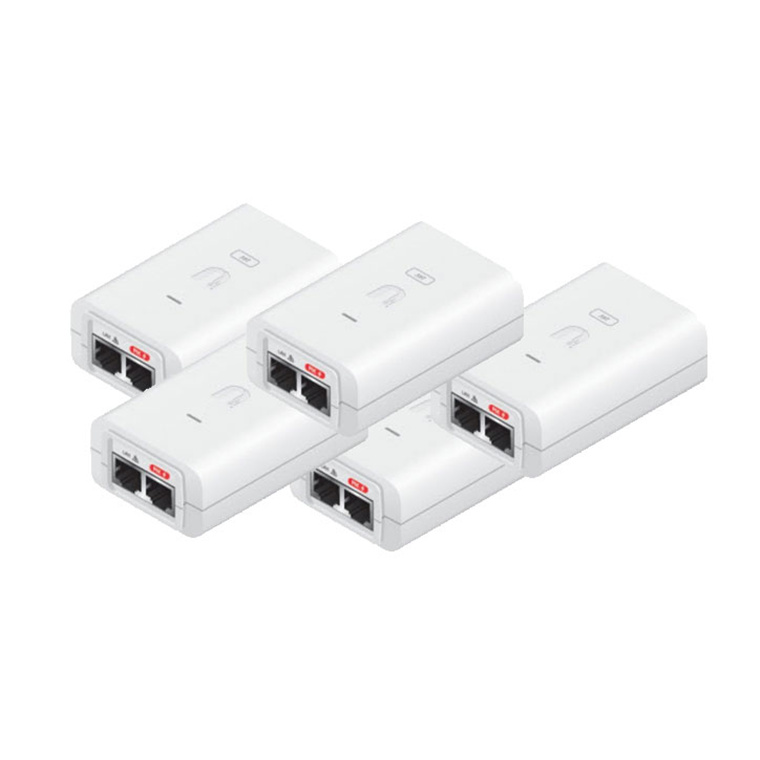

Ubiquiti PoE Adapter POE-24-24W 24VDC / 1A, 24W - 5 Pack

Ubiquiti PoE Adapter POE-24-24W 24VDC / 1A, 24W - 5 Pack
Normally $88.00 Normally $101.20
Save: $4.02$4.62
$83 98  +GST $96 58  inc GST

Generating Print Page

Ubiquiti PoE Adapter POE-24-24W 24VDC / 1A, 24W - 5 Pack

Part #: NETUBI9009
ON SPECIAL
Normally $88.00 Normally $101.20
Save: $4.02$4.62
$83 98 $96 58
 +GST  inc GST
Ends in --, while stocks last!
Ends in --, while stocks last!


Click & Collect: Click & Collect unavailable
  • Brand: Ubiquiti
  • MPN: POE-24-24W-5P
  • Part #: NETUBI9009
  • UPC: 817882026628

Features

Device Protection

PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable™, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.


Convenient Wall-Mounting

The 24V, 0.5A models, POE-24-12W and POE-24-12W-G, are wall-mountable using the optional wall-mount brackets.


Seamless airGateway™ Compatibility

The 15V, 0.8A and 24V, 0.5A models, POE-15-12W, POE-24-12W and POE-24-12W-G, work with the airGateway™ to bridge airMAX® connections to Wi-Fi at customer locations.



Download data sheet: https://www.gowifi.co.nz/specs/PoE_Adapters_DS.pdf

Specifications

Manufacturer's Product Code

POE-24-24W-5P-AU

Dimensions

88 x 57 x 33 mm

Weight

135 g

Output Voltage

24VDC @ 1.0A

LAN Activity Indicator

No

Gigabit LAN Port

No

Remote Reset Capability

Yes

Reset Button

Yes

Rated Voltage

100-240VAC @ 50/60Hz

Input Current

0.6A @ 120VAC, 0.4A @ 240VAC

Inrush Current

<60A Peak @ 120VAC, <120A Peak @ 230VAC

Efficiency

80+%

Output Ripple

1% Max.

Switching Frequency

65 kHz

Line Regulation

= 3%

Load Regulation

= 5%

2-Pair Powering

Pins 4, 5 (+) and Pins 7, 8 (-))

4-Pair Powering

No

Operating Temperature

0 to 40° C (32 to 104° F)

Storage Temperature

-30 to 70°C (-22 to 158° F)

Operating Humidity

35 to 95% Noncondensing

AC Connector

IEC-320 C6

Data IN / POE

RJ45 Shielded Socket

Surge Protection

Difference and Common Mode

Clamping Protection

11V Data, 60V Power

Max. Surge Discharge

1500A (8/20 µs) Power

Peak Pulse Current

36A (10/1000 µs) Data

Shunt Capacitance

<5 pF data

Response Time

<1 ns

Certifications

CE, FCC, IC, UL

Manufacturer Part No:
POE-24-24W-5P
Brand:
Product Type:
-
UPC
817882026628
Product Family:
PoE Adapter
Shipping Weight:
1.6 kg
PB Part No:
NETUBI9009
Product Model:
POE-24-24W
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
