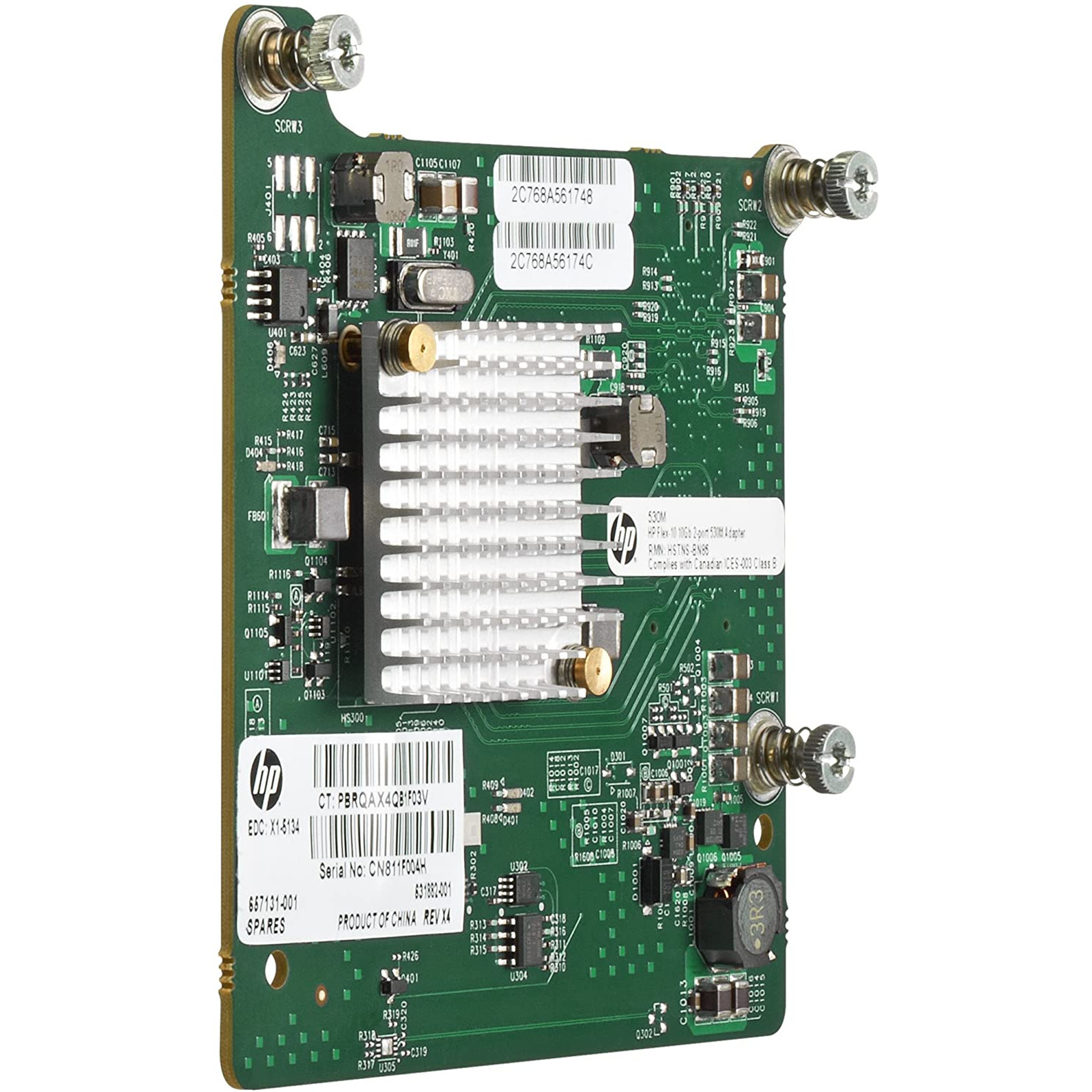

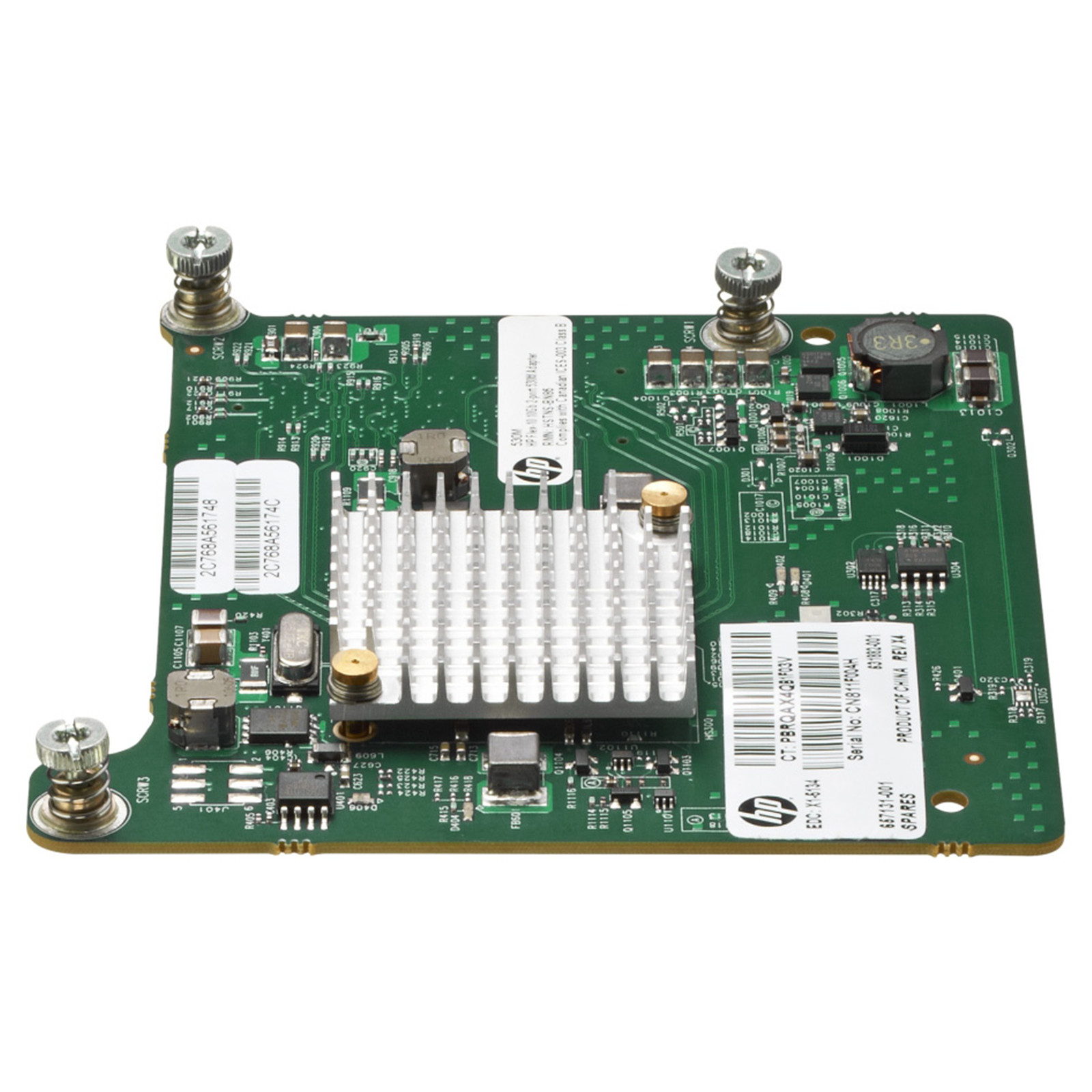

HP HPE 631884-B21 Flex-10 10Gb 2P 530M Adapter

PB Tech price
PB Tech price
$ 320 .87
 +GST
$ 369 .00
 inc GST

Out of stock

HP HPE 631884-B21 Flex-10 10Gb 2P 530M Adapter

  • Brand: HP
  • MPN: 631884-B21
  • Part #: NICHPE1903112
  • UPC:
PB Tech price
$ 320 .87 $ 369 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: HP
  • MPN: 631884-B21
  • Part #: NICHPE1903112
  • UPC:

Port Type

N/A

Number of Ports

2

Features

HPE Flex-10 10Gb 2-port 530M Adapter

The HPE 530M is a 2-port 10GbE Mezzanine adapter, featuring the next generation of 10 Gb Ethernet offering in a single chip solution on a mezzanine form factor that further reduces power requirements for 2 ports of 10 Gb Ethernet. It is designed for use with HPE BladeSystem c-Class Gen8 blade server platform's type A and Type B mezzanine slots.

It provides full duplex high performance Ethernet connectivity with support for HPE Virtual Connect Flex-10 blade interconnect and Network Partitioning (NPAR) technology, allowing each 10GbE port to be divided into four physical NICs and optimize bandwidth management for virtualized servers. The HPE Flex-10 530M adapter, in conjunction with HPE Virtual Connect Flex-10 and NPAR technology, helps to extend the benefits of virtualization beyond the server and into the rest of the infrastructure.

The HPE 530M supports enterprise class features such as VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding), Tunnel Offloads (NVGRE VXLAN), Receive Side Scaling (RSS), jumbo frames and PXE boot. It also supports virtualization features such as SR-IOV (Windows, Linux, VMware)), VMware NetQueue and Microsoft VMQ.


PB Tech is a HP Gold Partner

Specifications

General Specifications

Network Processor

QLogic 57810S with integrated MAC/PHY

Data Rate

Two ports, each at 20 Gb/s bi-directional; 40 Gb/s aggregate bi-directional theoretical bandwidth.

Onboard Memory

PCI Express 2.0 (Gen 2) x8

Form Factor

Type A mezzanine adapter (works in Type A and Type B mezzanine slots)

IEEE Compliance

802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.3p, 802.1q, 802.3ae, 802.3ap

Power and Environmental Specifications

Power

<12W maximum

Temperature - Operating

0° to 55°C (32° to 131°F)

Humidity - Operating

10% to 90% non-condensing

Emissions Classification

FCC Class A

Agency Approvals

USA: FCC Part 15 Class A
Canada: ICES-003, Issue 4
Japan: VCCI V3 (2010.04) Class A
International: EN55022:2006 + A1:2007 Class A
International: EN55024:1998+A1:2011+A2; EN61000-3-2:2006,
EN61000-3-3:2008
Taiwan: BSMI, CNS13438 (2006) Class A
Australia/New Zealand (AS/NZS): EN55022:2006+A12007 class A
Korea: KN22 Class A, KN24

RoHS Compliance

6 of 6

Safety

UL Mark (USA and Canada)
CE Mark
EN 60590

Operating System and Virtualization Support

Support

Microsoft Windows Server 2008 SP2 and R2 w/SP1 (x86 and x64)
Microsoft Windows Server 2012, 2012 R2
Microsoft Windows Hyper-V 2008 R2 w/SP1, 2012, 2012 R2
Red Hat Enterprise Linux (RHEL) 5, 6, 7
SUSE Linux Enterprise Server (SLES) 11, 12
Solaris 10, 11
VMware ESXi 5.x, 6.x
VMware vSphere 4.1, 5.0, 5.5

Manufacturer Part No:
631884-B21
Brand:
HP
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
3 kg
PB Part No:
NICHPE1903112
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
