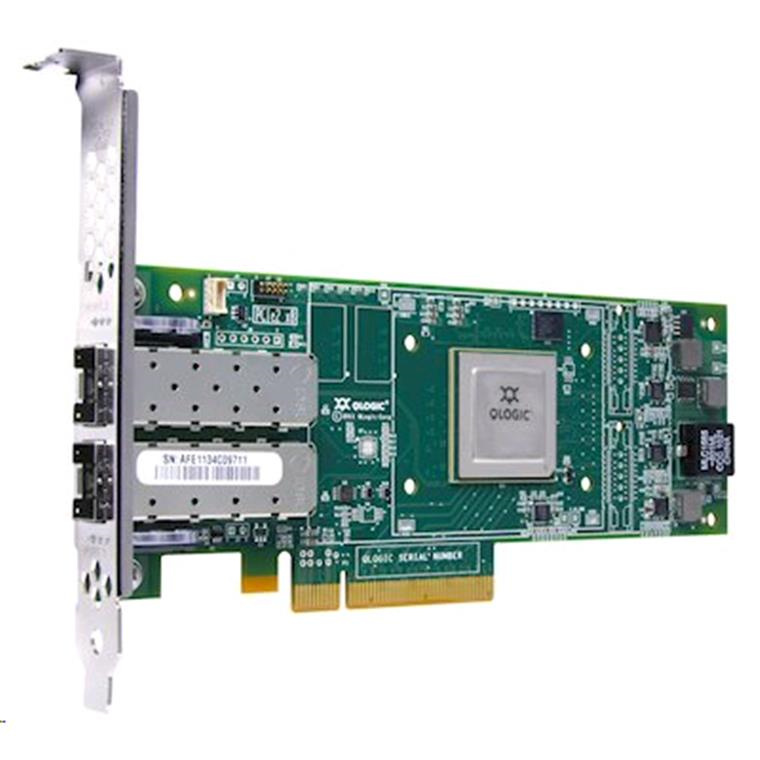

Lenovo 00Y3341 QLogic 16GB FC Dual Port HBA for IBM System x
Out of stock
Lenovo 00Y3341 QLogic 16GB FC Dual Port HBA for IBM System x
- Brand: Lenovo
- MPN: 00Y3341
- Part #: NICLEN2464849
- UPC:
- Brand: Lenovo
- MPN: 00Y3341
- Part #: NICLEN2464849
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Network Cards (NIC)
TP-Link TX201 PCI Express Network Adapter 2.5 Gigabit
TP-Link TX401 10Gbps PCI-E Ethernet Adapter, 1 x RJ45
TP-Link TG-3468 32-bit Gigabit PCIe Network Adapter, Realtek...
TP-Link UH6120C USB-C 6-in-1 Multi-Port Hub 4K/60Hz HDMI - PD...
TP-Link UH9120C USB-C 9-in-1 Multi-Port Hub 4K/60Hz HDMI - PD...
Lenovo 00Y3341 QLogic 16GB FC Dual Port HBA for IBM System x
- Brand: Lenovo
- MPN: 00Y3341
- Part #: NICLEN2464849
Product URL: https://www.pbtech.co.nz/product/NICLEN2464849/Lenovo-00Y3341-QLogic-16GB-FC-Dual-Port-HBA-for-IB
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Abstract
The QLogic 16 Gb FC Single-port and Dual-port Host Bus Adapters (HBAs) are sixth generation Fibre Channel Adapters. They offer 16 Gbps line-rate performance at extremely low CPU utilization with full hardware offloads. Support for powerful virtualization features make this adapter ideal for virtualized environments that need excellent input/output (I/O) performance to service growing numbers of virtual machines (VMs).
Change History
Changes in the August 11 update: The QLogic 16Gb FC Single-port HBA is still available
Introduction
The QLogic 16Gb FC Single-port and Dual-port Host Bus Adapters (HBAs) for System x® are sixth generation Fibre Channel Adapters. They offer 16 Gbps line-rate performance at extremely low CPU utilization with full hardware offloads. Support for powerful virtualization features make this adapter ideal for virtualized environments that need excellent I/O performance to service growing numbers of virtual machines (VMs).
Did you know?
Did you know that these QLogic adapters support nearly twice the throughput and 2.5 times the I/O operations per second (IOPS) per port compared to 8 Gb adapters? In addition, the adapters support both PCI Express 3.0 x4 or 2.0 x8 data transfer on the host side. The QLogic 16 Gb HBAs are ideal for high bandwidth and I/O-intensive applications, such as media streaming, backup/recovery, data warehousing, OLTP, Microsoft® Exchange Server, and server virtualization. Through rigorous testing by Lenovo through the ServerProven® program, you can maintain a high degree of confidence that your System x server storage subsystem is compatible and functions reliably when using these 16 Gb HBA adapters.
Features
The QLogic 16Gb FC Single-port and Dual-port HBAs have the following features:
- Port architecture that offers independent functionality on each port -- independent CPU, isolated memory and independent firmware image -- provides higher reliability and predictable performance.
- Support for Message Signaled Interrupts eXtended (MSI-X) improves host utilization and enhances application performance.
- Support for 16 Gb, 8 Gb, and 4 Gb FC devices.
- Full hardware offload for Fibre Channel protocol.
- Support for PCIe 2.0 and PCIe 3.0 host interfaces.
- Comprehensive virtualization capabilities with support for N_Port ID Virtualization (NPIV) with 255 N_Port IDs per port.
- Host-to-fabric Fibre Channel Security Protocol (FC-SP) authentication.
- A common driver model allows a single driver to support all QLogic HBAs on a given operating system.
- Universal boot capability allows the appropriate boot environment to be automatically selected for any given hardware.
- Boot from SAN capability reduces the system management costs and increases uptime.
Specifications
The QLogic 16Gb FC Single-port and Dual-port HBAs have the following specifications
Host interface: PCI Express 2.0 x8 or PCI Express 3.0 x4 (physical connector is PCIe x8)
Single-port or dual-port SFP+ based adapters
Support for 16 Gb, 8 Gb and 4 Gb FC link speeds, which are automatically negotiated
Data rate: 14.025 Gbps (1600 MBps), 8.5 Gbps (800 MBps), and 4.25 Gbps (400 MBps) autosensing (per port), with full duplex
Performance: Over 500,000 IOPS per port (over 1,200,000 IOPS per dual-port adapter)
Throughput: 3,200 MB per port, full-duplex
2048 concurrent logins
255 N_Port IDs (NPIV) per port
Topology: Point-to-point and switched fabric
Supported media: 16 Gbps Fibre Channel LC SFP+ short wave optical transceivers (850 nm), hot-pluggable
Industry standards
- Current ANSI/IETF standards: FC-PI-4, FC-PI-5, FC-FS-2 with amendment 1, FC-AL-2 with amendments 1 and 2, FC-LS-2, FC-GS-6, FC-DA, FC-SP-2, FCP-4, FC-MJS, FC-SB-4, FC-SP, SPC-4, SBC-3, SSC-3, and RFC4338
- Legacy ANSI/IETF standards: FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-FS, FC-AL, FC-GS-2/3/4/5, FCP, FCP-2, FC-SB-2, FC-FLA, FC-HBA, FC-PLDA, FC-TAPE, FC-MI, SPC-3, SBC-2, SSC-2, and RFC2625
Management software
- The QLogic QConvergeConsole (QCC) management software delivers a unified web based single-pane-of-glass management console across the QLogic family of storage and networking adapters. A graphical user interface (GUI) or command line interface (CLI) are available. A VMware vCenter plug-in is also available.
- Common IT tasks, such as VLAN configuration and teaming, can be easily accomplished either through QConvergeConsole or through native OS tools, thereby minimizing IT training and deployment costs.
- Role-based authentication allows for separate logins and access for SAN and LAN administrators. This eliminates the need to change your organizational structure as you converge your network.
