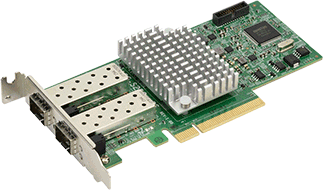

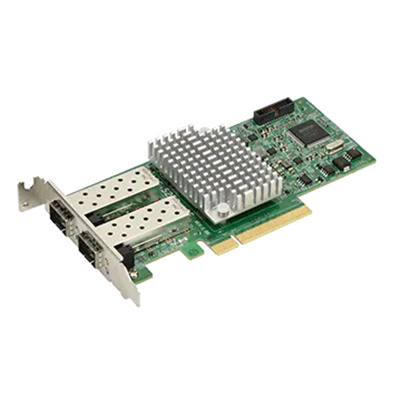

Supermicro AOC-S25G-m2S Server NIC 2x SFP28 25GbE, Low-Profile PCIe 3.0 x8, Mellanox ConnectX-4 Lx EN Controller, LP & FH Bracket Included

PB Tech price
PB Tech price
$ 363 .41
 +GST
$ 417 .92
 inc GST

Out of stock

Supermicro AOC-S25G-m2S Server NIC 2x SFP28 25GbE, Low-Profile PCIe 3.0 x8, Mellanox ConnectX-4 Lx EN Controller, LP & FH Bracket Included

  • Brand: Supermicro
  • MPN: AOC-S25G-M2S-O
  • Part #: NICSPM11253
  • UPC: 672042251926
PB Tech price
$ 363 .41 $ 417 .92
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: Supermicro
  • MPN: AOC-S25G-M2S-O
  • Part #: NICSPM11253
  • UPC: 672042251926

Number of Ports

NA

Port Type

N/A

Features

Add-on Card

The Supermicro AOC-S25G-m2S is a leading edge 25GbE controller. Based on the Mellanox ConnectX®-4 Lx EN chipset with features that such as VXLAN and NVGRE, it is backward compatible with 10GbE networks and addresses bandwidth demand from virtualized infrastructures in data center or cloud deployments. It supports the RoCE specification with CPU offload, delivering low-latency and high-performance over Ethernet networks. Supermicro® Asset Management and thermal detection give an extra layer of controller health management and peace of mind. The Supermicro AOC-S25G-m2S high performance 25GbE adapter solution is an excellent choice to enhance network connectivity in data centers and enterprise environments.

This product is only available through Supermicro.

Key Features

- Dual SPF28 Connectors
- Low-Profile, Short Length Standard Form Factor
- PCI-E 3.0 x8
- Mellanox ConnectX®-4 Lx EN Ethernet Controller
- Asset Management Features with thermal sensor
- Hardware offloads for VXLAN, NVGRE and GENEVE
encapsulated traffic
- Low latency RDMA over Converged Ethernet (RoCE)
- PCI-SIG SR-IOV compliant
- Jumbo Frames support up to 9.6kB
- PXE Support
- Erasure Coding Offload
- NC-SI for IPMI support
- RoHS compliant 6/6

Compliance

RoHS

RoHS Compliant 6/6, Pb Free

Specifications

General

   - Mellanox ConnectX®-4 Lx EN dual-port 25Gbps controller
   - Compact size low-profile standard form factor
   - PCI-E x8 3.0 (8GT/s, 5GT/s or 2.5GT/s) interface
   - Dual SFP28 connectors
   - Typical power consumption: 8.7W

Host Interface

   - PCI-E 3.0
   - Message Signal Interrupt (MSI-X)

Networking features

   - 25G Ethernet Consortium 25 Gigabit Ethernet
   - IEEE802.3ae 10 Gigabit Ethernet
   - IEEE802.3az Energy Efficient Ethernet
   - IEEE 802.3ap based auto-negotiation and KR startup
   - IEEE 802.ad, 802.1AX Link Aggregation
   - IEEE 802.1Q, 802.1p VLAN tags and priority
   - IEEE802.1Qau (QCN) ¡V Congestion Notification
   - IEEE 802.1Qaz (ETS)
   - IEEE 802.1Qbb (PFC)
   - IEEE 802.1Qbg
   - IEEE 1588v2
   - Jumbo frame support (9.6KB)

CPU Offload Features


   - RDMA over Converged Ethernet (RoCE)
   - TCP/UDP/IP stateless offload
   - LSO, LRO, checksum offload
   - RSS, TSS, HDS, VLAN insertion/stripping. Receive flow
     steering
   - Intelligent interrupt coalescence

Storage Offloads


   - RAID offload ¡V erasure coding (Reed-Solomon) offload

Management Features

 - Asset Management features with thermal sensor
 - NC-SI for IPMI Support

Overlay Networks

 - Stateless offloads for overlay networks and tunneling protocols
  - Hardware offload of encapsulation and decapsulation of NVGRE
     and VXLAN overlay networks

Hardware-Based I/O Virtualization

   - Single Root IOV
   - Multi-function per port
   - Address translation and protection
   - Multiple queues per virtual machine
   - Enhanced QoS for vNICs
   - VMware NetQueue support

Virtualization Features

   - SR-IOV: up to 256 Virtual Functions
   - SR-IOV: up to 16 Physical Functions per port
   - 1K ingress and egress QoS levels
   - Guaranteed QoS for VMs

Operating System Support

   - RHEL/CentOS
   - Windows
   - FreeBSD
   - VMware
   - OpenFabrics Enterprise Distribution (OFED)
   - OpenFabrics Windows Distribution (WinOF-2)

Remote Boot

 - Remote boot over iSCSI
  - PXE and UEFI

Operating Conditions

   - Operating temperature: 0°C to 55°C (32°F to 131°F)
   - Storage temperature: -40°C to 70°C (-40°F to 158°F)
   - Storage humidity: 90% non-condensing relative humidity at 35°C

Physical Dimensions

  - Card PCB dimensions: 14.2cm x 6.89cm (5.6in x 2.71in) (LxW)
   - Height of end brackets: standard - 12cm (4.725in),
low-profile - 8cm (3.15in)

Weight

   - 89.58g (0.1975lb)

Supported Platforms

   - Motherboards with minimum PCI-E 3.0 x 8 expansion slot
   - Server Systems with LP/FH PCI-E 3.0 x 8 expansion slot
   - NC-SI feature is only supported by Supermicro® motherboards with corresponding NC-SI connectors
