Synology Ethernet Adapter 10G22-T1-Mini 10 GbE RJ-45 network upgrade module for RS422+ Compatible data transfer rates include 10GbE, 5GbE. and 2.5GbE
Synology Ethernet Adapter 10G22-T1-Mini 10 GbE RJ-45 network upgrade module for RS422+ Compatible data transfer rates include 10GbE, 5GbE. and 2.5GbE
- Brand: Synology
- MPN: 10G22-T1-Mini
- Part #: NICSYN2210
- UPC:
- Brand: Synology
- MPN: 10G22-T1-Mini
- Part #: NICSYN2210
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Network Cards (NIC)
Synology Ethernet Adapter 10G22-T1-Mini 10 GbE RJ-45 network upgrade module for RS422+ Compatible data transfer rates include 10GbE, 5GbE. and 2.5GbE
- Brand: Synology
- MPN: 10G22-T1-Mini
- Part #: NICSYN2210
Product URL: https://www.pbtech.co.nz/product/NICSYN2210/Synology-Ethernet-Adapter-10G22-T1-Mini-10-GbE-RJ
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features

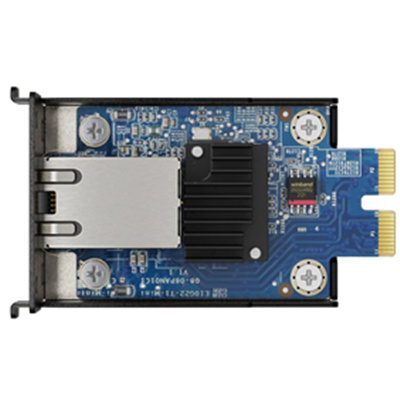

E10G22-T1-Mini
10GbE RJ-45 network upgrade module for compact Synology servers
Maximize bandwidth to tackle heavy-duty applications
The Synology E10G22-T1-Mini Network Upgrade Module is designed to easily and quickly upgrade your Synology system with 10GbE connectivity.1 Simple installation, low implementation cost, and support for nearly any network environment makes it the ideal solution for small businesses and home users looking to maximize the performance potential of their deployments.

Throughput
Expand system capabilities with 10GbE connectivity

Flexibility
Integrate easily with support for 10/5/2.5/1 Gbps networks

Compatibility
Designed for maximum performance and reliability in Synology systems
Simple installation
Install the E10G22-T1-Mini through the dedicated and easily-accessible network upgrade slot to instantly upgrade bandwidth availability in Synology servers featuring compact-size enclosures.
Multi-gig support
Integrate into any RJ-45 network environment with autonegotiation between 10, 5, 2.5, 1 Gbps, and 100 Mbps data rates based on actual network conditions.

Specifications
Host Bus Interface
PCIe 3.0 x2
Size (Height x Width x Depth)
26.37 mm x 45.38 mm x 75.7 mm
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-5°F to 140°F)
Relative Humidity
5% to 95% RH
IEEE Specification Compliance
IEEE 802.3x Flow Control
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet
IEEE 802.3an 10Gbps Ethernet
Data Transfer Rates
10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps
Supported Features
9 KB Jumbo Frame
TCP/UDP/IP Checksum Offloading
Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s
TCP Segmentation Offload (TSO)
Large Send Offload (LSO)
Receive Side Scaling (RSS)
Generic Receive Offload (GRO)
Generic Segmentation Offload (GSO)
Applied Models
23 series:DS923+, DS723+
22 series:RS422+, DS1522+
