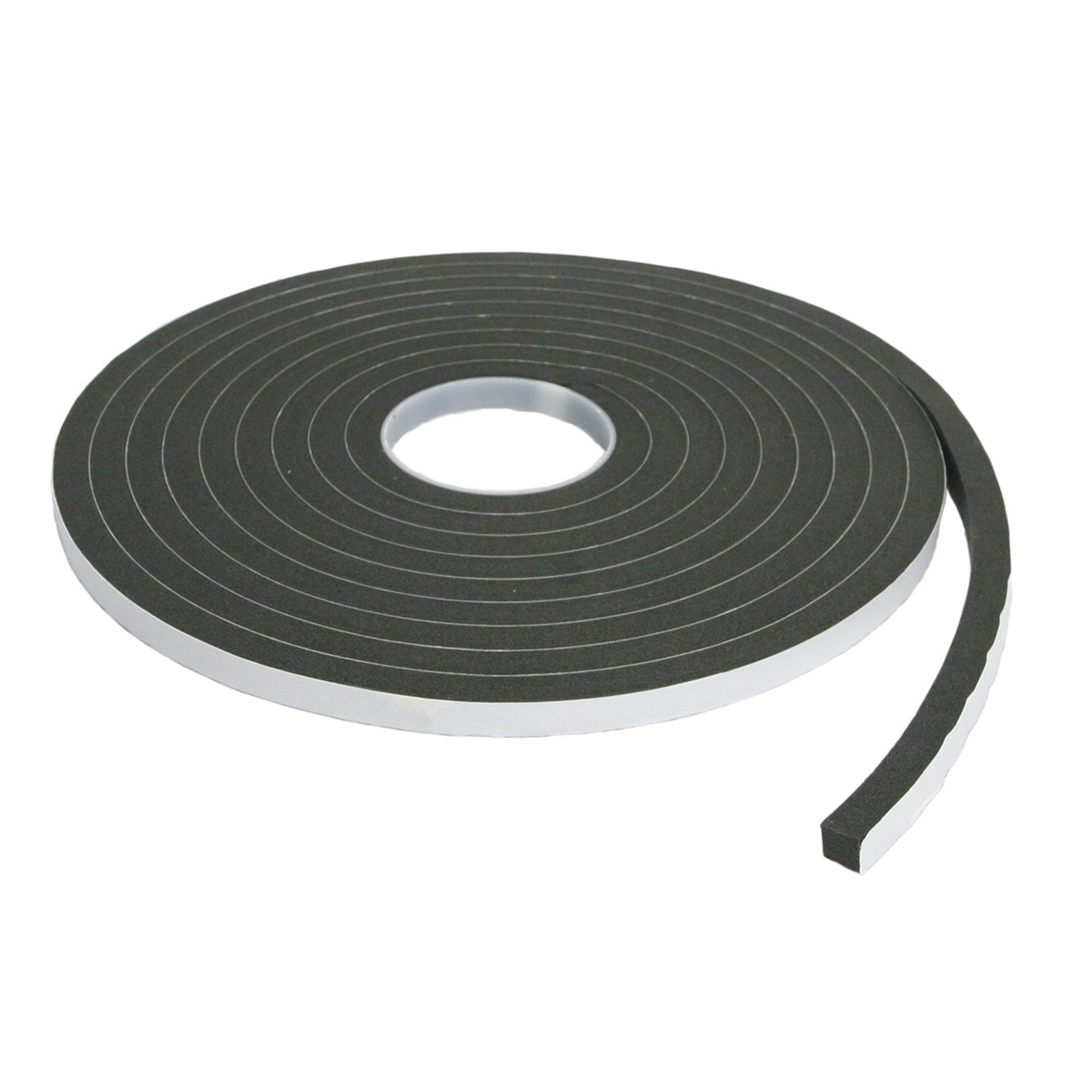

Inseal 3109 PKD

9mm Thickness - 10mm Width - 8m Length

  • Brand: Inseal
  • MPN: 3109090010PKD
  • Part #: OFSISL1469023
  • UPC:
PB Tech price
$ 20 .87 $ 24 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 19 Sep When will I receive it?
$20.87  +GST
$24.00
  • Brand: Inseal
  • MPN: 3109090010PKD
  • Part #: OFSISL1469023
  • UPC:

Features

Inseal 3109 is a soft closed cell foam coated on one side with an acrylic pressure sensitive adhesive. It has a removeable paper release liner on the other non-adhesive side. Inseal 3109 has a soft foam making it ideal for sealing between irregular or uneven surfaces, and has very easy compression. 3109 creates a consistent lasting bond. Inseal 3109 will act as a water-seal and air/dust seal when compressed. It is available in black.

- Good resistance to dilute acid and alkalis
- Very good UV light resistance
- Resistance to abrasion, corrosion and moisture
- Suitable for indoor and outdoor environments
- No known hazards associated with this product
- Clean edge finish

By hand direct from roll applying even pressure. Surface must be clean, dry and free from grease and dirt. Recommended cleaning agent is Propan-2-ol (IPA). Ensure compatibility of substrate with the solvent. Ideal bonding substrates are clean, dry, flat, smooth, dust-free and nonporous. Low temperatures may increase risk of condensation, reducing the tack of the product, and the life expectancy of the product will vary with temperature and humidity.

- Suitable for anti-rattle and anti-vibration applications
- Forms a compression watertight seal
- Forms a compression air/dust seal
- Cushioning and gap-filling of irregular surfaces
- For preventing electrolytic corrosion
- For anti-slip mounting

Specifications

Product Type

PKD Tape

Thickness

9mm

Width

10mm

Length

8m

Shore Hardness "00" Scale

25

Compression Required To Effect Seal

30% minimum

Force To Compress By 30%

1.5 N/cm²

Compression Deflection After One Minute

1.0 N/cm²

10 Minute 180° Peel Adhesion

5 N/25mm

Tensile Strength

28 N/cm²

Elongation At Break

< 170%

Thermal Conductivity (K)

0.055 Wm-1K-1

Chemical Resistance

Good resistance to dilute acids and alkalis

UV Light Resistance

Very good

Service Temperature

-30°C to +70°C

Recommended Application Temperature

+10°C to +40°C

Adhesive

Acrylic

Manufacturer Part No:
3109090010PKD
Brand:
Inseal
Product Type:
PKD
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
OFSISL1469023
Product Model:
3109
Warranty: 12 months *
