Zebra ZT23142-T0PC00FZ TT PrinterZT2314203dpiThermalTransferTearUK/AU/JP/EUCordsUSBSerialEthernetBTLE USB Host Wireless 802.11ac Global except US/Canada/Japan EZPL

PB Tech price
PB Tech price
$ 2,046 .09
 +GST
$ 2,353 .00
 inc GST

Out of stock

Zebra ZT23142-T0PC00FZ TT PrinterZT2314203dpiThermalTransferTearUK/AU/JP/EUCordsUSBSerialEthernetBTLE USB Host Wireless 802.11ac Global except US/Canada/Japan EZPL

  • Brand: Zebra
  • MPN: ZT23142-T0PC00FZ
  • Part #: POSZBR5573893
  • UPC:
PB Tech price
$ 2,046 .09 $ 2,353 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

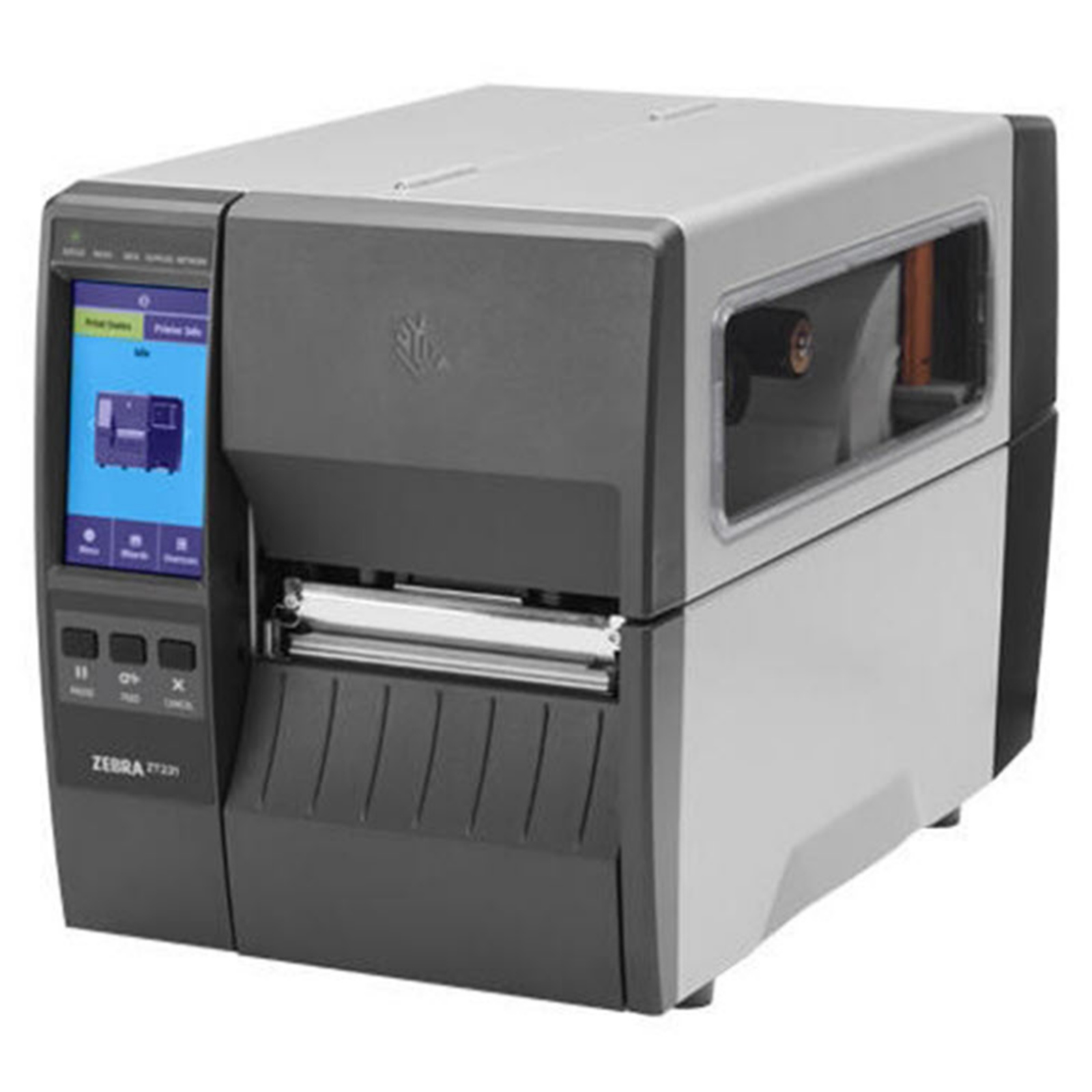

Zebra ZT231 label printers have a small footprint and future-forward design. It has a bi-fold door that reduces the height needed to open the printer. The printer's side-loading path makes loading media and ribbon easier.

On the front of the printer has five color-coded LED status indicators, three operational buttons, and a paper exit chute.

The status indicators are located above the display. These indicators help you keep an eye on the printer's operational status and take necessary actions. The five color-coded LED indicators are:

Status light - Shows if the printer is ready to take up print jobs
Pause light - Indicates that the printer is paused
Data light - Shows that the data is being transferred
Supplies light - Indicates the status of consumables like ribbon and media
Network light - Indicates active network connection

Operational buttons are located below the display. These buttons are.

Pause button - Used to start or stop printer operations
Feed button - Used to feed blank label
Cancel button - Used to cancel print jobs
The glass window on the left side of the body provides a clear view of the printing process and makes it easy to monitor if the labels are being fed correctly.

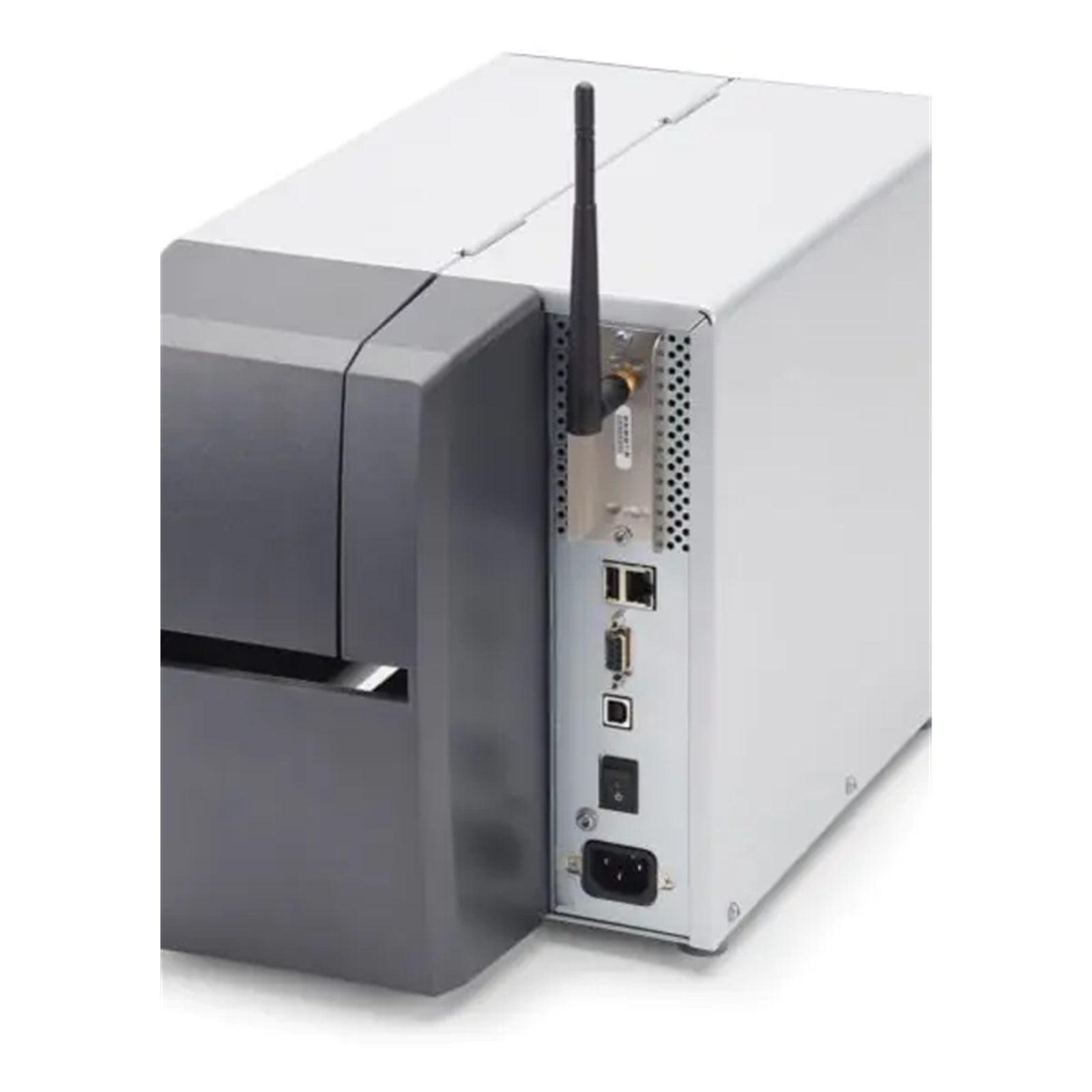

Connectivity ports and power sockets are located at the back of the printer.

Intuitive Colored Display

The touch-enabled 4.3-inch full-colored display is the primary interface to configure printer settings, preview label designs, and monitor printer status.

The display can also be used to access setup wizards and helpful how-to videos. These videos include step-by-step instructions for common tasks like installing the ribbon and media.

Videos reduce training time and make it easy for first-time users to get started with the printer.

The display on the device supports input from a finger, gloved hand, or a stylus.

Printing Modes

Zebra ZT231 industrial printer supports direct thermal and thermal transfer printing methods.

Direct thermal printing uses a heat-sensitive label that blackens when exposed to heat. This method is ideal for short-lived labels that do not need to withstand harsh conditions.

Thermal transfer printing uses wax or resin-based ribbon. The ribbon is heated and then transferred to the label. Thermal transfer printing is ideal for long-term labeling applications as it produces labels that are more durable and resistant to fading.

Printing Capabilities

ZT231 can print labels and barcodes at a resolution of 203 dpi (8 dots/mm) and 300 dpi (12 dots/mm). With 300 dpi resolution capability, you can print crisp text and detailed graphics.

The printing speed of the device varies based on the print resolution you choose. At 203 dpi, the printer can print at a speed of 12ips. Whereas at 300 dpi, it can print at a speed of 8ips.

The printer has a maximum print width of 104 mm (4.09 inches). The maximum print length varies based on the chosen print resolution. At 203 dpi, the maximum print length is 3988 mm (157 inches), Whereas, at 300 dpi, it is 1854 mm (73 inches).

Zebra ZT231 features a thin film printhead with E3 (Element Energy Equalizer). E3 is a Zebra-exclusive technology that balances the heat across the printhead.

E3 technology ensures that every dot receives the same amount of heat, resulting in consistent and superior print quality.

Zebra ZT231 also comes with auto-calibration. Auto-calibration refers to the ability of the printer to adjust itself automatically to ensure that labels are printed at the correct length and width.

This feature saves you time as you do not need to calibrate the printer manually.

The printer auto-calibrates when it is turned on or when the printhead is closed. The auto-calibration process takes approximately two to three labels.

Specifications

Media Specifications

Maximum non-continuous label length

991 mm (39 inches)

Minimum label length

Tear mode - 18 mm (0.7-inch)
Cutter mode - 25 mm (1-inch)
Peel mode - 13 mm (0.5-inch)

Media width

19.4 mm - 114 mm (0.75 inches - 4.5 inches)

Media thickness (label and liner)

0.076 mm to 0.25 mm (0.003-inch - 0.010-inch)

Maximum media roll dimensions

203 mm (8 inches) O.D. on a 76 mm (3 inches) I.D. core
152 mm (6 inches) O.D. on a 25 mm (1-inch) I.D. core

Ribbon Specification

Ribbon type

Wax, Resin, Wax-Resin

Ribbon core

25 mm (1-inch)

Maximum ribbon width

110 mm (4.33 inches)

Minimum ribbon width

40 mm (1.57 in)

Ribbon length

450 m (1467 inches)

Maximum ribbon roll size

81.3 mm (3.2 inches) O.D. on a 25.4 mm (1-inch) I.D. core

Ribbon wound type

Ink coated outside wound

Manufacturer Part No:
ZT23142-T0PC00FZ
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
11 kg
PB Part No:
POSZBR5573893
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
