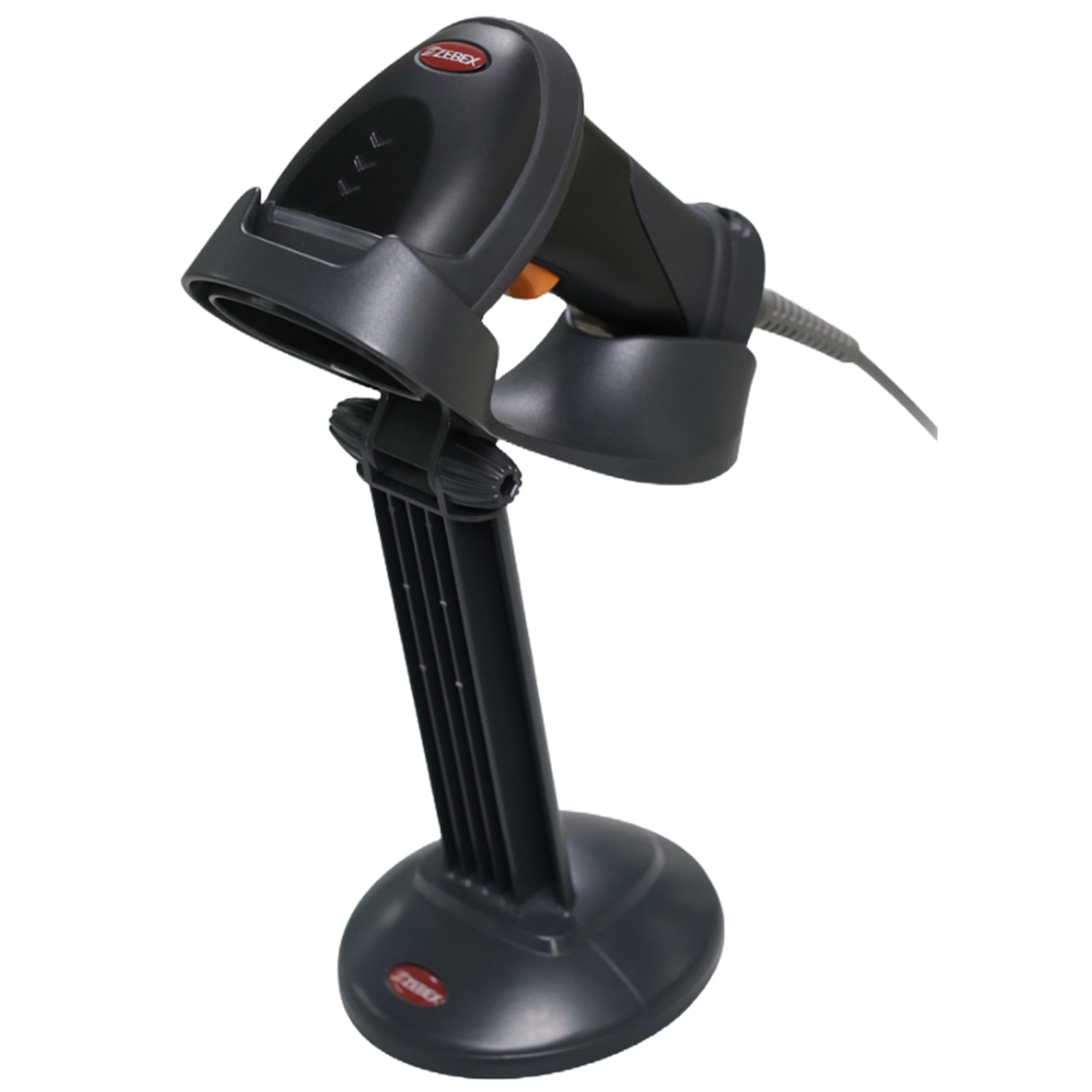

Zebex Z-3392 Plus Linear Imager 2D Barcode Scanner USB Black + Stand
Out of stock
Zebex Z-3392 Plus Linear Imager 2D Barcode Scanner USB Black + Stand
- Brand: Zebex
- MPN: 88H-39PLUB-0S1
- Part #: POSZEB2180
- UPC:
- Brand: Zebex
- MPN: 88H-39PLUB-0S1
- Part #: POSZEB2180
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Barcode Scanners





Zebex Z-3392 Plus Linear Imager 2D Barcode Scanner USB Black + Stand
- Brand: Zebex
- MPN: 88H-39PLUB-0S1
- Part #: POSZEB2180

Product URL: https://www.pbtech.co.nz/product/POSZEB2180/Zebex-Z-3392-Plus-Linear-Imager-2D-Barcode-Scanner
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

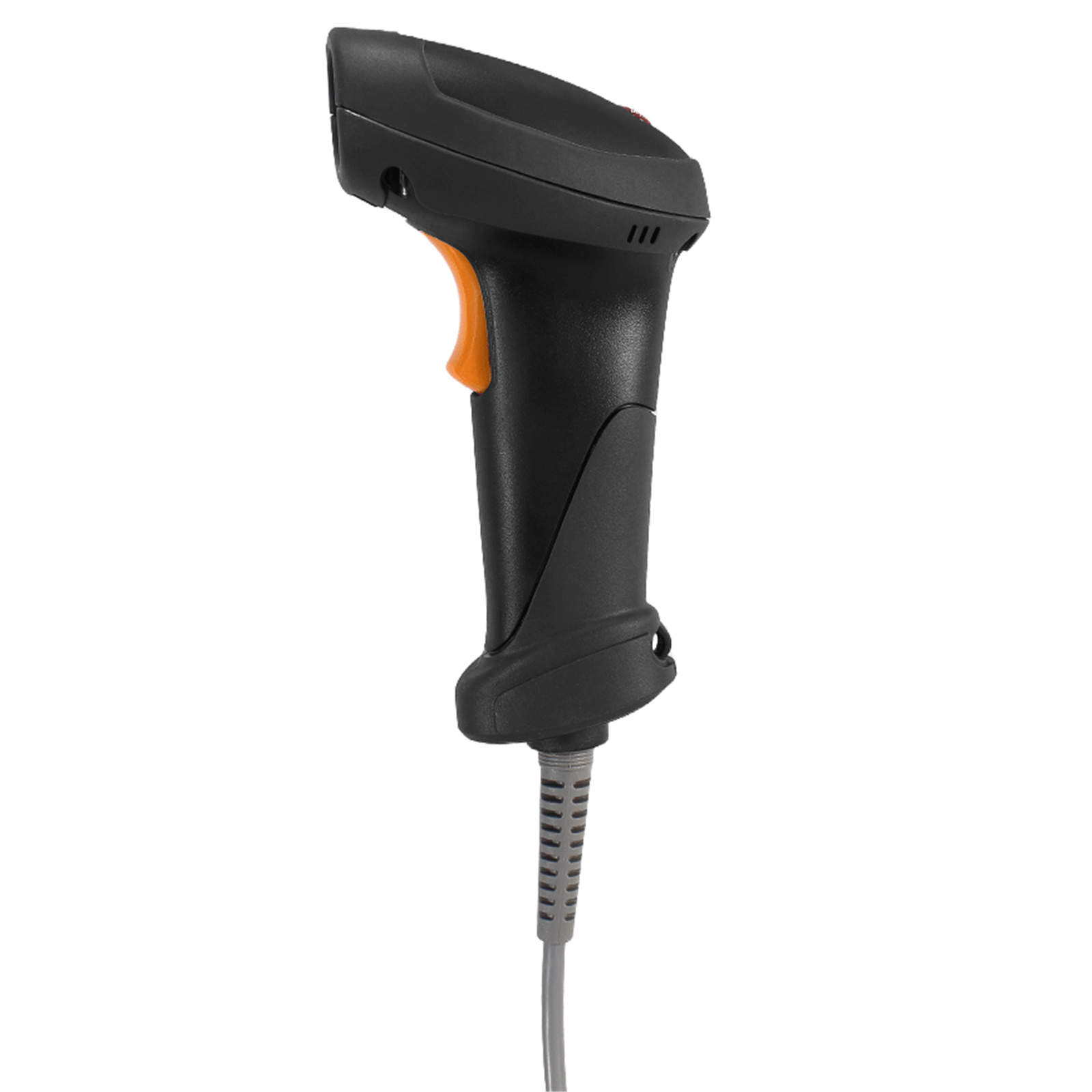

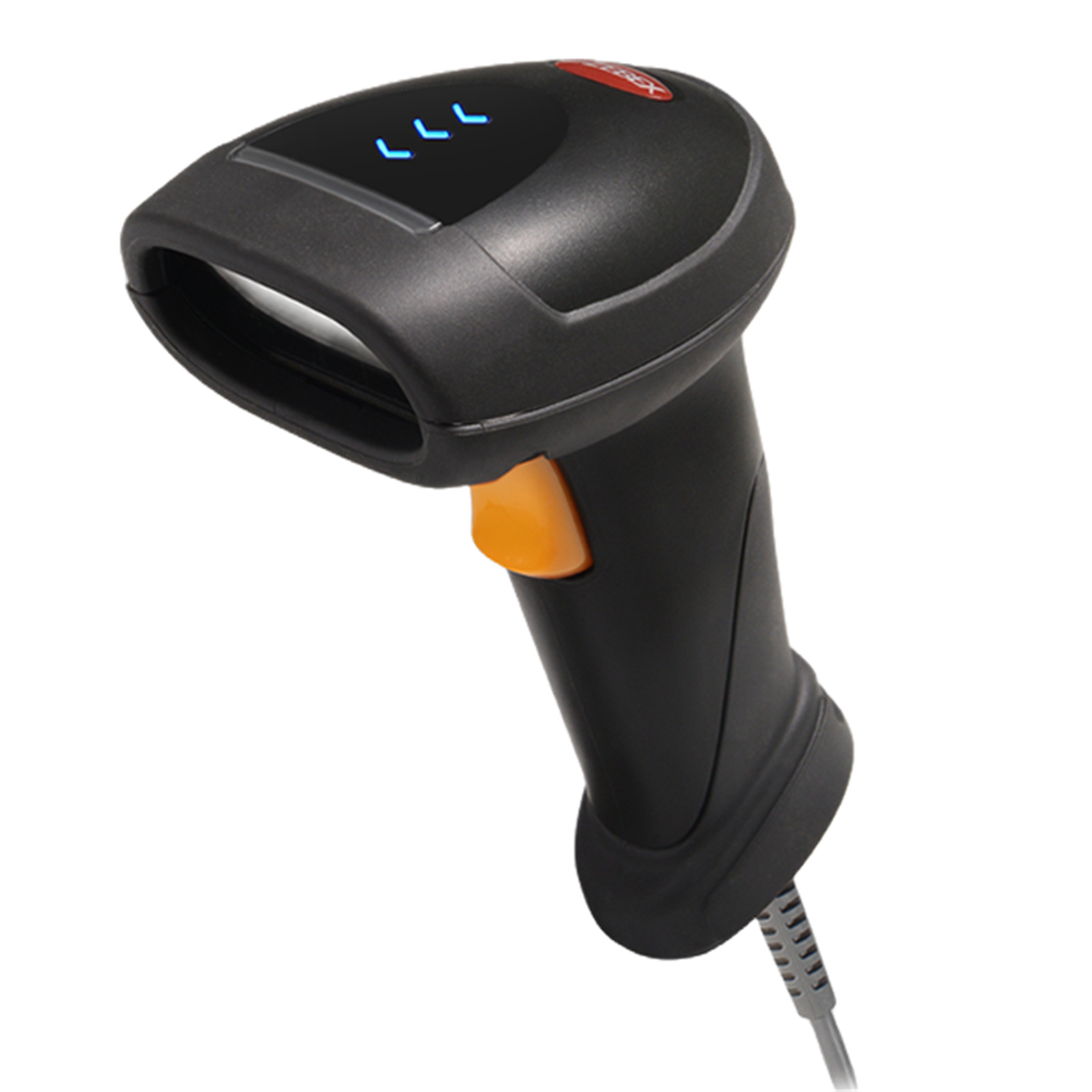

Zebex Z-3392 Plus 2D Laser Handheld USB Barcode Scanner + Stand
Z-3392 Plus features all-around capabilities comparable to top line product on the market. It includes a few key refinements from the previous model with barcode stitching capability, flexible application, better 1D and 2D scanning performance, and the all-important durable design for tough working conditions. It is a scanner with great value and is ideal for use in the retail industry.
- Ergonomic, rugged design
- Decode most 1D & 2D barcodes
- LED indication and programmable beeper
- Affordable high performance
Specifications
Operational
Aiming Element
617nm visible LED
Illumination Element
6500K white LED
Optical System
1280H x 720V pixels (1.0M)
Depth of Field
Code39 (5 mil)
50 - 150 mm; EAN 13 (13 mil) : 30 - 280 mm
Min. Bar Width
4mil @ PCS=90%(code39)
Field of View
38.6°Horizontal x 24.9°Vertical
Focusing Distance
7.5cm
Sensitivity
360°
Print Contrast
30% @ UPC/EAN 100%
Indicator
Two-color LED (blue,red)
Programmable Operation
Programmable tone & beep time
System Interface
RS-232, USB
Physical Characteristics
Dimensions (H x W x L)
82.4 x 66.6 x 163.0 mm (device only)
Weight
143 g (device only)
Cable
Standard 2M straight
Power
Input Voltage
5 VDC ± 10%
Operating Current
115mA typical (avg.)
Environment & Safety
Operating Temperature
0 °C to 40 °C
Storage Temperature
-20°C - 60°C
Humidity
5% - 90% RH (non-condensing)
Light Level
Max. 100,000 Lux (fluorescence)
Drop Durability
Designed to withstand 1.5M drops
Decoding Capability
1D Barcode
UPC / EAN ( UPCA / UPCE / EAN-8 / EAN-13, ISBN ( Bookland ), Code 39 , Code 32 ( Italian Pharmacode ), Code 128, Code 93, Codabar, Interleaved 2 of 5,Standard 2 of 5, Industrial 2 of 5, Matrix 2 of 5 ( Japanese ), Code 11, Telepen, Pharmacode, Chinese post code, MSI Plessey, GS1 DataBar ( Limited, Truncated, Stacked, Stacked Stacked, Expanded, Expanded Stacked )
2D Barcode
QR Code, Micro QR Code DataMatrix MaxiCode, Aztec, PDF417, MicroPDF417, PostNet, PLANET, Australia, Royal Post, CODABLOCF ( CCA, CCB, CCC )
What's Included
Package Contents
Zebex Z-3392 Plus Scanner
Stand
