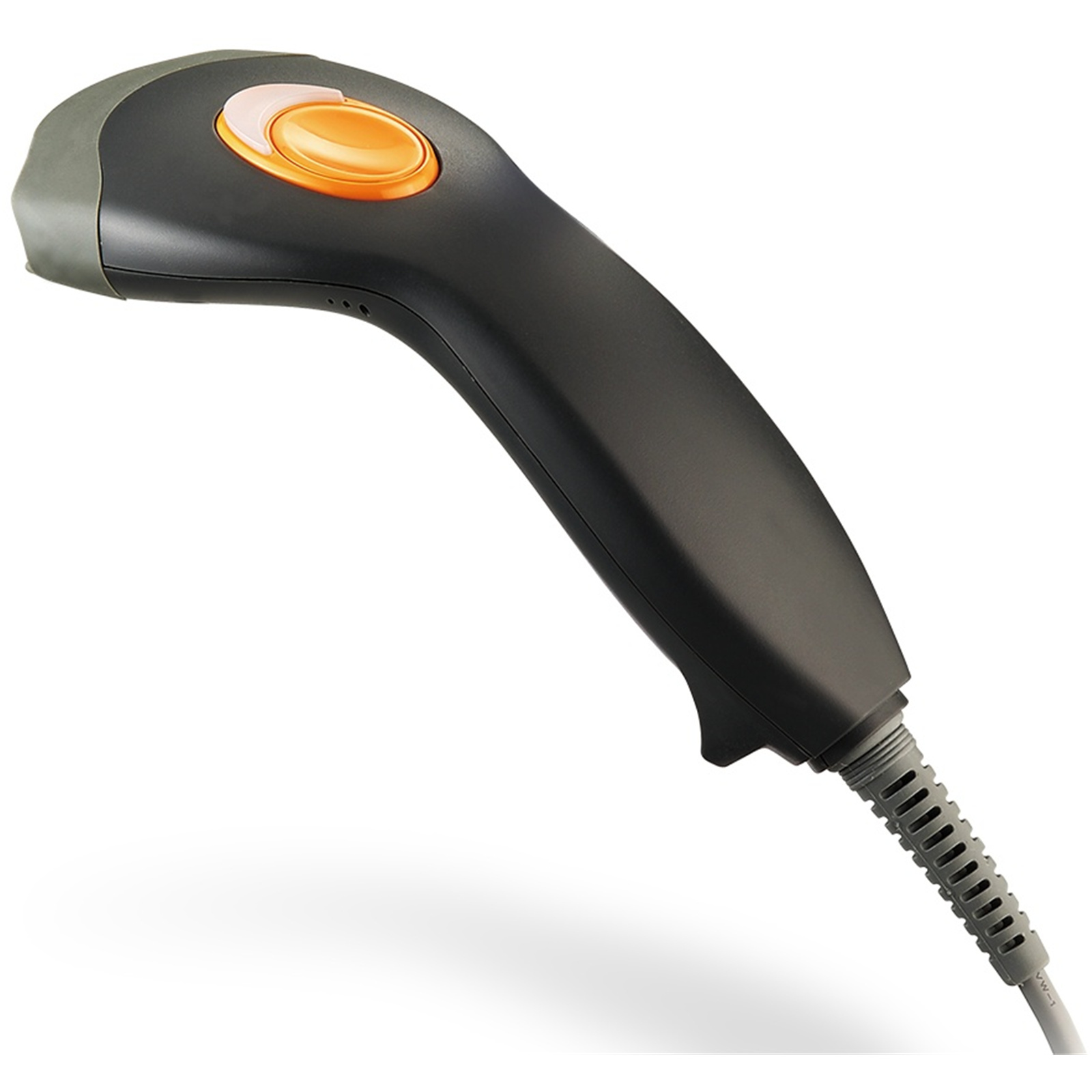

Zebex Z-3102 Handheld Scanner USB 1D & 2D Wired

  • Brand: Zebex
  • MPN: 88H-0200UB-001
  • Part #: POSZEB2242
  • UPC:
CLEARANCE
1
With promo code $111.52
With promo code $128.25
Save $5 with code CLEARANCE
Save $6 with code CLEARANCE
Without promo code
$ 117 .39 $ 135 .00
 +GST  inc GST
Tax free price $118.21*
*Price includes surcharge

Part of Clearance Zone
For a limited time only, only 2 units left!


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 15 Sep When will I receive it?
$117.39  +GST
$135.00
  • Brand: Zebex
  • MPN: 88H-0200UB-001
  • Part #: POSZEB2242
  • UPC:

Features


Zebex Z-3102 Handheld Scanner USB 1D & 2D Wired

Elevate your scanning experience with the Z-3102, the enhanced edition of ZEBEX's middle-range handheld 2D image scanner series. This device introduces cutting-edge features meticulously engineered to transform your scanning process and propel your efficiency to extraordinary levels. Powered by advanced image processing technology, the Z-3102 excels in reading 1D, 2D, and postal barcodes at high speed from any direction and offers an ergonomic design for user comfort and boasts low power consumption.

- Streamline design and large trigger for effortless operation
- Captures barcodes on mobile phones, tablets, or computer screens
- High speed, omnidirectional reading of 1D, 2D and postal barcodes
- Extremely low power consumption
- Affordable high performance

Specifications

OPERATIONAL

Aiming Element

617 nm LED

Illumination Element

White LED

Optical System

1280H × 800V CMOS

Depth of Field

Code39 ( 4 mil ) : 30 - 130 mm
Code39 ( 5 mil ) : 30 - 160 mm
EAN 13 ( 13 mil ) : 30 - 300 mm
QR Code ( 7 mil ): 30 - 125 mm
Data Matrix ( 7 mil ): 40 - 130 mm
(Note: DOF may vary depending on environment condition and barcode quality.)

Min. Bar Width

4 mils (Code39)

Print Contrast

30% @ UPC/EAN 100%

Indicator

Blue LED

Beeper Operation

Programmable tone & beep time

System Interface

RS-232, USB

PHYSICAL CHARACTERISTICS

Dimensions H x W x L

152.3 x 64.4 x 104.9 mm (device only)

Weight (g)

86.5 g (device only)

Cable

Standard 2M straight

POWER

Input Voltage

5 VDC ±10%

Operating Current

150 mA @ 5V ( Typical )

REGULATORY

EMC

CE & FCC DOC compliance, VCCI, BSMI, UKCA

Safety

IEC 62471

ENVIRONMENT & SAFETY

Operating Temperature

0°C ~ 50°C ( 32°F ~ 122°F )

Storage Temperature

-20°C ~ 60°C ( -4°F ~ 140°F )

Humidity

5%~95% RH (non condensing)

Light Level

l0 to 100,000 lux

Drop Durability

Designed to withstand 1.5M drops

DECODING CAPABILITY

1D Barcode

UPC/EAN (UPCA/UPCE/ EAN-8/ EAN-13), Code 128, Code 93, Code 39, Code 32, Code 11, Codabar, Plessey, MSI, 2 of 5 (Interleaved, IATA, , Matrix, Straight), Pharmacode, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited

2D Barcode

PDF417, Micro PDF417, Data Matrix, QR Code (Standard, Micro), Aztec, MaxiCode, DotCode

Manufacturer Part No:
88H-0200UB-001
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.3 kg
PB Part No:
POSZEB2242
Product Model:
Z-3102
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
