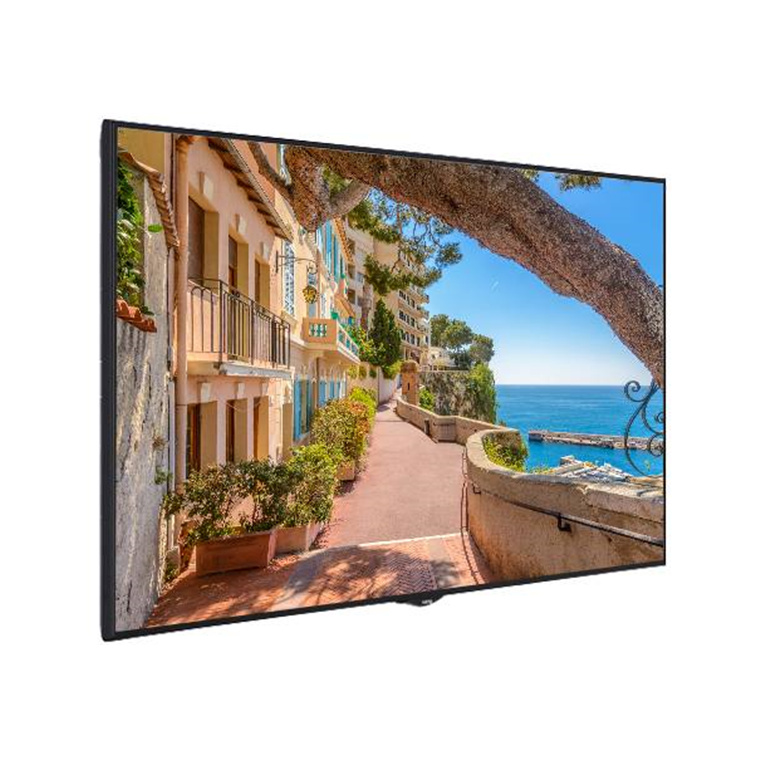

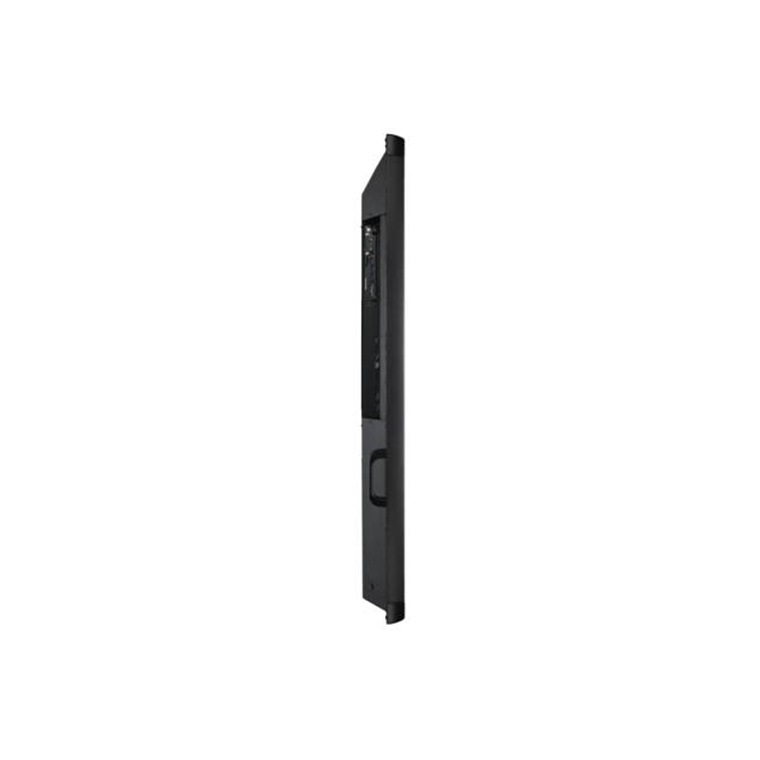

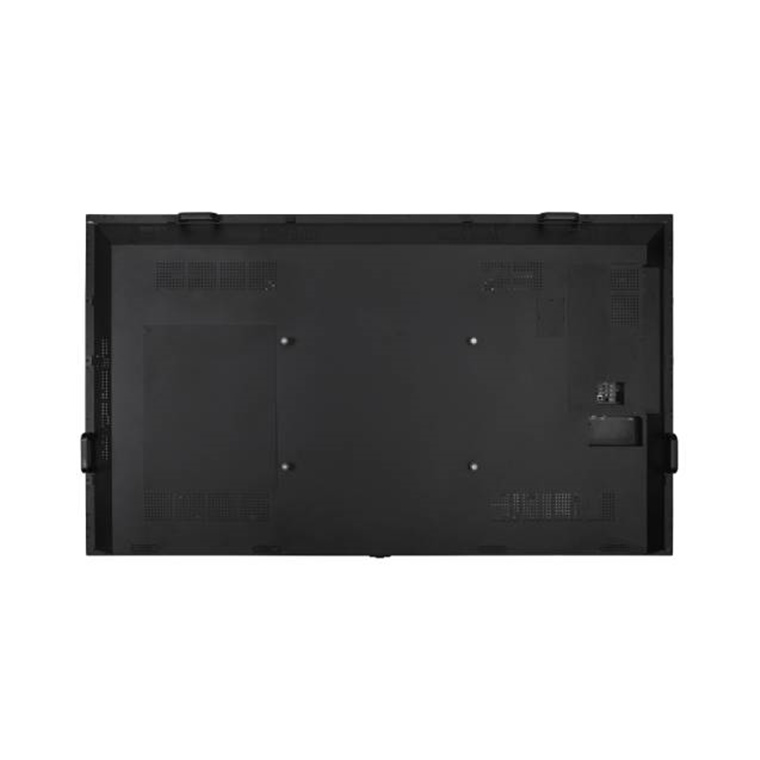

Vestel 86" 4K UHD Signage Display

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Vestel 86" 4K UHD Signage Display

  • Brand: Vestel
  • MPN: UHM86SH80B-4
  • Part #: PRAVTL1011
  • UPC:
  • Brand: Vestel
  • MPN: UHM86SH80B-4
  • Part #: PRAVTL1011
  • UPC:

DisplayPorts

Not Specified

HDMI Ports

4

Refresh Rate

60hz

Screen Size

86 inches

Smart

N/A

USB Ports

2

VESA Size

600 x 400

Screen Resolution

3840x2160

Features

Display Control over RS232 and LAN

Our platform allows users to control their displays, using a large range of commands through either a Local Area Network or direct RS232 Serial connection.

Wireless Display

Using either Microsoft Wireless Display Adaptor or Android Screen Sharing functions on Windows and Android devices, you can mirror screen to the display using embedded wireless display capabilities without using any external devices or cables.

Menu Lock

The menu lock feature allows the displays menus to be locked after installation in order to prevent any changes or access whilst being used in a public area.

SoC

HTML-5 based applications can be developed to work directly within the SoC platform of our displays. The displays are capable of working in either online or offline mode.

Auto Launch

We have made it easy to give any HTML5-based application link to the display within the SoC software. Upon this, the display will start with the given link. The application can either be an offline or an online application, allowing the customers to execute their own application.

Embedded CMS

Embedded content management program which supports playback library, ready templates and scheduler. With its simple and intuitive menus and layout options, it is effective for small and medium enterprises to make easy content management.



HDR10 & 4K HDMI @60Hz

By HDR10 compatibility, customers can guarantee that all featured content meets HDR guidelines and reaches superior picture quality as clearly and brightly as possible. Different than many products in the market, 4K content over HDMI source is supported at 60Hz.

DAP (Dolby Audio Processing) Technology

Our displays provide a comprehensive sound performance by using Dolby's latest technology DAP. With embedded DAP Technology, superior sound performance achieves by intelligent audio equalizing, dialog enhancements and surround sound upmixing.

Scheduler

Digital Signage Monitor Software allows many important features such as Scheduler. Scheduler sets your display turn on/off time easily and lets you not to worry about the status of your displays in any time.

Pixel Shifting

Pixel Shifting is designed to be activated inside the SoC in order to prevent for potential risk of image sticking, caused by constant content. With this feature turned on, pixels on the screen will move in an interval while causing no interference of visual experience.

Source Switching

It is made available to set any Source on startup of the display. It can also be switched on any other signal source using scheduler and failover scenarios. This lets the users to freely control the process of their requirements allowing best user experience.

HDMI Wake Up

To maximize the user experience while using external video devices such as mediaplayers, display controllers or PCs, all our devices have HDMI Wakeup feature ready to turn on/off the display by simply pluging/unplugging the HDMI cable.

Specifications

Panel

Screen Size

86"

Backlight Type

Edge-Type LED

Brightness (typical)

400

Native Resolution

UHD: 3840 x 2160 - HDR10

Contrast Ratio (typical)

1200:1

Dynamic Constrast Ratio

40000:1

Panel Life Time ( Min. )

30000 Hrs

Response Time (typical)

8 ms

Active Area (H x V)

1895 x 1066 mm

Pixel Pitch (H x V)

0.4935 x 0.4935 mm

PPI (pixel per inch)

52

Viewing Angle

178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10

Color Value

1.07 B (10-bit)

Screen Treatment

2H

Haze Level

3%

Refresh Rate

60 Hz

Front Type

SNB

Orientation

Horizontal

Operation Hours

16/7

Area of Usage

Indoor

Mainboard

Mainboard Model

17MB135VS

Monitor Connectivity

RGB Input

VGA(DE-15F)

RGB Output

N/A

Video Input

4xHDMI2.0, 2xUSB2.0, USB2.0(Internal)

Video Output

HDMI2.0

Audio Input

Line In L/R

Audio Output

Headphone, Optic SPDIF

External Control

RS232(DE-9F), Ethernet(RJ45), Service(RJ12)

External Sensor

RJ12

Mechanical

Product Dimensions (WxDxH)

1975 x 103 x 1146 mm

Package Dimensions (WxDxH)

2163 x 318 x 1405 mm

Product Weight

65.8 kg

Package Weight

85.6 kg

Vesa Mounting

600 x 400 mm - M6

Bezel Width

B:38 | T:38 | L/R:38 mm

Environmental Conditions

Operating Temperature

0-40°C

Operating Humidity

10-90%

Power

Power Supply

110 VAC - 240 VAC - 50/60 Hz

Power Consumption

Typical

254 W

Deep Standby

=0.5 W

Features

Main Features

Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD Rotation, NoSignalPowerOff, Screen Saver, Pixel shift, Scheduler, Videowall support, remote control via LAN, Real Time Clock

Mechanical Features

Joystick, IR Extender Support, Rocker Switch, Detachable power cable, Carrying slots, Detachable logo positioning, Internal usb cover, Cable Holder

Optional Features

OPS Compliance

Speaker

2 x 12 W

Manufacturer Part No:
UHM86SH80B-4
Brand:
Vestel
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
20 kg
PB Part No:
PRAVTL1011
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
