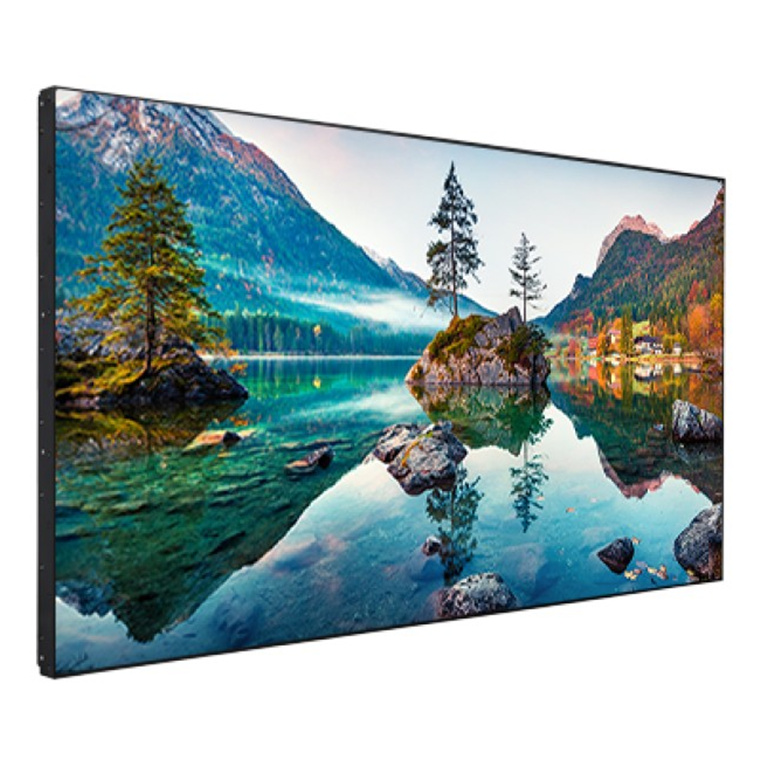

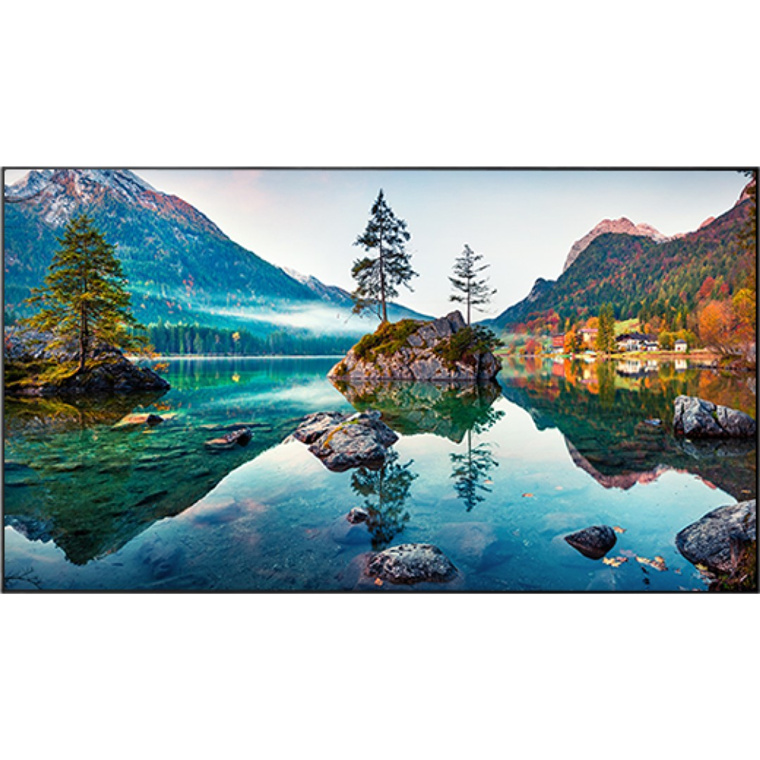

Vestel WU55B-2H Vestel 55in Ultra Narrow Wall Display
Vestel WU55B-2H Vestel 55in Ultra Narrow Wall Display
- Brand: Vestel
- MPN: WU55B-2H
- Part #: PRAVTL1030
- UPC:
- Brand: Vestel
- MPN: WU55B-2H
- Part #: PRAVTL1030
- UPC:
Similar in-stock products available at PB Tech right now
Features
Remote Control
Any number of Vestel VWs can be remotely controlled over RS232 Loop configuration. This eases the installation process of the VW displays, by controlling and configuring all the units via PC at the same time.
Video Wall Controller Tool
This new software puts ease of use for Video walls by reaching Auto/Manual parameter setup on each/multi/all selected display, Remote control by IR Simulation or LAN/RS232 Control and Video and Picture rotation for Informal Layouts on one software.
Eco Design
Vestel VWs are made to operate at lower energy usage while performing at high levels. Also, Vestel follows the worldwide standards for limiting harmful substances and eliminating waste products.
Wall Mount Option
Vestel presents the Wall Mount option for landscape usage. Vestel Wall mounts are able to move in all possible directions making it easy to place and align the bezels perfectly.
Longer Stability
Vestel VWs are able to tolerate longer hours of operation, equipped with pixel-shifting feature to prevent a fixed image from sticking on the screen.
Great Picture with Different Brightness Option
Create a seamless and striking visual experience with our Video Wall displays. Offering 500-700 Nit options, our monitors can display your content in picture perfect resolution, whatever the lighting conditions.
Higher Visibility
Vestel panels come with anti-reflective treatment to decrease glare under strong light exposure. Aside from glare protection, 700 Nits VWs ensure high visibility even under high levels of ambient light.
White color Calibration
For managing color uniformity with highest performance, color calibration has been made available for on-site maintenance. This results in a more uniform colour distribution and minimised colour distortion.
Real Ultra HD Resolution
With our videowall you can deliver real UHD resolution in a 2 x 2 arrangement. The videowalls are capable of combining 4 x FHD displays to create a single Real UHD image without the need of external processing or scaling devices.
Daisy Chain with Display Port or HDMI Option
Reduce cost and maximize video quality with Vestel's Video Wall displays, using Display Port 1.2a-enabled or HDMI 2.0 screens, Vestel offers a daisy chain solution that cuts the cost of installation, cabling and maintenance. This daisychained monitor set up also ensures a more immersive viewing experience.

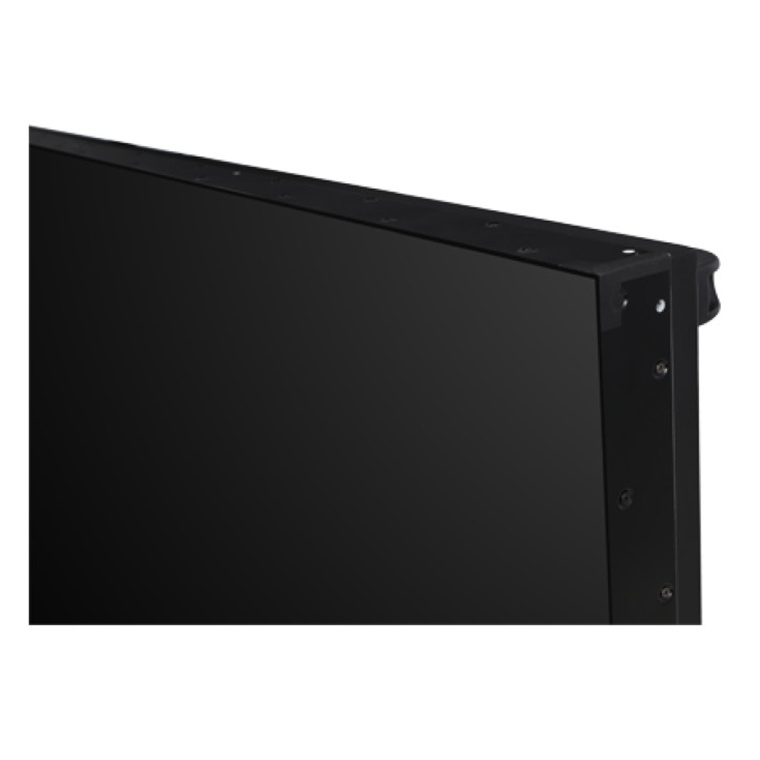

Ultra / Extra / Razor Narrow Bezel
Reducing the gap between each display area. Vestel's designs help create an almost seamless overall on screen image with 3.5 mm, 1.8 mm and less than 1 mm combined bezels.
Landscape and Portrait Mode
Our Video Walls can be displayed in either landscape or portrait mode. Vestel's 24/7 professional displays not only allow for installation in portrait mode, but also for additional display protection. The displays' Pixel Shifting feature reduces the risk of any on-screen imagery sticking.
IPS Reliability
Vestel IPS displays present the most clear image in both landscape and portrait orientation without any image distortion. IPS also provides 178o ultra-wide viewing angle, displaying the most accurate image quality.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Standalone Displays
Samsung QM32C 32" Full HD Digital Signage Display -- 400Nit, ...
LG UR640S 75" 4K Commercial TV
LG 110UM5K-B 110" UHD Digital Signage Display - 16x7 , 500nit , ...
Samsung QB43C 43" UHD Digital Signage Display - 16x7, 350Nit
Samsung QM55B-T 55" UHD Touch Screen
Vestel WU55B-2H Vestel 55in Ultra Narrow Wall Display
- Brand: Vestel
- MPN: WU55B-2H
- Part #: PRAVTL1030
Product URL: https://www.pbtech.co.nz/product/PRAVTL1030/Vestel-WU55B-2H-Vestel-55in-Ultra-Narrow-Wall-Disp
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Remote Control
Any number of Vestel VWs can be remotely controlled over RS232 Loop configuration. This eases the installation process of the VW displays, by controlling and configuring all the units via PC at the same time.
Video Wall Controller Tool
This new software puts ease of use for Video walls by reaching Auto/Manual parameter setup on each/multi/all selected display, Remote control by IR Simulation or LAN/RS232 Control and Video and Picture rotation for Informal Layouts on one software.
Eco Design
Vestel VWs are made to operate at lower energy usage while performing at high levels. Also, Vestel follows the worldwide standards for limiting harmful substances and eliminating waste products.
Wall Mount Option
Vestel presents the Wall Mount option for landscape usage. Vestel Wall mounts are able to move in all possible directions making it easy to place and align the bezels perfectly.
Longer Stability
Vestel VWs are able to tolerate longer hours of operation, equipped with pixel-shifting feature to prevent a fixed image from sticking on the screen.
Great Picture with Different Brightness Option
Create a seamless and striking visual experience with our Video Wall displays. Offering 500-700 Nit options, our monitors can display your content in picture perfect resolution, whatever the lighting conditions.
Higher Visibility
Vestel panels come with anti-reflective treatment to decrease glare under strong light exposure. Aside from glare protection, 700 Nits VWs ensure high visibility even under high levels of ambient light.
White color Calibration
For managing color uniformity with highest performance, color calibration has been made available for on-site maintenance. This results in a more uniform colour distribution and minimised colour distortion.
Real Ultra HD Resolution
With our videowall you can deliver real UHD resolution in a 2 x 2 arrangement. The videowalls are capable of combining 4 x FHD displays to create a single Real UHD image without the need of external processing or scaling devices.
Daisy Chain with Display Port or HDMI Option
Reduce cost and maximize video quality with Vestel's Video Wall displays, using Display Port 1.2a-enabled or HDMI 2.0 screens, Vestel offers a daisy chain solution that cuts the cost of installation, cabling and maintenance. This daisychained monitor set up also ensures a more immersive viewing experience.
Ultra / Extra / Razor Narrow Bezel
Reducing the gap between each display area. Vestel's designs help create an almost seamless overall on screen image with 3.5 mm, 1.8 mm and less than 1 mm combined bezels.
Landscape and Portrait Mode
Our Video Walls can be displayed in either landscape or portrait mode. Vestel's 24/7 professional displays not only allow for installation in portrait mode, but also for additional display protection. The displays' Pixel Shifting feature reduces the risk of any on-screen imagery sticking.
IPS Reliability
Vestel IPS displays present the most clear image in both landscape and portrait orientation without any image distortion. IPS also provides 178o ultra-wide viewing angle, displaying the most accurate image quality.
Specifications
Panel
Screen Size
55"
Panel Technology
IPS
Backlight Type
DLED
Brightness (typical)
500 cd/m²
Native Resolution
1920 x 1080 (16:9) - FHD
Contrast Ratio (typical)
1200:1 (typ.)
Dynamic Contrast Ratio
50000:1
Life Time (typical)
60000 Hrs
Response Time (typical)
8 ms
Active Area (H x V)
1209.6 x 680.4 mm
Pixel Pitch (H x V)
0.630 x 0.630 mm
Viewing Angle
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value
1.07 B (10-bit)
Screen Treatment
2H
Haze Level
28%
Refresh Rate
60 Hz
Front Type
Ultra narrow bezel
Orientation
Landscape/Portrait
Operation Hours
24/7
Area of Usage
Indoor
Built-in System
Mainboard Model
17MB135VS
Monitor Connectivity
RGB Input
VGA (DE-15F)
Video Input
2xHDMI2.0, 2xUSB2.0
Video Output
1xHDMI2.0
Audio Input
Line In L/R
Audio Output
Headphone, Optic SPDIF
External Control
RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
External Sensor
RJ12
Environmental Conditions
Operating Temperature
+50°C / 0°C
Operating Humidity
90%
Power
Power Supply
110 VAC - 240 VAC
Power Consumption
Typical
138 W
Maximum
260 W
Deep Standby
0.5W
Mechanical Features
Size
1213.4 (W) x 114.39 (D) x 684.2(H) mm
Shipping Size
1366 (W) x 277 (D) x 836 (H) mm
Weight (kg)
37.7 kg
Shipping Weight
45.1 kg
Vesa Mounting Size
600 (W) x 400 (H) mm M8
Bezel Width
3.8 mm (active-to-active), 3.5 mm (bezel-to-bezel)
Features
Main Features
Videowall setup with Daisy-Chain, Open Content Management Support, Manual Fine Color Calibration, Videowall Scheduler, Auto-Launch, Auto-switch on Failover, Panel Lock
Mechanical Features
ON/OFF Button, IR Extender, Carrying Handles , OPS option (with a costup)
Speaker
N/A
Accessory
Standard
QSG, IB, Power Cord, Remote Control, RC Battery, Display Port Cable, USB to Rs232 Converter
Mounting Kit
Standard
Certification
Safety
Yes
EMC
Yes
CE
Yes
