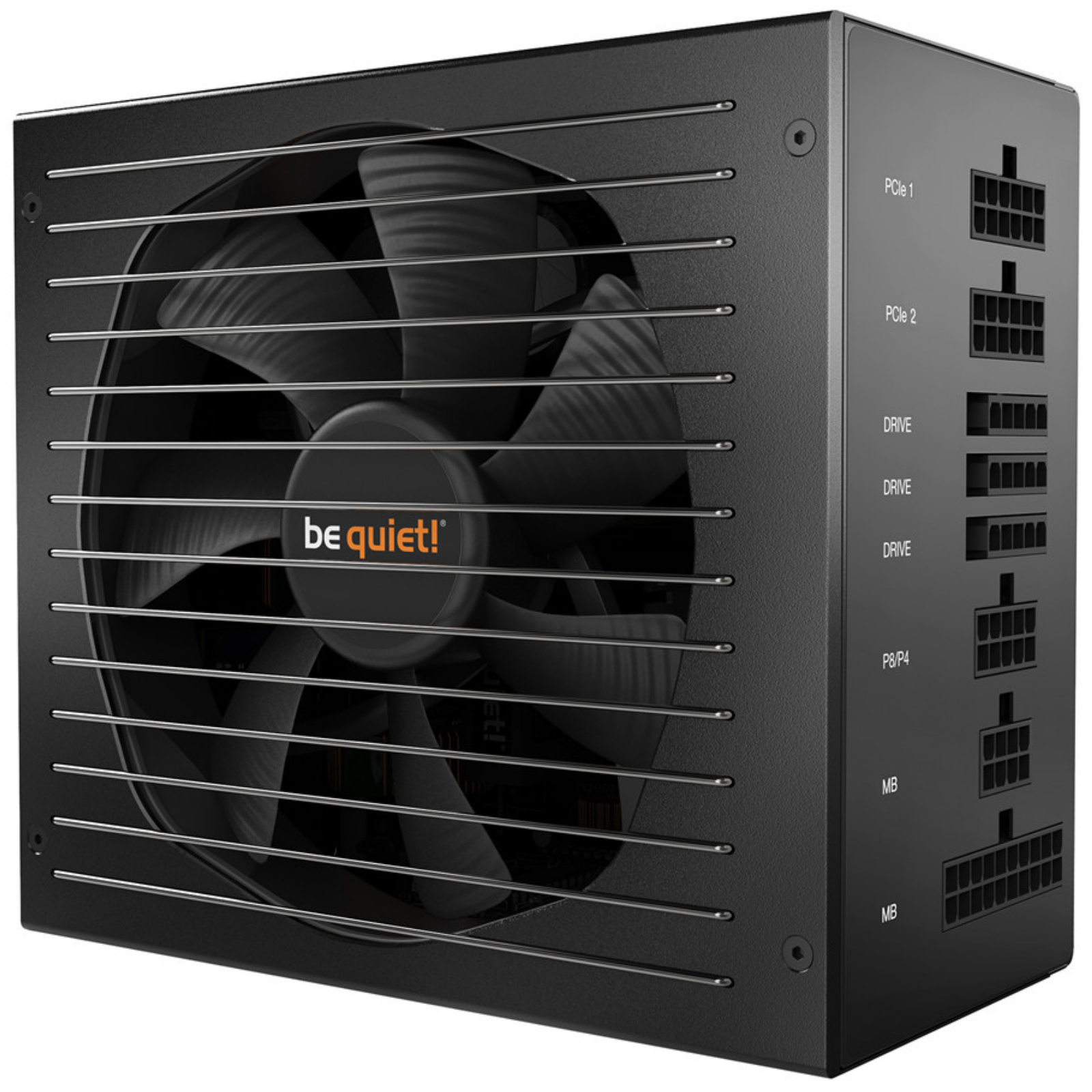

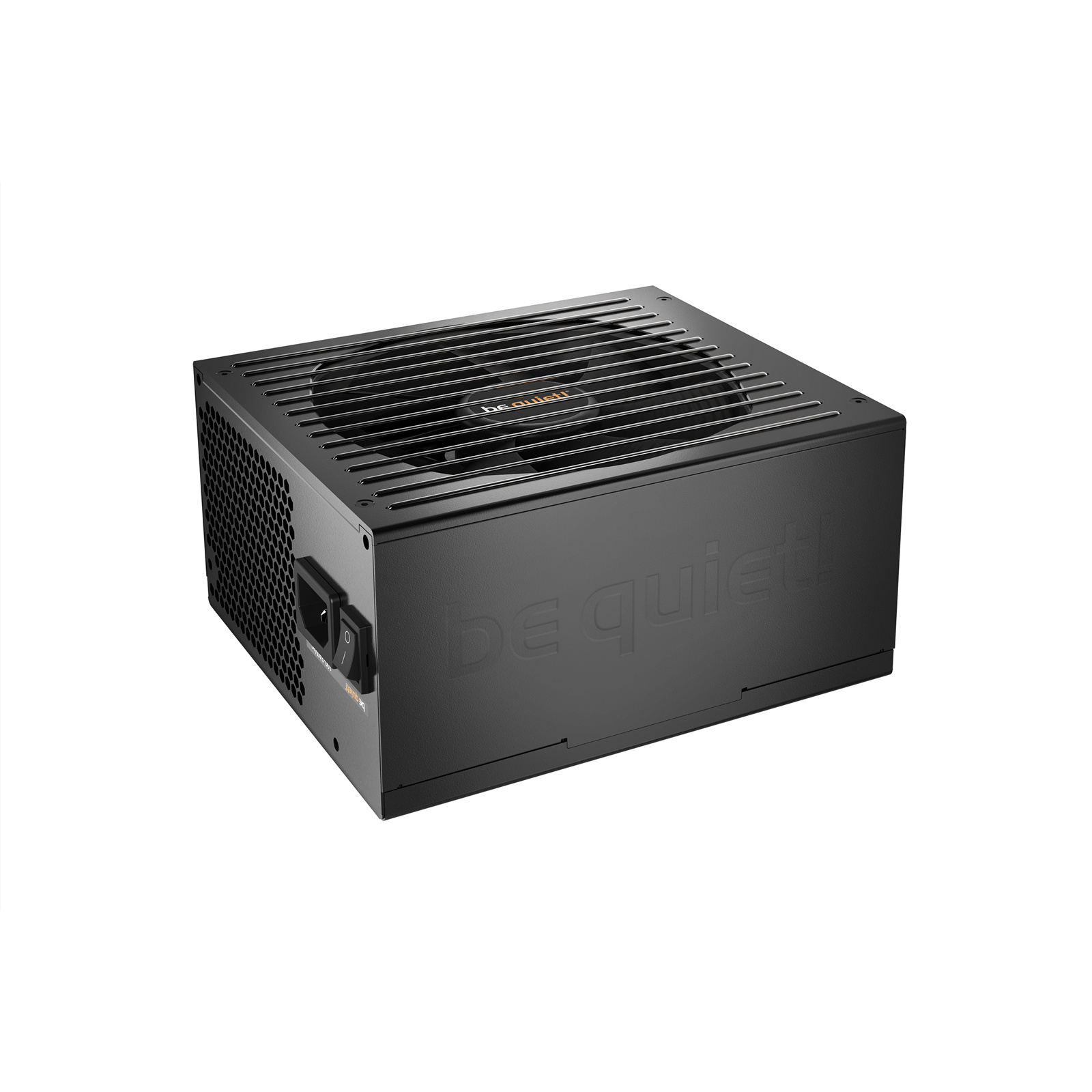

be quiet Straight Power 11 Gold 1000W Power Supply
80 Plus Gold efficiency (up to 93%) - Fully Modular
Out of stock
be quiet Straight Power 11 Gold 1000W Power Supply
80 Plus Gold efficiency (up to 93%) - Fully Modular
- Brand: be quiet
- MPN: BN886
- Part #: PSUBQT601000
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
What PB Tech customers are saying about this product...
See More Reviews"A new PC needs a new power supply, and matching this to a configuration of a powerful intel, graphics and motherboard combo provides sufficient power while being so quiet you'll he ...view more"
"Great power supply - had my pc built through PB tech 2 weeks ago - no running issues. Would recommend this power supply"
"very good yes"
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Desktop Power Supplies





be quiet Straight Power 11 Gold 1000W Power Supply 80 Plus Gold efficiency (up to 93%) - Fully Modular
- Brand: be quiet
- MPN: BN886
- Part #: PSUBQT601000

Product URL: https://www.pbtech.co.nz/product/PSUBQT601000/be-quiet-Straight-Power-11-Gold-1000W-Power-Supply
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
STRAIGHT POWER 11 1000W Gold - WORLD CLASS QUIET AND EFFICIENCY
be quiet! Straight Power 11 1000W raises the bar for systems that demand virtually inaudible operation without power quality compromises.
- Virtually inaudible Silent Wings 3 135mm fan
- Funnel-shaped fan opening of the PSU case for high airflow intake
- Wire-free inside the PSU on the DC side for enhanced cooling and longevity
- Modular cables for maximum build flexibility
- 80 PLUS® Gold efficiency (up to 93%)
- Six PCIe connectors for overclocked high-end GPUs
- Japanese 105°C-rated capacitors ensure stability and reliability
- ErP and Energy Star 6.1 ready

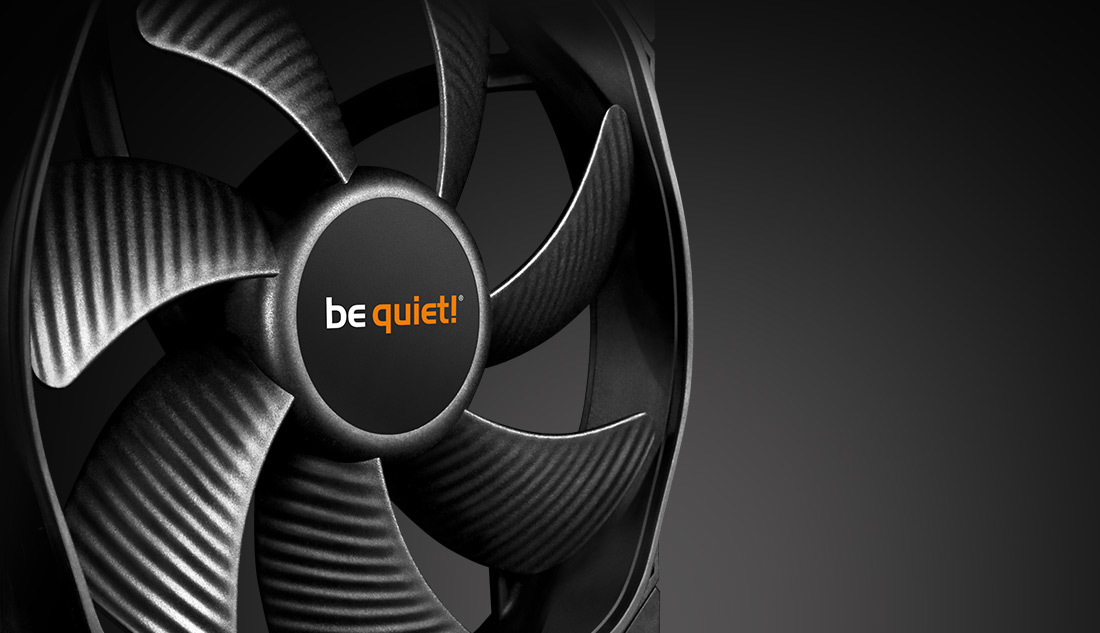

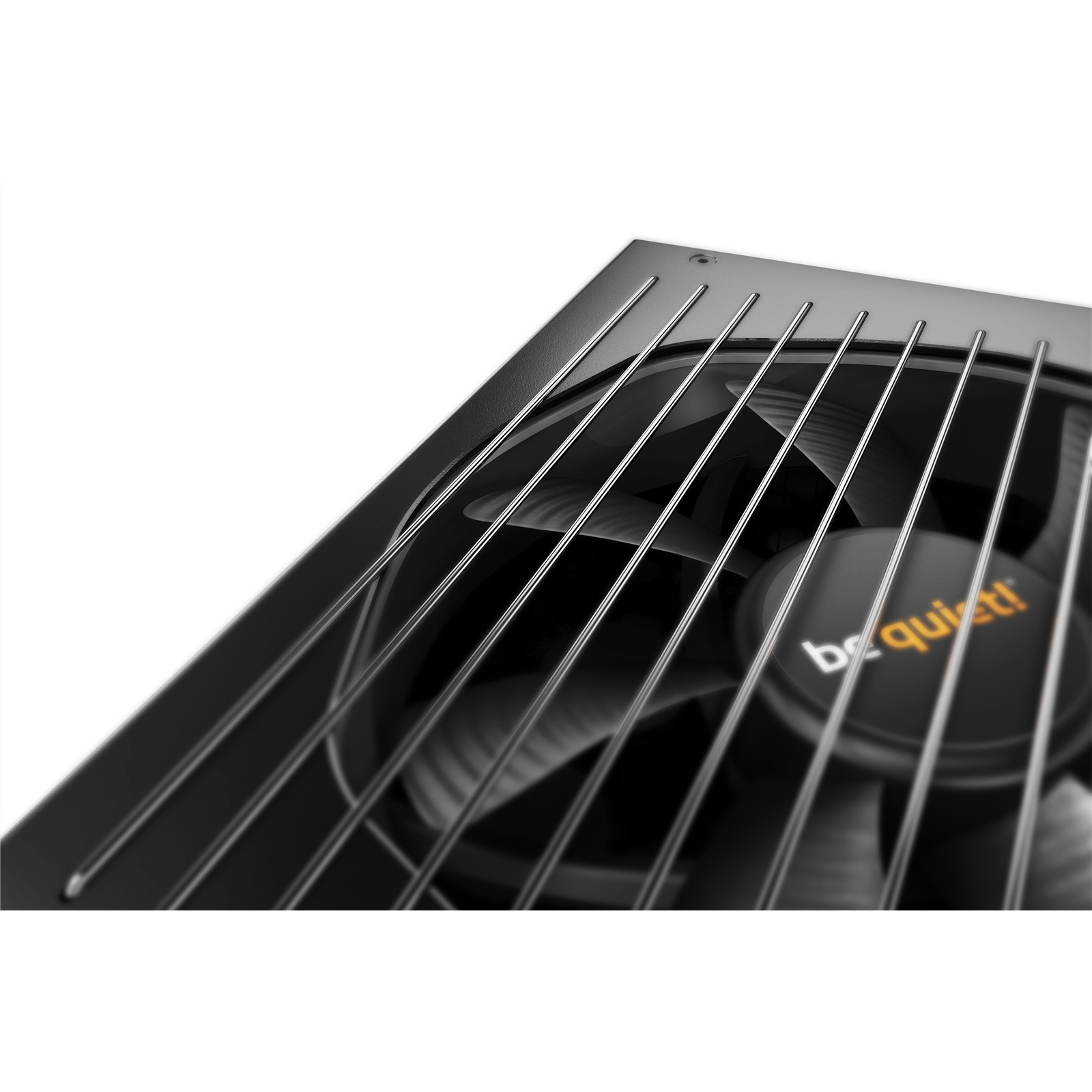

SILENT WINGS 3 FAN - Provides virtually inaudible operation
The high-end Silent Wings 3 fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal power consumption.

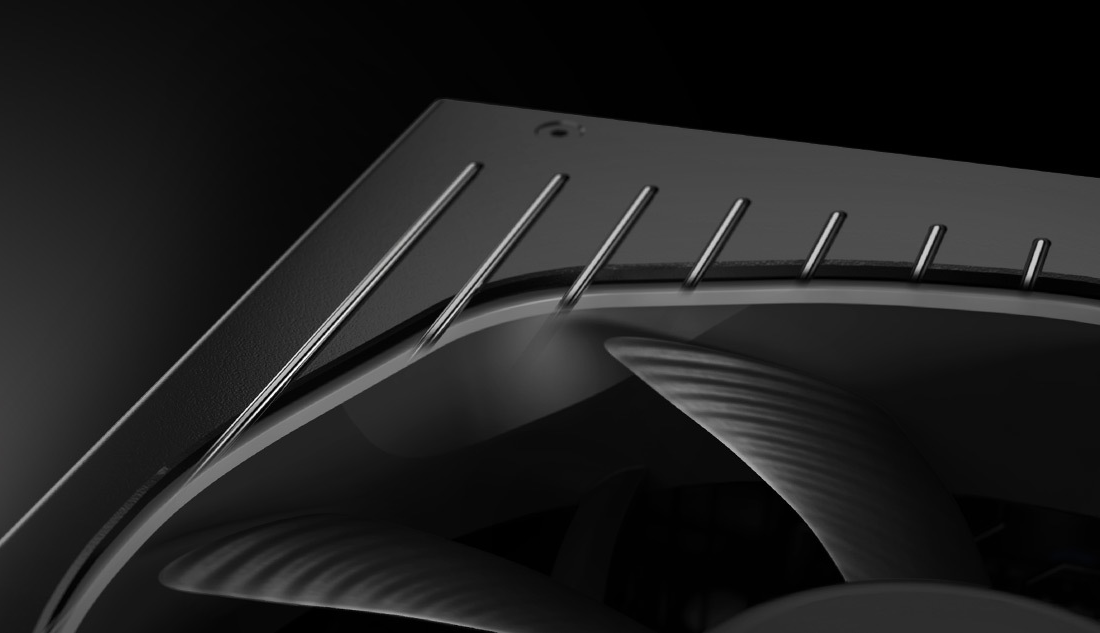

FUNNEL-SHAPED FAN OPENING - Higher cooling performance
The fan inlet of the Straight Power 11 1000W is funnel-shaped. It causes an increased throughput of air which benefits to a higher cooling performance.

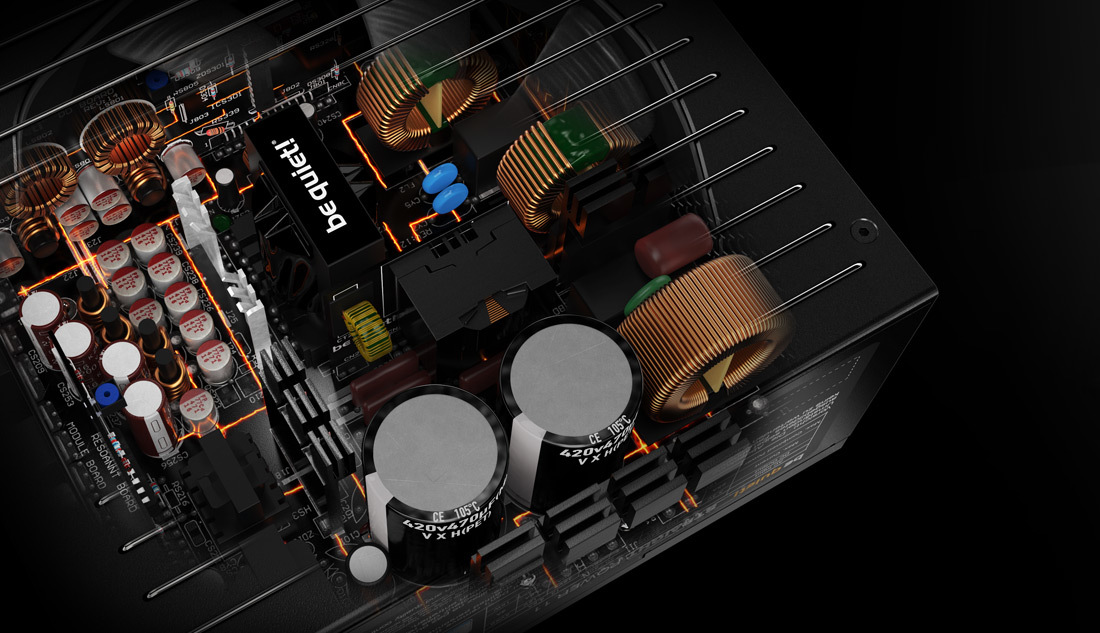

WIRE-FREE DESIGN INSIDE THE PSU - Pushing the longevity of components to a maximum
An absolute innovation: The Straight Power 11 1000W is wire-free on the DC side inside the PSU body. This results in improved cooling airflow and less signal disturbance, simply because of a lack of wiring, and ultimately pushes the lifetimes of the components to a maximum.

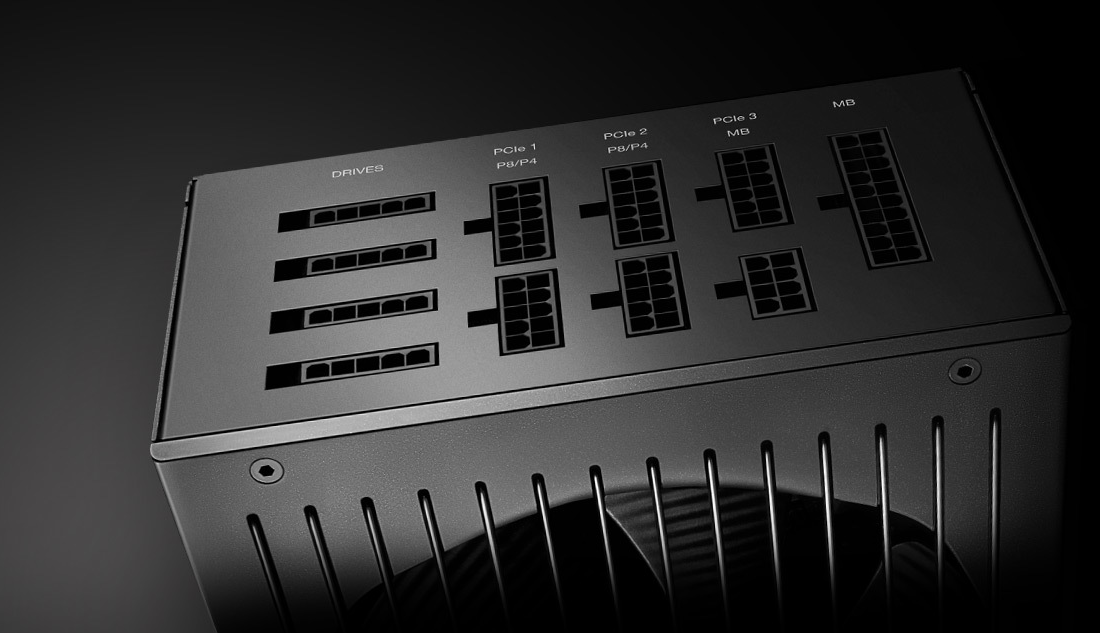

MODULAR CABLES - Utmost convenience and compatibility
Thanks to the modular cables, all cables that serve no purpose in the system are left out. For this reason, systems always appear very tidy. At the same time installation is performed much more conveniently. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures prevail inside the case.

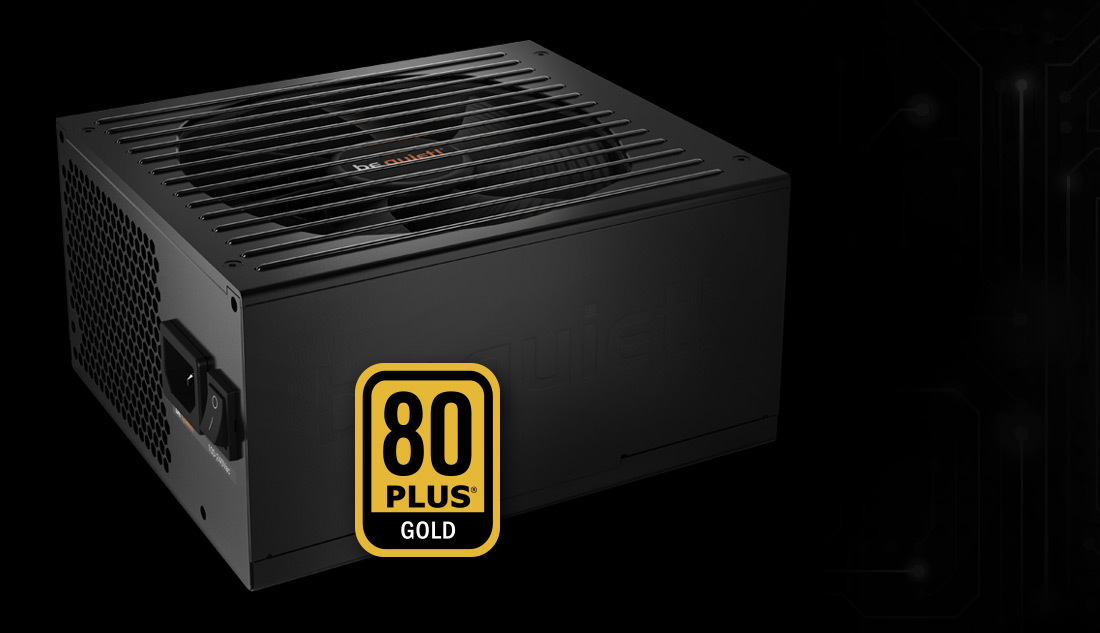

80 PLUS® GOLD CERTIFIED - Impressively high efficiency
Straight Power 11 1000W is certified with 80 PLUS Gold efficiency, reaching up to 93%. This gives less power consumption and a cooler and quieter operation. Truly a benefit for any system.
HIGH-CLASS TECHNOLOGIES - Compatibility for the systems of tomorrow
The use of LLC and Synchronous Rectifier (SR) provides very stable operation and enhanced voltage regulation. The PSU is equipped with DC-to-DC conversion for tight voltage regulation even under heavy cross-loading conditions. This ensures reliable operation with the next generation of processors and graphics cards.

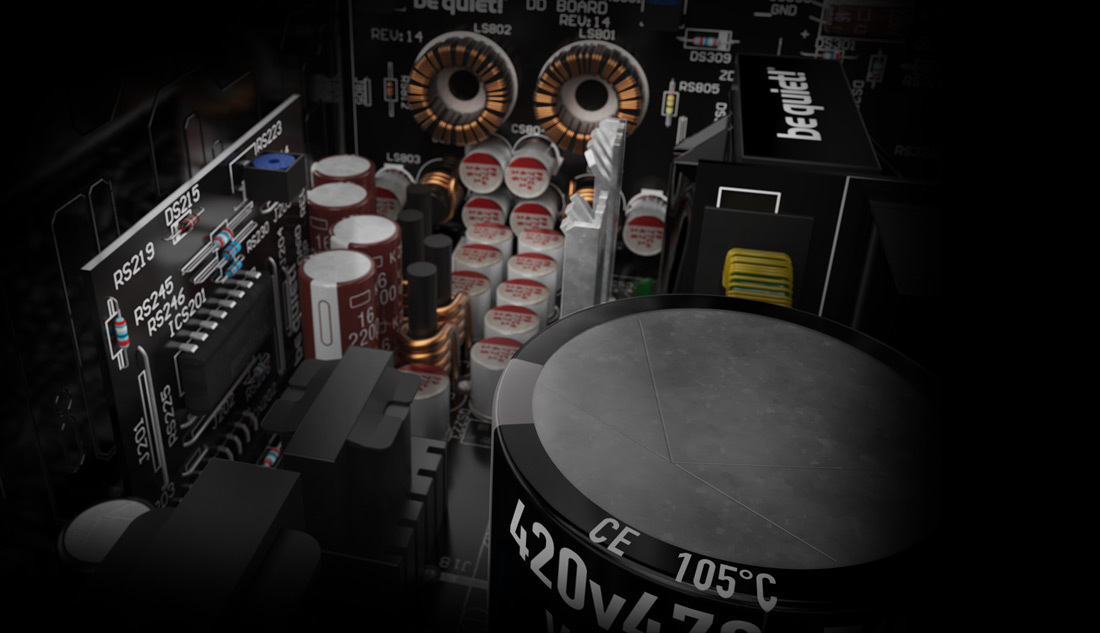

JAPANESE 105° CAPACITORS - A testament to high quality
Only the best components are used in Straight Power 11 1000W. That is why we have built only high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C, ensuring stability, reliability and a long operating life.

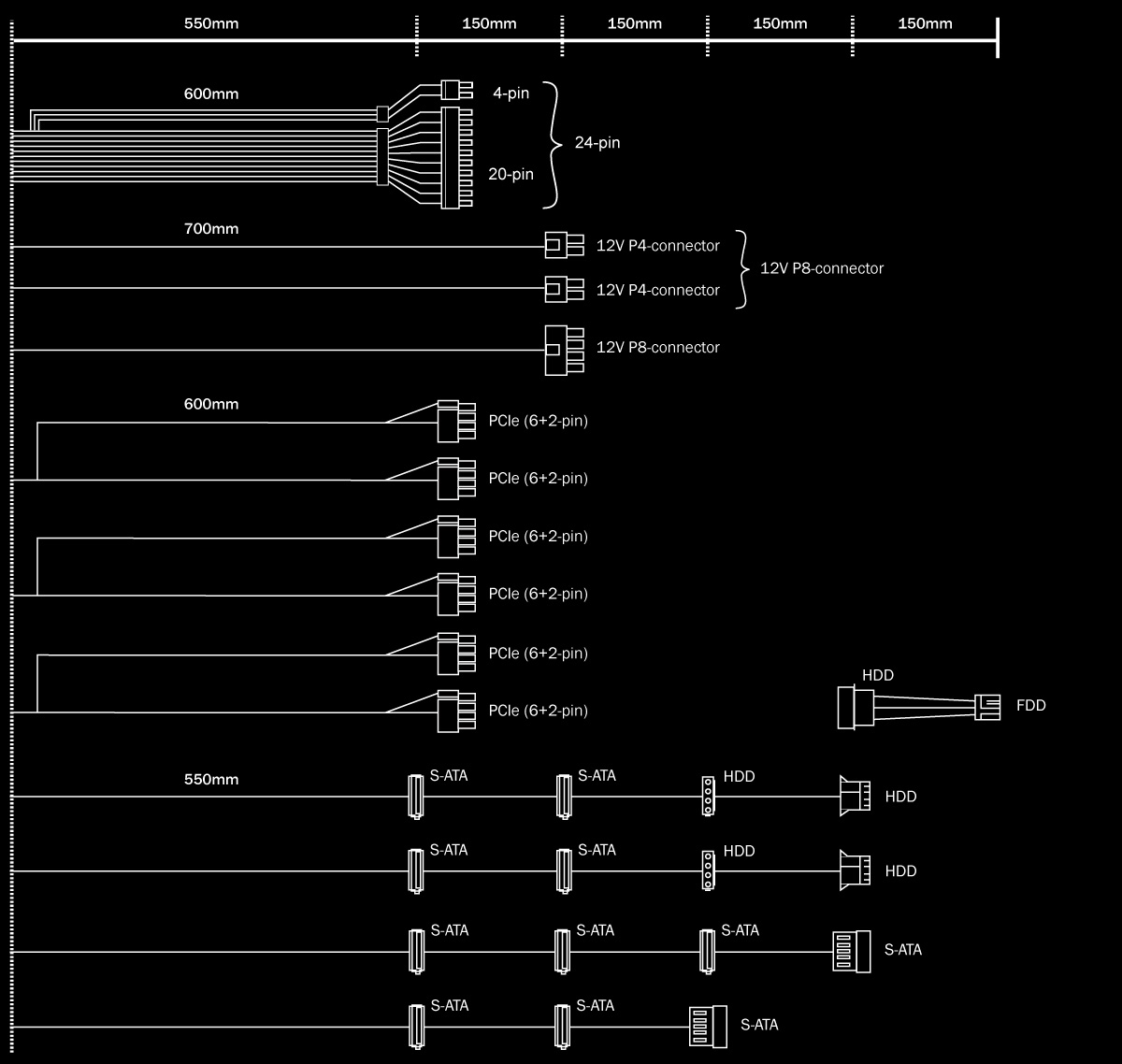

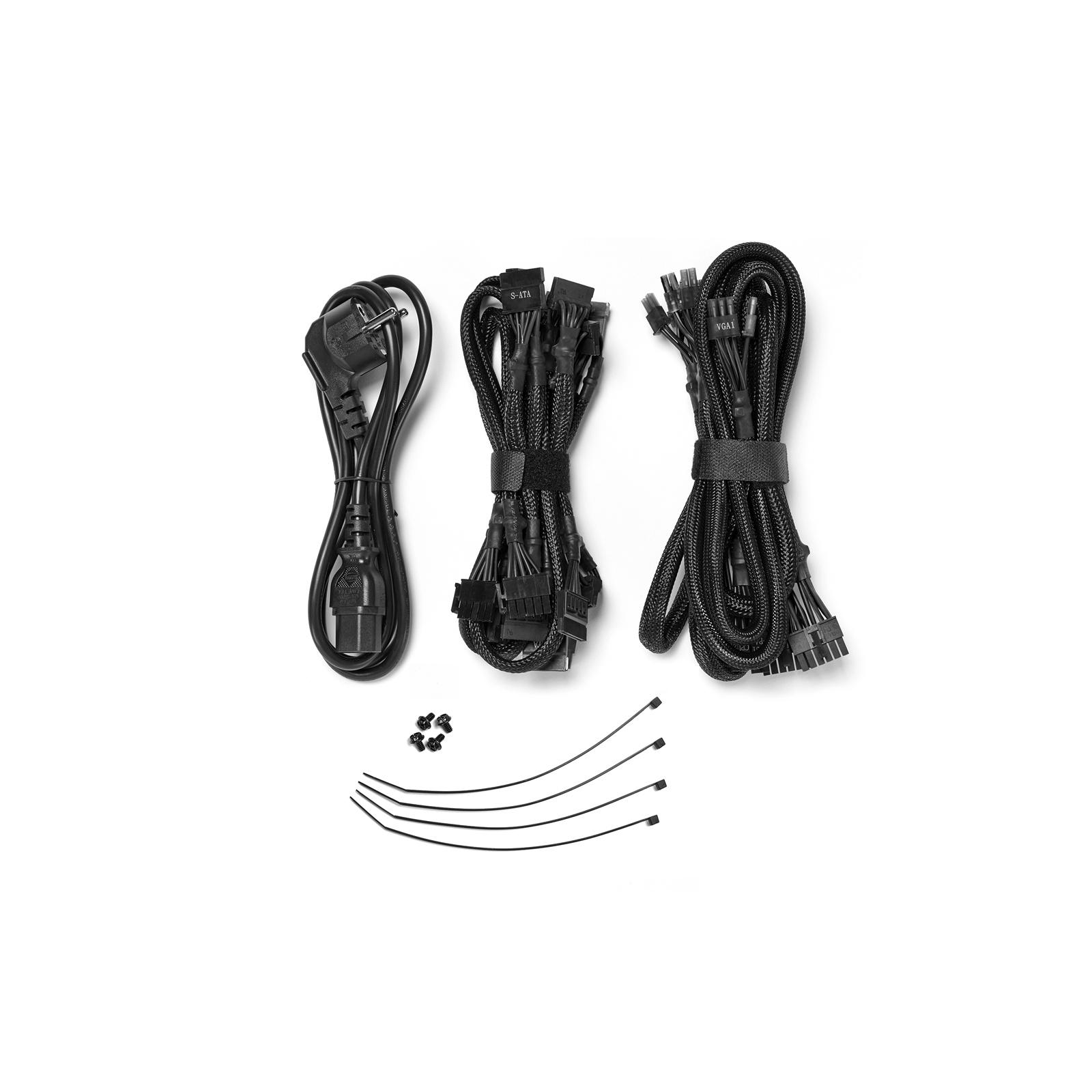

Cables
Specifications
General data
Model
Straight Power 11 1000W
Continuous power (W)
1000
Peak power (W)
1070
Form factor ATX 12V
Version 2.4
Form factor EPS 12V
Version 2.92
Modular Cable management
Yes
Topology
LLC + SR + DC/DC
Wire-free design (DC-side)
Yes
Voltage (Vac)
100 - 240
Frequency (Hz)
50 - 60
Input current (A)
13 / 6.5
PFC
active
Power factor at 100% load
>0.99
Compliant to Intel C6/C7
Yes
Power consumption in standby (W)
<0.12
Average life time (h / 25°C)
100,000
Operating temperature up to (°C)
40
Output
12V rails (multi-rail operation)
4
12V single rail operation
-
Overclocking key
-
+3.3V (A)
25
+5V (A)
25
+12V1 (A)
22
+12V2 (A)
22
+12V3 (A)
30
+12V4 (A)
30
+12V5 (A)
-
+12V6 (A)
-
-12V (A)
0.5
+5Vsb (A)
3
Max. combined power 12V (W)
999.6
Max. combined power 3.3V + 5V (W)
150
Hold-up time at 100% load (ms)
19
Power good signal
100 - 500ms
Fan / Cooling technology
Fan type Silent Wings
3
+SilentWings
Yes
Motor technology
6-pole fan motor
Bearing technology
FDB
Fan size (mm)
135
Max. fan speed (rpm), temperature-dependent
2600
Temperature control for case fans
-

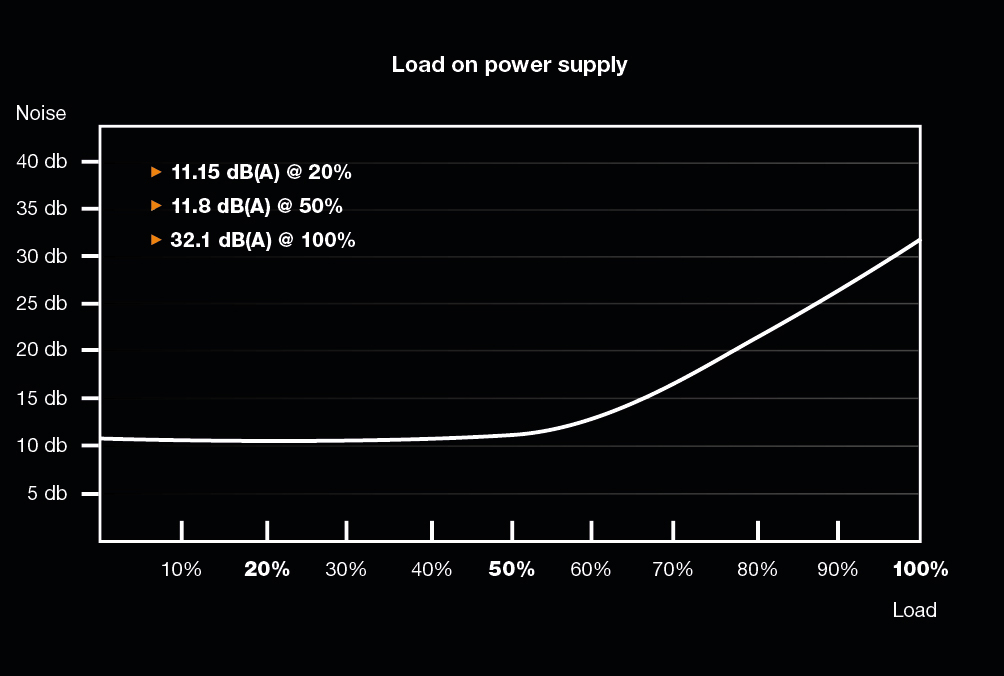

dB(A) at 20% load
11.2
dB(A) at 50% load
11.8
dB(A) at 100% load
32.1
Protection
OCP (over current protection)
Yes
OVP (over Voltage protection)
Yes
UVP (under Voltage protection)
Yes
SCP (short circuit protection)
Yes
OTP (over temperature protection)
Yes
OPP (over power protection)
Yes
Safety certification
CE
Yes
CB
Yes
TÜV
Yes
FCC
Yes
cRUus
-
cTUVus
Yes
RCM (Australia)
Yes
BSMI
Yes
CU (Russia)
Yes
CCC
-
Eco / Efficiency
80 PLUS certification
Gold
Efficiency (%) at 230V, 20% load
92
Efficiency (%) at 230V, 50% load
93
Efficiency (%) at 230V, 100% load
91
Environmental directives
Energy Star
6.1
ErP
Yes
WEEE
Yes
RoHs
Yes
Cables / Connectors
Nvidia® SLI (RTX 3090) ready
-
Cable management
Modular
Sleeved cables
Sleeved cables
Flat cables
-
Cable length to mainboard (cm)
60
Cable length to first connector (cm)
55
Maximum cable length (cm)
115
All-in-one cable (SATA/PATA/FDD)
Yes
No. of cables
11
ATX-Motherboard (20+4-pin)
1
P8 (CPU)
1
P4+4 (CPU)
1
P4 (CPU)
-
PCI-e 6-pin (GPU)
-
PCI-e 6+2-pin (GPU)
6
PATA
4
SATA
11
FDD (Floppy)
1
External fan connectors
-
Casing
Dimensions without cable (L x W x D), (mm)
170 x 150 x 86
Weight (kg)
1.85
Color
Black
Accessories
Thumb screws
-
Screws
Yes
Cable ties
Yes
Velcro cable ties
-
Box/Bag for PSU/Cables
-
User manual languages
DE, EN, ES, FR, PL, RU
OCK slot bracket with switch / OCK jumper
-
SFX-to-ATX adapter bracket
-
