Cooler Master Gold 650W V2, ATX 3.1 Power Supply

80 Plus Gold - Fixed Cable - 5 Years Warranty

PB Tech price
PB Tech price
$ 129 .57
 +GST
$ 149 .01
 inc GST

Out of stock

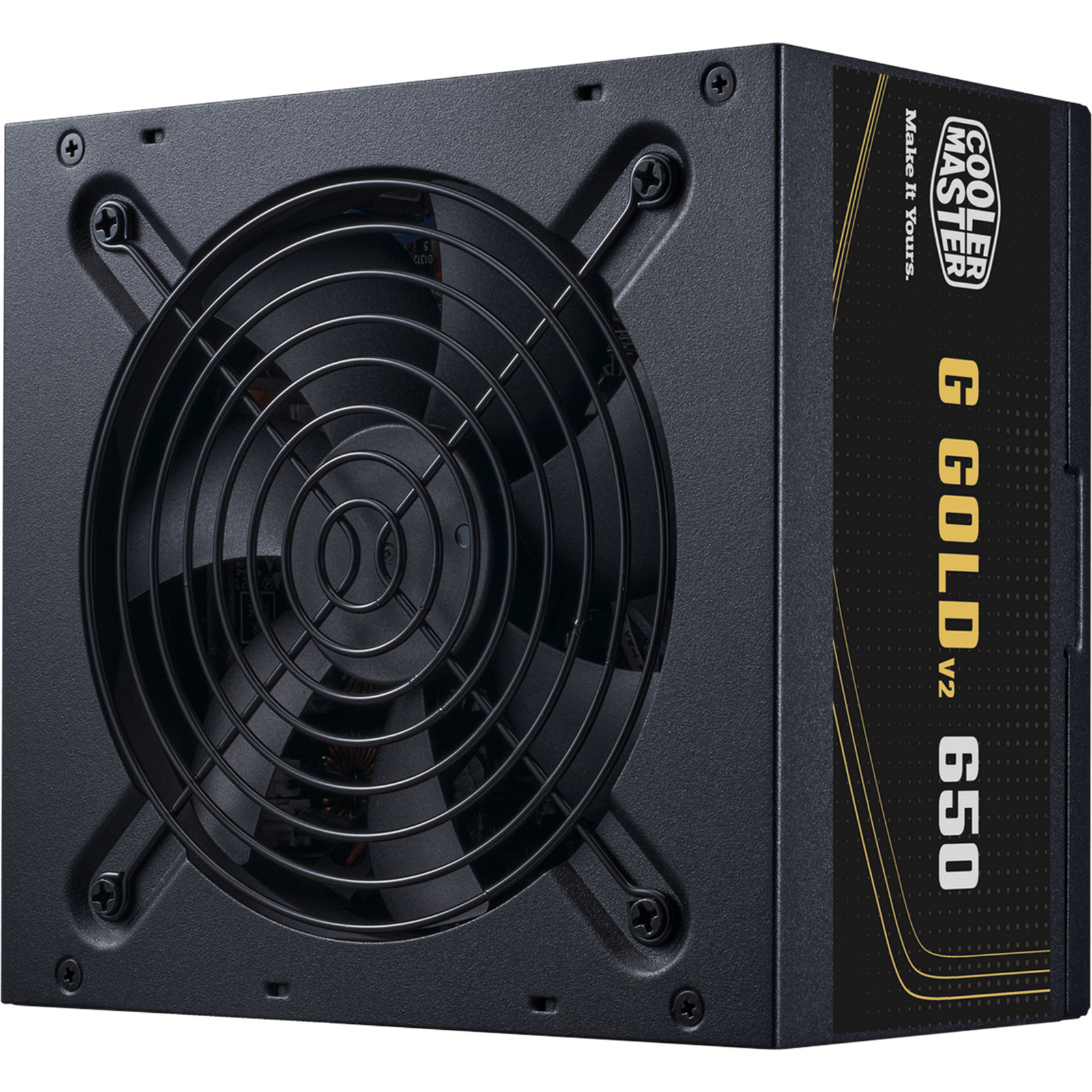

Cooler Master Gold 650W V2, ATX 3.1 Power Supply

80 Plus Gold - Fixed Cable - 5 Years Warranty

Nice flexible black cables
  • Brand: Cooler Master
  • MPN: MPE-6502-ACAAG-AU
  • Part #: PSUCLM4652
  • UPC: 884102116872
2
PB Tech price
$ 129 .57 $ 149 .01
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock
  • Brand: Cooler Master
  • MPN: MPE-6502-ACAAG-AU
  • Part #: PSUCLM4652
  • UPC: 884102116872

Max Output Power

750W 650W

PSU Form Factor

ATX

80 Plus Rating

Gold

Modular

No

Colour

Black

16-Pin GPU Connector

No

PSU Length

140mm

PSU ATX Version

ATX 3.1

Product is out of stock. View similar products in-stock at PB Tech

What PB Tech customers are saying about this product...

See More Reviews
750W

"I needed to upgrade my psu to run a thirsty gpu, and this did the trick"

G
By: Guest 13/01/25
650W

"the whine is louder than the case fans"

KM
By: KylegenesM 03/12/24
Verified Owner

Features

G GOLD 650 V2

POWER EVOLVED

- ATX 3.1 Support
- High Temperature Resilience
- Quiet HDB Fan
- 80 Plus Gold Certified Efficiency
- Embossed Cable

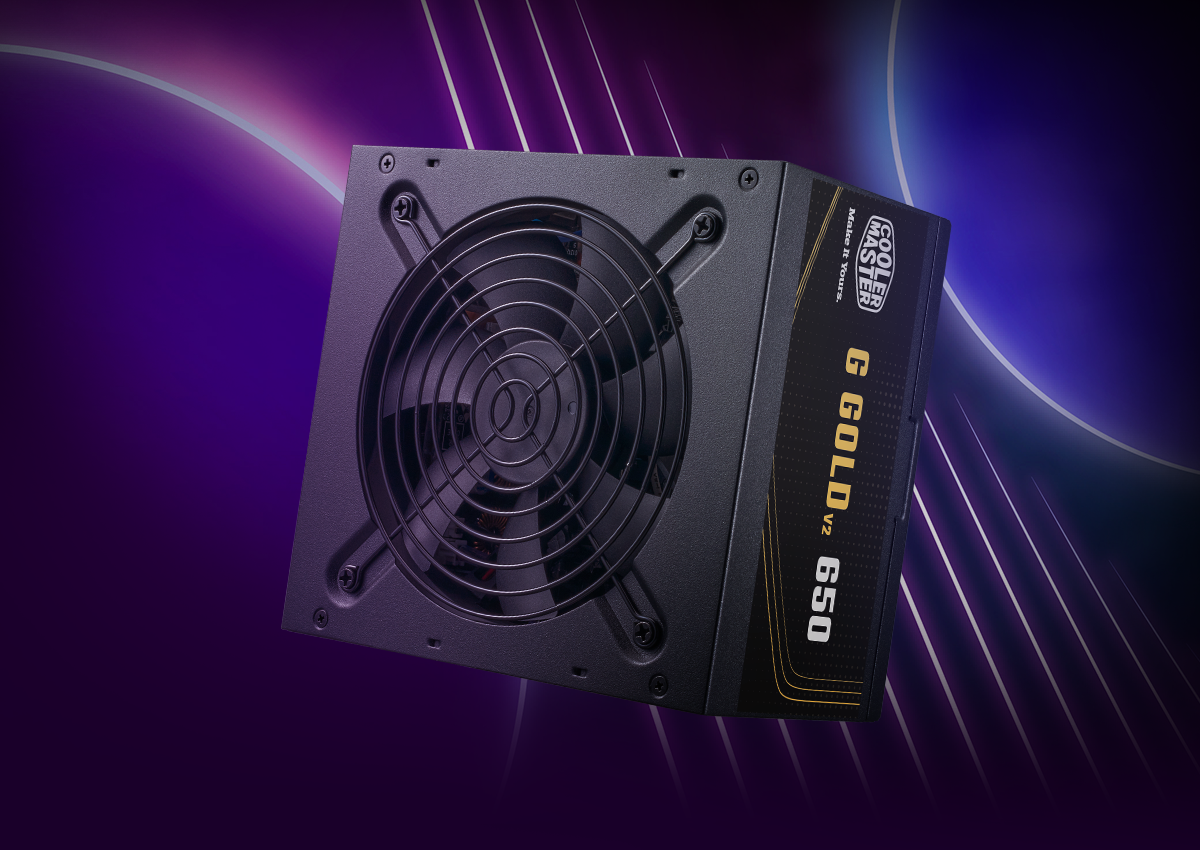

POWER EVOLVED

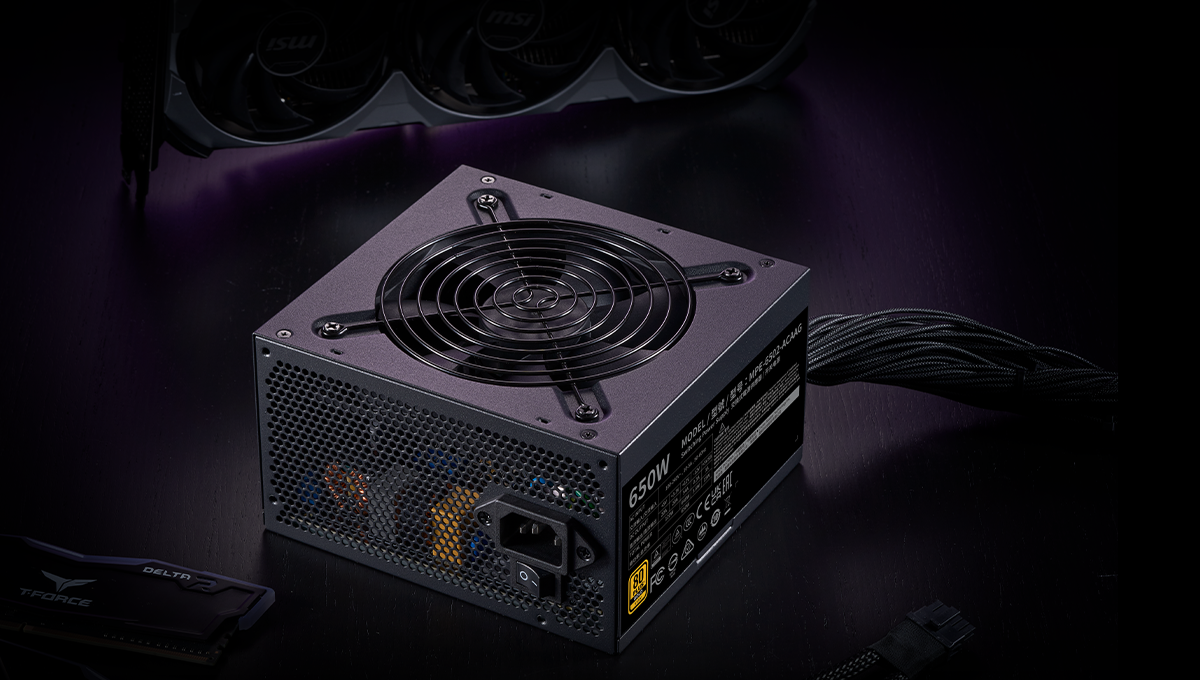

Cooler Master presents the G Gold V2, the upgraded version of the G Gold featuring ATX 3.1 support, high temperature resilience, a quiet HDB fan, 80 Plus Gold efficiency, an embossed cable.

ATX 3.1 SUPPORT

Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.

*All performance stats confirmed in 25°C ambient temperature testing.

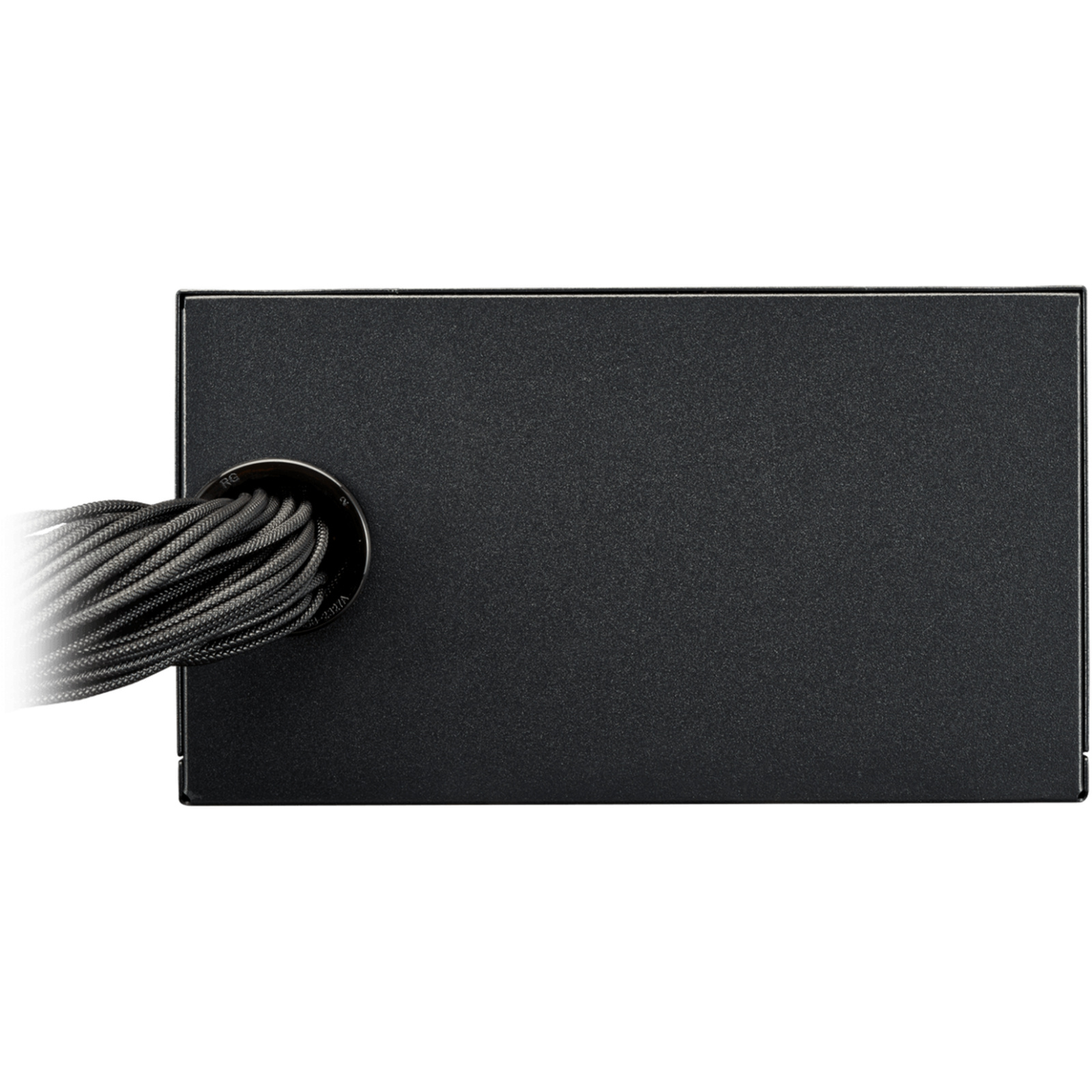

EMBOSSED CABLE

An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.

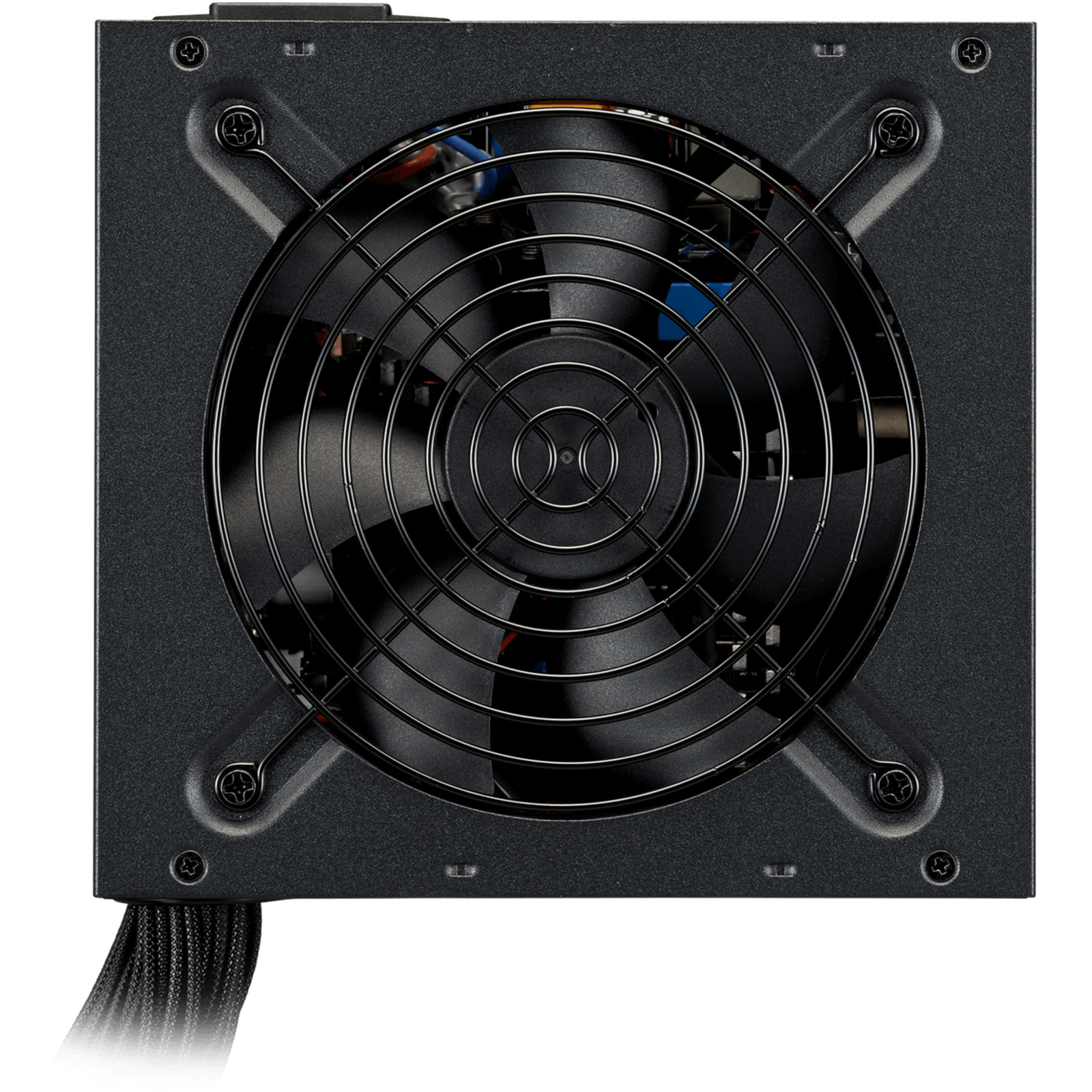

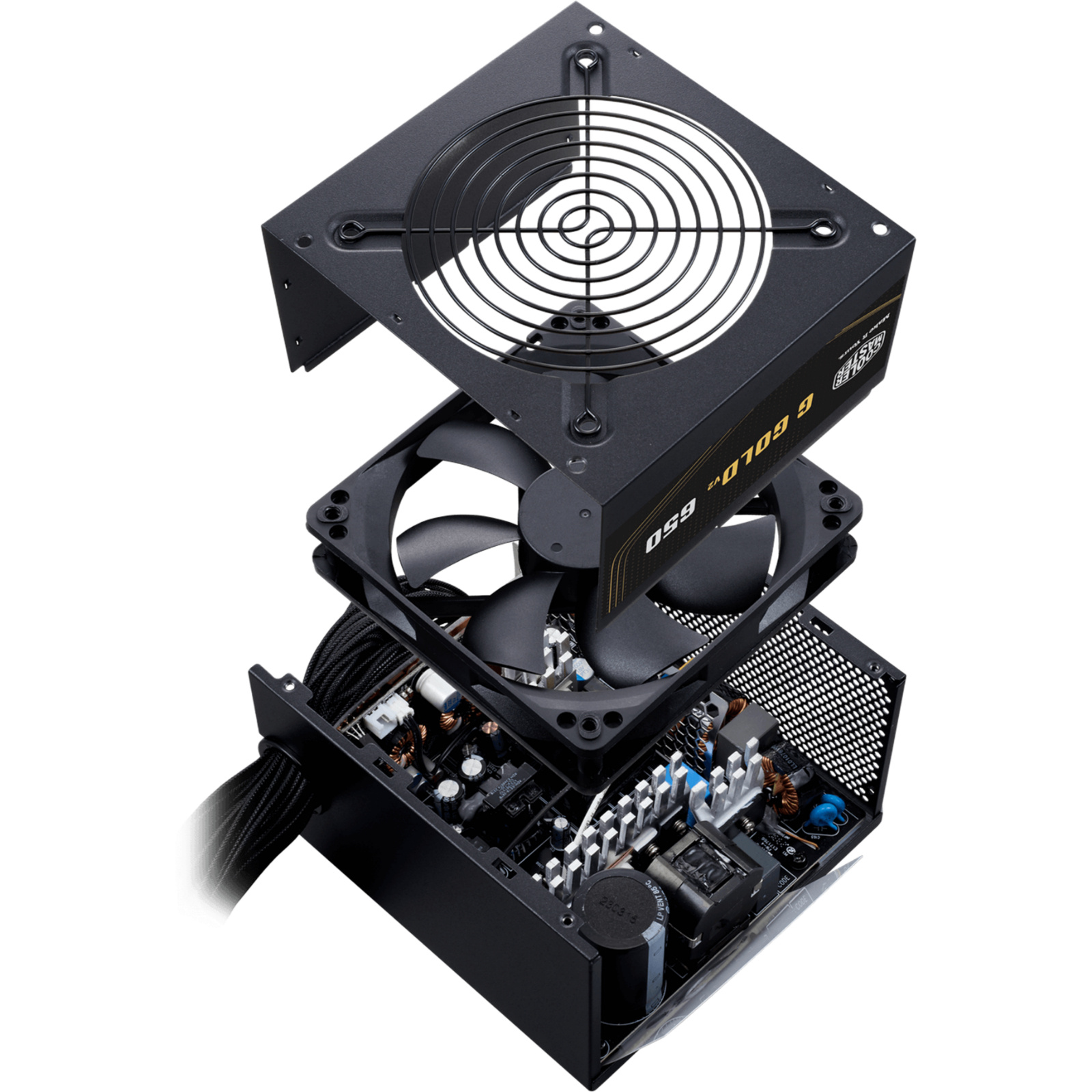

QUIET HDB FAN

A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.

*All performance stats confirmed in 25°C ambient temperature testing.

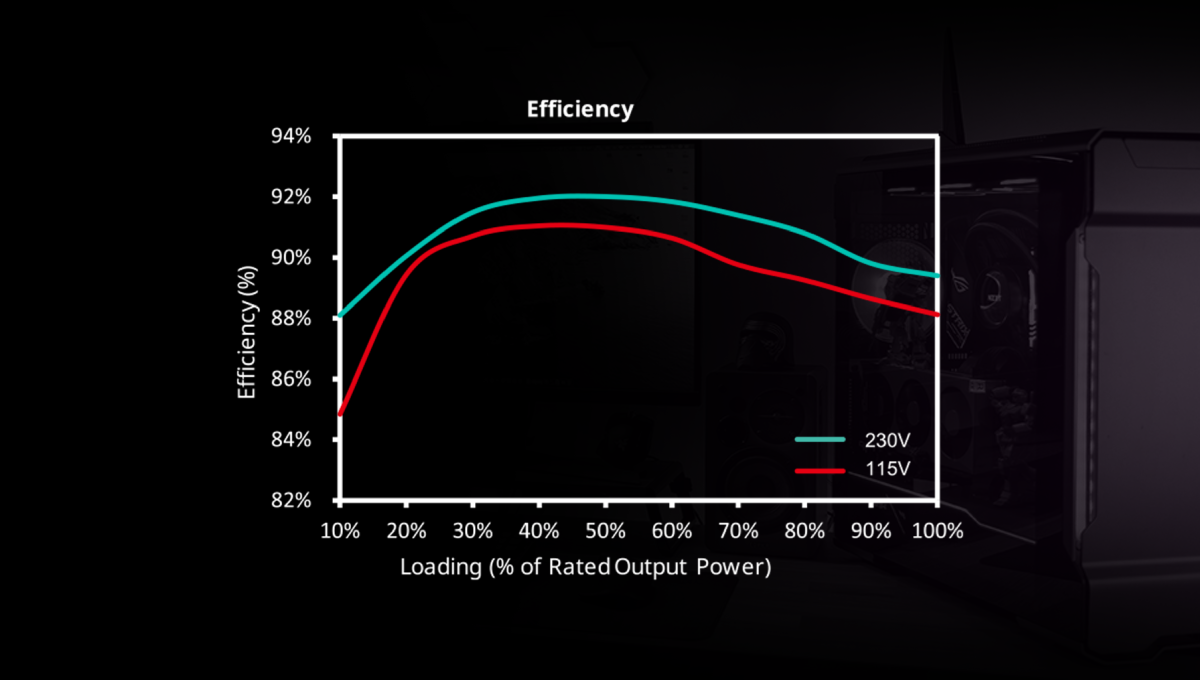

CERTIFIED EFFICIENCY

The G Gold V2 is certified to achieve more than 90% efficiency at typical loads.

*All performance stats confirmed in 25°C ambient temperature testing.



HIGH TEMPERATURE RESILIENCE

A 40°C operating temperature allows for pushing your machine to the limits.

*All performance stats confirmed in 25°C ambient temperature testing.

Specifications

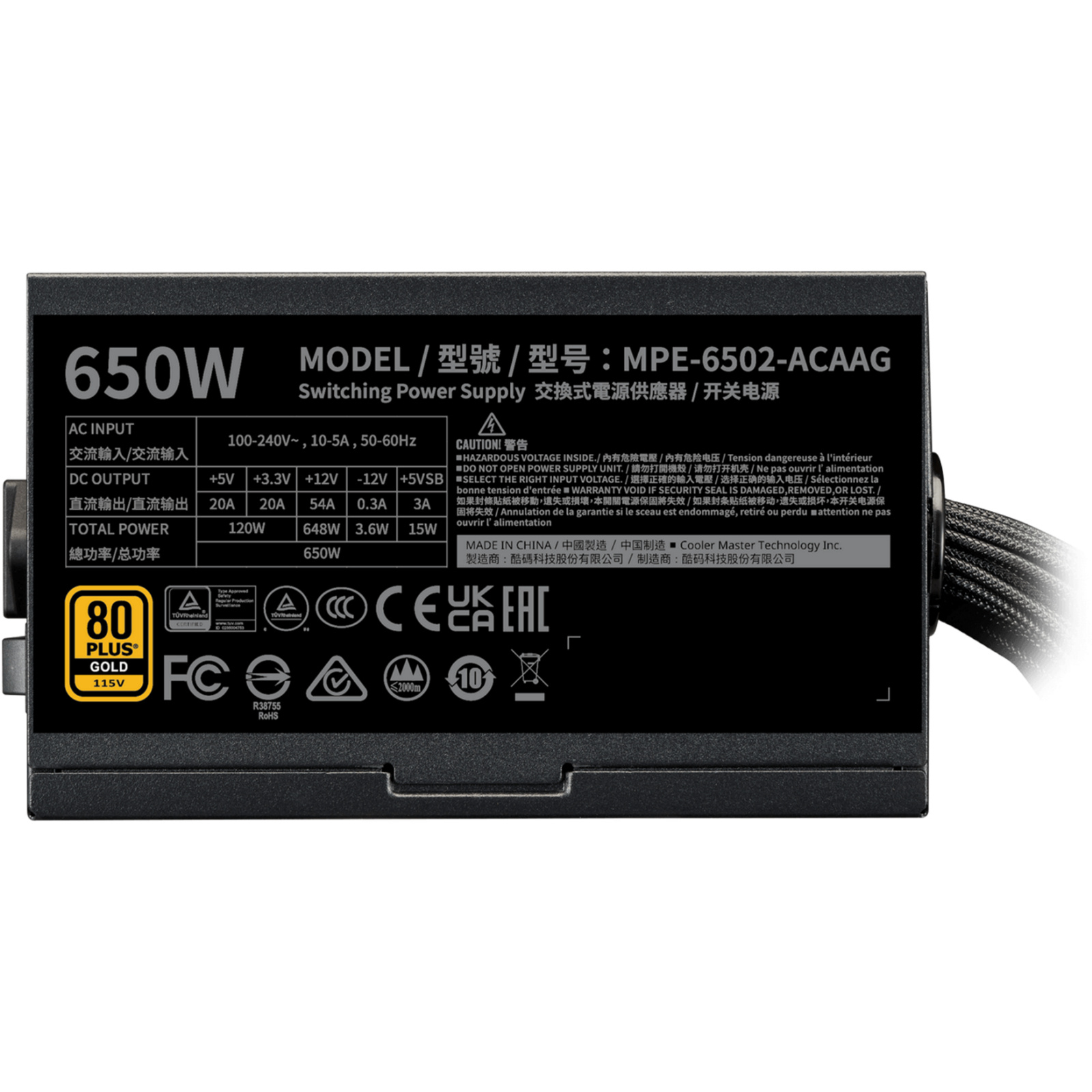

Model

MPE-6502-ACAAG

ATX Version

ATX 12V Ver. 3.1

PFC

Active PFC

Input Voltage

100-240V

Input Current

10-5A

Input Frequency

50-60Hz

Dimensions (L x W x H)

140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch

Fan Size

120mm

Fan Bearing

HDB

Efficiency

=90% @ Typical Load

80 PLUS Rating

80 PLUS Gold

ErP 2014 Lot 3

Yes

Operating Temperature

0-40°C

Power Good Signal

100 - 150 ms

Hold Up Time

= 16ms

MTBF

>100,000 Hours @ 25°C ambient

Protections

UVP, OVP, OPP, OTP, SCP

Regulatory

cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.)

ATX 24 Pin Connectors

1

EPS 4+4 Pin Connectors

2

SATA Connectors

6

Peripheral 4 Pin Connectors

3

PCI-e 6+2 Pin Connectors

4

Series

G Series

80 Plus

Gold

Modular

Non Modular

Category

650W

Manufacturer Part No:
MPE-6502-ACAAG-AU
Brand:
Product Type:
Power Supply
UPC
884102116872
Product Family:
-
Shipping Weight:
2.1 kg
PB Part No:
PSUCLM4652
Product Model:
Gold
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4.5 out of 5 Stars Based on 2 reviews
5 Stars
1
4 Stars
1
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Needed more power

Max Output Power: 750W

I needed to upgrade my psu to run a thirsty gpu, and this did the trick

G
By: Guest 13/01/25
0 out of 0 users found this review helpful
Did you find it helpful?

louder than my noctuas

Max Output Power: 650W

the whine is louder than the case fans

KM
By: KylegenesM 03/12/24
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?
