DEEPCOOL PQ850G Black 850W ATX 3.1 Power Supply

80 Plus Gold - Full Modular with PCIe 5.1 12V-2X6 Cable - 10 Years Warranty

PB Tech price
PB Tech price
$ 173 .04
 +GST
$ 199 .00
 inc GST
$173.04  +GST
$199.00

DEEPCOOL PQ850G Black 850W ATX 3.1 Power Supply

80 Plus Gold - Full Modular with PCIe 5.1 12V-2X6 Cable - 10 Years Warranty

Future proof!
  • Brand: DEEPCOOL
  • MPN: R-PQ850G-FD1B-JGAU-V1
  • Part #: PSUDPC10120
  • UPC:
NEW ARRIVAL
PB Tech price
$ 173 .04 $ 199 .00
 +GST  inc GST


Click & Collect: Available from 1 store.
Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
Uber Delivery: Order now and get it within 3 hours. Some areas, max $1k order. How does it work?
$173.04  +GST
$199.00

Four payments of $50.25 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

  • Brand: DEEPCOOL
  • MPN: R-PQ850G-FD1B-JGAU-V1
  • Part #: PSUDPC10120
  • UPC:

Max Output Power

750W 850W 1000W 1200W

Colour

Black

PSU Form Factor

ATX

80 Plus Rating

Gold

Modular

Full

16-Pin GPU Connector

1

PSU Length

140mm

PSU ATX Version

ATX 3.1

Features

ENGINEERED FOR MODERN COMPONENTS

With the ability to provide twice the total system power, 2.5 times the 12V CEM peak power, and three times the rated power of the 12V-2x6 cable for 0.1 ms, random power spikes will never be an issue. The PQ850G will provide stable and consistent power for legacy and modern power-hungry PCs for the foreseeable future.

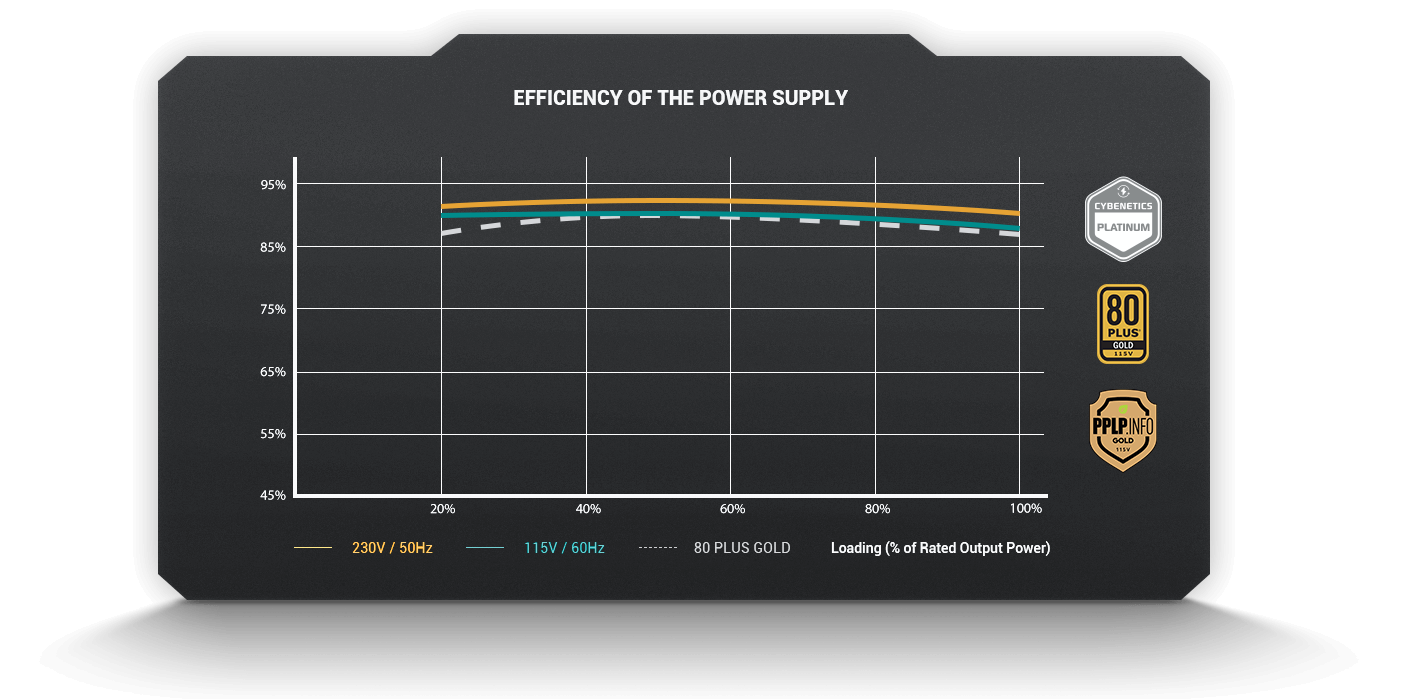

THE GOLD STANDARD

80 Plus Gold certified to meet a 92% high level of power efficiency under typical loads of 50%, while Cybenetics and PPLP also rates each PQ850G unit as Gold as well.



TRUST-WORTHY STABILITY

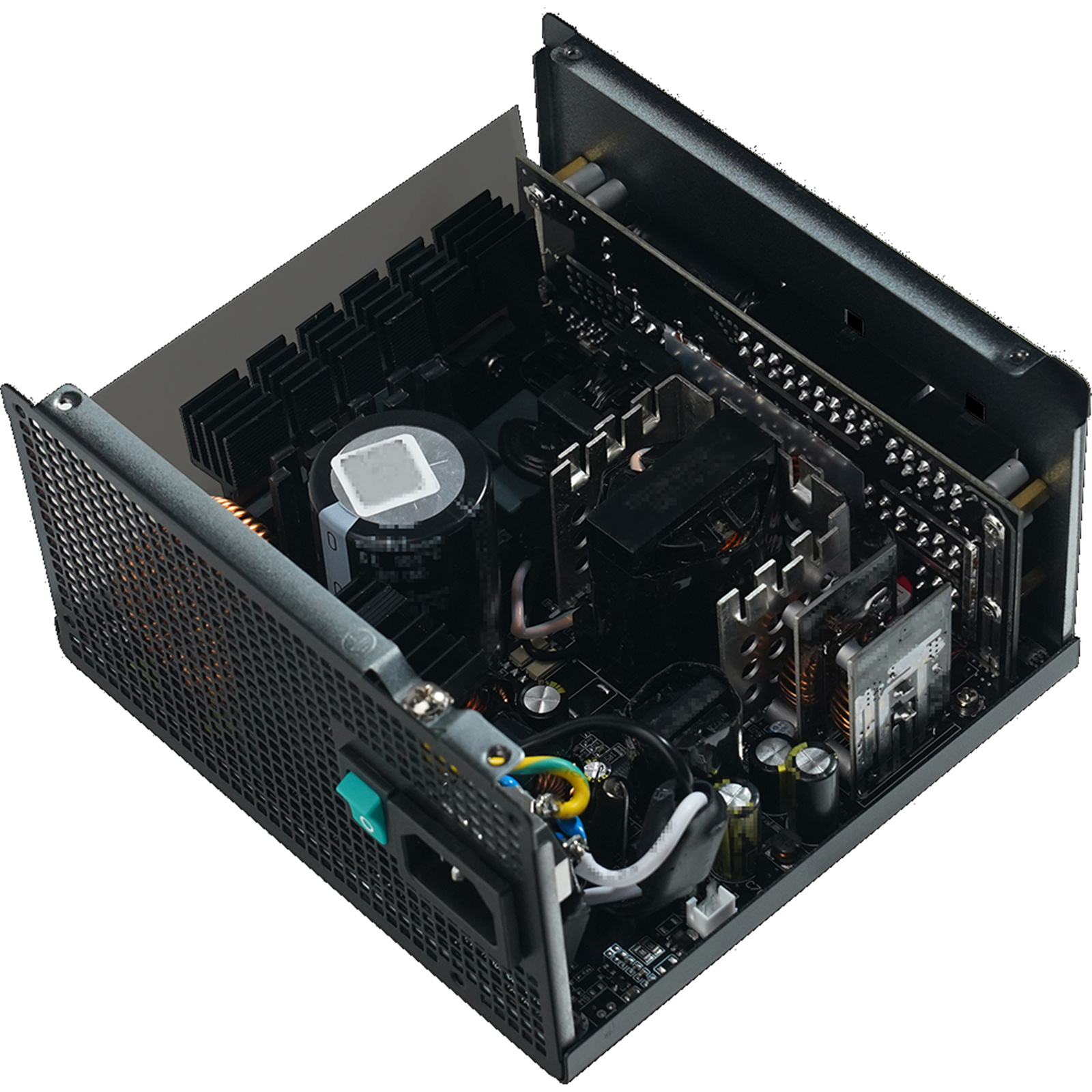

Through the use of a premium full Japanese electrolytic capacitors, active PFC, half-bridge LLC, and a DC-to-DC topology, the PQ850G can keep the hold-up time to ≥ 16 ms under a 100% full load-a higher standard than required to meet ATX3.1 compliance.



PCI-E 5.1 PERFECTION

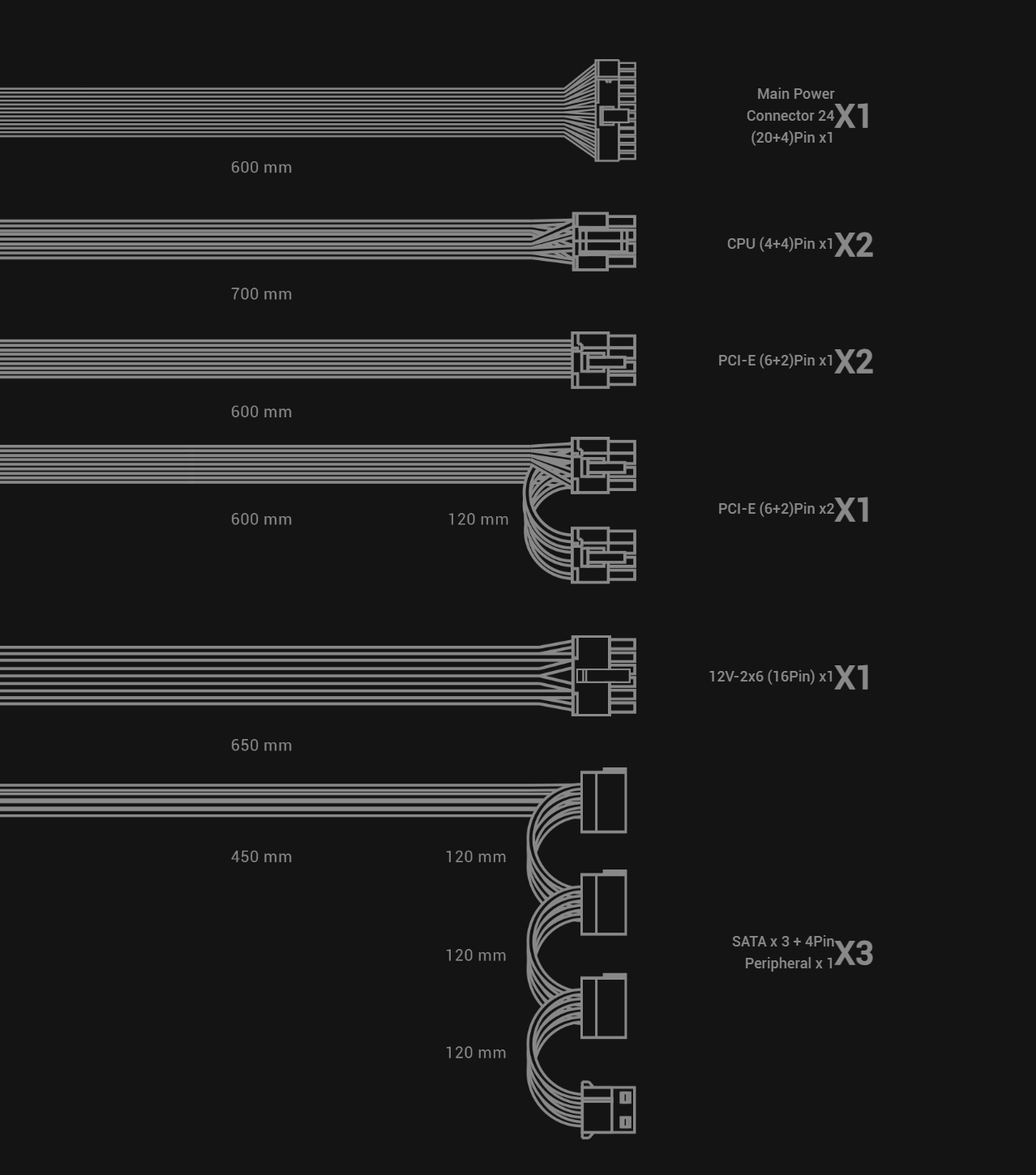

Equipped with a high-grade sleeved 105C-resistant 16AWG copper-core 12V-2x6 cable, the PQ850G provides up to 600W for modern GPUs.

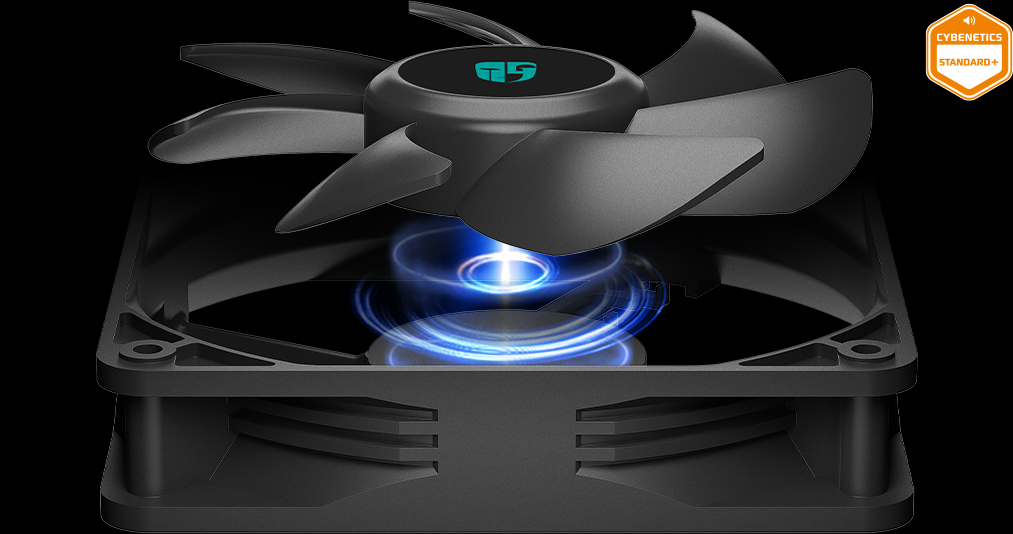

DYNAMIC FDB FAN

The PQ850G comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the advanced internal circuitry.



EXCEPTIONAL QUALITY

Due to the high quality of the parts utilized, every PQ-G power supply will operate at altitudes up to 5000 meters above sea level.

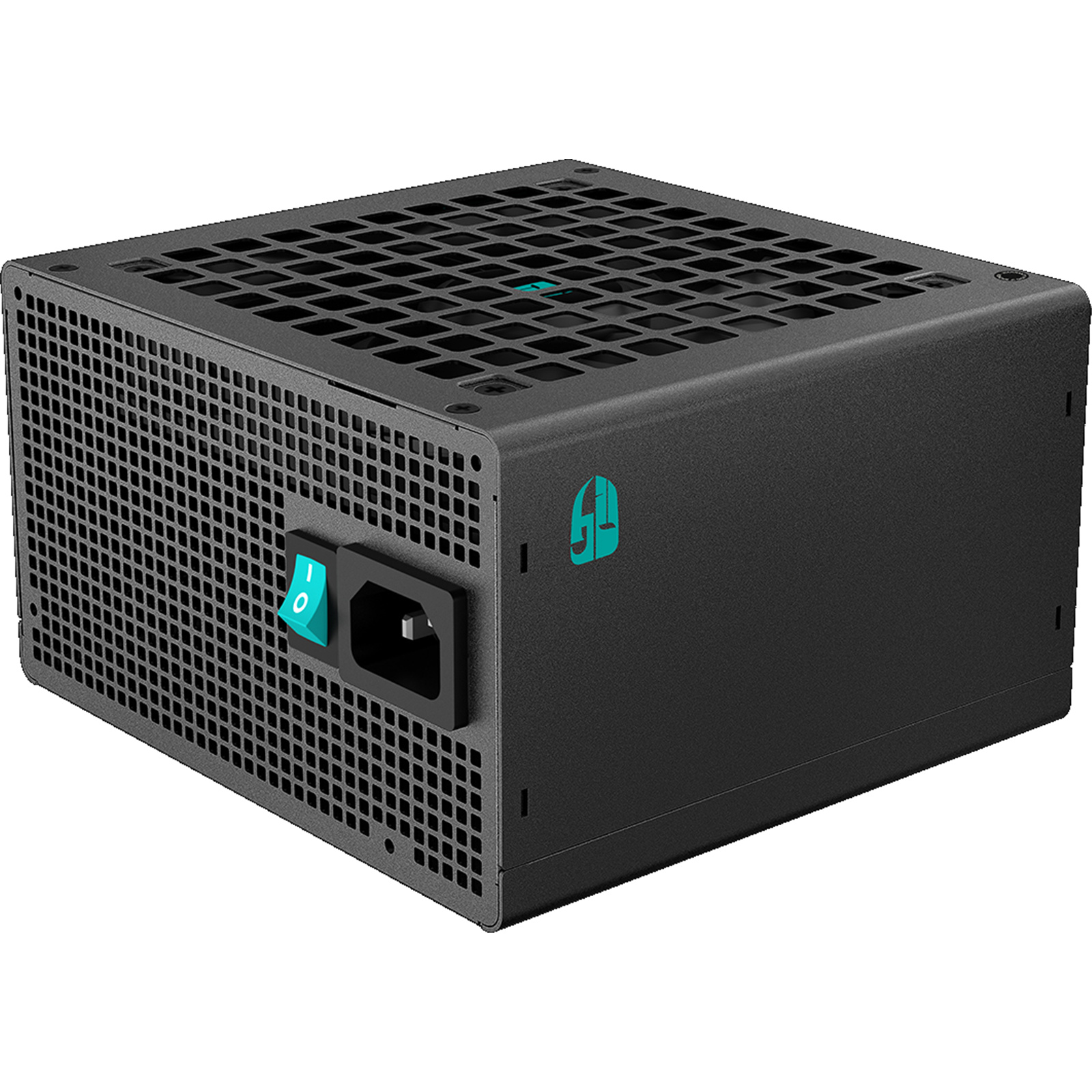

COMPACT DESIGN

Coming in at an agreeable 140x150x86mm, the PQ850G can easily fit into the vast majority of cases that support ATX-sized PSUs.



NECESSARY PROTECTIONS

Keep your mind at ease, knowing that the PQ850G comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.

- Over Power Protection
- Over Voltage Protection
- Short Circuit Protection
- Over Temp Protection
- Over Current Protection
- Under Voltage Protection
- Surge & Inrush Protection

Specifications

Total Output

850W

Type

ATX12V V3.1

Product Dimensions

150×140×86mm (W x L x H)

Efficiency certification

80Plus Gold/Cybenetics PLATINUM/PPLP Gold

Fan Size

120×120×25mm (W x L x H)

Fan Bearing

FDB (Fluid Dynamic Bearing)

Topology

Active PFC + Half Bridge SRC LLC + DC to DC

Capacitors

Full Japanese Electrolytic Capacitors

Power Good Signal

100-150ms

Hold Up Time

≥16ms Full load

Efficiency

≥90% Under Typical Load(50% Loading)

Protection

OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

Operation Temperature

0-40°C

Regulatory

EAC

Erp Regulation

ErP 2013

Environment Protection

EAC

MTBF

100,000 Hours

Manufacturer Part No:
R-PQ850G-FD1B-JGAU-V1
Brand:
Product Type:
ATX 3.1 Power Supply
UPC
-
Product Family:
-
Shipping Weight:
2.68 kg
PB Part No:
PSUDPC10120
Product Model:
PQ850G Black
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
