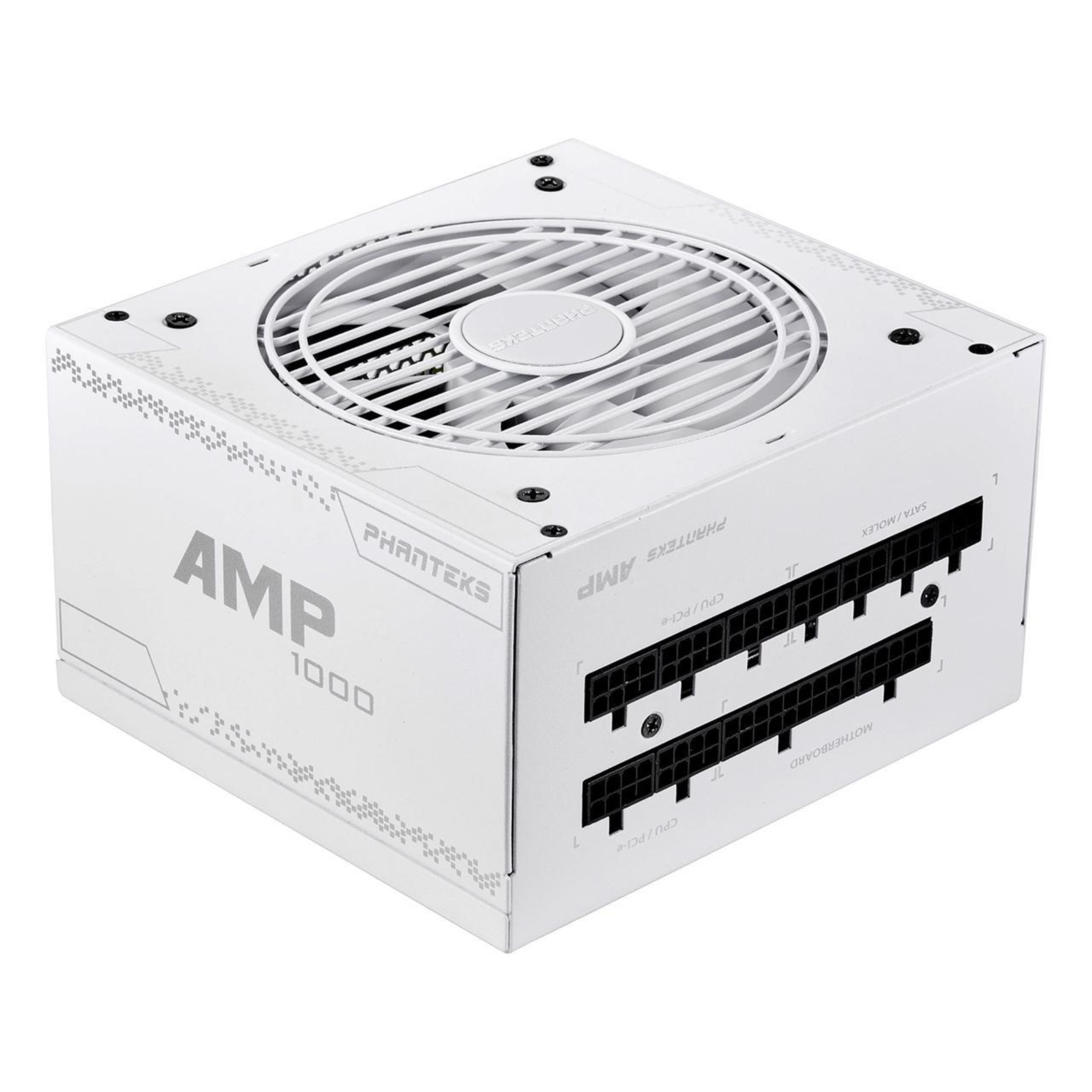

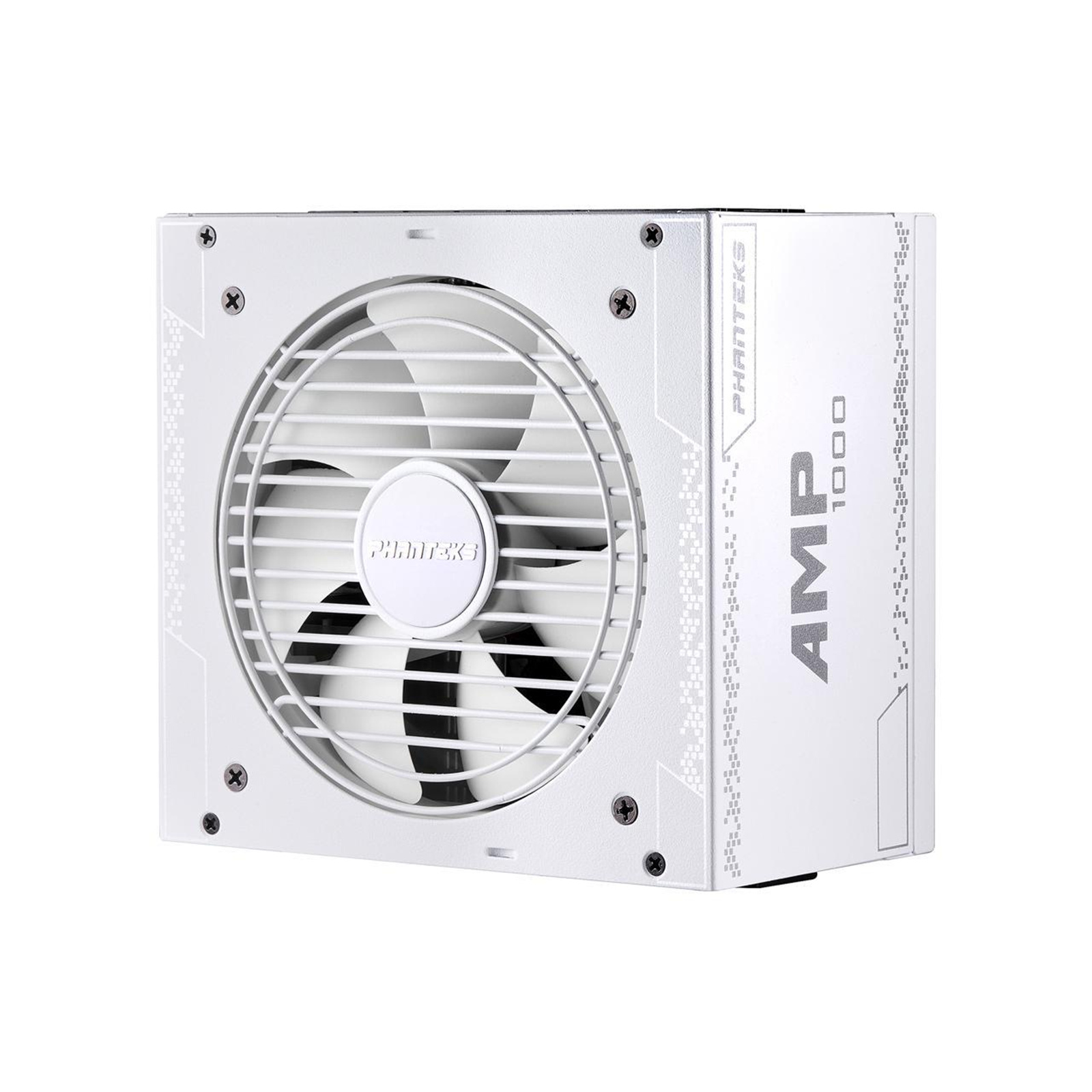

Phanteks AMP 1000W White Power Supply
80 Plus Gold - Full Modular
Out of stock
Phanteks AMP 1000W White Power Supply
80 Plus Gold - Full Modular
- Brand: Phanteks
- MPN: PH-P1000G_WT01
- Part #: PSUPHA00100
- UPC: 886523500988
Product is out of stock. View similar products in-stock at PB Tech
What PB Tech customers are saying about this product...
See More Reviews"Excellent value what you get for, can operation is quiet mode. Ready for new GPU demands."
"Great psu with white cables included saves extra money for other cables"
"More power than I need ,but always good to know its bigger"
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Desktop Power Supplies





Phanteks AMP 1000W White Power Supply 80 Plus Gold - Full Modular
- Brand: Phanteks
- MPN: PH-P1000G_WT01
- Part #: PSUPHA00100
- UPC:886523500988

Product URL: https://www.pbtech.co.nz/product/PSUPHA00100/Phanteks-AMP-1000W-White-Power-Supply-80-Plus-Gold?srsltid=AfmBOoohw5mWlnGqtlyjiIHNPP_E1w71Dee8HRjgFy7ifCIBoCUSkgwA
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

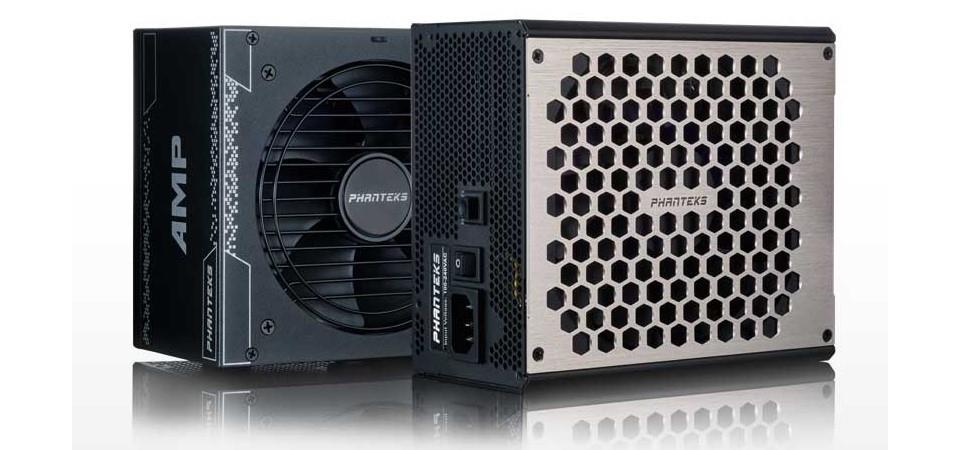

AMP Modular PSU
In collaboration with Seasonic, Phanteks AMP Series are high quality 80PLUS Gold Certified power supplies. The fully modular power supplies provide users with clean and great cable management with all black sleeved and flat ribbon cables. The 120mm Fluid Dynamic Bearing Fan can be temperature controlled in Hybrid Fanless mode for ultimate silent performance. Phanteks AMP power supplies are certified to ensure 100% compatibility with the Revolt PRO PSUs.
AMP Series
The fully modular Gold certified power supply with great value.
Packed with Features
Ultra-High Power Density, Compact Size
Ultra-high power density with a small footprint of only 140mm depth.
Gold-Plated High Current Terminals
Reduces current transmission resistance for increased efficiency.

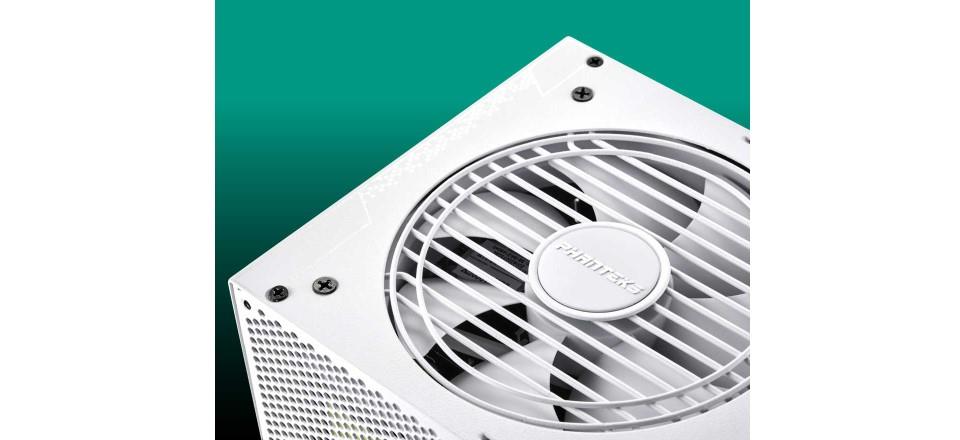

120mm Fluid Dynamic Bearing Fan
The fluid dynamic bearing (FDB) improves the lubrication of the bearing for increased stability and longevity.
Cable-Free Connection Design
Back panel and PCB are connected by a copper plate to improve output power quality.
Multi-GPU Support
Multiple 6-Pin and 8-Pin output connectors support all multi GPU platforms.
Revolt Pro Link Certified
The Phanteks AMP power supply has been validated to ensure 100% compatibility, reliability and stability by Phanteks to work with the Revolt PRO.
- High quality cables
- High current terminals
- Stable long-term operation under high loads
Connect the AMP power supply to the Revolt PRO to increase your power output or run a power-redundant system.

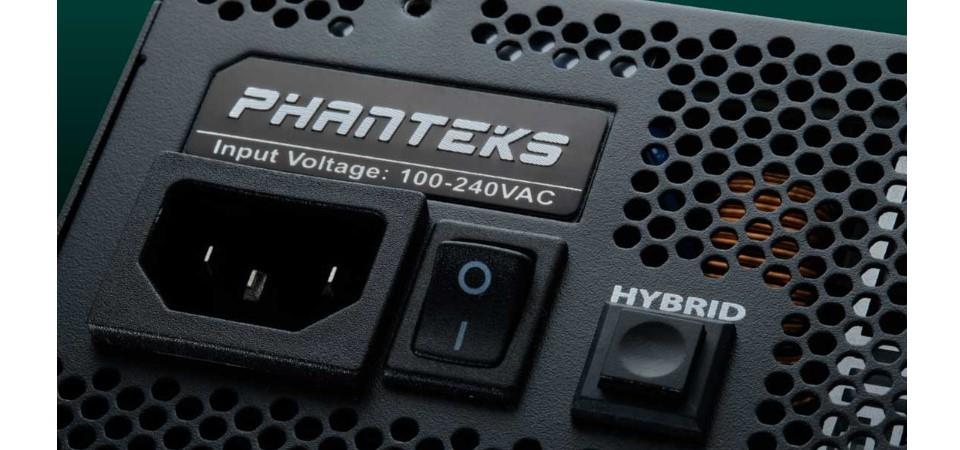

Premium Hybrid Mode
A state-of-the - art fan control that allows the power supply to work entirely fanless under 40% load and enables the most quiet system setups.
Stability & Reliability
The result of a close collaboration between two premium brands. Engineered with premium
components using, 100% Japanese 105 capacitors, cable-free internal connections, and a patented state- of- the- art PCB design, ensures stability and reliability.

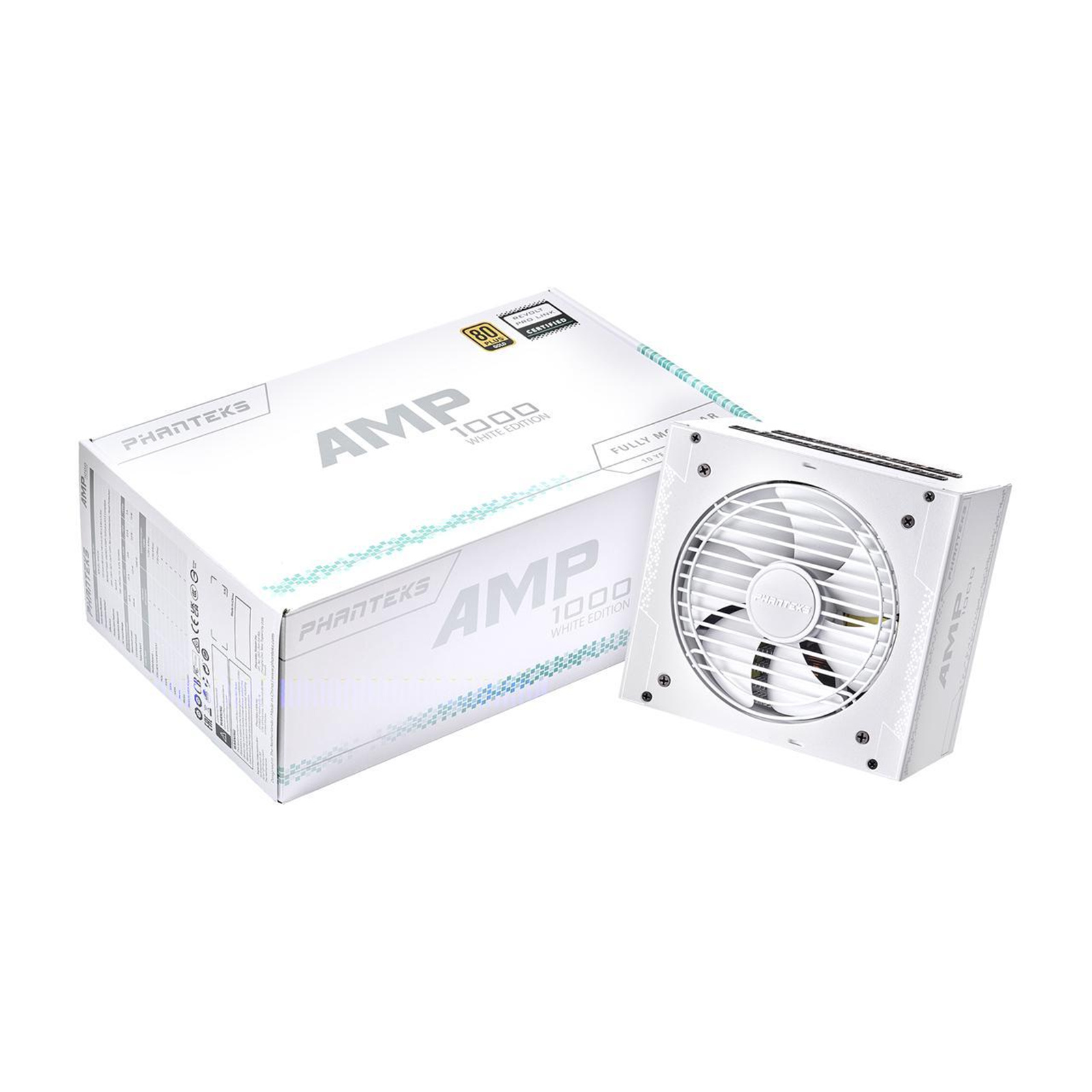

Scope of Delivery
Full modular cables minimizes cable clutter for an easy installation of a clean system.
Fully white cables and connectors to match the PSU and your build.
Specifications
Color
White
Type
ATX
Maximum Power
1000 W
Fans
1 x 120 mm FDB fan
Main Connector
24Pin
+12V Rails
Single
PCI-Express Connector
6 x 6+2-Pin
SATA Power Connector
10
Modular
Full Modular
Energy-Efficient
80 PLUS GOLD Certified
Protection
OPP (Over Power Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
OCP (Over Current Protection)
OTP (Over Temperature Protection)
No-Load protection
Reset Protection
Input Voltage
100 - 240 V
Input Frequency Range
50/60 Hz
Input Current
13-6.5A
Output
+3.3V @ 25A, +5V @ 25A, +12V @ 83A, -12V @ 0.3A, +5VSB @ 3A
MTBF
>100,000 Hours
Max PSU Length
140 mm
Connectors
1 x 24 pin ATX
2 x 8 pin (4+4) EPS (CPU)
6 x 8 pin (6+2) PCIe
10 x SATA
5 x 4 pin Peripheral
Molex to SATA
Cable Spec
24Pin MB: One cable (610mm)
4+4Pin CPU: Two cables (650mm)
2 x PCI-E 6+2Pin: Three cables (750mm)
4 x SATA: Two cables (860mm)
2 x SATA: One cable (450mm)
3 x Molex: One cable (690mm)
2 x Molex: One cable (470mm)
Molex to SATA: One cable (300mm)
PSU Dimension (WxHxD)
150 x 86 x 140 mm / 5.9 x 3.4 x 5.5 in
