Silverstone DA750 750W ATX Power Supply
80Plus Gold - Silent running - 120mm fan with 18 dBA - Fully Modular
Silverstone DA750 750W ATX Power Supply
80Plus Gold - Silent running - 120mm fan with 18 dBA - Fully Modular
- Brand: Silverstone
- MPN: SST-DA750-G
- Part #: PSUSVT18750
- UPC: 844761021122
Select your store to check availability
- Brand: Silverstone
- MPN: SST-DA750-G
- Part #: PSUSVT18750
- UPC: 844761021122
What PB Tech customers are saying about this product...
See More Reviews"This was a good price, a good size, and easy to install - what more could you ask for."
"It hasn't exploded yet so I have no complaints. Good price, small footprint and lots of connection options."
"Easy to install, well optioned, great price, recommended,"
COMBO DEALS: Buy Together and SAVE!
Cooler Master Silencio S400 Silent MATX Mini Tower Case for mATX /ITX ,CPU Cooler Supports Upto...
$112.17 +GST
$129.00
G.SKILL Ripjaws V Series 16GB DDR4 Desktop RAM Kit - Black 2x 8GB - 3200Mhz - CL16 - 1.35v - 16-18...
$65.21 +GST
$74.99
Crucial P3 Plus 1TB NVMe M.2 Internal SSD 2280 - PCIe 4.0 - up to 5,000MB/s Read - up to 3,600MB/s...
$115.00 +GST
$132.25
Samsung 980 1TB M.2 NVMe Internal SSD PCIe 3.0 - Up to 3500MB/s Read - Up to 3000MB/s Write - 500K...
$149.00 +GST
$171.35
Features
DA750 Gold
80 PLUS Gold 750W fully modular ATX power supply
- High efficiency with 80 PLUS Gold certification
- 24/7 continuous power output with 40? operating temperature
- Class-leading single +12V rail
- Silent running 120mm FDB fan with 18 dBA minimum
- Japanese electrolytic capacitors
- Specially designed cover increases effectiveness of residual heat dissipation
- Compact design with a 140mm depth for easy integration
- Strict ±3% voltage regulation and low ripple & noise
Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity
Built-in 120 mm fan has excellent airflow and low noise, perfect for quiet home or office use
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking
Flat cables have much greater flexibility to allow for tighter folding and management of cables
Japanese electrolytic capacitors
Specially designed cover designed to effectively dissipate the residual heat
Advanced protections for safety and security
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Over temperature protection
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Related Hardwired Articles
Popular Desktop Power Supplies
NZXT C Series ATX 3.0 1200W Power Supply 80 Plus Gold - Fully...
MSI MAG 750W Power Supply 80 Plus Gold - Native 16 Pin Connector...
DEEPCOOL PL550D 550W Power Supply 80 Plus Bronze - MEPS Ready - 5...
Corsair RM850e 850W ATX 3.0 Power Supply 80 Plus Gold - Fully...
Cooler Master MWE Bronze V3 750W Power Supply 230V -ATX 3.1 80...
Silverstone DA750 750W ATX Power Supply 80Plus Gold - Silent running - 120mm fan with 18 dBA - Fully Modular
- Brand: Silverstone
- MPN: SST-DA750-G
- Part #: PSUSVT18750
- UPC:844761021122
Product URL: https://www.pbtech.co.nz/product/PSUSVT18750/Silverstone-DA750-750W-ATX-Power-Supply-80Plus-Gol
| Branch | New Stock | On Display |
|---|---|---|
| Albany | 0 | |
| Glenfield | 0 | |
| Queen Street | 0 | |
| Auckland Uni | 0 | |
| Newmarket | 0 | |
| Westgate | 0 | |
| Penrose | 0 | |
| Henderson (Express) | 0 | |
| St Lukes | 0 | |
| Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Head Office | 0 | |
| Hornby | 0 | |
| Christchurch Central | 1 |
Features
DA750 Gold
80 PLUS Gold 750W fully modular ATX power supply
- High efficiency with 80 PLUS Gold certification
- 24/7 continuous power output with 40? operating temperature
- Class-leading single +12V rail
- Silent running 120mm FDB fan with 18 dBA minimum
- Japanese electrolytic capacitors
- Specially designed cover increases effectiveness of residual heat dissipation
- Compact design with a 140mm depth for easy integration
- Strict ±3% voltage regulation and low ripple & noise
Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity
Built-in 120 mm fan has excellent airflow and low noise, perfect for quiet home or office use
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking
Flat cables have much greater flexibility to allow for tighter folding and management of cables
Japanese electrolytic capacitors
Specially designed cover designed to effectively dissipate the residual heat
Advanced protections for safety and security
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Over temperature protection
Specifications
Product No.
SST-DA750-G
Model (safety certification)
SST-AX0750MCGD-A
Color
black (lead-free paint)
Max. DC Output
750W
Power density
415W per liter

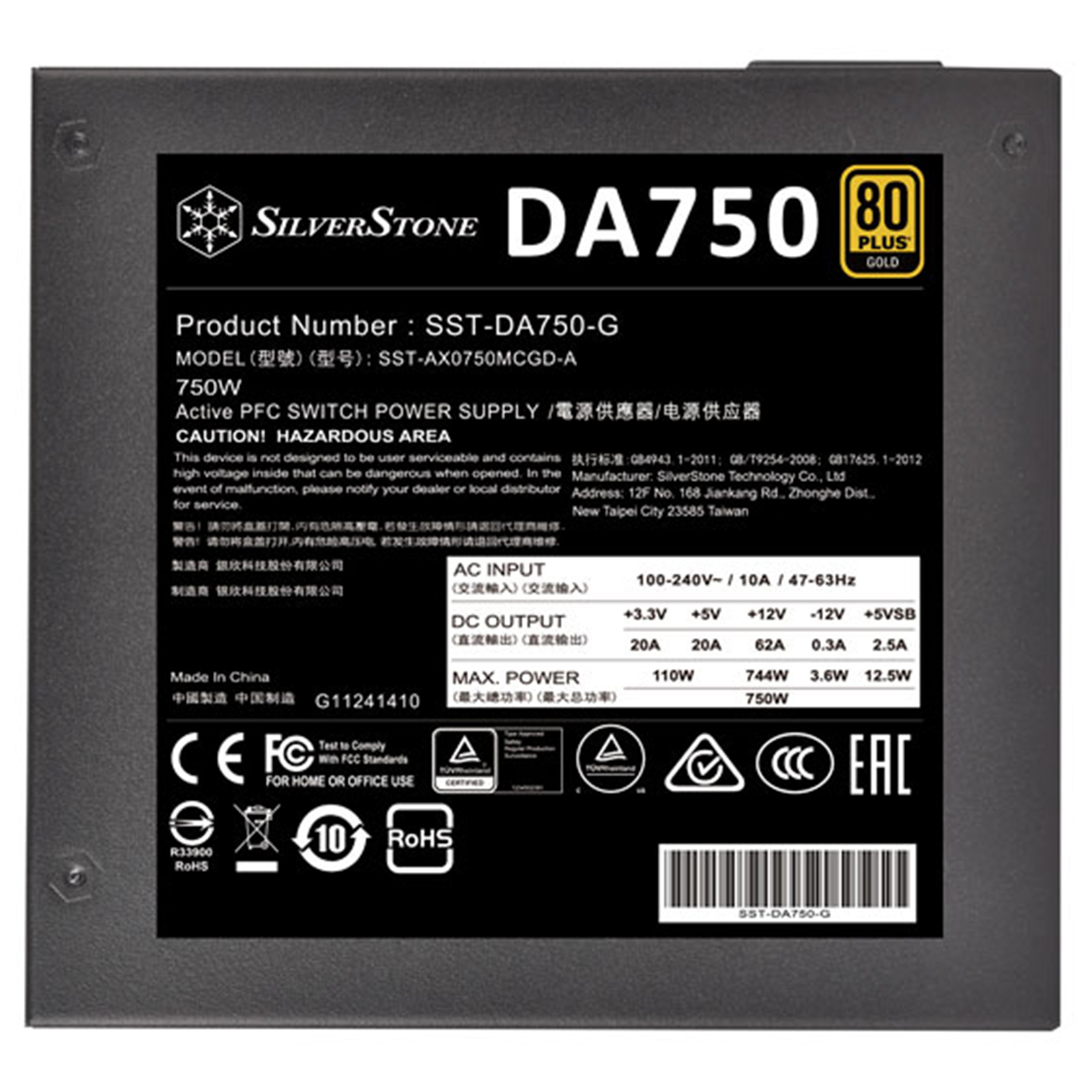

Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 62A 2.5A 0.3A
Peak (Amps) / / / / 3.0A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±3% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 30mV 30mV 40mV 30mV 40mV
Combined +3.3V & +5V
110W
Combined +12V
744W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
87% ~ 90% (at 20% ~ 100% loading)
MTBF
100,000 hours
Operating temperature
0 ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Over temperature protection

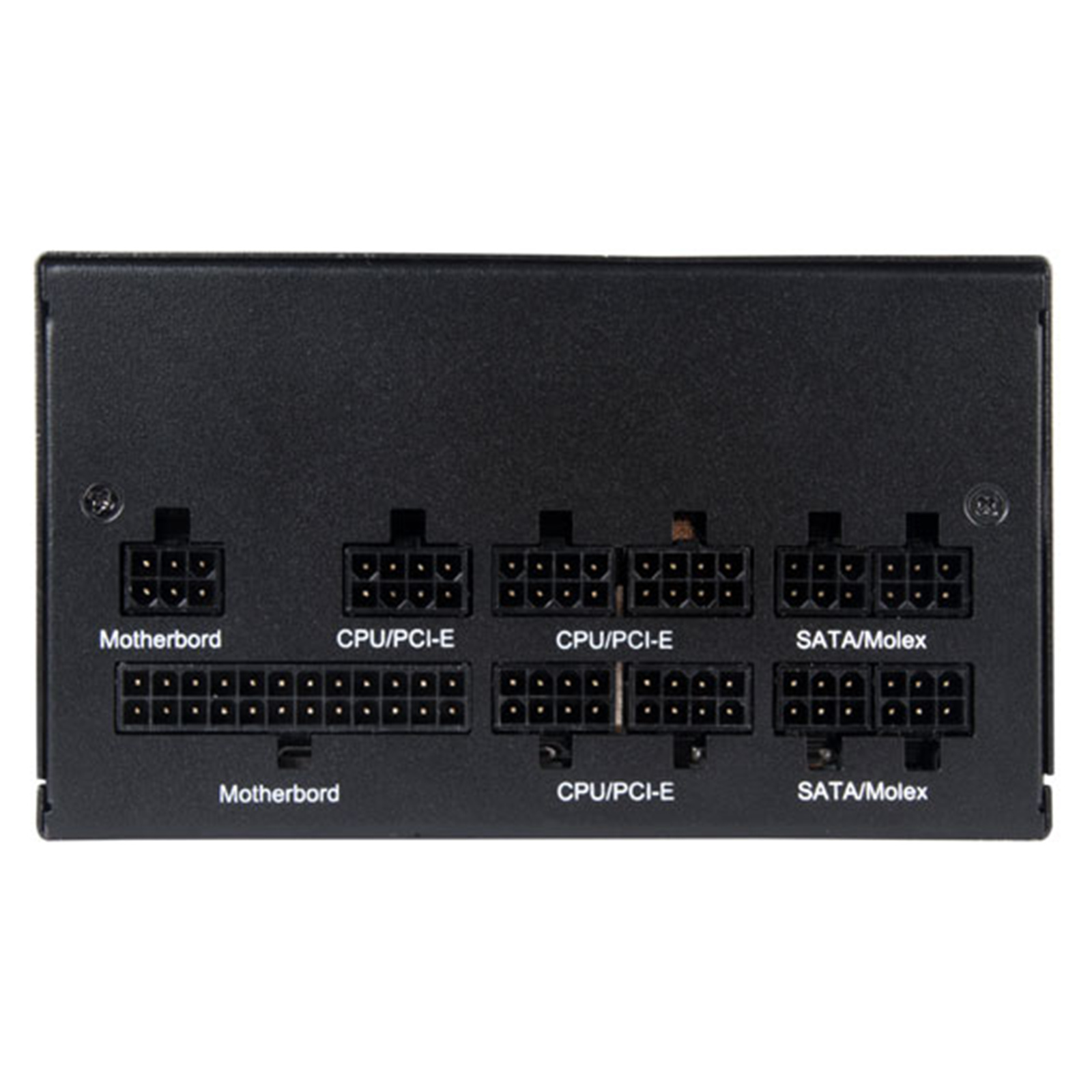

Connectors
1 x 24 / 20-Pin motherboard connector (600mm)
2 x 8 / 4-Pin EPS / ATX 12V connector ("750mm" x 2)
2 x 8 / 6-Pin PCIe connector ("650mm" x 2)
2 x 8 / 6-Pin PCIe connector ("650mm / 150mm")
8 x SATA connector ("600mm / 150mm / 150mm / 150mm" x 2)
6 x 4-Pin Peripheral connector + 2 x 4-Pin Floppy adapter connector ("600mm / 150mm / 150mm / 150mm" x 2)
Cooling System
Silent 120mm FDB fan
Noise Level
18 dBA minimum
Certification
80 PLUS Gold
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 140mm (D)
Weight
1.44 kg
Other
GPU Support list
