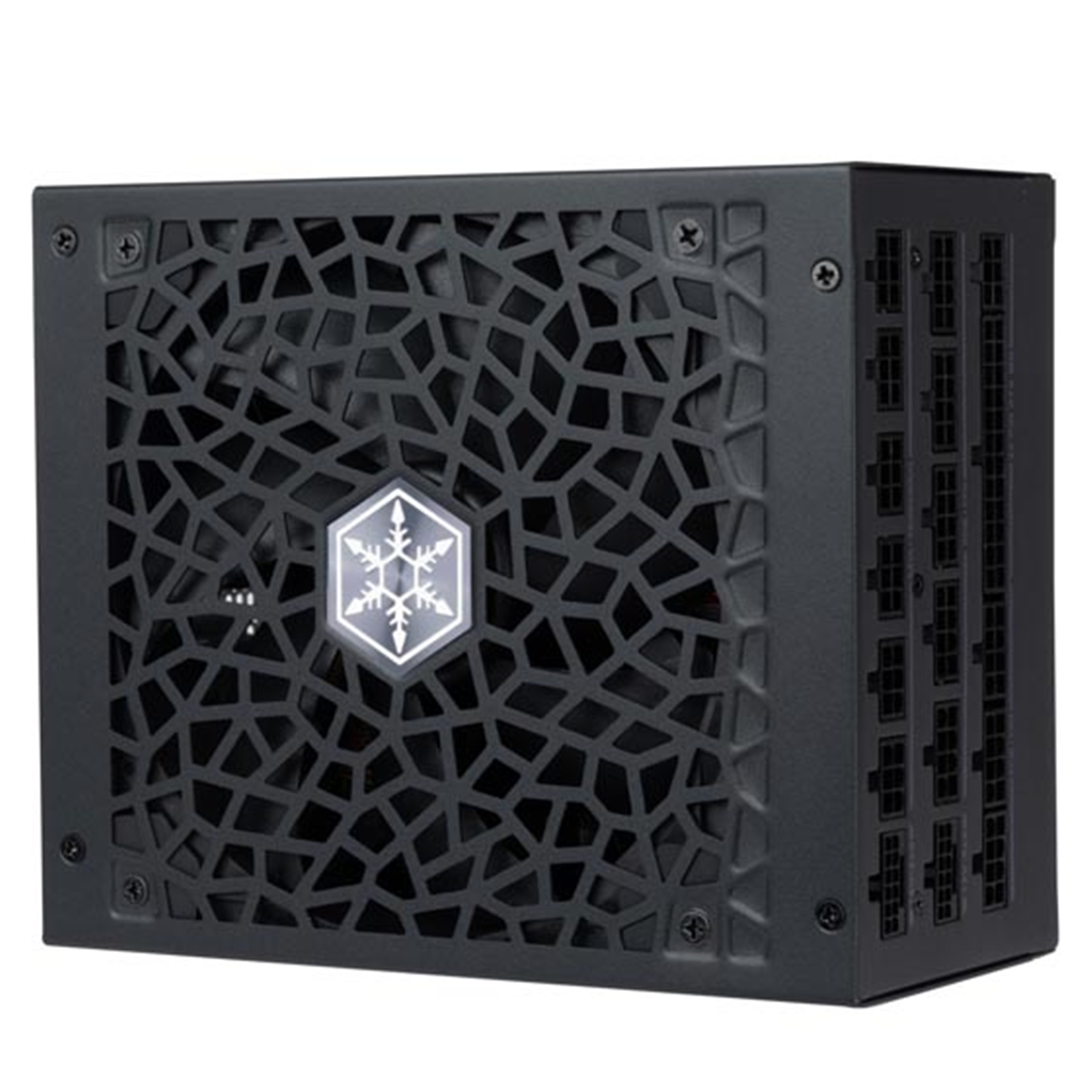

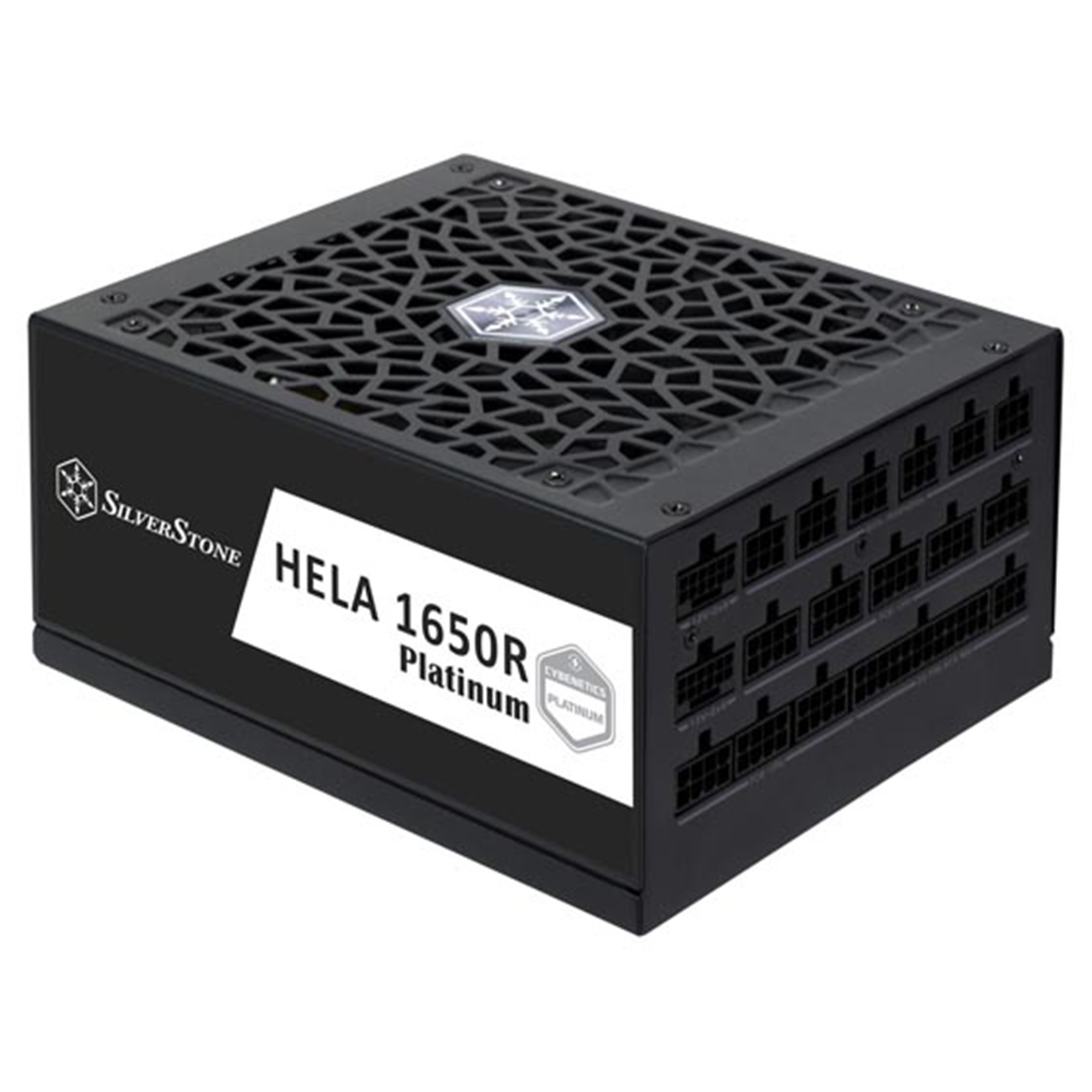

Silverstone HELA HA1650R 1650W ATX 3.1 Plantinum Power Supply
Cybenetics Platinum efficiency certification - Fully Modular with Dual 16 pin connector
Out of stock
Silverstone HELA HA1650R 1650W ATX 3.1 Plantinum Power Supply
Cybenetics Platinum efficiency certification - Fully Modular with Dual 16 pin connector
- Brand: Silverstone
- MPN: SST-HA1650R-PM
- Part #: PSUSVT18930
- UPC: 844761027568
- Brand: Silverstone
- MPN: SST-HA1650R-PM
- Part #: PSUSVT18930
- UPC: 844761027568
Product is out of stock. View similar products in-stock at PB Tech
What PB Tech customers are saying about this product...
See More Reviews"This was a good price, a good size, and easy to install - what more could you ask for."
"It hasn't exploded yet so I have no complaints. Good price, small footprint and lots of connection options."
"Easy to install, well optioned, great price, recommended,"
Features

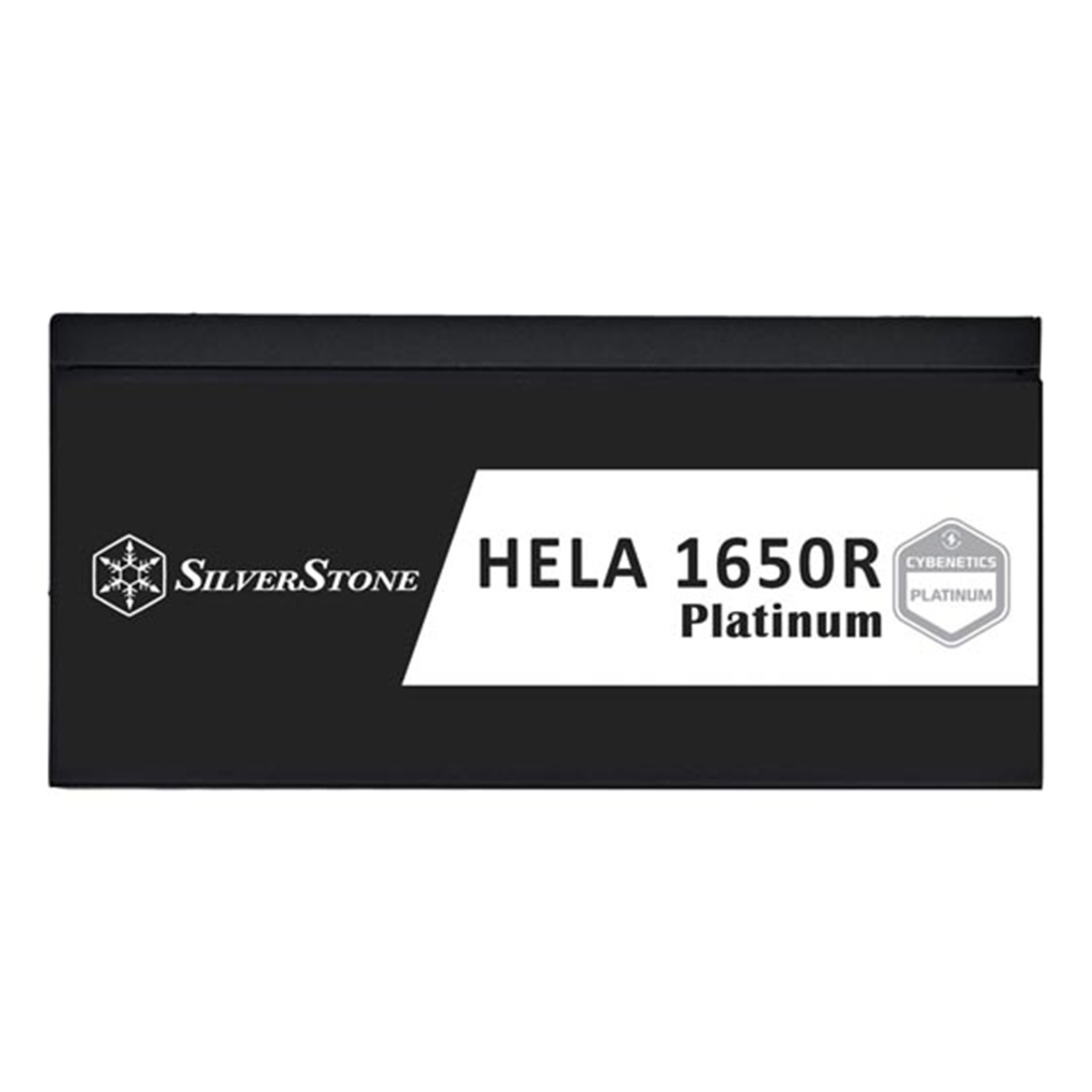

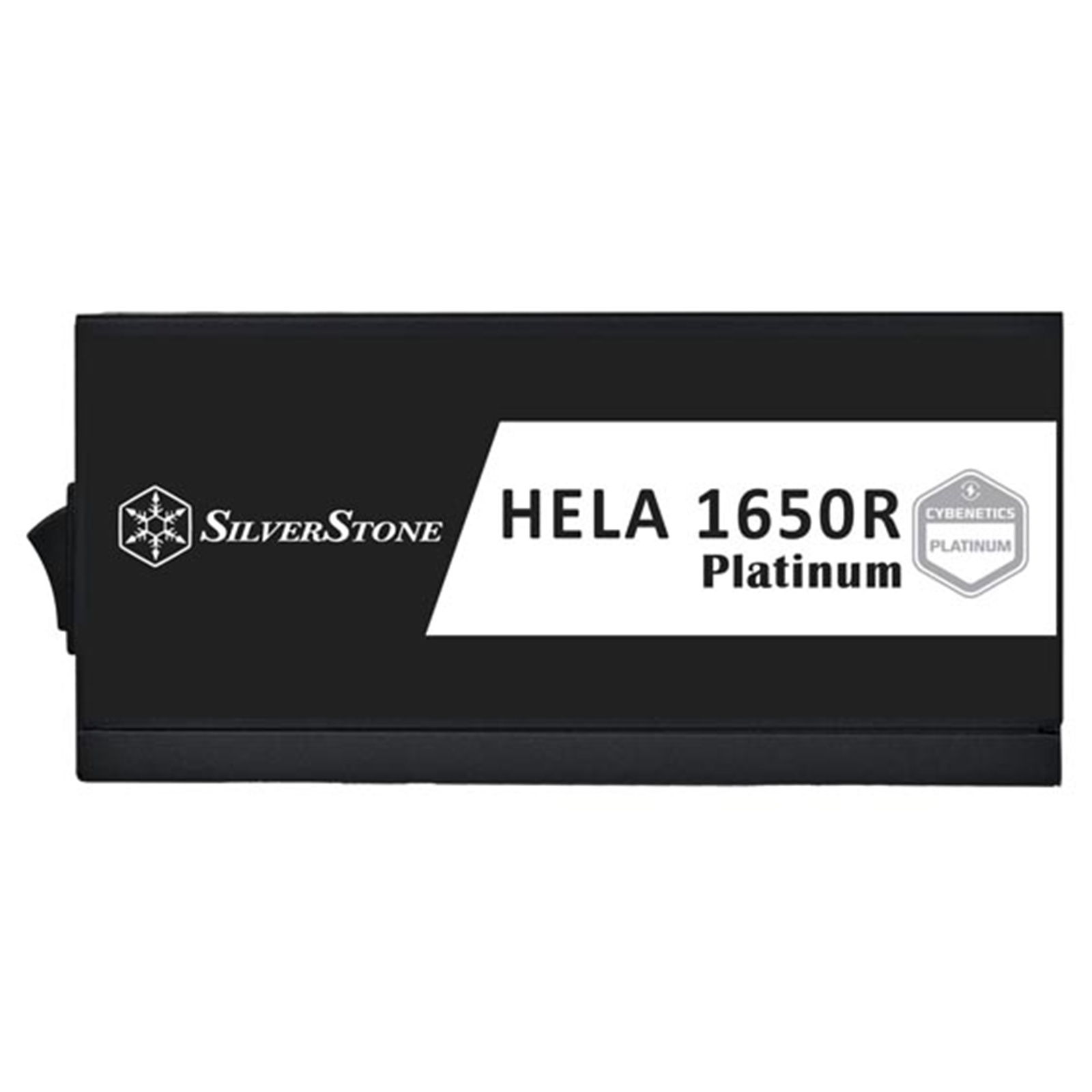

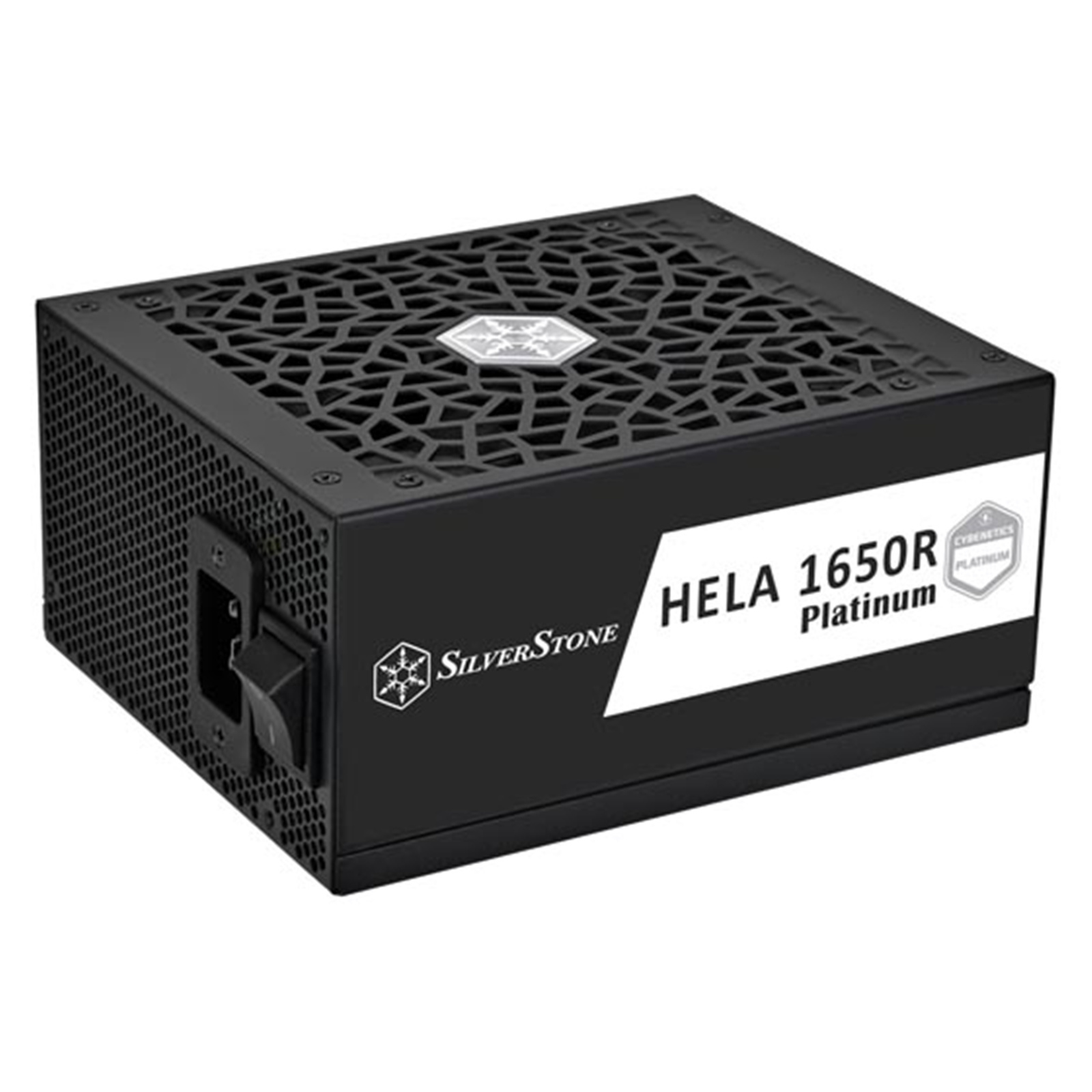

HELA 1650R Platinum
Cybenetics Platinum 1650W PCIe 5 Fully Modular ATX (PS2) Power Supply
- Supports 12V-2x6 PCIe connector with ATX 3.1 and PCIe Gen 5 standard
- High efficiency with Cybenetics Platinum certification
- 24/7 continuous power output with 50? operating temperature
- Fully modular design with SilverStone's 3rd generation modular interface
- Silent-running 140mm FDB fan with delayed shut-off function
- All black flat cables
12V-2x6 PCIe connector with ATX 3.1 and PCIe Gen5 standards
Easily and efficiently power high-end systems with the latest graphics cards.
Cybenetics Platinum certified
Designed for Cybenetics Platinum level of efficiency, to minimize wasted heat while significantly reducing electricity consumption.

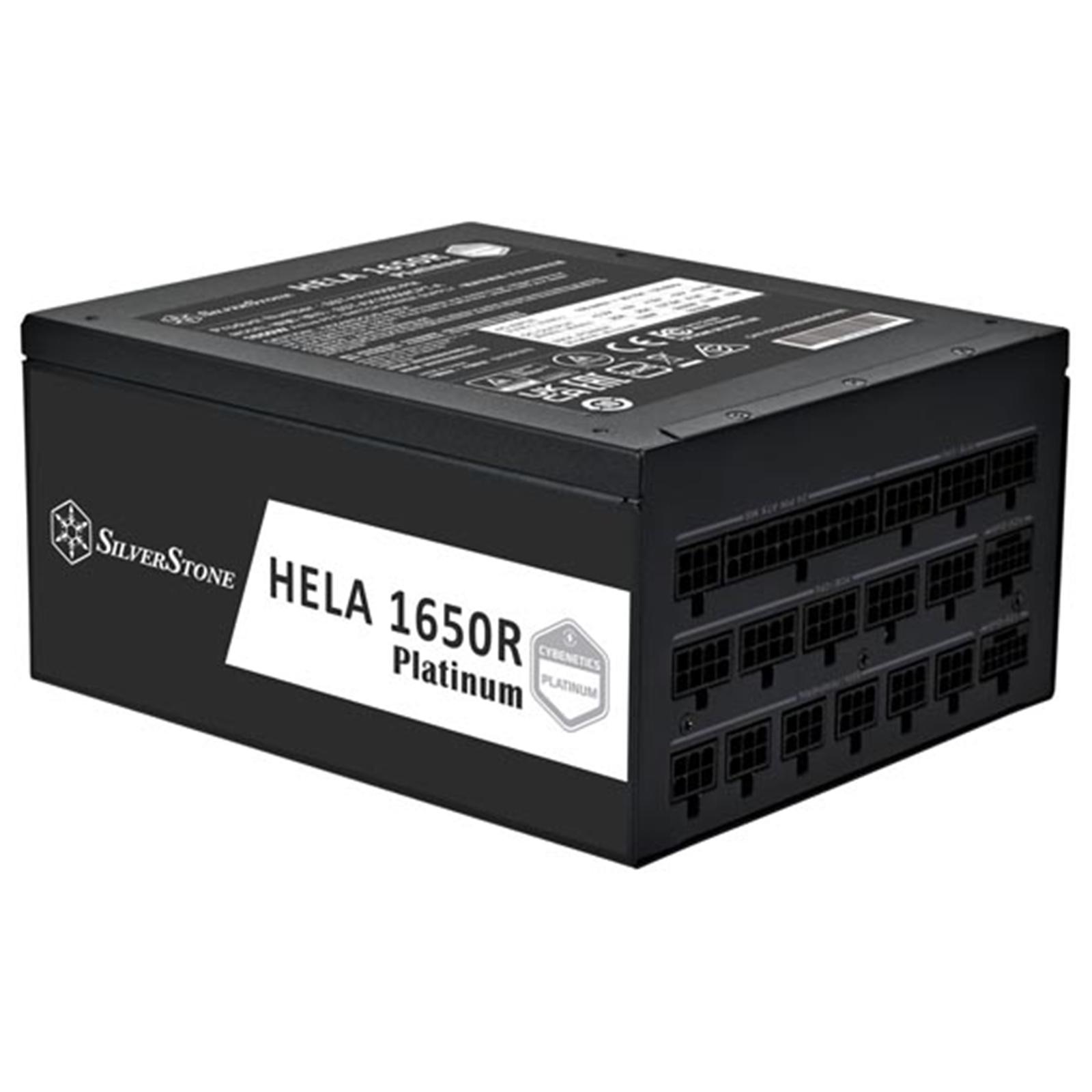

Fully modular design with universal EPS / PCIe connector interface
Included are flat cables that offer exceptional flexibility, enabling easy and efficient cable folding and management.
All Japanese electrolytic capacitors
Guarantees dependable power delivery and an extended lifespan.

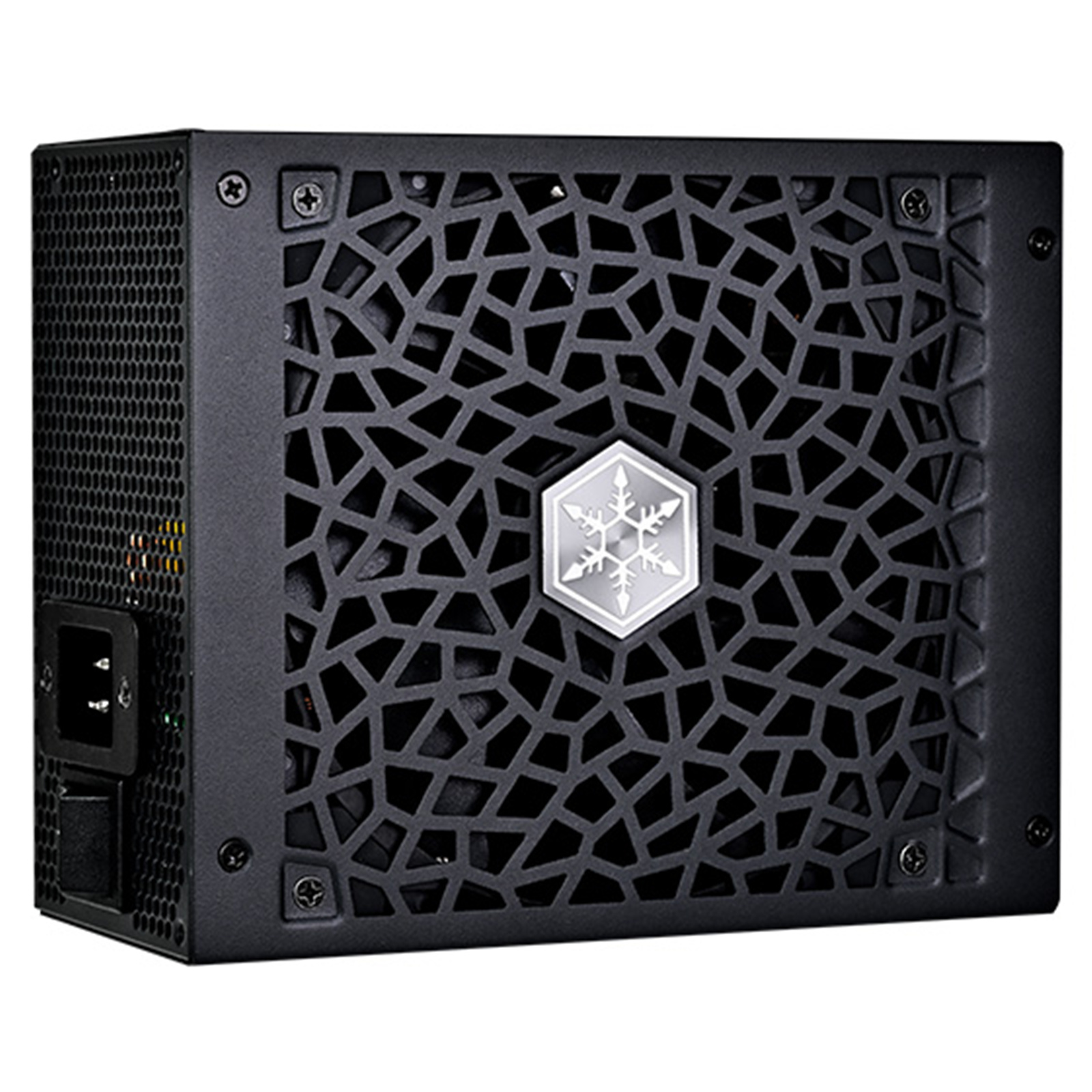

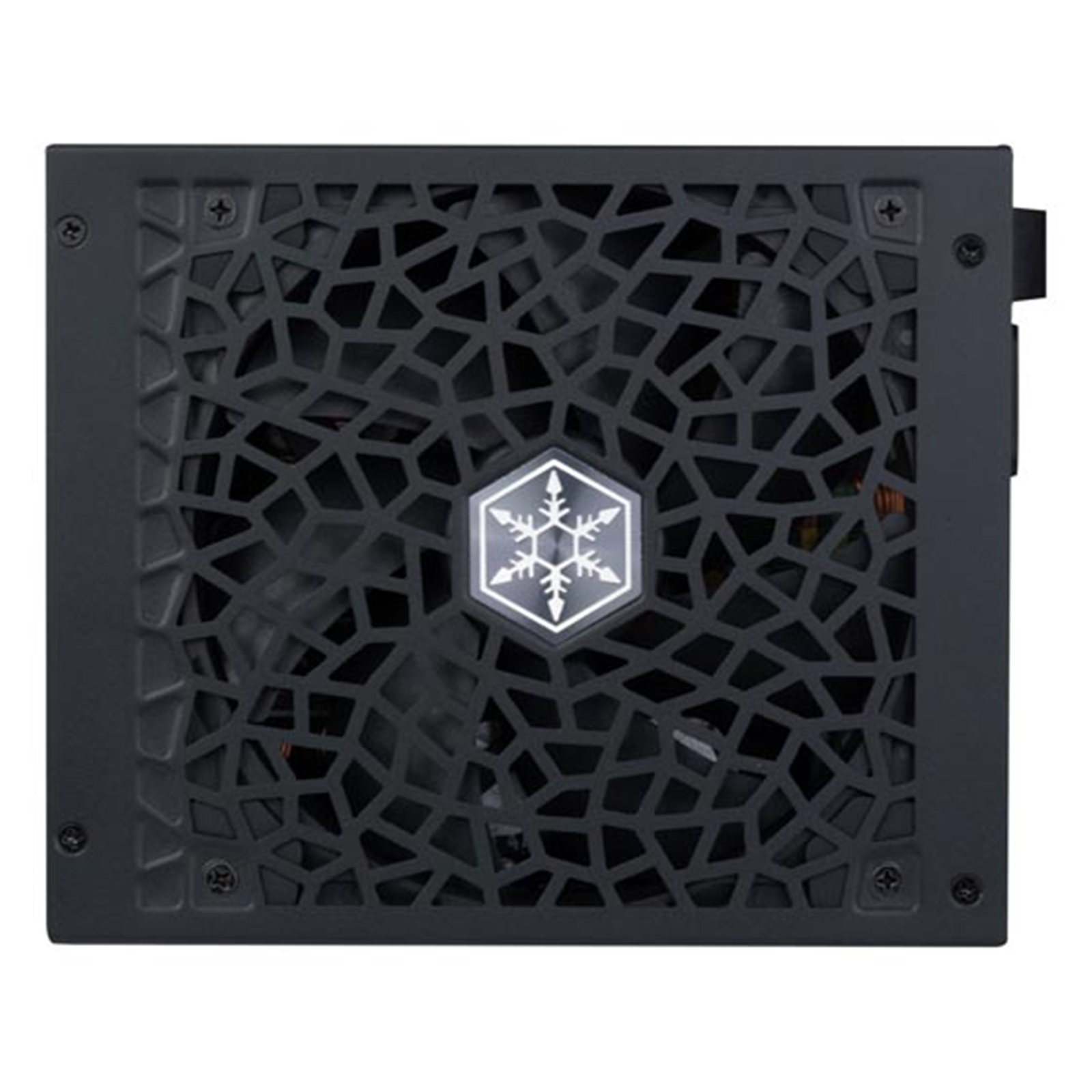

High reliability cooling fan with delayed shut-off function
Equipped with a 140mm FDB bearing fan that delivers exceptional airflow and operates quietly. It also features a delayed shut-off function, which extends the cooling process after the system powers down, helping to dissipate residual heat and protect sensitive components.
Advanced protections for safety and security
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
- Over temperature protection
Specifications
Reviews
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Desktop Power Supplies
DEEPCOOL PL750D 750W ATX 3.1 Power Supply 80 Plus Bronze - MEPS...
DEEPCOOL PN850M 850W ATX 3.1 Power Supply 80 Plus Gold - Full...
MSI MAG 850W Power Supply 80 Plus Gold - ATX 3.1 PCIe 5.0 Ready -...
DEEPCOOL PL550D 550W Power Supply 80 Plus Bronze - MEPS Ready - 5...
DEEPCOOL PL650D 650W Power Supply 80 Plus Bronze - MEPS Ready - 5...
_20251016150757.webp)
Silverstone HELA HA1650R 1650W ATX 3.1 Plantinum Power Supply Cybenetics Platinum efficiency certification - Fully Modular with Dual 16 pin connector
- Brand: Silverstone
- MPN: SST-HA1650R-PM
- Part #: PSUSVT18930
- UPC:844761027568
Product URL: https://www.pbtech.co.nz/product/PSUSVT18930/Silverstone-HELA-HA1650R-1650W-ATX-31-Plantinum-Po
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
HELA 1650R Platinum
Cybenetics Platinum 1650W PCIe 5 Fully Modular ATX (PS2) Power Supply
- Supports 12V-2x6 PCIe connector with ATX 3.1 and PCIe Gen 5 standard
- High efficiency with Cybenetics Platinum certification
- 24/7 continuous power output with 50? operating temperature
- Fully modular design with SilverStone's 3rd generation modular interface
- Silent-running 140mm FDB fan with delayed shut-off function
- All black flat cables
12V-2x6 PCIe connector with ATX 3.1 and PCIe Gen5 standards
Easily and efficiently power high-end systems with the latest graphics cards.
Cybenetics Platinum certified
Designed for Cybenetics Platinum level of efficiency, to minimize wasted heat while significantly reducing electricity consumption.
Fully modular design with universal EPS / PCIe connector interface
Included are flat cables that offer exceptional flexibility, enabling easy and efficient cable folding and management.
All Japanese electrolytic capacitors
Guarantees dependable power delivery and an extended lifespan.
High reliability cooling fan with delayed shut-off function
Equipped with a 140mm FDB bearing fan that delivers exceptional airflow and operates quietly. It also features a delayed shut-off function, which extends the cooling process after the system powers down, helping to dissipate residual heat and protect sensitive components.
Advanced protections for safety and security
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
- Over temperature protection
Specifications

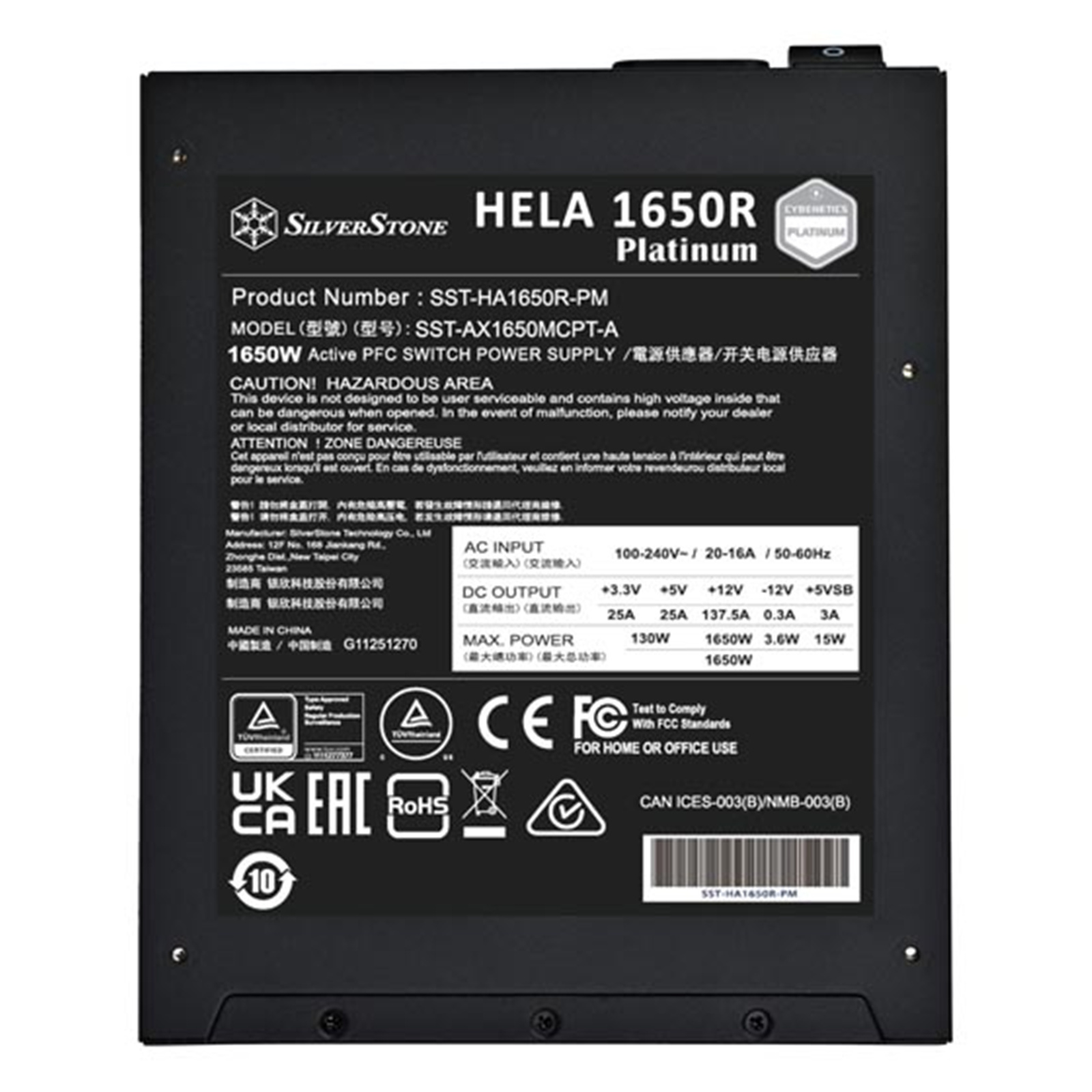

Product No.
SST-HA1650R-PM
Model (safety certification)
SST-AX1650MCPT-A
Color
Black (lead-free paint)
Max. DC Output
1650W
Power density
710.6W/L
Load Range
Output +3.3V +5V +12V1 +5VSB -12V
Max.(Amps) 25A 25A 137.5A 3A 0.3A
Peak (Amps) / / / / /
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±5% ±3%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV
Combined +3.3V & +5V
130W
Combined +12V
1650W
Input Voltage
1650W: 103~264 Vrms
1350W: 90~264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC(PF>0.9 at full load)
Efficiency
89% ~ 91% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Under Voltage Protection

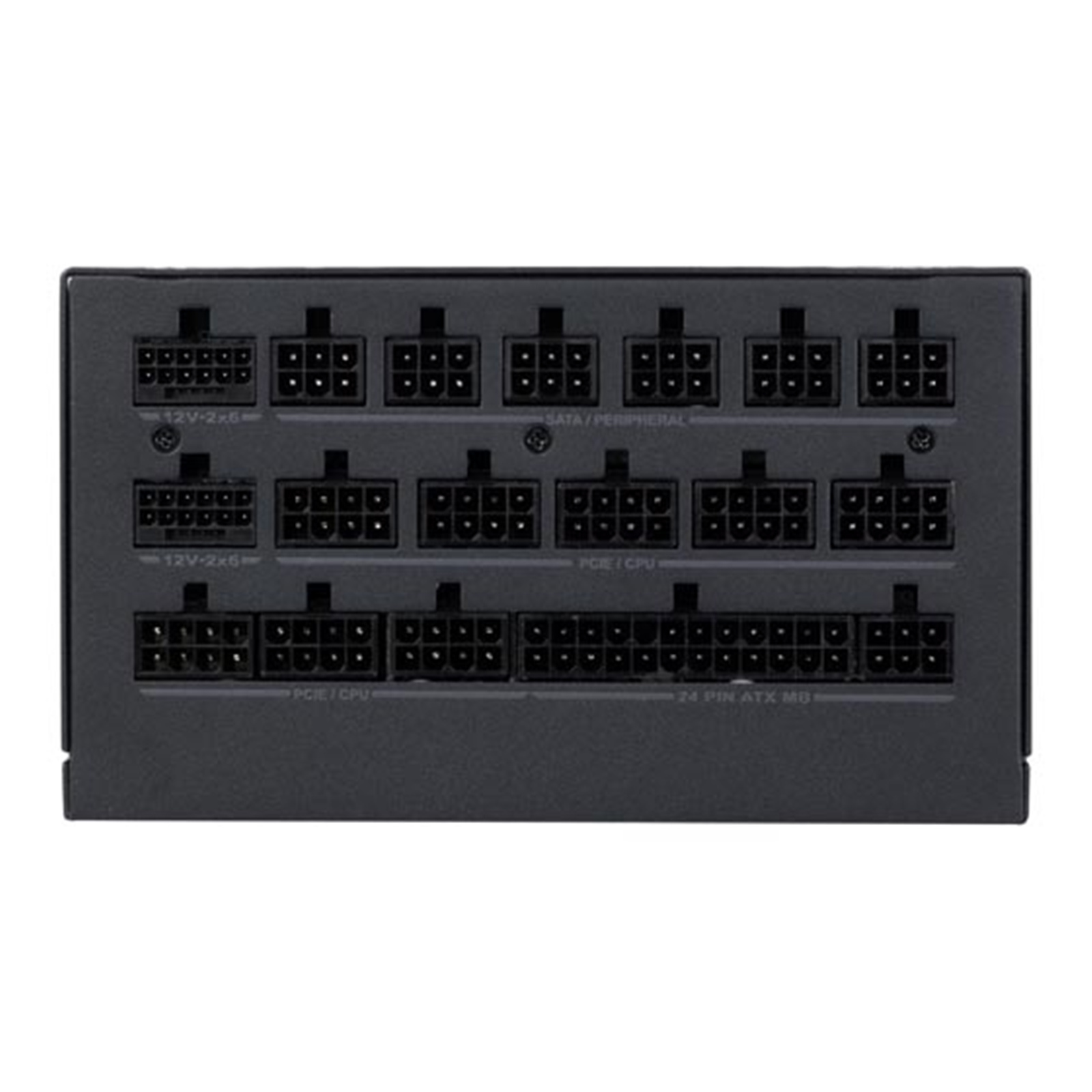

Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connectors
9 x 8 / 6-Pin PCIe connectors
2 x 12+4-Pin 12V-2x6 connectors
16 x SATA connectors
6 x 4-Pin Peripheral connector
1 x 4-Pin Floppy adapter connector
Cooling System
Silent 140mm FDB fan
Noise Level
18 dBA minimum
Certification
Cybenetics Platinum
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 180mm (D)
5.91" (W) x 2.5" (H) x 7.1" (D)
Weight
2.09 kg
