Silverstone TUF Gaming ET550-HG 550W ATX Power Supply

80 Plus Gold - Modular - 5 Year warranty

PB Tech price
PB Tech price
$ 142 .61
 +GST
$ 164 .00
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Silverstone TUF Gaming ET550-HG 550W ATX Power Supply

80 Plus Gold - Modular - 5 Year warranty

  • Brand: Silverstone
  • MPN: SST-ET550-HG
  • Part #: PSUSVT7214
  • UPC: 844761015794
PB Tech price
$ 142 .61 $ 164 .00
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: Silverstone
  • MPN: SST-ET550-HG
  • Part #: PSUSVT7214
  • UPC: 844761015794

Max Output Power

550W

PSU Form Factor

ATX

80 Plus Rating

Gold

Modular

Semi

Colour

Black

16-Pin GPU Connector

No

PSU Length

160mm

PSU ATX Version

ATX12V 2.x

Product is out of stock. View similar products in-stock at PB Tech

Features

ET550-HG

- High efficiency with 80 PLUS Gold certification
- Semi-modular cables facilitate cable management
- 24/7 continuous power output with 40°C operating temperature
- Class-leading single +12V rail
- Silent running 140mm fan with 18 dBA
- PCIe 8pin and PCIe 6pin connectors support
- All-black flat cables design

Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.



Built-in 140mm fan has excellent airflow and low noise, perfect for quiet home or office use.

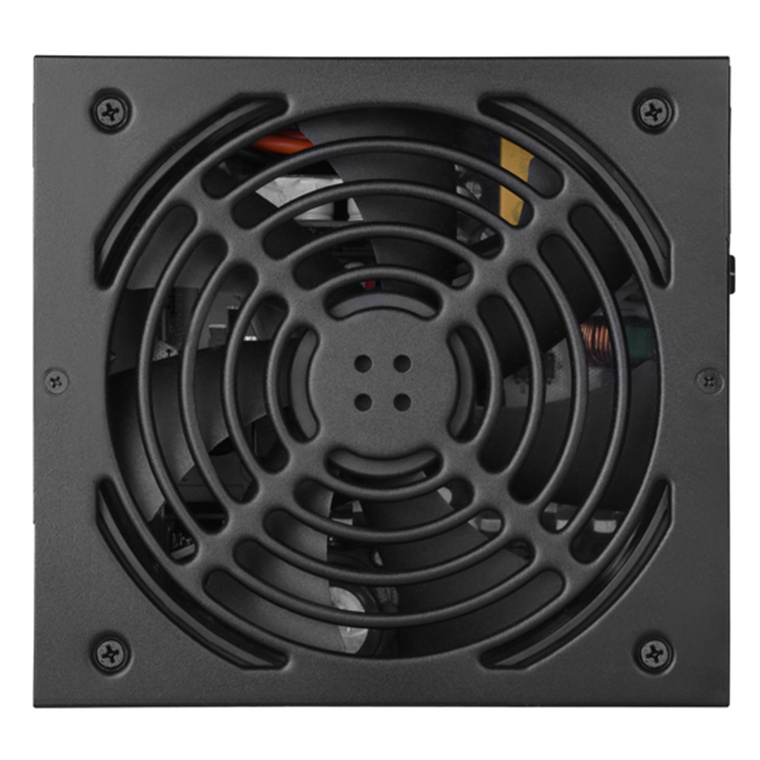

Single 140mm silent fan

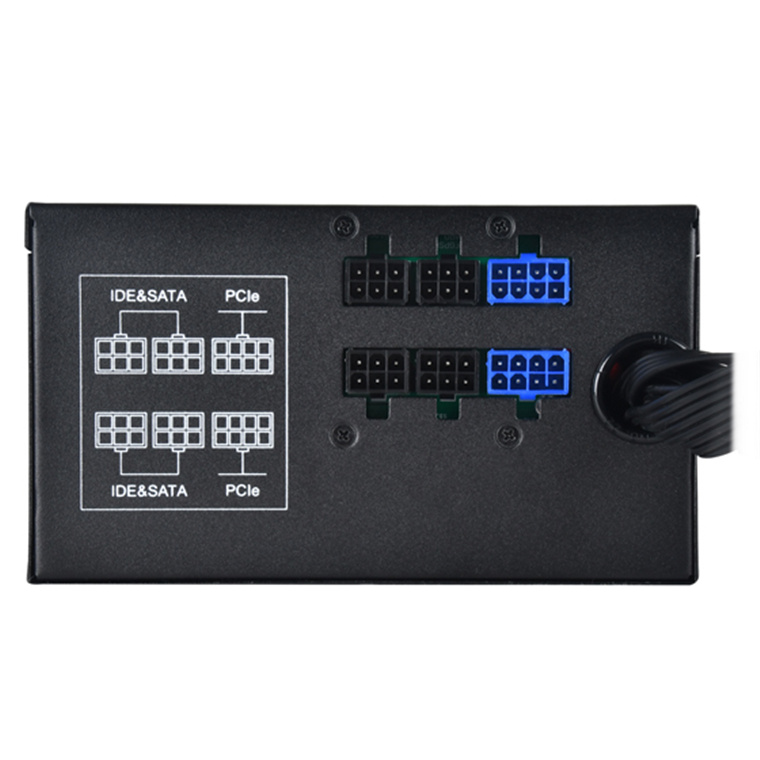

Semi-modular cables facilitate cable management



1 x 24 / 20-Pin motherboard connector



1 x 8 / 4-Pin EPS / ATX 12V connector



2 x 8 / 6-Pin PCIe connector



9 x SATA connector



3 x 4-Pin Peripheral connector



1 x 4-Pin Floppy connector

Specifications

Model No.

SST-ET550-HG

Max. DC Output

550W

Power density

267W per liter

Load Range

Max.(Amps)
+3.3V: 20A
+5V: 20A
+12V: 45A
+5VSB: 2.5A
-12V: 0.3A

Peak (Amps)
+3.3V: -
+5V: -
+12V: -
+5VSB: 3.0A
-12V: -

Min.(Amps)
+3.3V: 0A
+5V: 0A
+12V: 0A
+5VSB: 0A
-12V: 0A

Range (%)
+3.3V: ±5%
+5V: ±5%
+12V: ±5%
+5VSB: ±5%
-12V: ±10%

Line Reg.(%)
+3.3V: ±1%
+5V: ±1%
+12V: ±1%
+5VSB: ±1%
-12V: ±1%

Ripple(mVp-p)
+3.3V: 50mV
+5V: 50mV
+12V: 120mV
+5VSB: 50mV
-12V: 120mV

Color

Black(Lead-Free Paint)

Combined +3.3V & +5V

110W

Combined +12V

540W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC(PF>0.9 at full load)

Efficiency

87% ~ 90% at 20% ~ 100% loading

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Over current protection
Over power protection
Over voltage protection
Short circuit protection

Connectors

V1.1
1 x 24 / 20-Pin motherboard connector (500mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (750mm)
2 x 8 / 6-Pin PCIe connector (500mm / 150mm)
8 x SATA connector ("500mm / 150mm / 150mm" x 2)
3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)
1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm)

Cooling System

Single 140mm silent fan

Form factor

ATX

Noise Level

18dBA minimum

Dimension

150 mm (W) x 86 mm (H) x 160 mm (D)
5.91" (W) x 3.39" (H) x 6.3" (D)

Weight

1.93 Kg

Certification

80 PLUS Gold

Other

Support GPU list
Compatible with ATX12V v2.4

Manufacturer Part No:
SST-ET550-HG
Brand:
Product Type:
Power Supply
UPC
844761015794
Product Family:
TUF Gaming
Shipping Weight:
2.4 kg
PB Part No:
PSUSVT7214
Product Model:
ET550-HG
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
