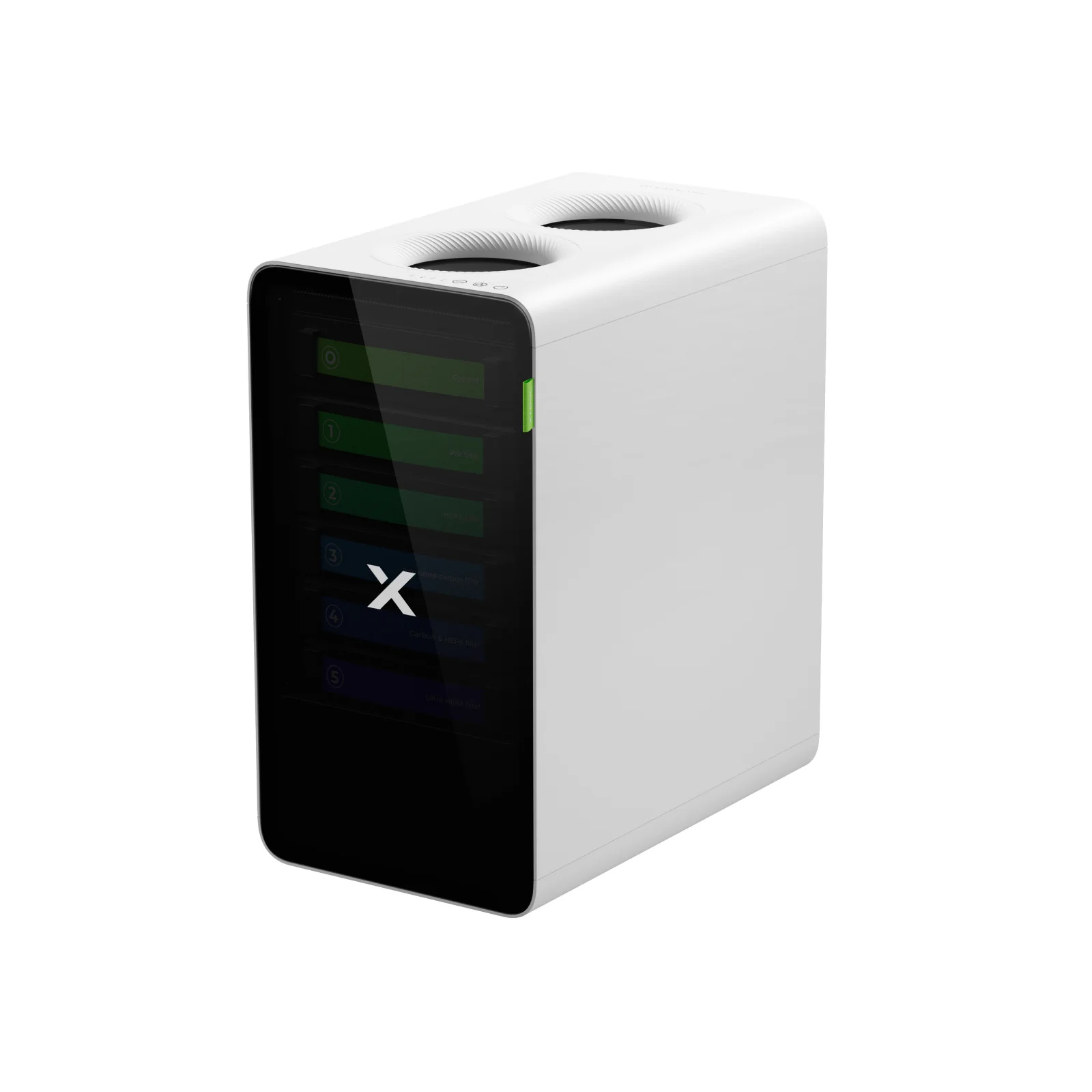

xTOOL Accessories SafetyPro AP2 Air / Smoke Purifier
for P2S / P2 / S1 / M1 Ultra / F1 Ultra / D1 / M1 / F1
xTOOL Accessories SafetyPro AP2 Air / Smoke Purifier
for P2S / P2 / S1 / M1 Ultra / F1 Ultra / D1 / M1 / F1
- Brand: xTOOL
- MPN: P5010394
- Part #: PTRMKB0096
- UPC: 193122025621
- Brand: xTOOL
- MPN: P5010394
- Part #: PTRMKB0096
- UPC: 193122025621
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Laser Cutter & Engraver Accessories





xTOOL Accessories SafetyPro AP2 Air / Smoke Purifier for P2S / P2 / S1 / M1 Ultra / F1 Ultra / D1 / M1 / F1
- Brand: xTOOL
- MPN: P5010394
- Part #: PTRMKB0096
- UPC:193122025621

Product URL: https://www.pbtech.co.nz/product/PTRMKB0096/xTOOL-Accessories-SafetyPro-AP2-Air--Smoke-Purifie
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 25 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
FAQ
Is the SafetyPro AP2 compatible with all xTool laser machines?
Yes, Manual mode is compatible with all our lasers: P2S, P2, S1, M1 Ultra, F1 Ultra, D1, D1 Pro, M1, and F1. And auto-mode is only compatible with P2S, S1, M1 Ultra, and F1 Ultra.
How can I check if my non-xTool machine is compatible with the AP2?
The AP2 is designed for machines with a smoke extraction capacity of 150 cubic meters per hour or lower. If your machine falls within this range, it should work with the AP2. However, you will need to prepare the adapter for the exhaust port yourself.
The product supports a 3-inch exhaust pipe. It's compatible with laser machines, hybrid 3D printers with laser modules, and FFF 3D printers, as long as their exhaust pipe matches this size.
Why can only certain models sync?
Syncing the AP2 with the engraving machine requires a Bluetooth dongle for information transmission. At present, only the S1, F1 Ultra, M1 Ultra, and P2S meet this requirement.
Can the air outlets be vented directly into the room?
Yes, exhaust air can be discharged directly into the room because our purified exhaust air meets the air quality requirements for direct indoor exhaust.
Do I need to turn off the laser fan when the purifier is in use?
The P2 and P2S models need to turn off the fan of the laser machine when used with the purifier. The P2S will automatically turn off the fan when linked with the purifier.
Other laser machines do not need to have the fan turned off when used with the purifier.
How often should the cyclone be cleaned?
It's recommended to clean it every 6 months, but users can adjust this based on actual usage conditions.
Does the cyclone need to be dried after cleaning?

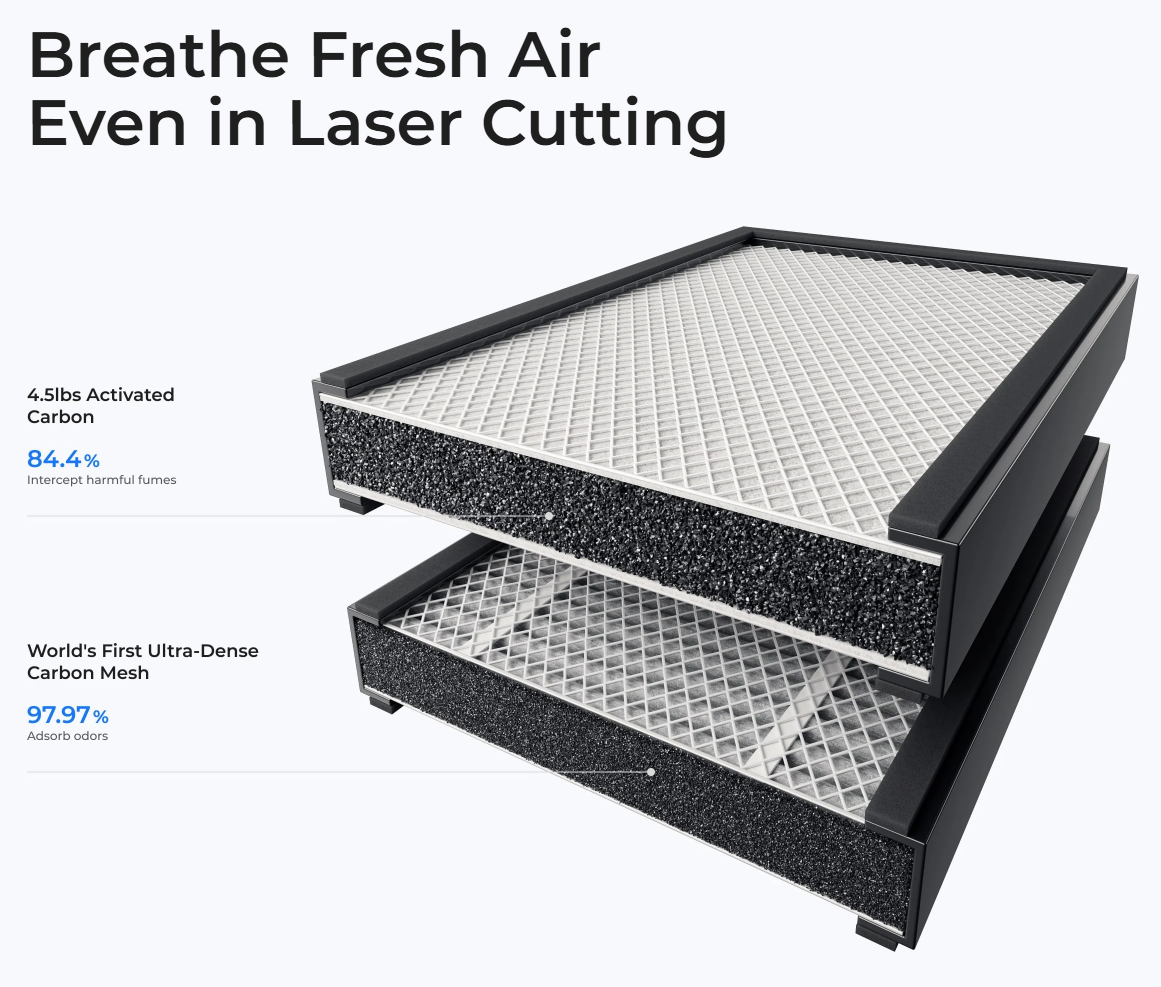

Yes, it needs to be dried. A damp cyclone can affect the lifespan of the 3rd and 4th filters (the activated carbon layer and the carbon mesh layer).
What is the lifespan of the AP2 filter?
The lifespan of each filter layer in the AP2:
- Pre-filter: 100 hours
- Medium Efficiency Filter: 200 hours
- Activated Carbon Filter: 600 hours
- Ultra-Dense Carbon Mesh Filter: 300 hours
- High-efficiency filter: 300 hours
- Each 100-hour test includes the following: 75 hours engraving basswood, 22 hours cutting 3mm basswood, 2 hours engraving acrylic, and 1 hour cutting 3mm acrylic, conducted on the xTool S1 40W.
*Actual lifespan may vary depending on processing parameters.

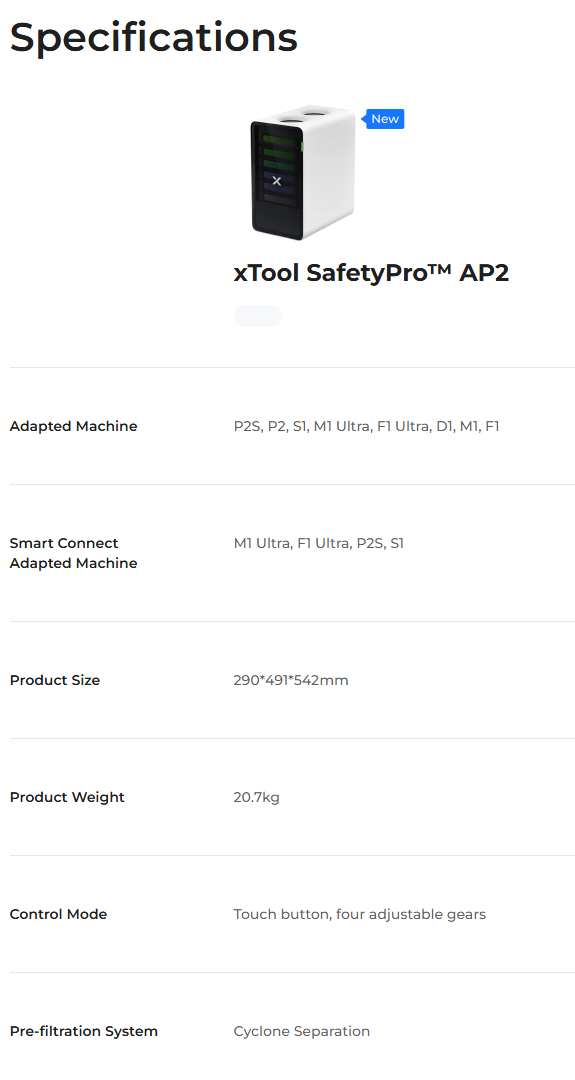

Specifications
Adapted Machine
P2S, P2, S1, M1 Ultra, F1 Ultra, D1, M1, F1
Smart Connect Adapted Machine
M1 Ultra, F1 Ultra, P2S, S1
Product Size
290*491*542mm
Product Weight
20.7kg
Control Mode
Touch button, four adjustable gears

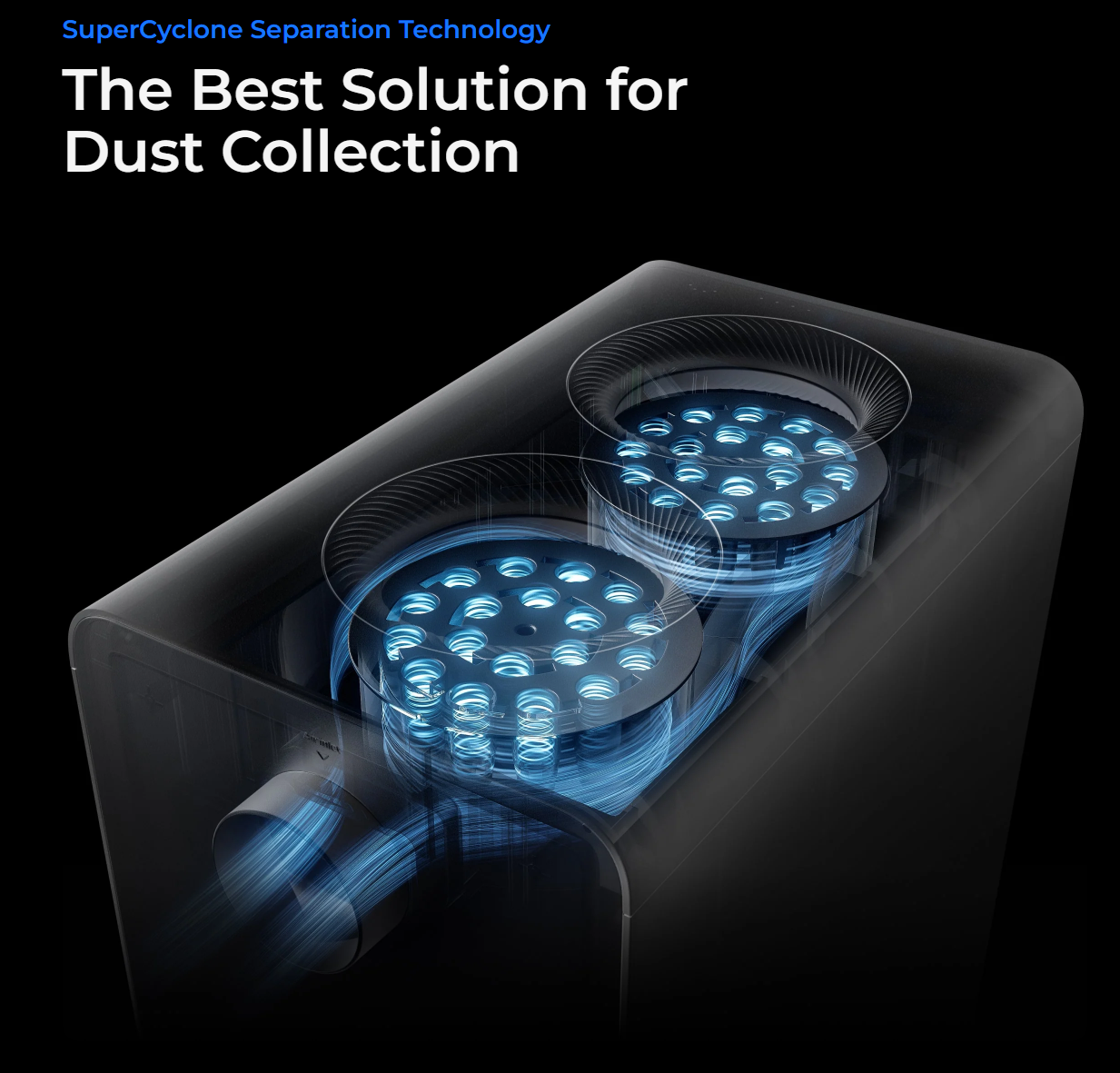

Pre-filtration System

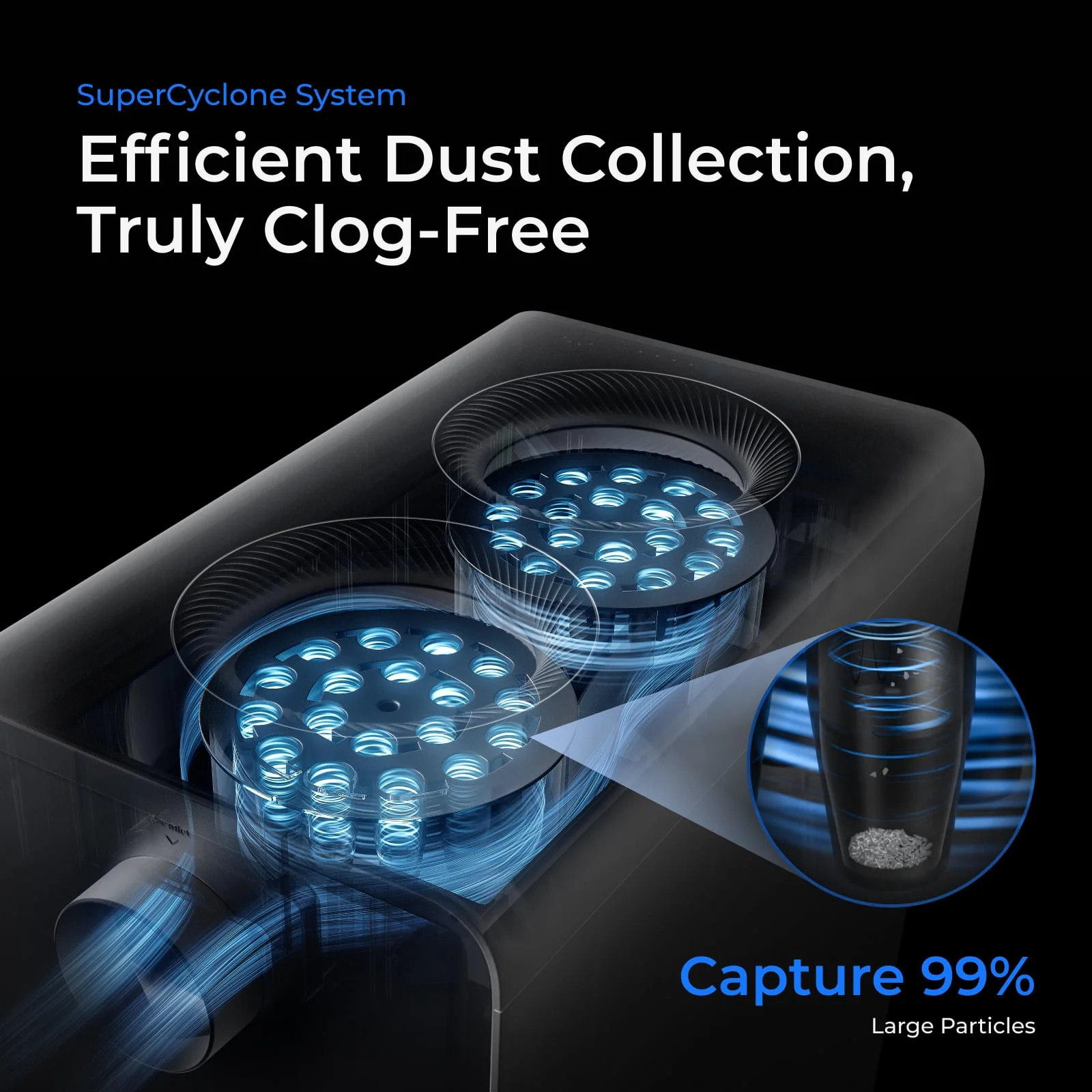

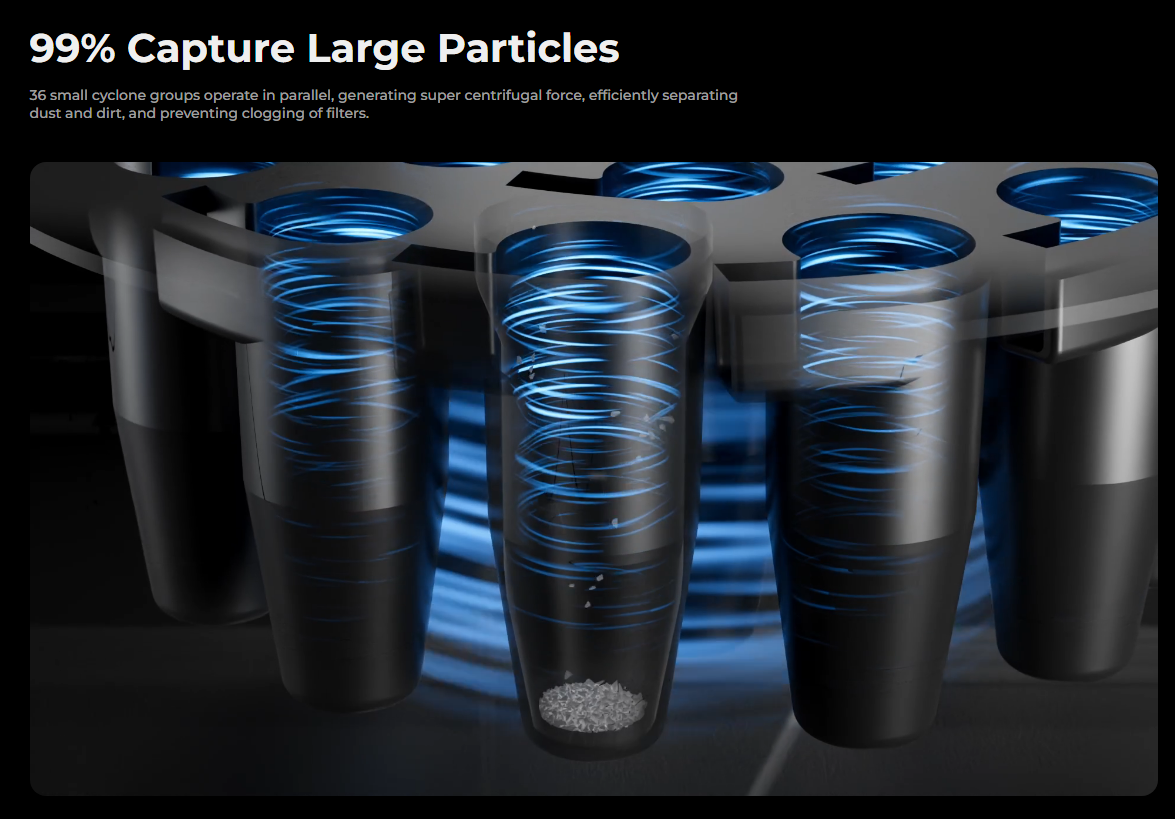

Cyclone seperation

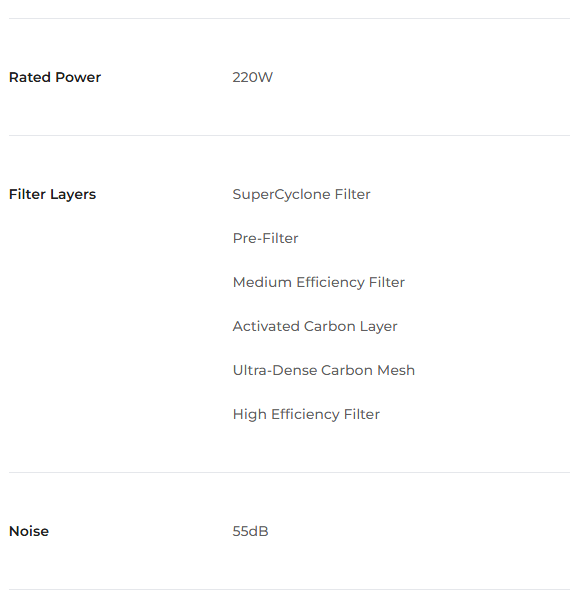

Rated Power
220W

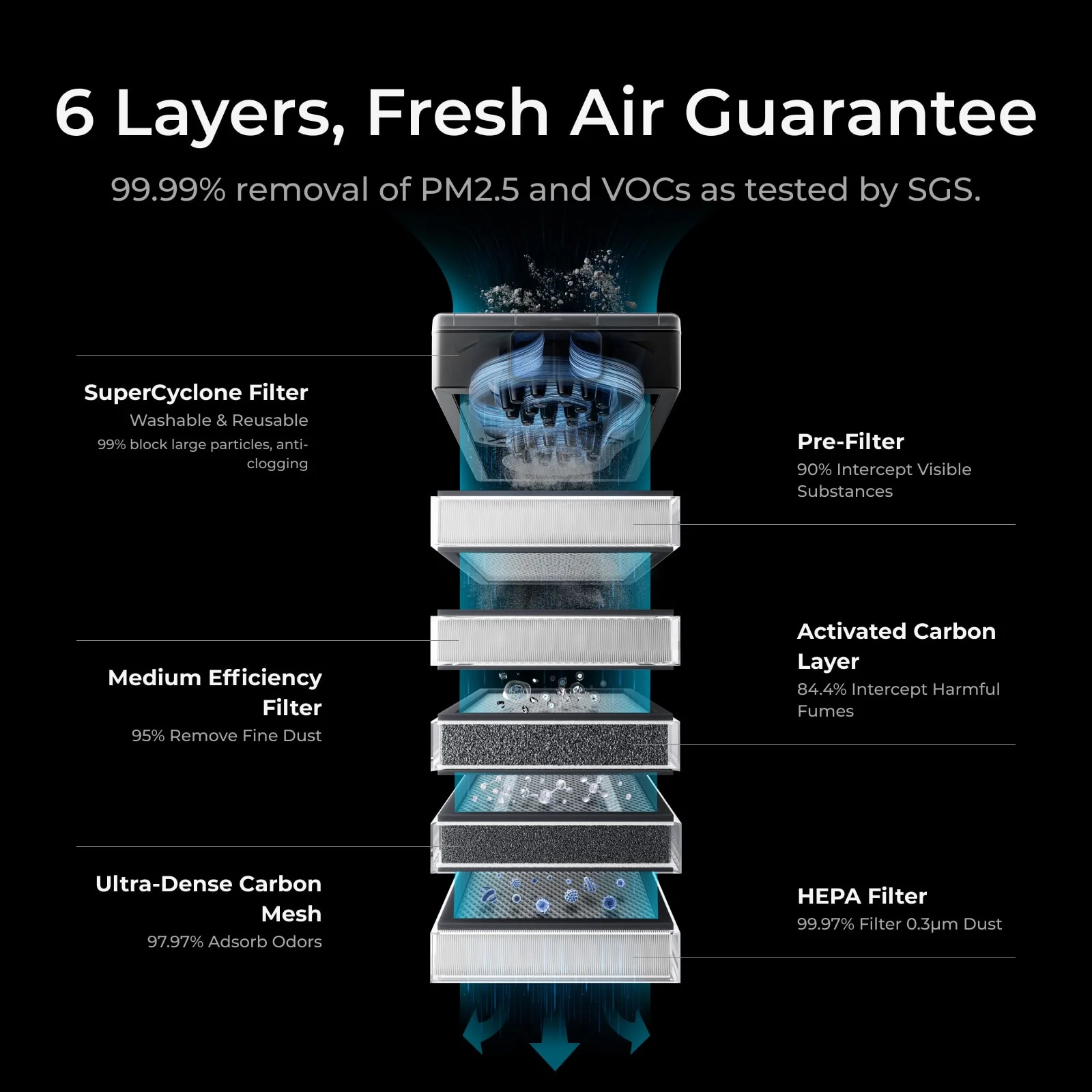

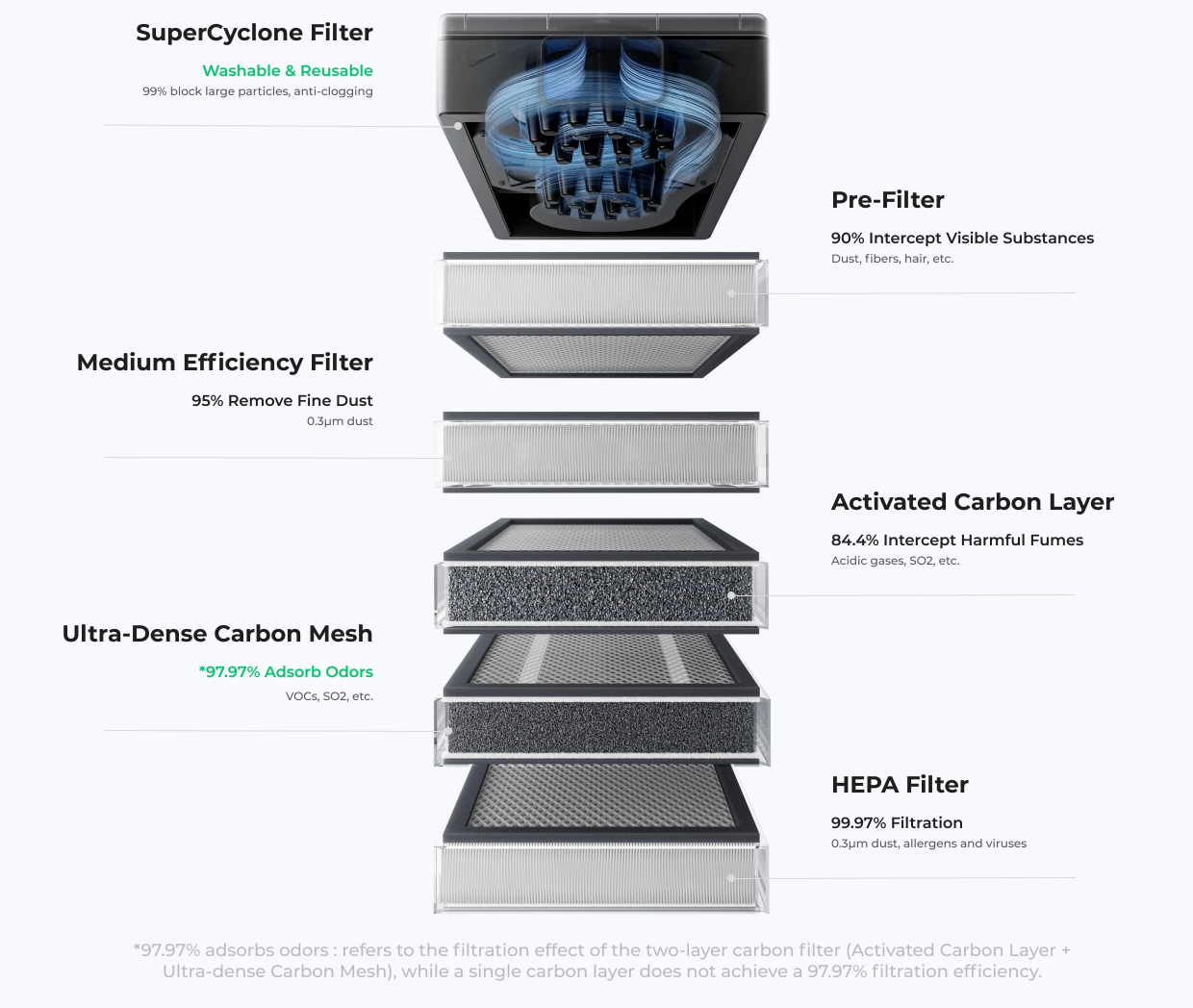

Filter Layers
- SuperCyclone Filter
- Pre-Filter
- Medium Effciency Filter
- Activated Carbon Layer

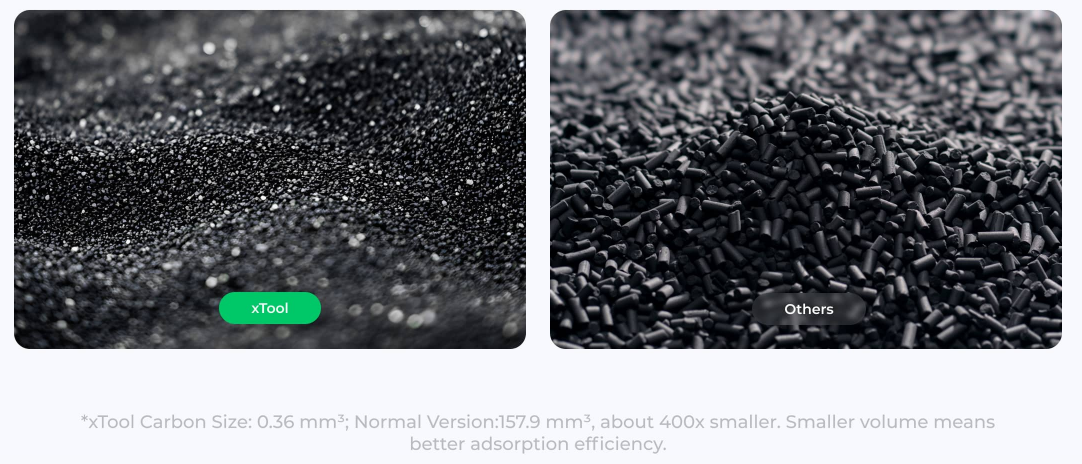

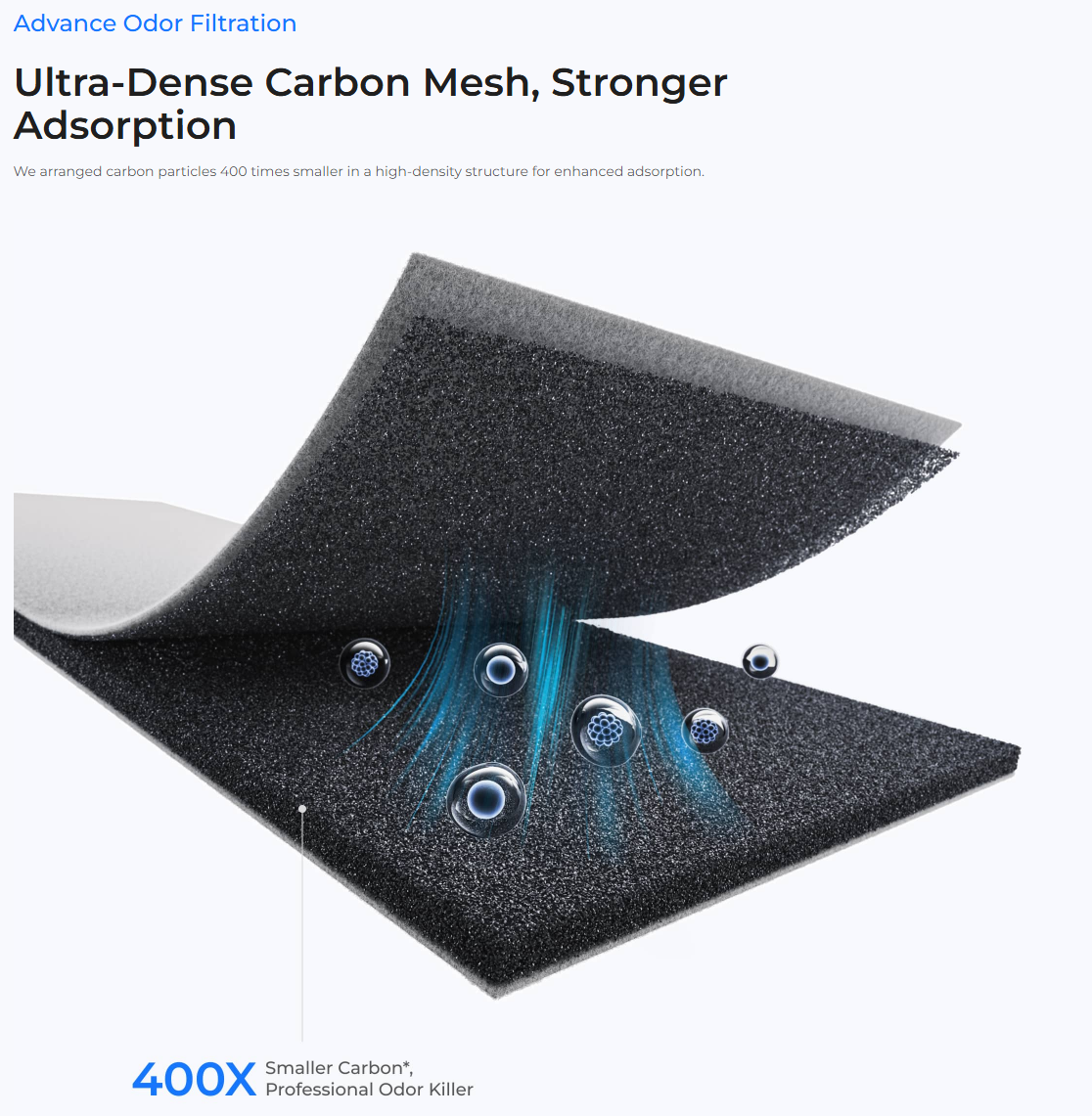

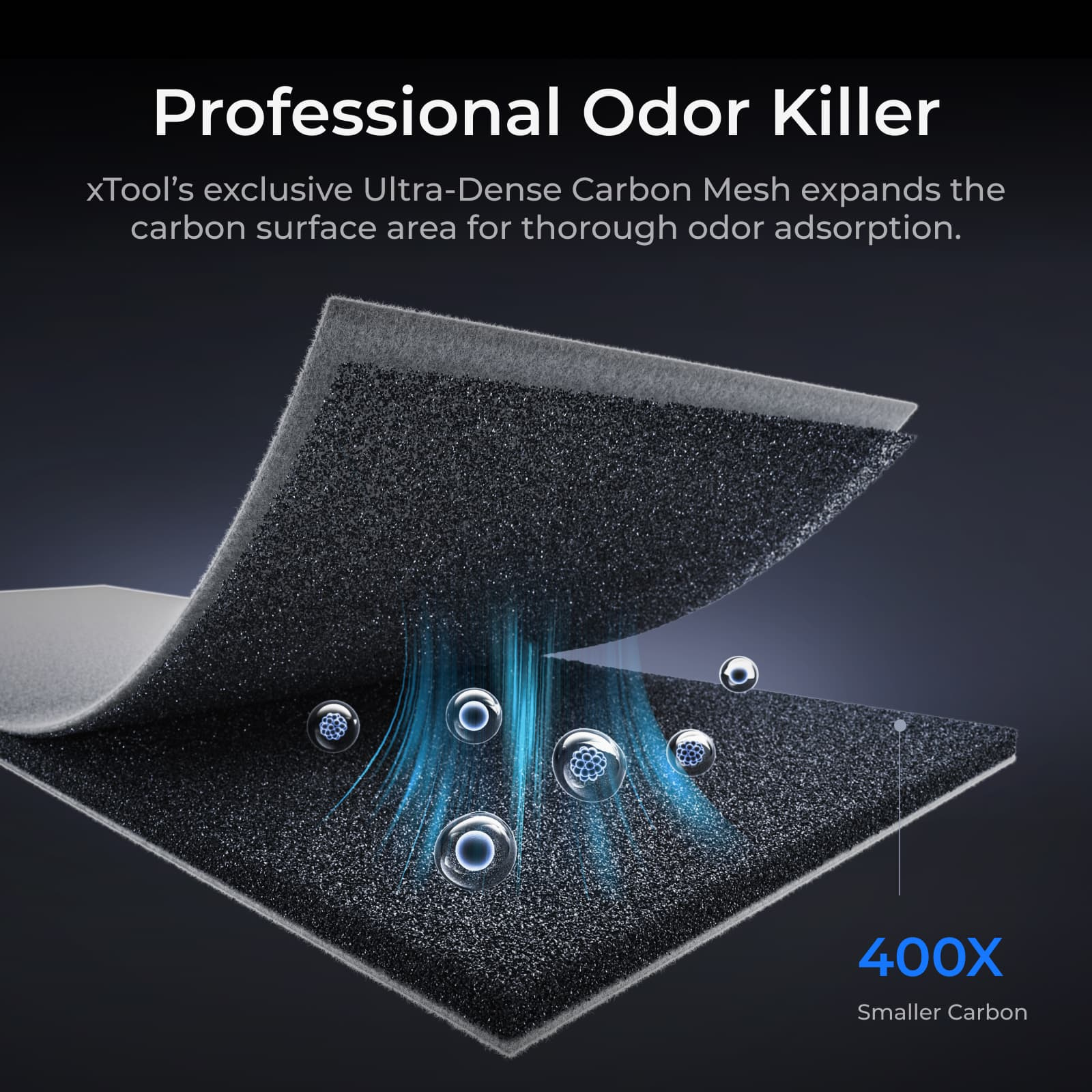

- Ultra-Dense Carbon Mesh
- High Effciency Filter
Noise
55dB
