xTOOL MetalFab Laser Welder CNC Cutter
- Brand: xTOOL
- MPN: P5010451
- Part #: PTRMKB0098
- UPC: 193122026802
- Brand: xTOOL
- MPN: P5010451
- Part #: PTRMKB0098
- UPC: 193122026802
Features
FAQ
What metals can xTool MetalFab cut/weld? How does the 1200W welder differ from the 800W model?
xTool MetalFab can cut/stainless steel, aluminum, brass, carbon steel, galvanized sheet, titanium, nickel alloy, magnesium.
Welding and cutting capabilities:
- The 1200W welder can weld up to 5mm stainless steel/carbon steel, while the 800W model handles up to 4mm.
- The 1200W welder can cut (handheld cutting) up to 5mm stainless steel/carbon steel, while the 800W model handles up to 3mm.
- When paired with a CNC cutting platform:
Design differences:
The 1200W welder includes a free wire feeder, while the 800W model has a built-in wire feeding mechanism and is lighter in weight.
What gases are required for welding, cutting, and cleaning different metals?
Welding: Nitrogen or argon gas with purity above 99.99% is suitable for most metals. The required welding pressure ranges from 0.1-0.2 MPa, with a gas flow rate of 15-30 L/min (argon is required for welding titanium alloys).
Cutting: Compressed air, nitrogen/argon (purity >99.99%), or oxygen are commonly used as shielding gases.
- xTool air compressor and air dryer provide stable compressed air, enabling burr-free cuts at 0.6 MPa for 4mm stainless steel, 4mm aluminum, 3mm copper, 1mm carbon steel, and galvanized steel (1200W laser) when paired with xTool SaveGas™ Nozzle. This setup significantly reduces costs compared to gas cylinders.
- Nitrogen/argon (at 1.2 MPa) can achieve burr-free cuts for the same materials (1200W).
- Oxygen is primarily used for cutting carbon steel and galvanized steel above 1mm thick. With a dual-layer nozzle and focal extension tube at 0.06-0.07 MPa, it can cut up to 10mm carbon steel/galvanized steel (1200W).
Cleaning: Compressed air is sufficient, but nitrogen or argon is recommended for brighter, oxidation-free results.
Can I use xTool MetalFab for engraving?
Yes, xTool MetalFab supports engraving on stainless steel, galvanized steel, titanium, and coated metals (e.g., anodized aluminum). It supports vector engraving, vector filling, and bitmap filling. Just use XCS for one-click parameter setup!
Note: To protect the laser, avoid engraving on high-reflectivity metals like copper.
Why do I need the camera? What's the benefits?
The camera-driven workflow will significantly enhance your metalwork efficiency and minimize material waste.
xTool MetalFab integrates dual high-definition cameras for intelligent metal processing-advantages that products without cameras cannot match:
The 16MP Panoramic camera captures full-bed imaging for precise positioning and enables Smart Nesting function with up to 98.7% material use. The close-range camera enables micron-level precision for secondary/fine processing through localized high-res imaging.
What software is used? Is it user-friendly?
xTool MetalFab operates on the XCSSoftware, designed for intuitive control and streamlined workflows:
It features the Material EasySet Library with100+ pre-optimized parameters for 30+ materials. You only need to select the material you want to cut, and all parameters can be applied with a single click. It also supports Auto Lead-in Lines, Automatic Path Optimization, which significantly improves cutting efficiency.
I have no laser welding experience. Is it easy to learn? How about welding quality?
We have designed xTool MetalFab to ensure a smooth and simple user experience, so you don't need to worry about lacking experience-you can get started in just five minutes!
It features the 550g ultra-light integrated welding gun which enables a 5-second quick-release. The 8-Inch Smart Touchscreen has 108+ built-in parameters for one-click use.
xTool MetalFab can weld up to 5mm stainless steel or carbon steel, and we have passed SGS welding quality tests, so you can rest assured about its performance and reliability!
What are the power requirements for MetalFab?
The xTool MetalFab laser welder can operate with a voltage of 200-240V, running at full power with approximately 4200W. The maximum current is 21A. It is recommended that users connect it to an independent circuit rated at 220V-21A or higher.

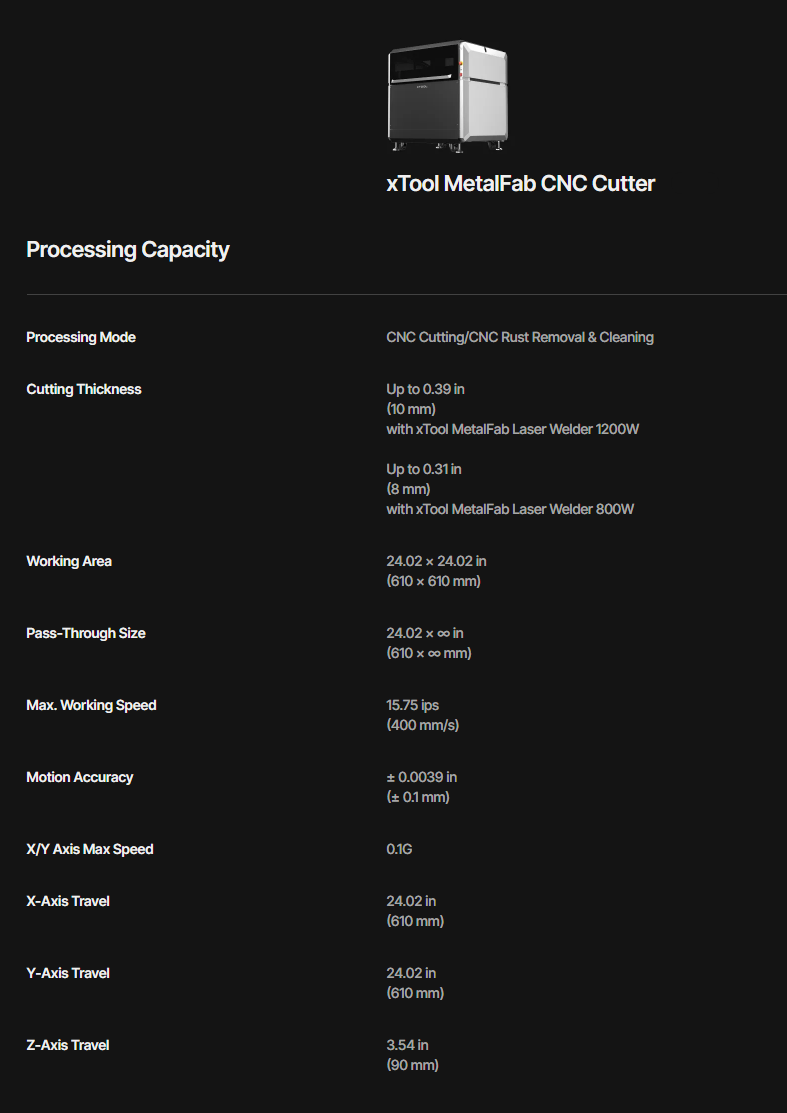

Specifications
