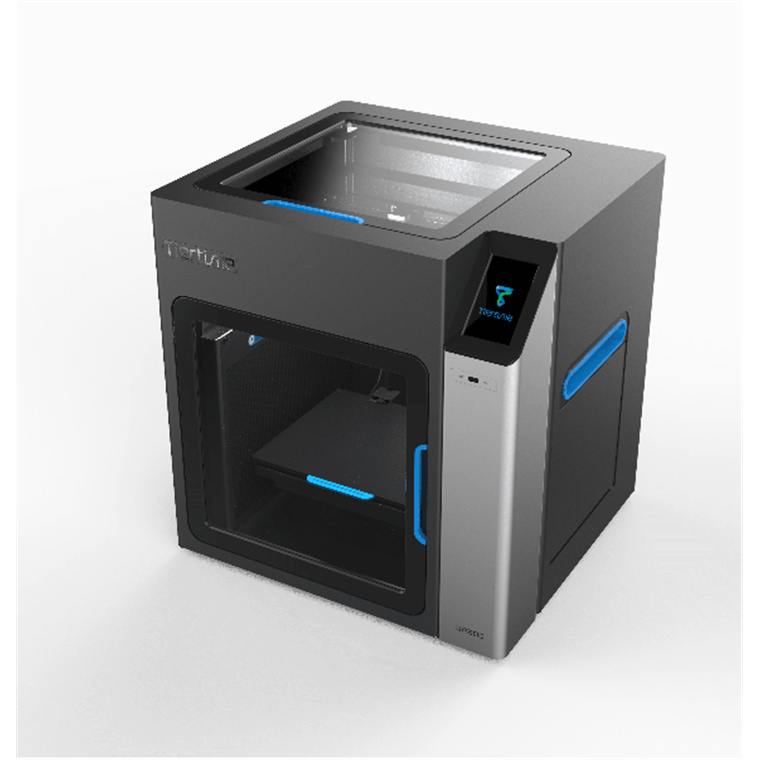

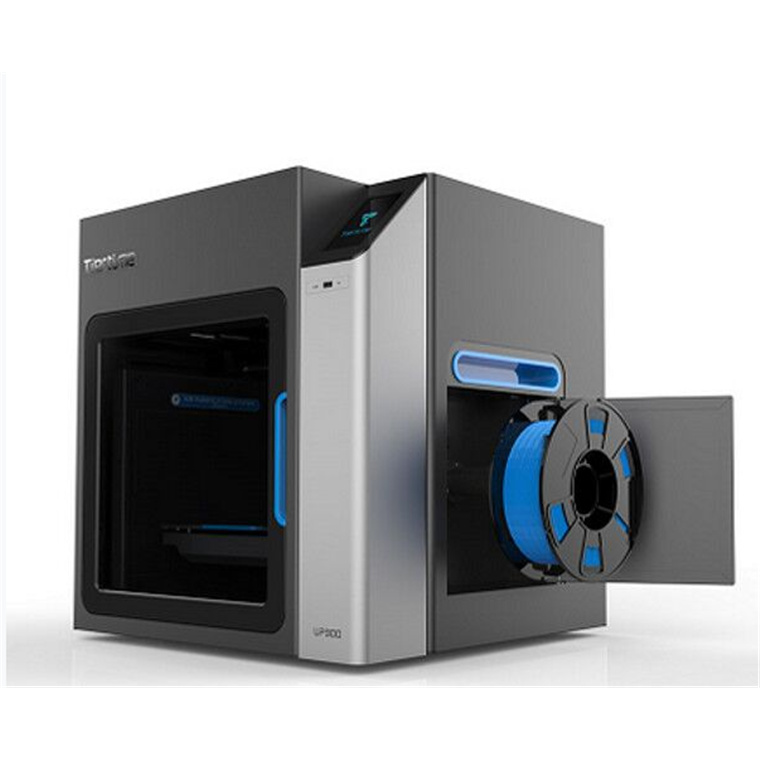

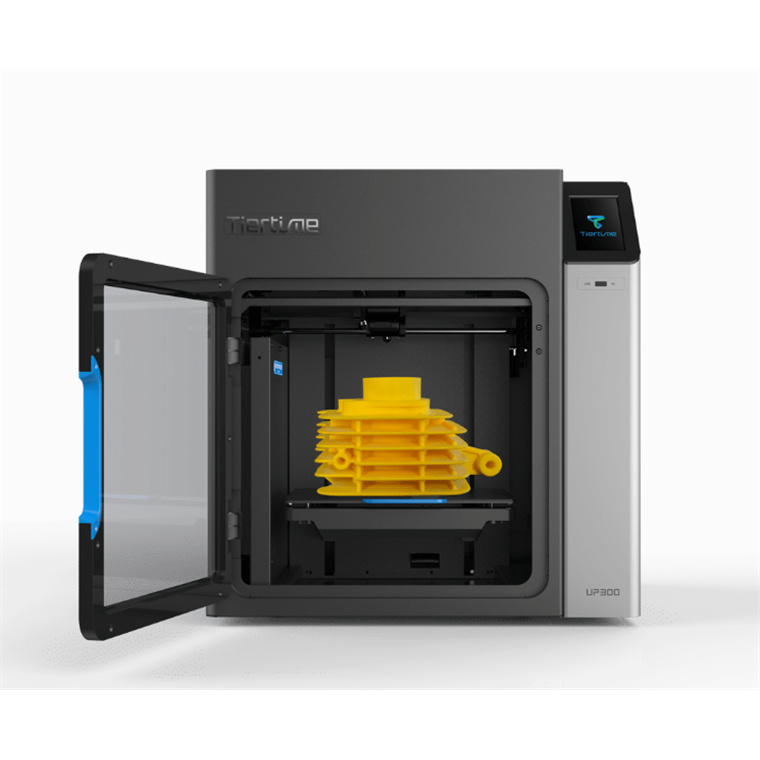

3D Printing Systems UP300 3D Printer
Build Size 205 x 255 x 225mm
3D Printing Systems UP300 3D Printer
Build Size 205 x 255 x 225mm
- Brand: 3D Printing Systems
- MPN: 3DP-25-5C
- Part #: PTRPTS0019
- UPC: 840942101133
- Brand: 3D Printing Systems
- MPN: 3DP-25-5C
- Part #: PTRPTS0019
- UPC: 840942101133
What PB Tech customers are saying about this product...
See More Reviews"I have owned this printer for around three years and have pr ...view more"
Features
Tiertime UP300: Unboxing and First Print
Note: Please ensure you update the touchscreen before printing, the latest version of the touch screen can be downloaded here: https://www.tiertime.com/touchscreen-upgrade-program/. The user manual and software can be downloaded at this link. http://3dprintingsystems.com/support/
All new UP 300 3D printer feature:
- 3 Material Specific Print Heads
- Dual Filtration Systems
- Interchangeable Build Plates
- Network Print Queue
Adaptability is key in our ever-changing world, technology is constantly improved on to keep up with these fast-paced changes and what we expect from our 3D printers should be no different. Introducing the all new UP300 3D printer, targeted for users demanding a large build volume and consistent performance across different materials.

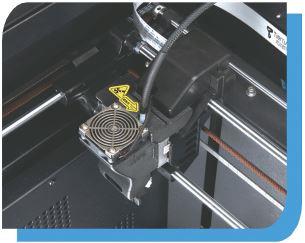

Material Specific Print Heads
Print with different print heads optimised for different materials, ensuring you get only the cleanest prints on your UP300 3D printer. One is for ABS and other high temperature filaments, one for lower temperature filaments such as PLA, and the other is for TPU, a flexible polyurethane.
Dual Filtration Systems
For ultimate in safety, the new UP300 has two filtration systems to ensure the absolute purity of airflow around the printer. A HEPA and activated carbon filter combined with higher airflow capacity allows the maintaining of minimal UFP and VOC density inside the printer's large enclosure.
Interchangeable Build Plates
New double-sided build plate design allows you to remove prints easier due to the increased rigidity of the plates. The glass surface provides a consistent, flat base, ensuring a smooth underside of your models.
Tiertime Print Queue
The new Tiertime print queue allows for multiple users on the network can become the queue's administrator, controlling and re-ordering the print queue. Select the next file from the print queue when with the printer, minimising downtime and letting you make faster than ever before!
Waste collection Tray
A removable waste collection tray is positioned below the build platform to make cleaning the bottom of the printer's enclosure a breeze.
Specifications
Reviews
Do you own this product?
Solid Printer
I have owned this printer for around three years and have printed many items.
Pros:
Print results are very precise with the ability to print high detail items. I have printed a camera rotator that had to be accurate and the printer performed very well.
Solid
Enclosed so can print ABS very successfully
Slicing software very automatic so easy for beginner
Good NZ local support
Cons:
Slicing software cneeds more features for the more technical user
Difficult to connect to via Network. Wifi no problem
Avoid!
Hardware: Very good. Solid hardware. Have owned this machine for about 4 years and put a few thousand hours on it.
Software: There are bugs and glitches that have been present for years in Upstudio for this particular printer. The manufacturer has ghosted us. They know about the problems but refuse to fix them They claim the new slicer software fixes everything but years later it's still half finished. We ended with no other choice but to replace the controller in it which was a massive undertaking. Not worth the money after all that. Just have a quick look on their forums and you'll find more people in this situation. Avoid !
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular 3D Printers
Creality Ender-3 V3 SE FDM 3D Printer Build Size 220 x 220 x 250...
Bambu Lab A1 Mini FDM 3D Printer Build Size 180 x 180 x 180 mm -...
Bambu Lab A1 FDM 3D Printer Build Size 256 x 256 x 256 mm - Up to...
Bambu Lab P1S 3D Printer Up to 500mm/S - Build Size 256 x 256 x...
Bambu Lab P1SC Fully Enclosed 3D Printer with AMS Multi-Colors...
3D Printing Systems UP300 3D Printer Build Size 205 x 255 x 225mm
- Brand: 3D Printing Systems
- MPN: 3DP-25-5C
- Part #: PTRPTS0019
- UPC:840942101133
Product URL: https://www.pbtech.co.nz/product/PTRPTS0019/3D-Printing-Systems-UP300-3D-Printer-Build-Size-20?is-review=1
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Newmarket | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
Tiertime UP300: Unboxing and First Print
Note: Please ensure you update the touchscreen before printing, the latest version of the touch screen can be downloaded here: https://www.tiertime.com/touchscreen-upgrade-program/. The user manual and software can be downloaded at this link. http://3dprintingsystems.com/support/
All new UP 300 3D printer feature:
- 3 Material Specific Print Heads
- Dual Filtration Systems
- Interchangeable Build Plates
- Network Print Queue
Adaptability is key in our ever-changing world, technology is constantly improved on to keep up with these fast-paced changes and what we expect from our 3D printers should be no different. Introducing the all new UP300 3D printer, targeted for users demanding a large build volume and consistent performance across different materials.
Material Specific Print Heads
Print with different print heads optimised for different materials, ensuring you get only the cleanest prints on your UP300 3D printer. One is for ABS and other high temperature filaments, one for lower temperature filaments such as PLA, and the other is for TPU, a flexible polyurethane.
Dual Filtration Systems
For ultimate in safety, the new UP300 has two filtration systems to ensure the absolute purity of airflow around the printer. A HEPA and activated carbon filter combined with higher airflow capacity allows the maintaining of minimal UFP and VOC density inside the printer's large enclosure.
Interchangeable Build Plates
New double-sided build plate design allows you to remove prints easier due to the increased rigidity of the plates. The glass surface provides a consistent, flat base, ensuring a smooth underside of your models.
Tiertime Print Queue
The new Tiertime print queue allows for multiple users on the network can become the queue's administrator, controlling and re-ordering the print queue. Select the next file from the print queue when with the printer, minimising downtime and letting you make faster than ever before!
Waste collection Tray
A removable waste collection tray is positioned below the build platform to make cleaning the bottom of the printer's enclosure a breeze.
Specifications
Printing Technology
MEM (Melted Extrusion Modelling)
Extruder
Single - Includes interchangeable material specific print heads. 1 x High temperature, 1 x PLA & 1 x flexible.
Build Volume
205 × 255 × 225 mm (X,Y,Z)
Nozzle Diameter
0.2mm, 0.4mm, 0.6mm
Layer resolution
0.05/0.1/0.15/0.2/0.25/0.3/0.35/0.4
Extruder Maximum temperature
299 C
Extruder Maximum travel speed
200 mm/sec
XYZ accuracy XYZ
2, 2, 0.5 micron
Connectivity
USB cable, Wi-Fi, LAN and USB Stick
Touch Screen
7" colour touch LCD screen
Printed object accuracy
±0.1mm/100mm
Build plate maximum temperature
100 C
Calibration and Leveling
Automatic
Print Surface
Perf Glass or Flex Glass, Heated
Enclosure
Full
Dual Filtration System
HEPA and active carbon filters
Print Resume on Power Interrupt
Yes
Pause to change the type of filament
Yes
Out of filament detection
Yes
Filament Compatibility
UP Fila ABS, ABS+, PLA, TPU + third party
Filament Diameter
1.75mm
Filament Spool Compatibility
500g - 2000g
Auto-Swapping Build Plate
No, (check out the new X5 3d printer)
Print queue
Yes
Compatible with 3rd Party Materials
Yes
Physical dimensions
Machine dimensions 850 x 625 x 520 mm
Power requirements
Input 110-240VAC,50-60Hz,90W
Extra USB Input for add-on
Third party camera support
