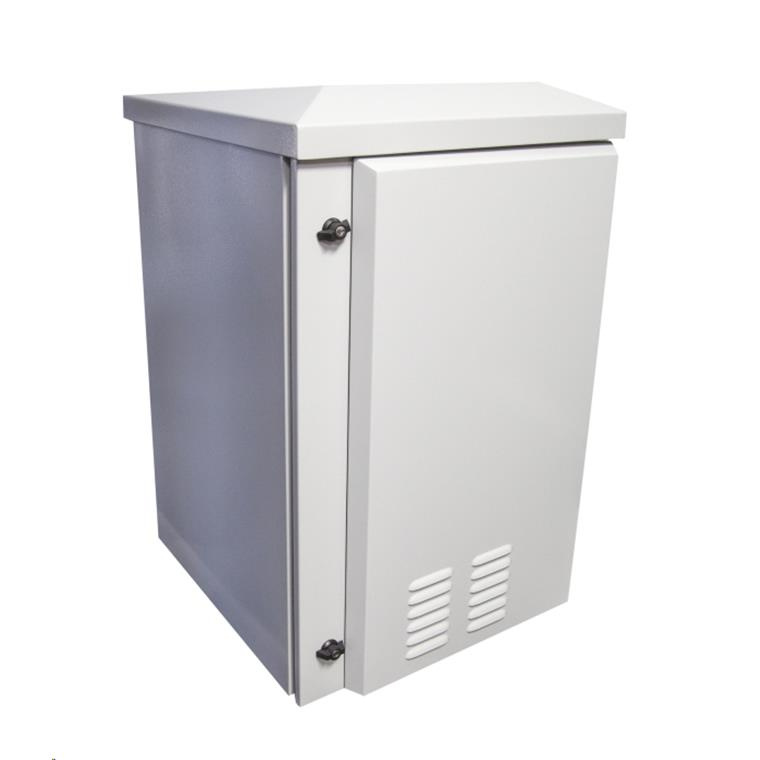

Dynamix RODW18-400FK 18RU Vented Outdoor Outdoor Wall Mount Cabinet (610x425x915mm external). IP45 rated. Dual lock front door. Supplied with dual extractor fans and input/output air filters.

Dynamix RODW18-400FK 18RU Vented Outdoor Outdoor Wall Mount Cabinet (610x425x915mm external). IP45 rated. Dual lock front door. Supplied with dual extractor fans and input/output air filters.
PB Tech price: PB Tech price:
$1,235 65  +GST $1,421 00  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews

Generating Print Page

Dynamix RODW18-400FK 18RU Vented Outdoor Outdoor Wall Mount Cabinet (610x425x915mm external). IP45 rated. Dual lock front door. Supplied with dual extractor fans and input/output air filters.

Dynamix RODW18-400FK 18RU Vented Outdoor Outdoor Wall Mount Cabinet (610x425x915mm external). IP45...

Features

18RU Vented Outdoor Outdoor Wall Mount Cabinet (610x425x915mm external). IP45 rated. Dual lock front door. Supplied with dual extractor fans and input/output air filters.


Features

- Designed to protect sensitive network equipment from harsh environments where equipment may be exposed to dust or water
- IP45 rated for dust and water

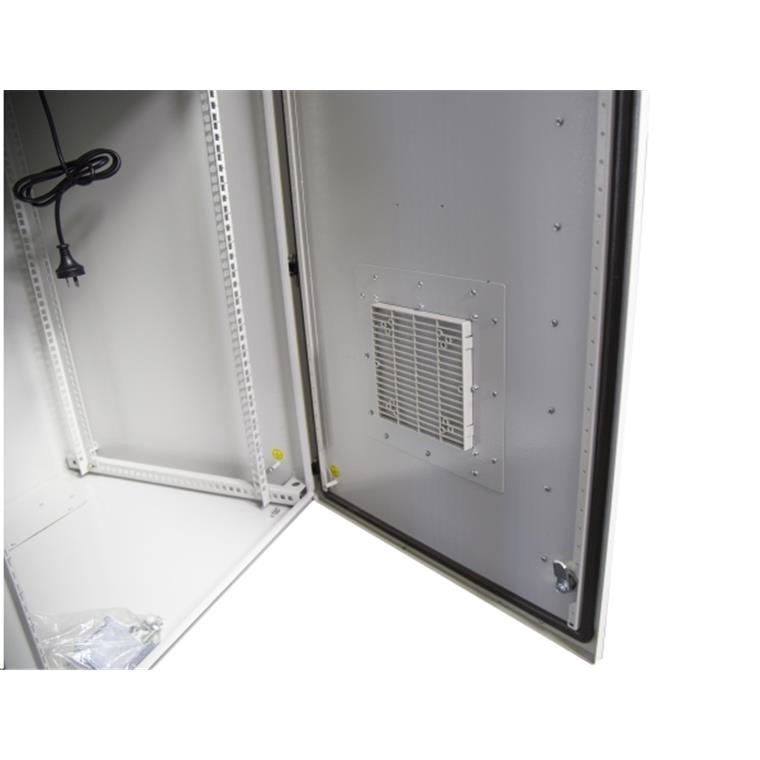

- Replaceable filters for fans and air vents on the front door
- Front door has 130 degrees of movement, swinging from left to right
- Dual fan kit included

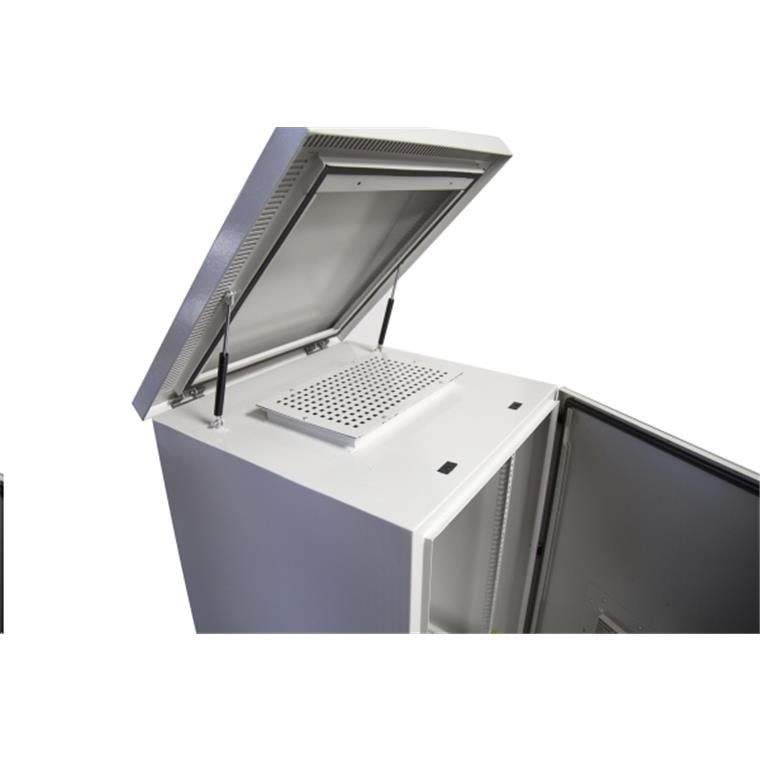

- Rain hood can be opened to access fans and filter
- Sealed bottom cable entry gland
- Static Loading: 60kg

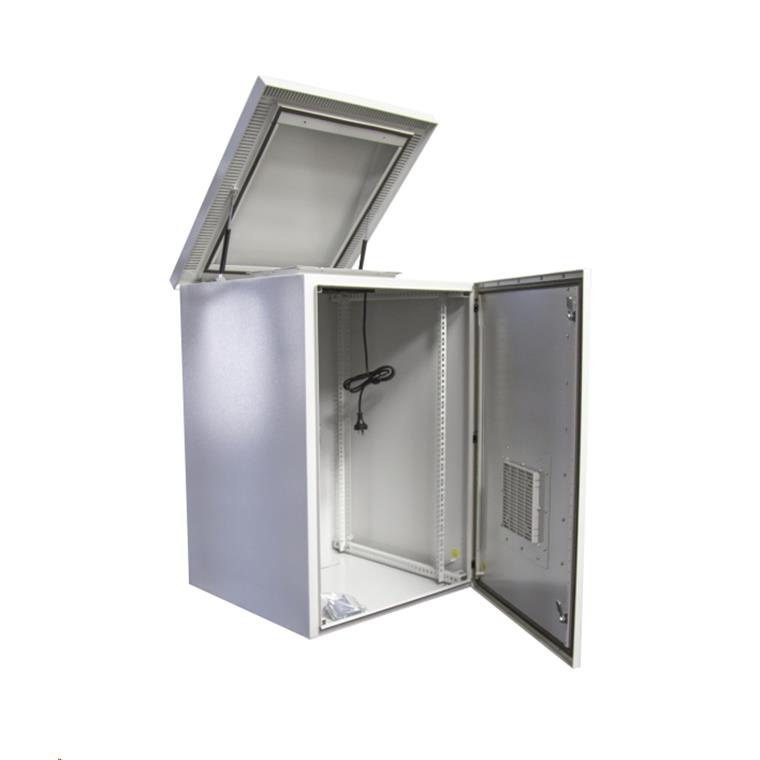

- Adjustable 19" rack mount rails
- Water and dust proof polyurethane door joint strip
- Optional Plinths available to floor mount cabinets
- Wall mount accessories included
- Fully welded design, supplied complete, no assembly required
- Made from cold rolled steel
- Surface finish: Degreasing, pickling, phosphoric wash, cleaning, and powder coated
- 2 Year Warranty on the cabinet. Subject to use within the static loading specifications, operation within normal environmental conditions and adequate and appropriate mounting installation
- If installed, 1 Year Warranty on fans

Specifications

Capacity
18U

WxDxH (Internal)
600 x 400 x 875mm

WxDxH (External)
610 x 425 x 915mm

Includes
Dual extraction fans, input/output air filters
Manufacturer Part No: RODW18-400FK Brand: Dynamix Product Type: -
UPC - Product Family: - Shipping Weight: 58 kg
PB Part No: RACDNX1030 Product Model: -

Warranty: 24 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
