Futaba - 3 Channel - 2.4GHz 3PRKA R203GF
Futaba - 3 Channel - 2.4GHz 3PRKA R203GF
- Brand: Futaba
- MPN: Futaba 3PRKA
- Part #: RCTFTB19010301
- UPC:
- Brand: Futaba
- MPN: Futaba 3PRKA
- Part #: RCTFTB19010301
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Transmitters





                                                            Futaba - 3 Channel - 2.4GHz 3PRKA R203GF
- Brand: Futaba
- MPN: Futaba 3PRKA
- Part #: RCTFTB19010301

            Product URL: https://www.pbtech.co.nz/product/RCTFTB19010301/Futaba---3-Channel---24GHz-3PRKA-R203GF?qr=popular_related_products
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 5 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
- Throttle and steering trim and reverse
- Steering dual rate dial
- Throttle end point adjustment
- Channel three switch
- Throttle fail safe
Specifications
Includes:

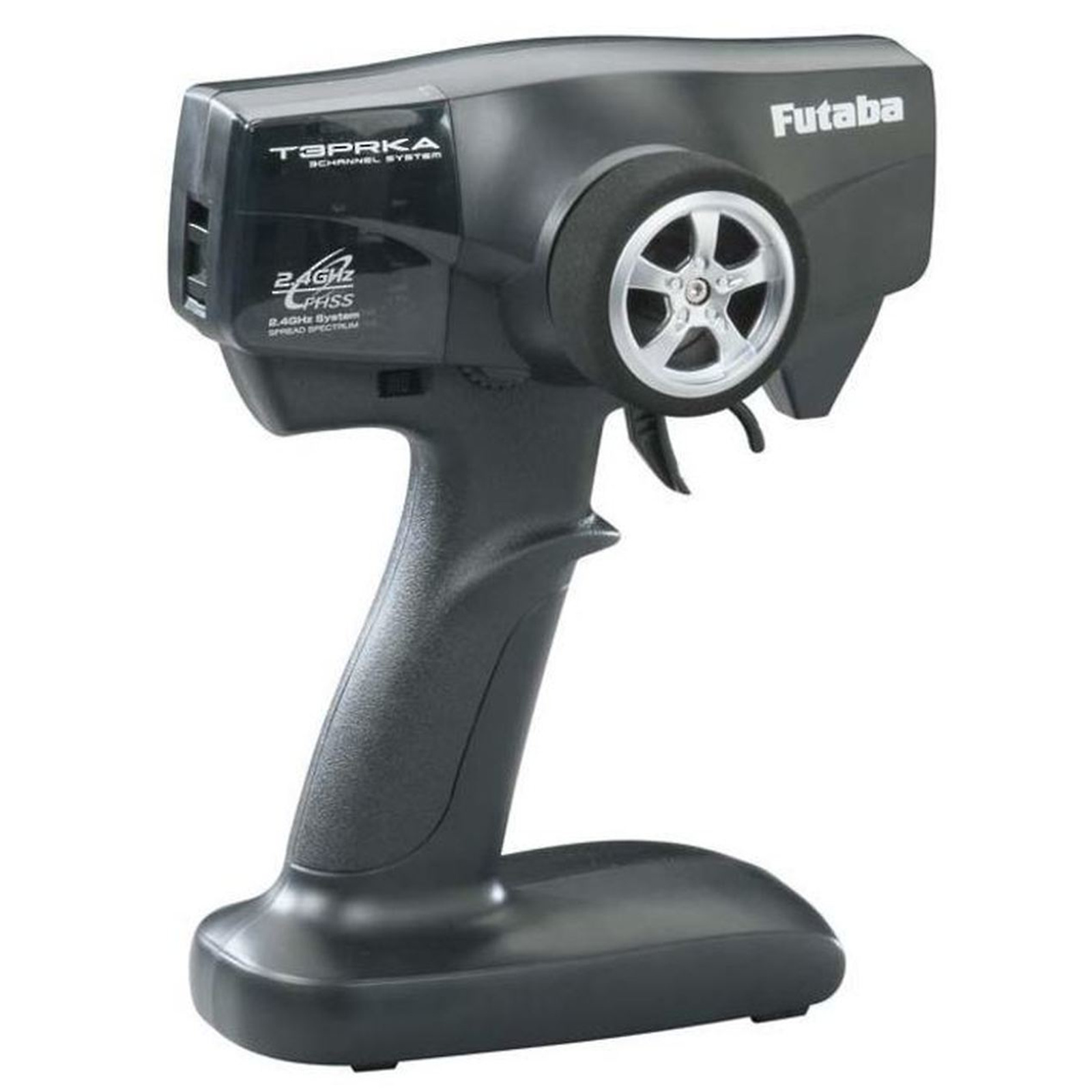

Futaba 3PRKA 2.4GHz FHSS Transmitter
R203GF Receiver,
Instruction Manual
On/Off Switch
Requirements:
Four AA batteries for transmitter
Transmitter:
Transmitting Frequency:
2.4GHz band
Power Requirement:
Four AA cells
Current Drain:
100mA or less
R203GF Receiver:
Dimensions:
1.54 x 1.02 x 0.39" (39 x 26 x 10mm)
Weight:
0.28oz (8g)
Operating Voltage:
4.8 - 7.4V (shared with servo)
Battery Fail Safe Voltage:
3.8V
Current Drain:
30mA at no signal
Normal and High-Speed Modes:
Normal mode frame rate is (FHSS/S-FHSS) 13.63ms and accepts any type of servos or peripherals.
High-Speed mode (in 4PL tx only), with an output of 6.8ms accepts digital servos including the BLS series and most peripheral
equipment such as brushless ESCs
