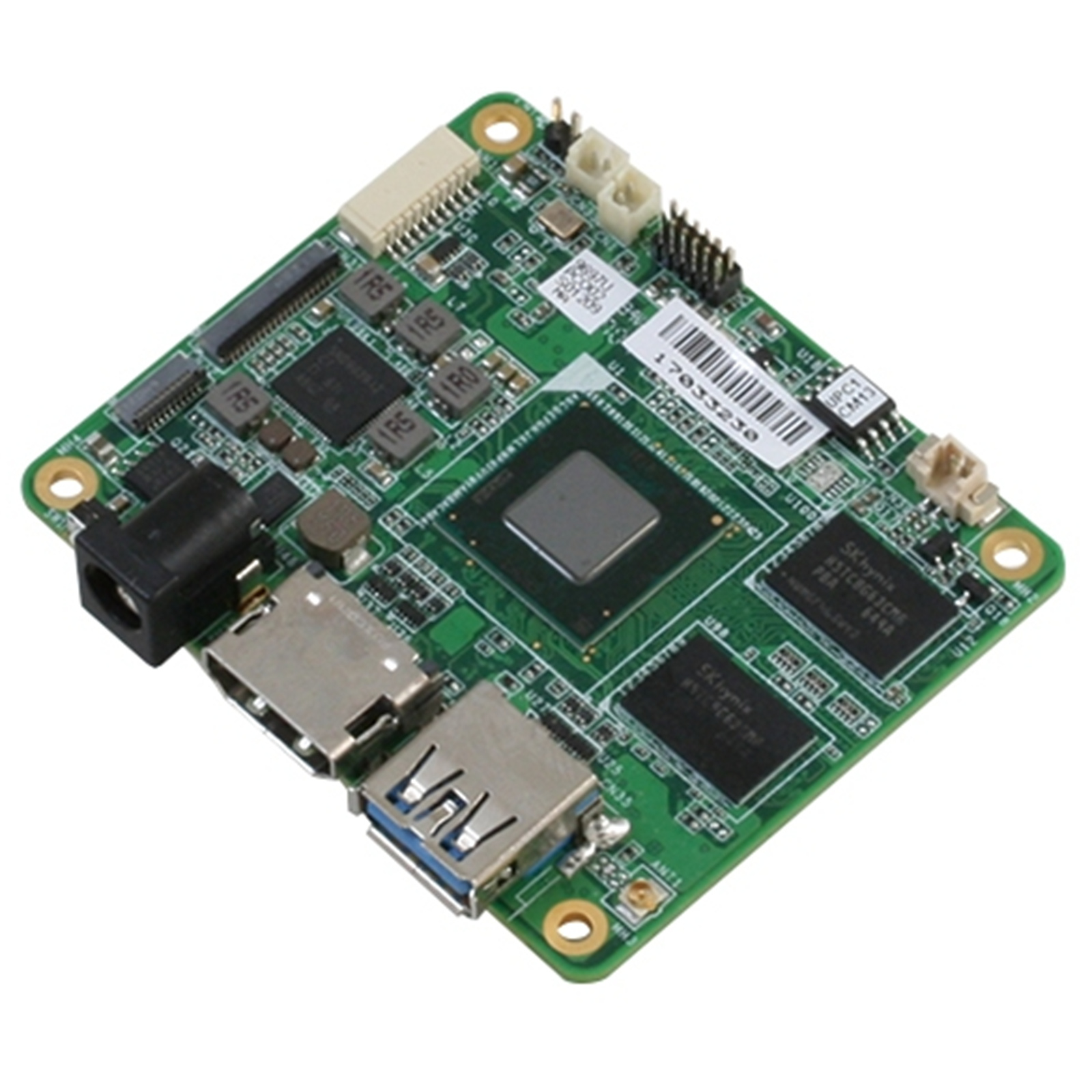

AAEON UP Core Board with z8350 CPU, 2GB RAM+32GB eMMC, passive heatsink, WIFI 802.11 b/g/n + Bluetooth 4.2 on board powered by AMPAK AP6214A

AAEON UP Core Board with z8350 CPU, 2GB RAM+32GB eMMC, passive heatsink, WIFI 802.11 b/g/n + Bluetooth 4.2 on board powered by AMPAK AP6214A

  • Brand: AAEON
  • MPN: UPC-CHT01-A20-0232-A11
  • Part #: SBCAAEUP00032
  • UPC:
  • Brand: AAEON
  • MPN: UPC-CHT01-A20-0232-A11
  • Part #: SBCAAEUP00032
  • UPC:

Features

UP Core is a miniature board with the high performance and low power consumption features of the latest tablet technology: the Intel® Atom™ x5 Z8350 Processors (codename Cherry Trail) 64 bits up to 1.92GHz. The internal GPU is the new Intel Gen 8 HD 400 with 12 Execution Units up to 500MHz to deliver extremely high 3D graphic performance.

UP Core is equipped with 1GB/2GB/4GB DDR3L RAM and 16GB/32GB/64GB eMMC. With 100-pin docking connector, UP Core provides the freedom to makers to build up their carrier board. There are more interfaces available, such as 2x port USB2.0 + 1x UART on header, 1x USB 3.0 host, WiFi, Bluetooth 1x DSI/eDP port, 2x Camera (MIPI-CSI), 1x HMDI, RTC.

When it comes to security, UP Core has Intel security features needed for professional IoT applications such Intel AES New Instructions and Intel Identity Protection Technology.

It's UP to you to choose which operation system is best for your application. The CPU is supported by Android 6.Marshmallow, Microsoft Windows 10 and we support and enable Linux, through our UP Community.

UP Core has a standard industrial PC operating temperature range of 32-140° F / 0-60°C, which makes it flexible for many applications.

- Intel® Atom™ x5-Z8350 SoC
- Onboard DDR3L Memory up to 4GB
- Onboard eMMC Storage up to 64GB
- DSI/eDP x 1, HDMI x 1
- MIPI-CSI x 2
- 100pin docking connector
- WiFi+ Bluetooth
- USB3.0 x 1

Specifications

PROCESSOR

Intel® Atom™ x5-Z8350 Processor SoC

GRAPHICS

Intel® HD 400 Graphics

I/O

Full eDP x 1
HDMI x 1
Audio via HDMI and I2C (from docking)

CAMERA

MIPI-CSI (2 Lane)
MIPI-CSI (4 Lane)
USB USB 3.0 Host x 1
USB 2.0 pin header x 2

EXPANSION

100 pin docking connector

RTC

Yes

POWER

5V DC-in @ 4A 5.5/2.1mm jack

DIMENSION

56.50 mm × 66 mm

MEMORY

2GB / 4GB onboard DDR3L-1600

STORAGE

eMMC 16GB / 32GB/ 64GB

DISPLAY INTERFACE

DSI/eDP x 1

OS SUPPORT

Win 10
Linux (ubilinux, Ubuntu, Yocto)
Android Marshmallow

OPERATING TEMPERATURE

32°F ~ 140°F (0°C ~ 60°C)

OPERATING HUMIDITY

10% ~ 80% relative humidity, non-condensing

CERTIFICATE

CE/FCC Class A, RoHS compliant, REACH

Manufacturer Part No:
UPC-CHT01-A20-0232-A11
Brand:
Product Type:
-
UPC
-
Product Family:
UP Core Board
Shipping Weight:
1 kg
PB Part No:
SBCAAEUP00032
Product Model:
-
Warranty: 12 months *
