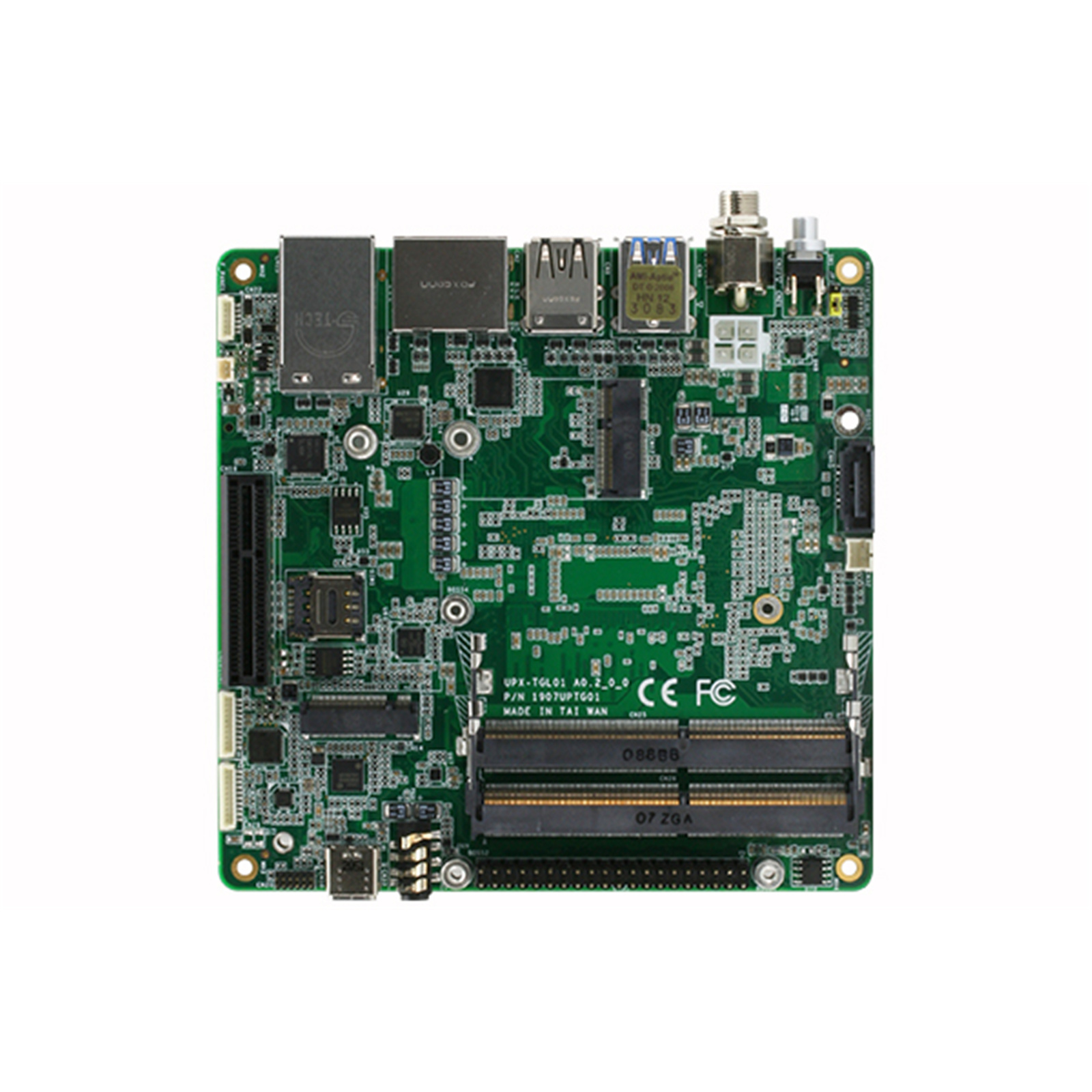

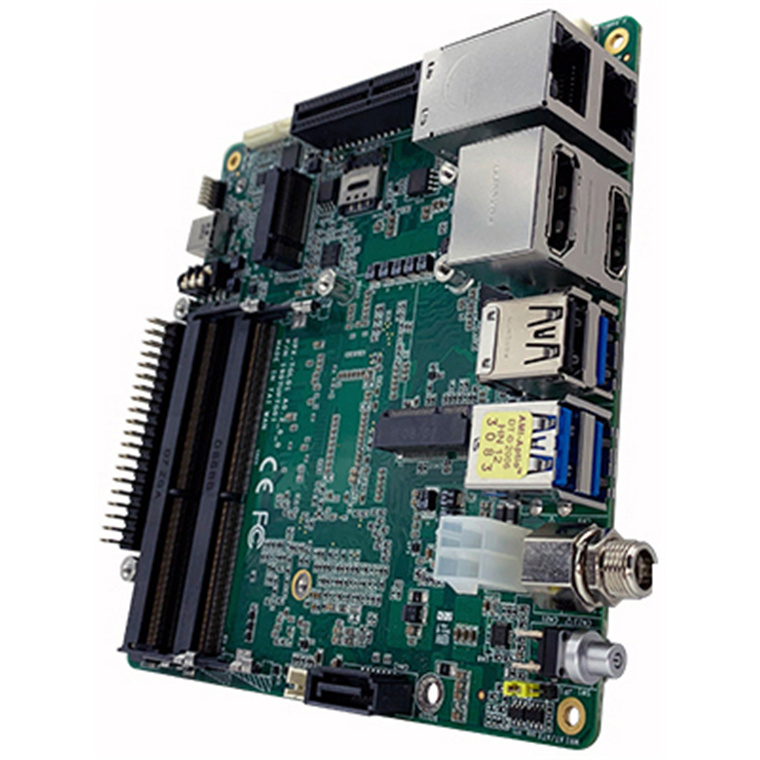

AAEON UP Xtreme i11 Board with Celeron 6305E
- Brand: AAEON
- MPN: UPX-TGLCR-A10-0000
- Part #: SBCAAEUP00080

Product URL: https://www.pbtech.co.nz/product/SBCAAEUP00080/AAEON-UP-Xtreme-i11-Board-with-Celeron-6305E
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The UP Xtreme i11 is bringing greater performance and capability to AI and Edge Computing. Powered by the 11th Generation Intel® Core™ processors (formerly Tiger Lake), the UP Xtreme i11 delivers up to 20% greater performance over the previous generation along with up to 64GB of DDR4 SO-DIMM memory.
The UP Xtreme i11 is built for AI, leveraging the embedded Intel® Iris® Xe graphics with AI enhanced engine to allow implementation of various inferences, compatible with the Intel® distribution of OpenVINO™ toolkit. The board's processing capabilities can be scaled up for greater AI performance thanks to M.2 2280 and PCIe Gen 4 [x4] slots. Additionally, the UP Xtreme i11 provides flexible communication support with M.2 2230 slot for Wi-Fi cards with support for Wi-Fi 6, and M.2 3052 slot with support for 5G cellular modules, tested and proven with several popular modules on the market.
The UP Xtreme i11 offers faster data transfer with a USB4.0 Type C (40 Gbps) port, Intel i225 2.5 Gbps LAN for even faster internet connection, and a flexible 40-pin GPIO enabling the board to connect with more modules, daughterboards or external devices. For displays, the board supports up to four independent displays via HDMI, DP, eDP and DP via USB Type C. Additionally, it can provide 8K video on a single output, or 4K ultra HD on two independent displays.
- 11th generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC (formerly Tiger Lake UP3)
- DDR4 SO-DIMM Slot x 2 (up to 64GB)
- 40-pin HAT Connector
- Support 4 independent Displays
- Support 5G module via M.2 3052 B key
- Support AI module via M.2 2280
- Support WiFi 6 via M.2 2230
- Support USB 4.0
- PCIe x 4 slot
- Support Intel AX210 WiFi 6
