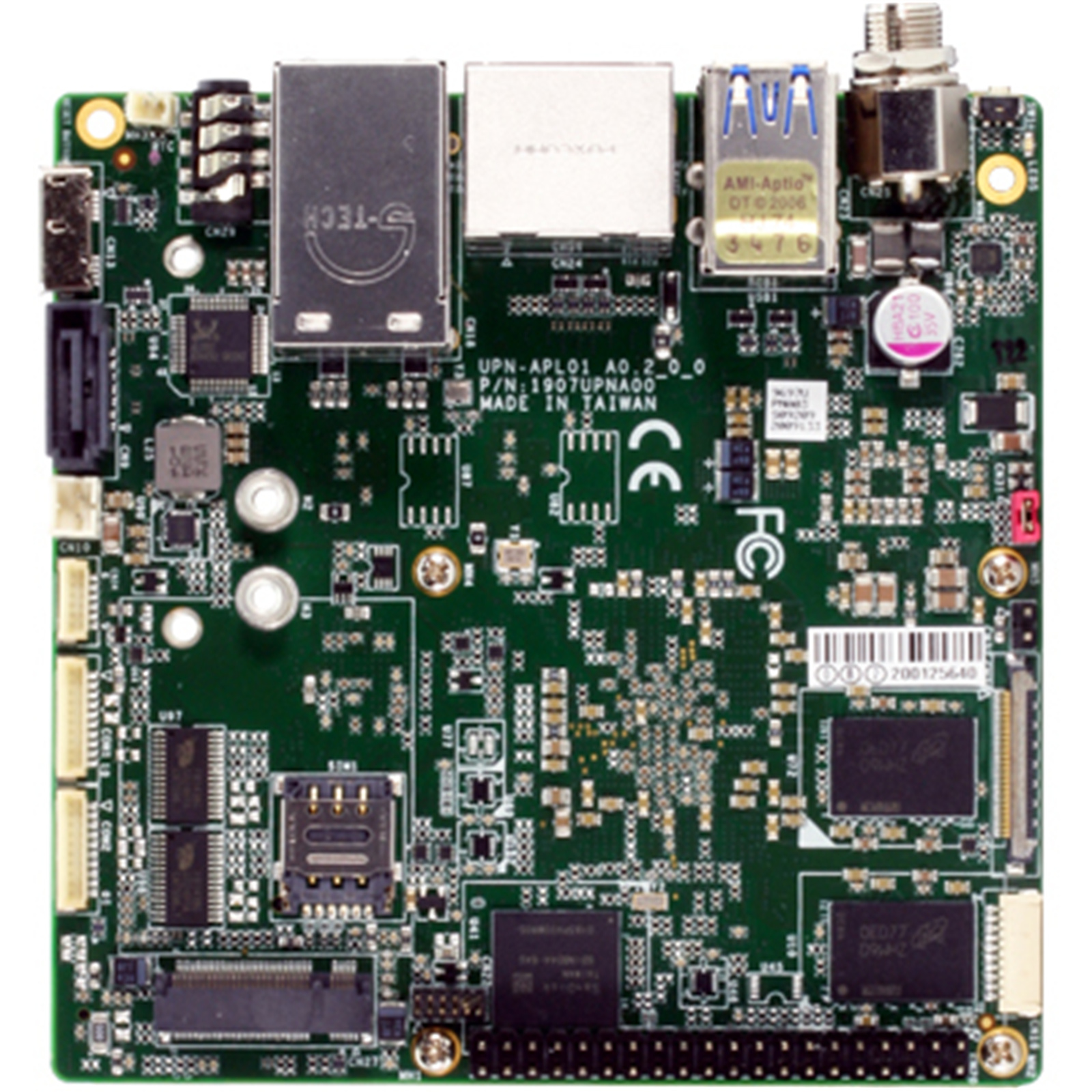

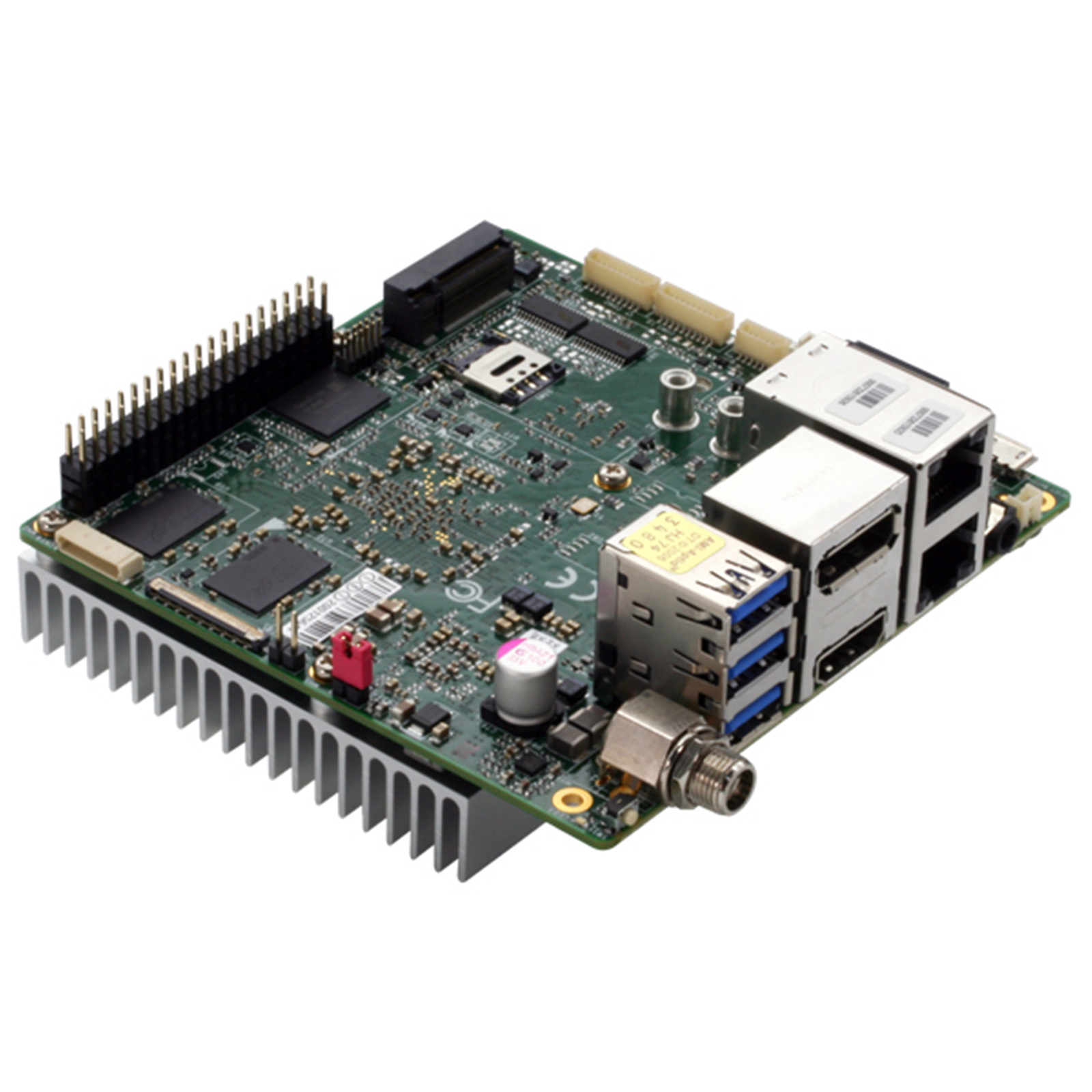

AAEON UP Squared Pro Board UPN-APL01.CPU N4200(F1).Memory 8GB.eMMC 64GB.REV.A1.0

AAEON UP Squared Pro Board UPN-APL01.CPU N4200(F1).Memory 8GB.eMMC 64GB.REV.A1.0

  • Brand: AAEON
  • MPN: UPN-APLP4F-A10-0864
  • Part #: SBCAAEUPPRO0003
  • UPC:
  • Brand: AAEON
  • MPN: UPN-APLP4F-A10-0864
  • Part #: SBCAAEUPPRO0003
  • UPC:

Features

The UP Squared Pro offers developers an up to date platform based on the popular UP Squared board, offering greater expandability and I/O features as well as support for 5G and AI accelerators. The UP Squared Pro is powered by the Intel® Celeron® N3350, Pentium® N4200 and Atom™ E3950 processors (formerly known as Apollo Lake) with up to 8GB of onboard memory to power automation or AI Edge Computing.

The UP Squared Pro provides greater expandability thanks to three M.2 slots, including M.2 2230 E-Key, M.2 2280 M-Key, and M.2 3042/3052 B-Key. This lets developers and users to quickly add on functionality such as Wi-Fi and AI accelerators such as the Intel® Movidius® Myriad™ X. The UP Squared Pro also supports 5G cellular cards, allowing developers to take advantage of lower latency and higher speeds for wireless network deployment. The UP Squared Pro features a 40-pin HAT expansion as well, and offers expandable storage with SATA III connectors.

The UP Squared Pro maintains and grows the familiar UP ecosystem, allowing developers to easily migrate projects from the UP Squared board to UP Squared Pro. UP Squared Pro is also compatible with the Intel® Distribution of OpenVINO® Toolkit, providing powerful software to help developers get their projects up and running quickly.

- Intel® Pentium® N4200/ Celeron® N3350/ Atom E3950 ™ Processor SoC
- Onboard LPDDR4 Memory up to 8GB
- Onboard eMMC Storage up to 64GB
- Gigabit LAN x 2, USB 2.0 x 2, USB 3.2 Gen 1 (Type A) x 3
- 12 VDC-in, 6A
- 40 pin GPIO x 1
- DP/eDP/HDMI x 1
- M.2 2230 E-key x 1
- M.2 2280 M-key x 1
- SATA3 x 1
- M.2 3042/3052 B-key x 1

Specifications

PROCESSOR

Intel® Pentium® N4200/ Celeron® N3350/ Atom™ E3950 Processor SoC

GRAPHICS

Intel® Gen 9 HD, supporting 4K Codec Decode and Encode for HEVC4, H.264, VP8

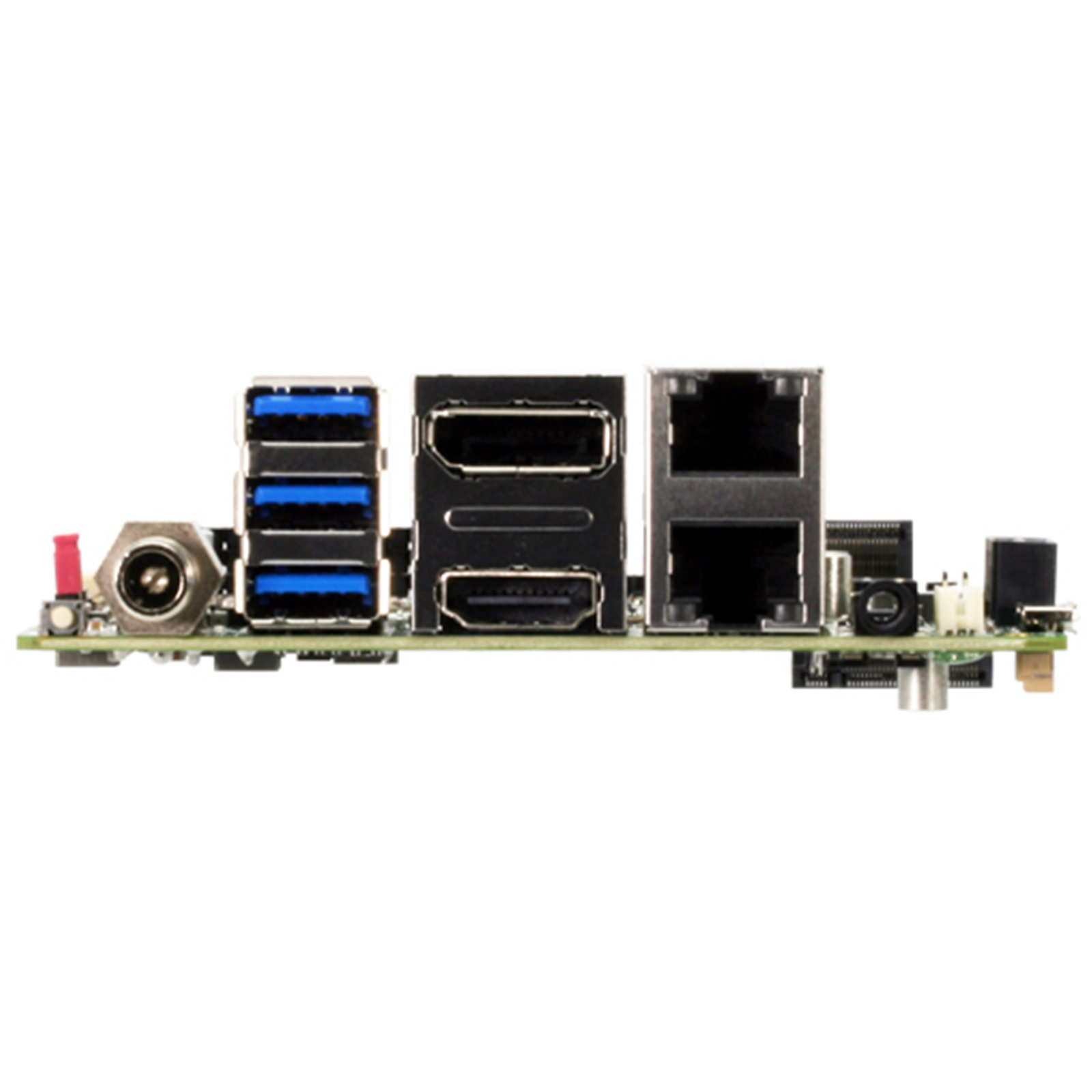

I/O

HDMI x 1
DP x 1
COM port (RS422/RS232/RS485) x 2
Audio Jack x 1

USB

USB 2.0 x 2
USB 3.2 Gen 1 OTG x 1
USB 3.2 Gen 1 (Type A) x 3

EXPANSION

40 pin GPIO x 1
M.2 2230 E-key x 1
M.2 2280 M-key x 1
SATA3 x 1
M.2 3042/3052 B-key x 1

RTC

Yes

POWER

12V-24V DC-in (Lockable plug)/ Phoenix connector (optional)

DIMENSION

10.16cm x 10.16cm

MEMORY

2GB (single channel) LPDDR4
4GB/8GB (dual channel) LPDDR4

STORAGE

eMMC 32 GB / 64 GB

DISPLAY INTERFACE

HDMI1.4 x 1
DP1.2 x 1
eDP x 1

ETHERNET

Gb Ethernet (full speed) RJ-45 x 2

OS SUPPORT

Microsoft Windows 10 (full), Windows IOT Core
Linux: Ubuntu 18.04.5, Ubuntu 20.04.1, Yocto 3.1

OPERATING TEMPERATURE

with Fan: 32°F ~ 140°F (0°C ~ 60°C, with airflow 0.5m/s)
with Heatsink: 32°F ~ 122°F (0°C ~ 50°C, with airflow 0.5m/s)

OPERATING HUMIDITY

0% ~ 90% relative humidity, non-condensing

CERTIFICATE

CE/FCC Class A, RoHS Compliant, REACH

Manufacturer Part No:
UPN-APLP4F-A10-0864
Brand:
Product Type:
-
UPC
-
Product Family:
UP Squared Pro Board
Shipping Weight:
1 kg
PB Part No:
SBCAAEUPPRO0003
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
