Google Coral 5 Megapixel Camera MIPI-CSI Interface Compatible with Coral boards , Built in ISP, Auto Focus, Dual Lane bring Visual Input into your Mode
Google Coral 5 Megapixel Camera MIPI-CSI Interface Compatible with Coral boards , Built in ISP, Auto Focus, Dual Lane bring Visual Input into your Mode
- Brand: Google
- MPN: 90AN0080-S0P000
- Part #: SBCGOG0003
- UPC: 193575000442
Select your store to check availability
- Brand: Google
- MPN: 90AN0080-S0P000
- Part #: SBCGOG0003
- UPC: 193575000442
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Cameras
Google Coral 5 Megapixel Camera MIPI-CSI Interface Compatible with Coral boards , Built in ISP, Auto Focus, Dual Lane bring Visual Input into your Mode
- Brand: Google
- MPN: 90AN0080-S0P000
- Part #: SBCGOG0003
- UPC:193575000442
Product URL: https://www.pbtech.co.nz/product/SBCGOG0003/Google-Coral-5-Megapixel-Camera-MIPI-CSI-Interface
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 1 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 1 | |
Head Office | 1 | |
Hornby | 1 | |
Christchurch Central | 0 |
Features
Google Coral 5 Megapixel Camera MIPI-CSI Interface Compatible with Coral boards , Built in ISP, Auto Focus, Dual Lane bring Visual Input into your Mode

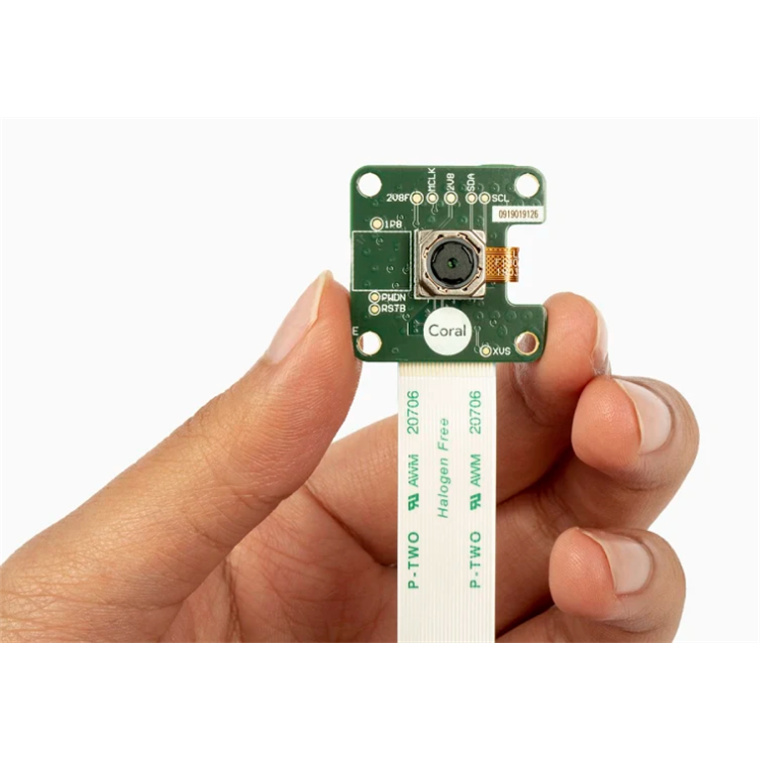

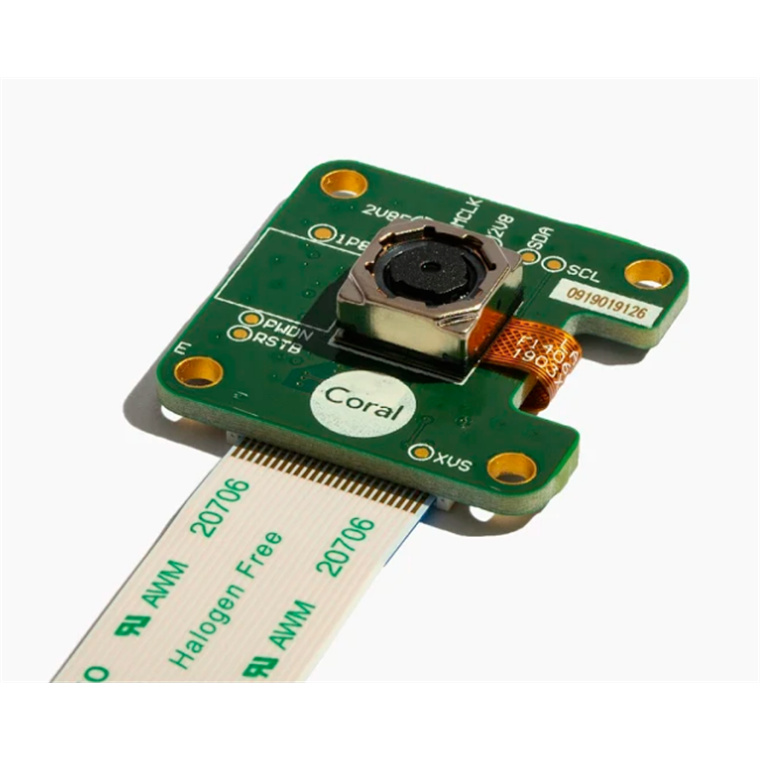

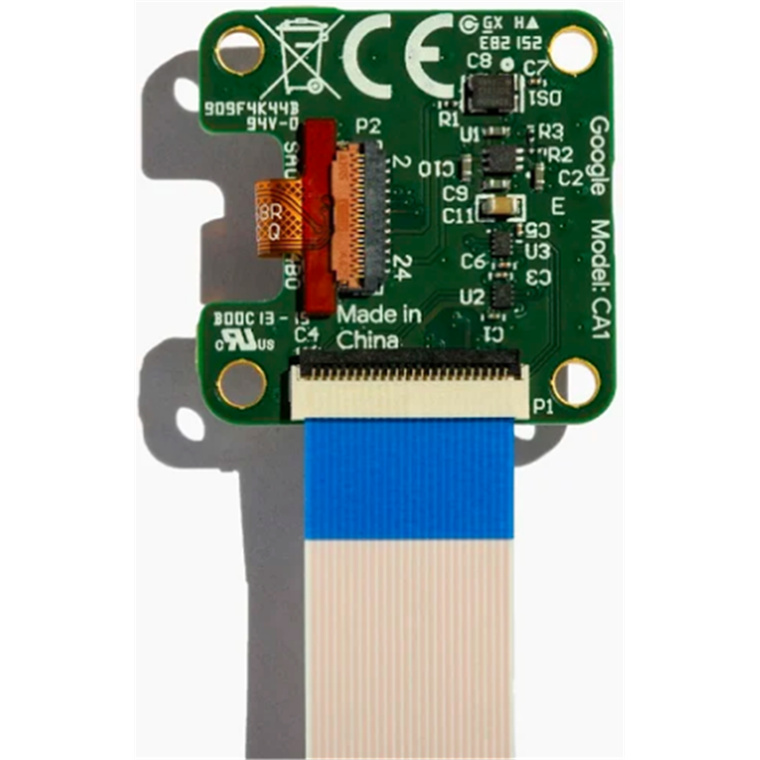

The Coral Camera is designed to enable on-device vision intelligence with Coral prototyping boards or other production hardware. The camera attaches to the Coral Dev Board with a 24-pin FFC.
Other features include:
- ISP function: Automatic exposure control (AEC), automatic white balance (AWB), automatic band filter (ABF), automatic 50/60 Hz lumination, automatic blacklevel calibration (ABLC).
- Image quality control: color saturation, hue, gamma, sharpness, lens correction, defective pixel canceling, and noise canceling.
- Support autofocus control (AFC) with embedded AF VCM Driver.
Features:
- 5-megapixel OmniVision sensor
- 1.4um x 1.4um pixel
- Active array size 2582x1933
- Optical size: �"
- Field of view: 84.0° / 87.6°
- F-number: F=2.2 ±5%
- TV distortion: <1.5%
- Focal length: 2.5mm
- Focusing range: 10cm ~ 8
- Dual lane MIPI output interface

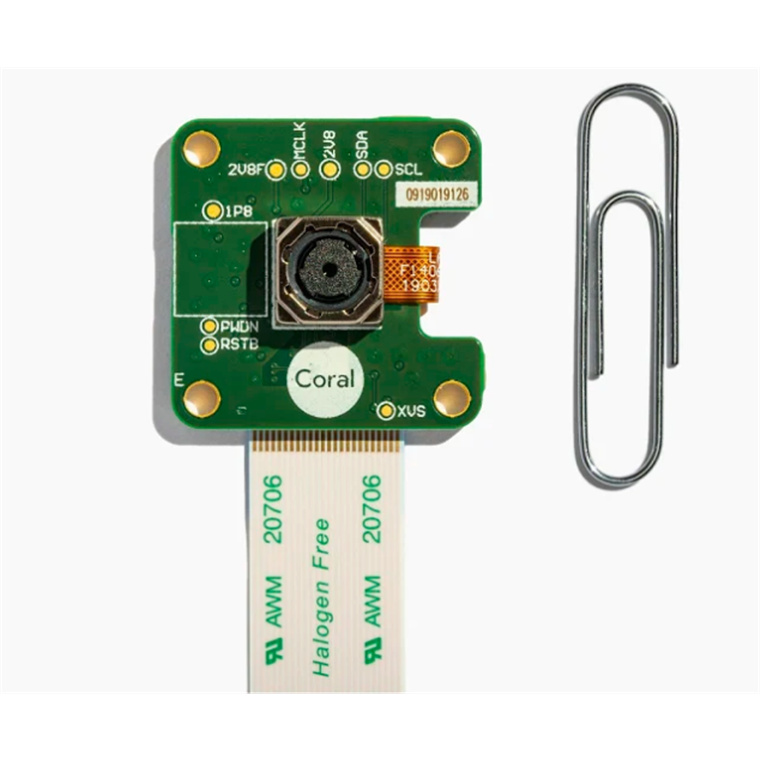

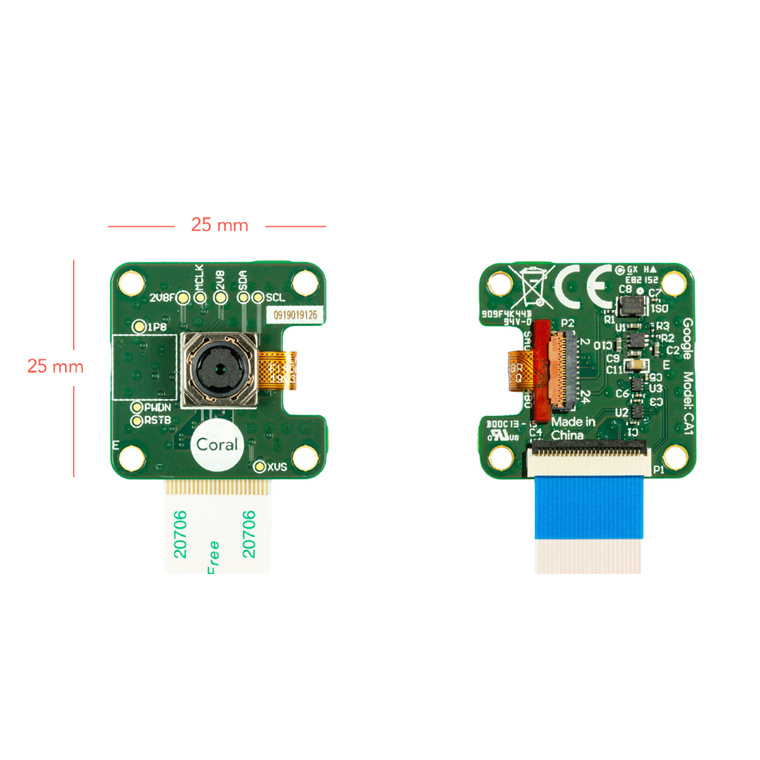

- Board dimensions: 25 x 25 mm
Connect a camera to the Dev Board (Guide)
To perform real-time inferencing with a vision model, you can connect the Coral Camera to a Dev Board.
Once you connect a camera, try the demo scripts below.
The Coral Camera is designed to enable on-device vision intelligence with Coral prototyping boards or other production hardware.
Compatible with Coral boards
Connects to the Dev Board and Dev Board Mini through the CSI camera connector.
Scalable to production
Designed to scale with your manufacturing needs.
Specifications
Sensor
Omnivision OV5645 SoC (built in ISP)
Focus
Auto focus, focal length 2.5mm, range 10cm-infinity
Field of View
84.0 degrees /87.6 degrees
ISP Functions
Auto exposure control, auto white balance, auto band filter, auto 50/60Hz lumination, auto black level calibration
Connections
MIPI-CSI, dual lane MIPI interface
Dimensions
25mm x 25mm
Certifications
European Union (CE), Ghana (NCA), Hong Kong (CE), India (WPC), Korea (KC), Oman (TRA), Philippines (NTC), Singapore (IMDA), Thailand (NBTC), United States (FCC)

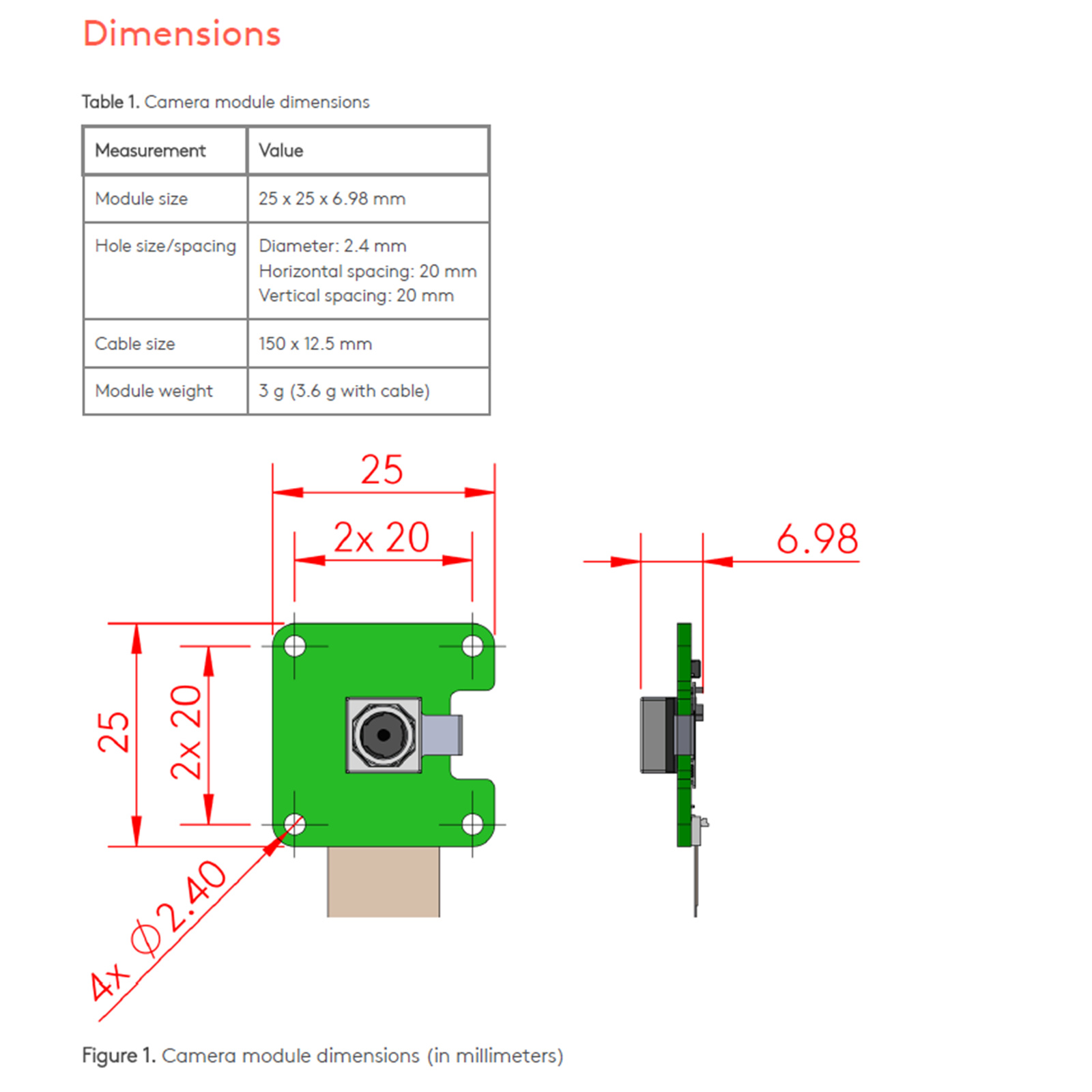

Module size
25 x 25 x 6.98 mm
Hole size/spacing
Diameter: 2.4 mm
Horizontal spacing: 20 mm
Vertical spacing: 20 mm
Cable size
150 x 12.5 mm
Module weight
3g (3.6 g with cable)
