Ideal Industries IDL30-0093J 32A 3 Port Wire Connector Gen II Lever. 50pc Jar. 0.2 mm2 to 4.0 mm2(Solid/Stranded) and 0.14 mm2 to 4.0 mm2 for Flexible Wire.
Out of stock
Ideal Industries IDL30-0093J 32A 3 Port Wire Connector Gen II Lever. 50pc Jar. 0.2 mm2 to 4.0 mm2(Solid/Stranded) and 0.14 mm2 to 4.0 mm2 for Flexible Wire.
- Brand: Ideal Industries
- MPN: IDL30-0093J
- Part #: SCBIDI7701
- UPC:
- Brand: Ideal Industries
- MPN: IDL30-0093J
- Part #: SCBIDI7701
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Structured Cabling





Ideal Industries IDL30-0093J 32A 3 Port Wire Connector Gen II Lever. 50pc Jar. 0.2 mm2 to 4.0 mm2(Solid/Stranded) and 0.14 mm2 to 4.0 mm2 for Flexible Wire.
- Brand: Ideal Industries
- MPN: IDL30-0093J
- Part #: SCBIDI7701

Product URL: https://www.pbtech.co.nz/product/SCBIDI7701/Ideal-Industries-IDL30-0093J-32A-3-Port-Wire-Conne
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

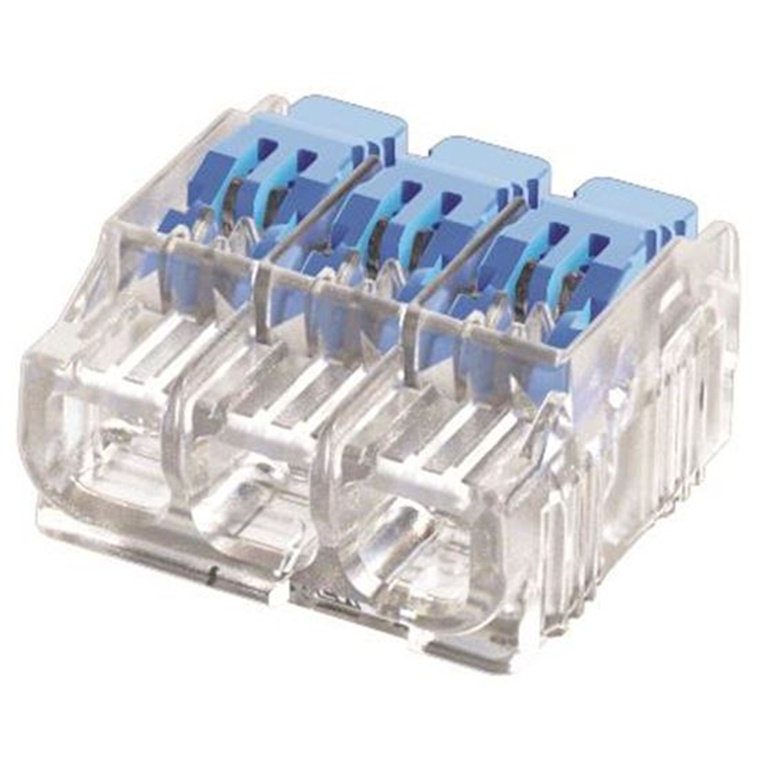

IDEAL INDUSTRIES 32A 3 Port Wire Connector Gen II Lever. 50pc Jar

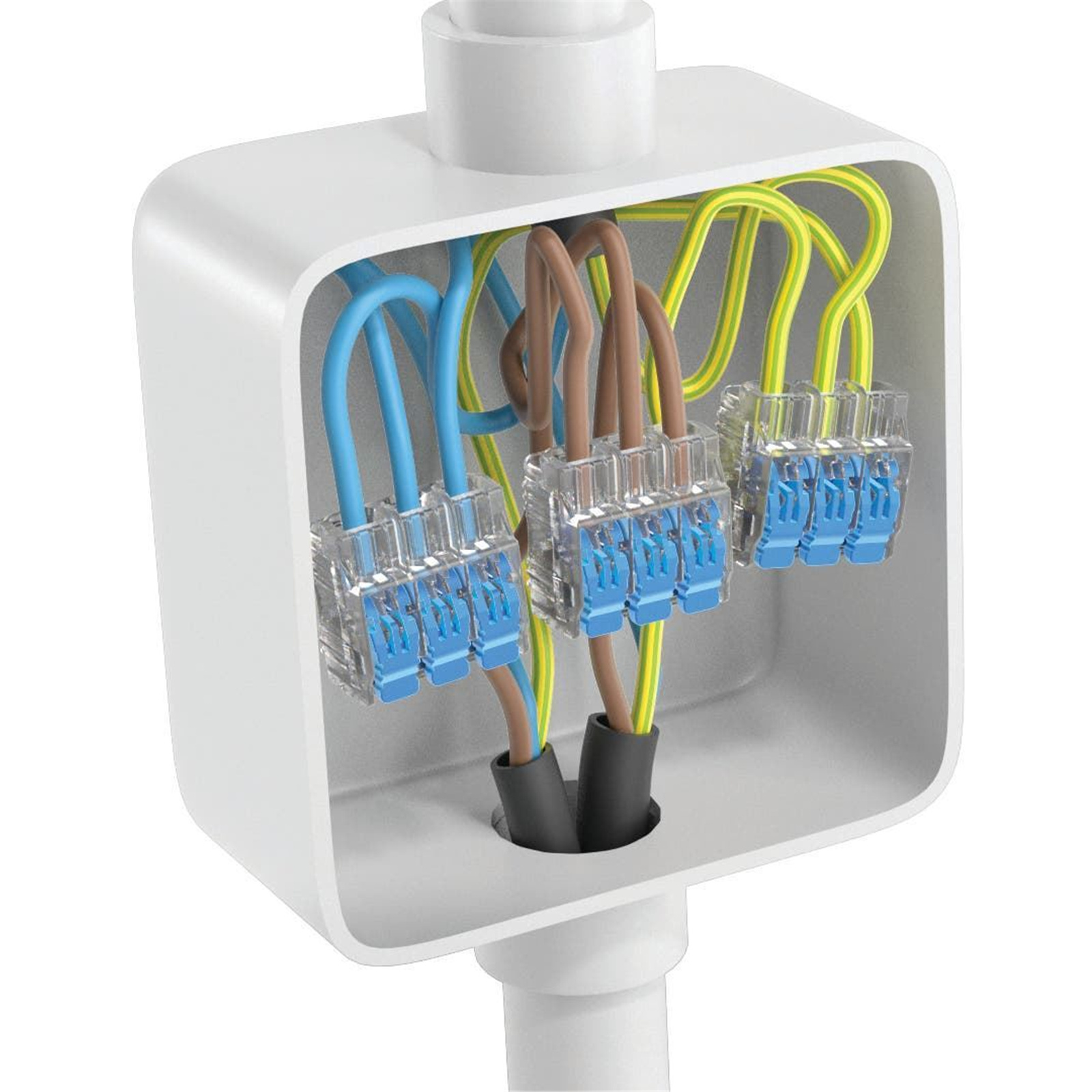

The IDEAL Lever connectors utilise the latest connection technologies and can accommodate multiple wires of different types of sizes.
It offers a fast, simple and cost-effective alternative to terminal strips allowing electrical professionals to save time and money on site while achieving easier, more consistent terminations for wires up to 4mm² (12AWG) and 32 Amps.
- For use in all applications up to 32A including lighting, access control, radial and final ring circuits
- Releasable connector: for solid, stranded and flexible wires
- Innovative levers: opens in the opposite direction of insertion points
- Compact design: suits tight spaces
- Easy to use: no need to lift the levers when using on solid wire

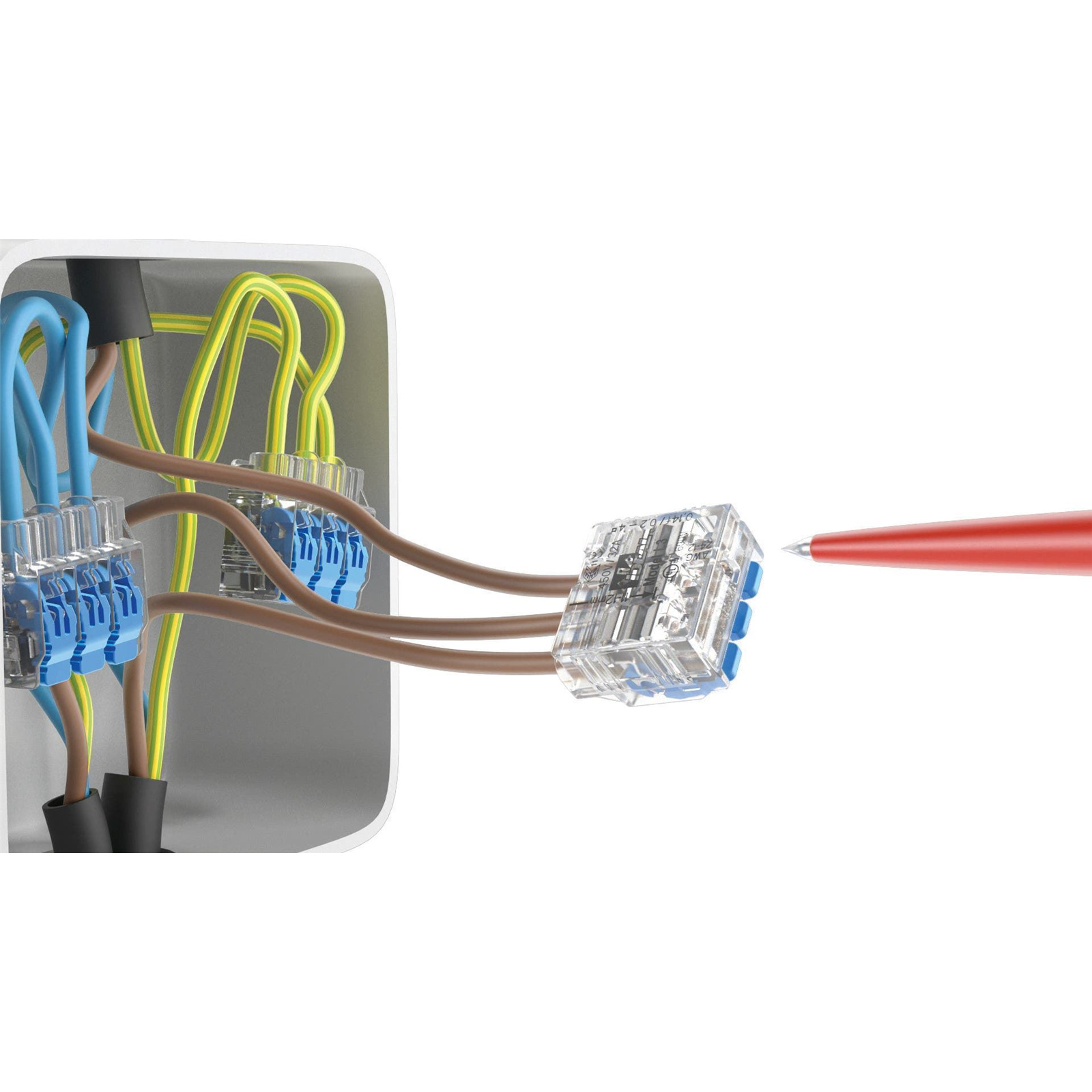

- Continuity check port: for testing
- Clear shell: allows for verification of connection

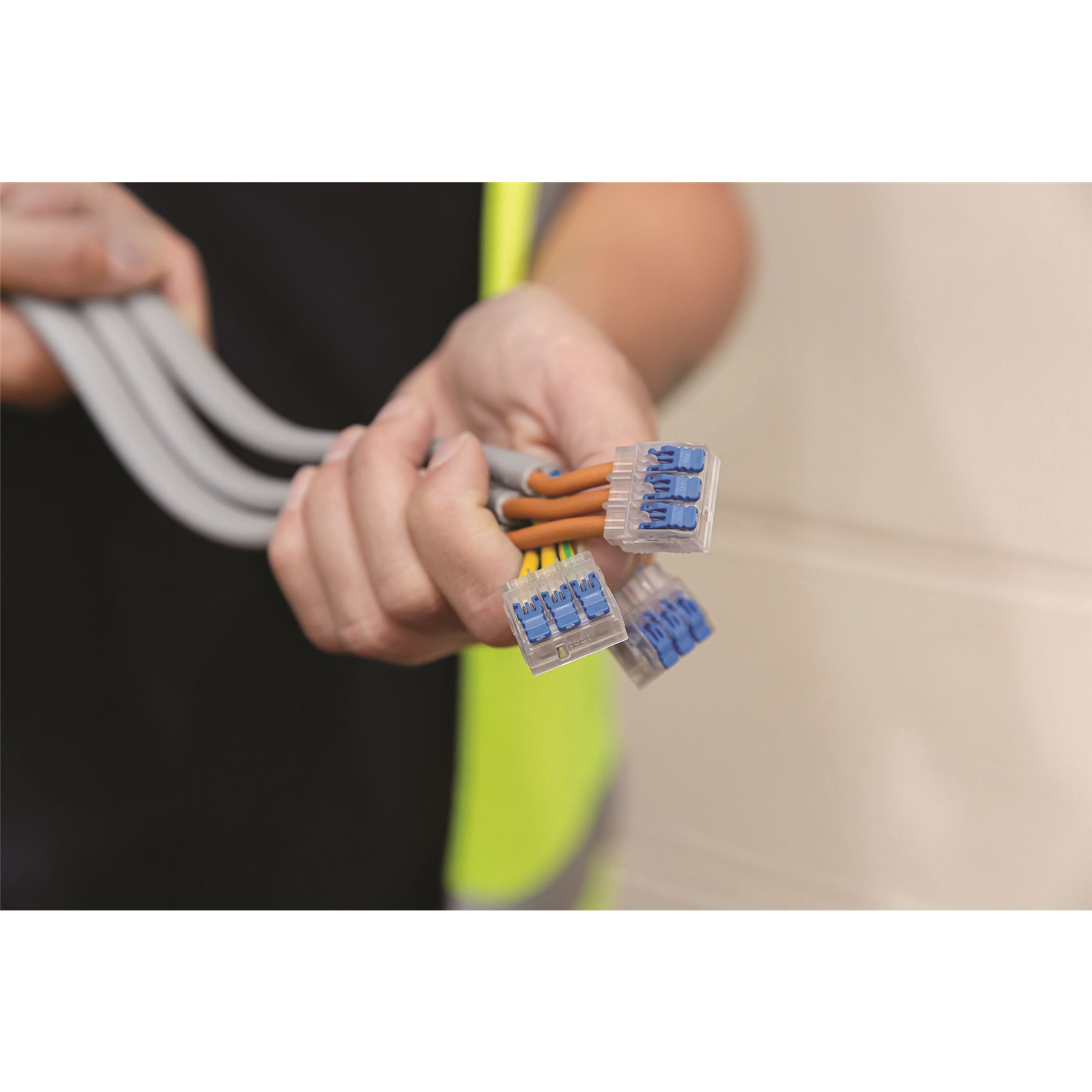

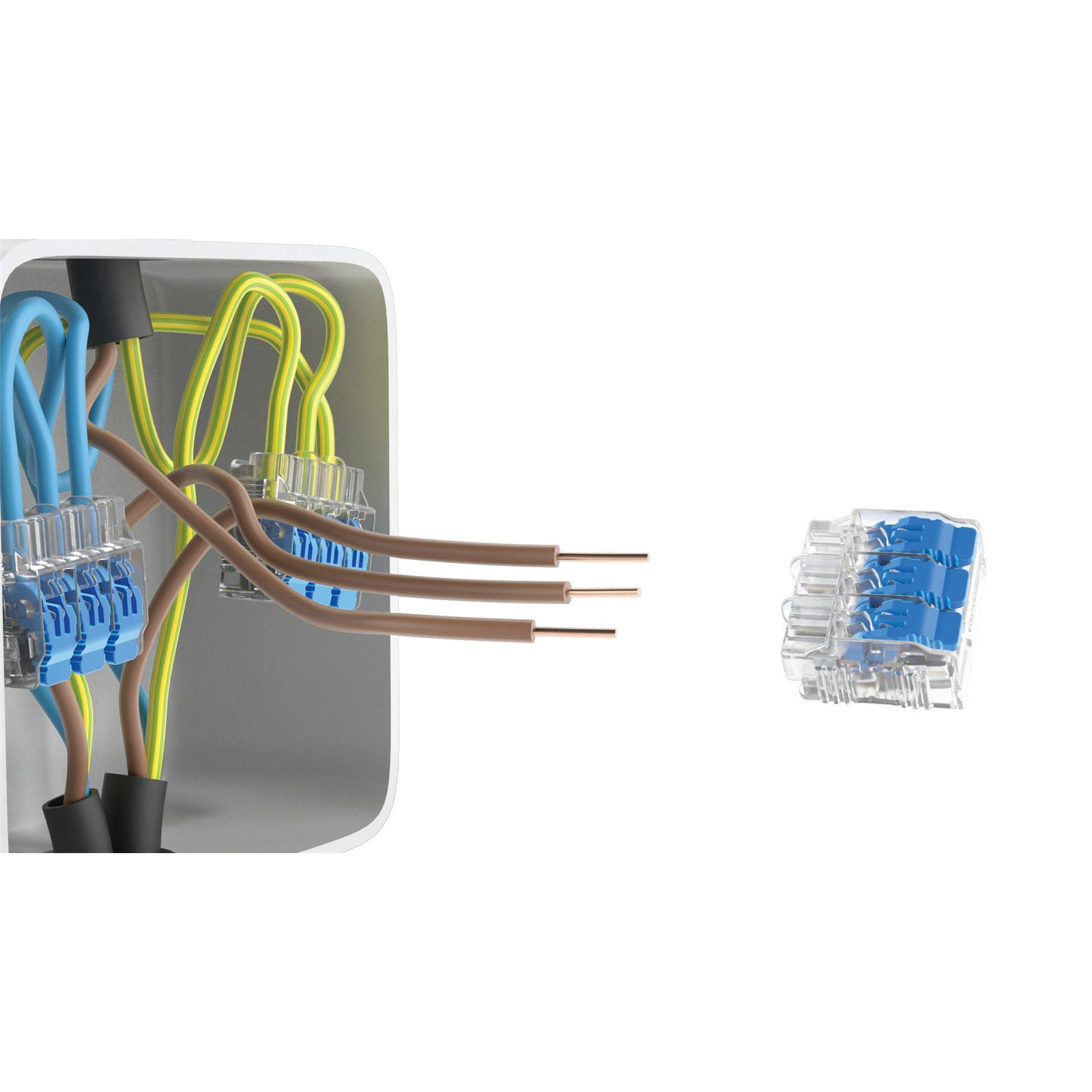

- Secure your cables in seconds: no screwdriver, no crimping, just strip, push, connect
- Strip Length: 11-12 mm | 0.45"
- Compliant with AS/NZS IEC 60998.1 and AS/NZS 60998.2.2 connecting device standards and UL 486C
- CE, UKCA, UL and ENEC approved
Wire clamping range
- 0.2 mm² to 4.0 mm² (24 - 12 AWG for solid and rigid stranded wires (7 strands)
- 0.14 mm² to 4.0 mm² (24 - 12 AWG) for flexible wires
Ratings
- IEC 60998: 32A | 450V | 85° C (ambient)
- UL 486C: 20A |600V | 105° C (working)
Specifications
Model No.
IDL30-0093J
Wires
3
Quantity
Jar of 50
Depth
18.6 mm
Width
13.3 mm
Height
8.8 mm
