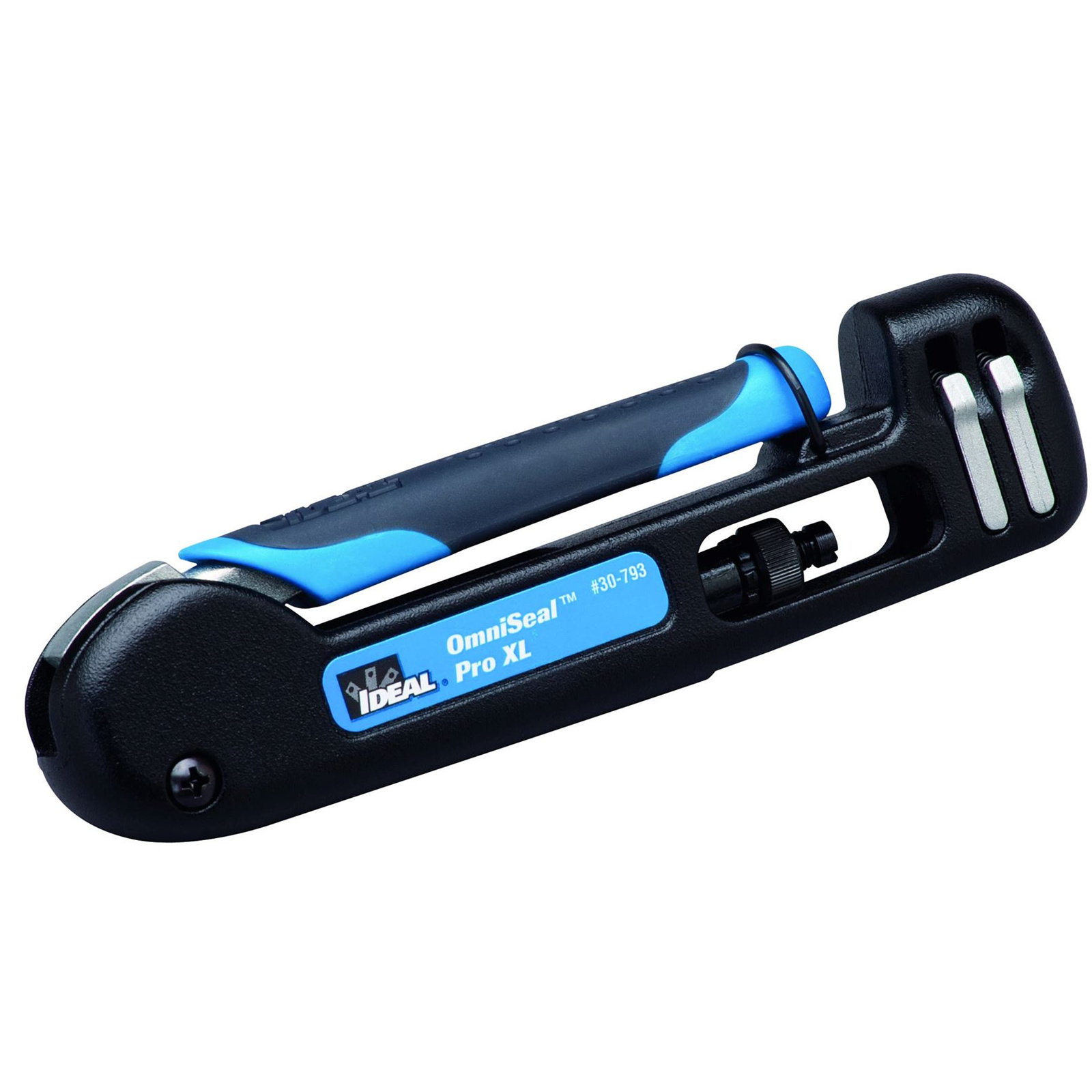

Ideal Industries IDL30-793 OmniSeal Pro XL Compression Tool for F, BNC, RCA, RG-11F, Mini-Coax and90 Degrees Connectors.

PB Tech price
PB Tech price
$ 137 .39
 +GST
$ 158 .00
 inc GST
$137.39  +GST
$158.00

Ideal Industries IDL30-793 OmniSeal Pro XL Compression Tool for F, BNC, RCA, RG-11F, Mini-Coax and90 Degrees Connectors.

  • Brand: Ideal Industries
  • MPN: IDL30-793
  • Part #: SCBIDI7937
  • UPC:
PB Tech price
$ 137 .39 $ 158 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 01 Oct When will I receive it?
$137.39  +GST
$158.00
  • Brand: Ideal Industries
  • MPN: IDL30-793
  • Part #: SCBIDI7937
  • UPC:

Cable Length

N/A

Features

The flagship OmniSeal™ Pro XL (30-793) compression tool is compatible with and terminates all IDEAL compression connectors. Patented dual spring clips and fixed top ledge enable this tool to compress more connectors than any other tool on the market. Unlike most compression tools which require adjustments and adapters for each type of connector, this compact 6¾" length tool compresses all straight IDEAL compression connectors with no adjustments to the tool. F/BNC/RCA/RG-11 F connectors can all be terminated one after another with no setting changes. Only the 90° F and BNC connectors require a tool adjustment.

An adjustable spin knob allows for compressive forces to be placed on the rim of the connector instead of the bottom of the nut when required. This is helpful for non-IDEAL plastic-centred connectors such as 50O BNCs or RCAs with limited structural support. It can also be used as a larger flat surface to compress against other types of non-traditional compression connectors. The adjustable post and spin knob, combined with three compression surface levels, give the installer virtually unlimited options for compressing current and future connector designs.

Tool instructions:

Default setting: With the handle in the closed position, the top of the compression post should be flush with the longest (centre) line of the adjustment lines. If an IDEAL connector does not fully compress, raise the post setting. If the handle does not fully close when compressing, lower the post setting.

All IDEAL compression connectors use the default setting, except the 90° connectors - see adjustments below.

The 90° F/BNC compression connectors are the only IDEAL connectors that require the 30-793 compression tool to be adjusted. The tool can also be adjusted for non-IDEAL connectors.

- To adjust: Loosen the locknut by turning the post counterclockwise with a flathead screwdriver.
- With the handle in the closed position, lower the post with the screwdriver until the top of the compression post is even with the bottom adjustment line of the tool.
- The tool is now set for 90° connectors. The connector will compress against the top spring clip level.
- To reset the tool to the default position, close the handle and raise the post to the longest (centre) adjustment mark.
- Re-tighten the locknut by hand, then secure it with a clockwise turn of the post.

Specifications

Brand

Ideal Industries

Product Type

OmniSeal Pro XL Compression Tool

Model No.

IDL30-793

Manufacturer Part No:
IDL30-793
Brand:
Ideal Industries
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
SCBIDI7937
Product Model:
IDL30-793
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
