Ideal Industries IDL30-1163 32A Grey/Blue WeatherProof Twister Wire Connector 15pc Card. - Wire Range Capacity: Min -3 x2.5mm2 Max - 6 x 4.0mm2.
Out of stock
Ideal Industries IDL30-1163 32A Grey/Blue WeatherProof Twister Wire Connector 15pc Card. - Wire Range Capacity: Min -3 x2.5mm2 Max - 6 x 4.0mm2.
- Brand: Ideal Industries
- MPN: IDL30-1163
- Part #: SCBIDI8166
- UPC:
- Brand: Ideal Industries
- MPN: IDL30-1163
- Part #: SCBIDI8166
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Structured Cabling





Ideal Industries IDL30-1163 32A Grey/Blue WeatherProof Twister Wire Connector 15pc Card. - Wire Range Capacity: Min -3 x2.5mm2 Max - 6 x 4.0mm2.
- Brand: Ideal Industries
- MPN: IDL30-1163
- Part #: SCBIDI8166

Product URL: https://www.pbtech.co.nz/product/SCBIDI8166/Ideal-Industries-IDL30-1163-32A-GreyBlue-WeatherPr
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Connected and Protected

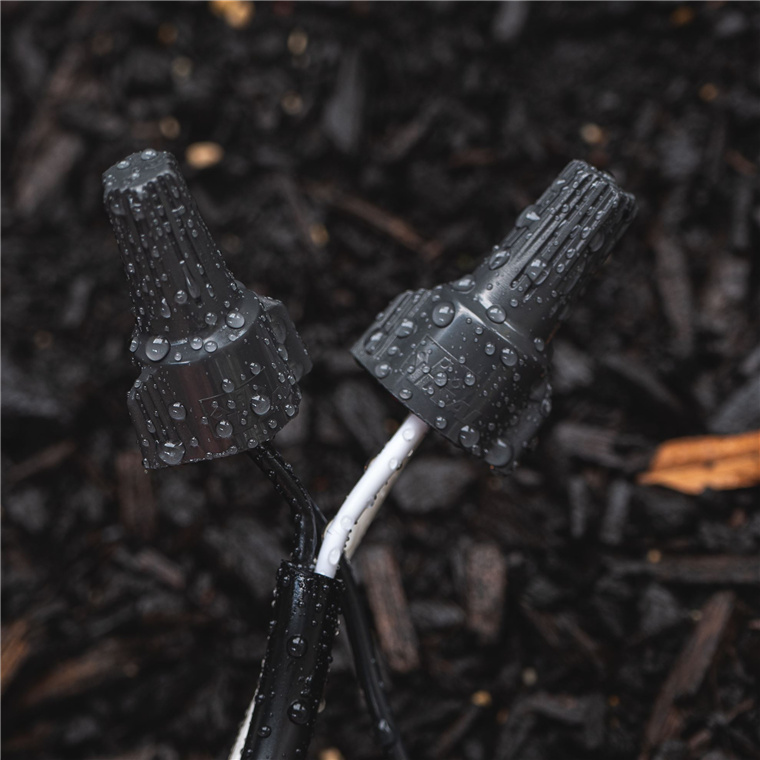

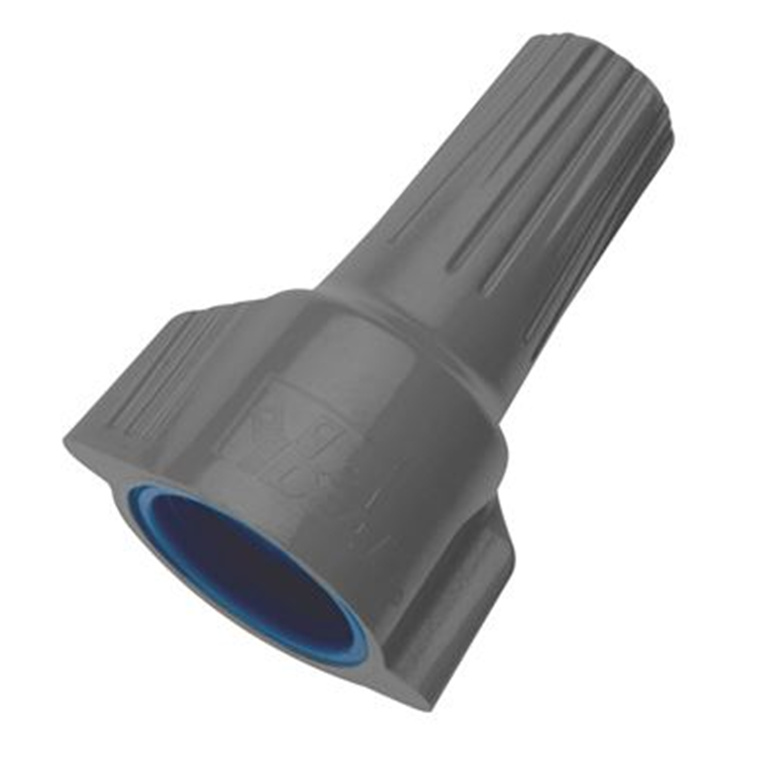

Designed specifically for above-grade interior or exterior connections exposed to damp wet or corrosive environments WeatherProof Wire Connectors are the perfect twist-on solution for connections that require protection from the elements. The swept-wing design makes the connector easy and comfortable to apply while the pre-filled silicone-based sealant protects against moisture and corrosion eliminating the need for heat-shrink or excessive taping.
WeatherProof Wire Connectors feature tough* flame-retardant shells that withstand most rugged environments.
Due to the pre-filled silicone sealant, WeatherProof Wire Connectors are designed as a one-use-only connection.
*Not for use in continual submersion applications.
- IP68 Rated
- Complies to AS/NZS IEC 60998.1 and AS/NZS IEC 60998.2.4 Standards
- Wire Range Capacity: min - 3 x 2.5mm²; max - 6 x 4.0mm²

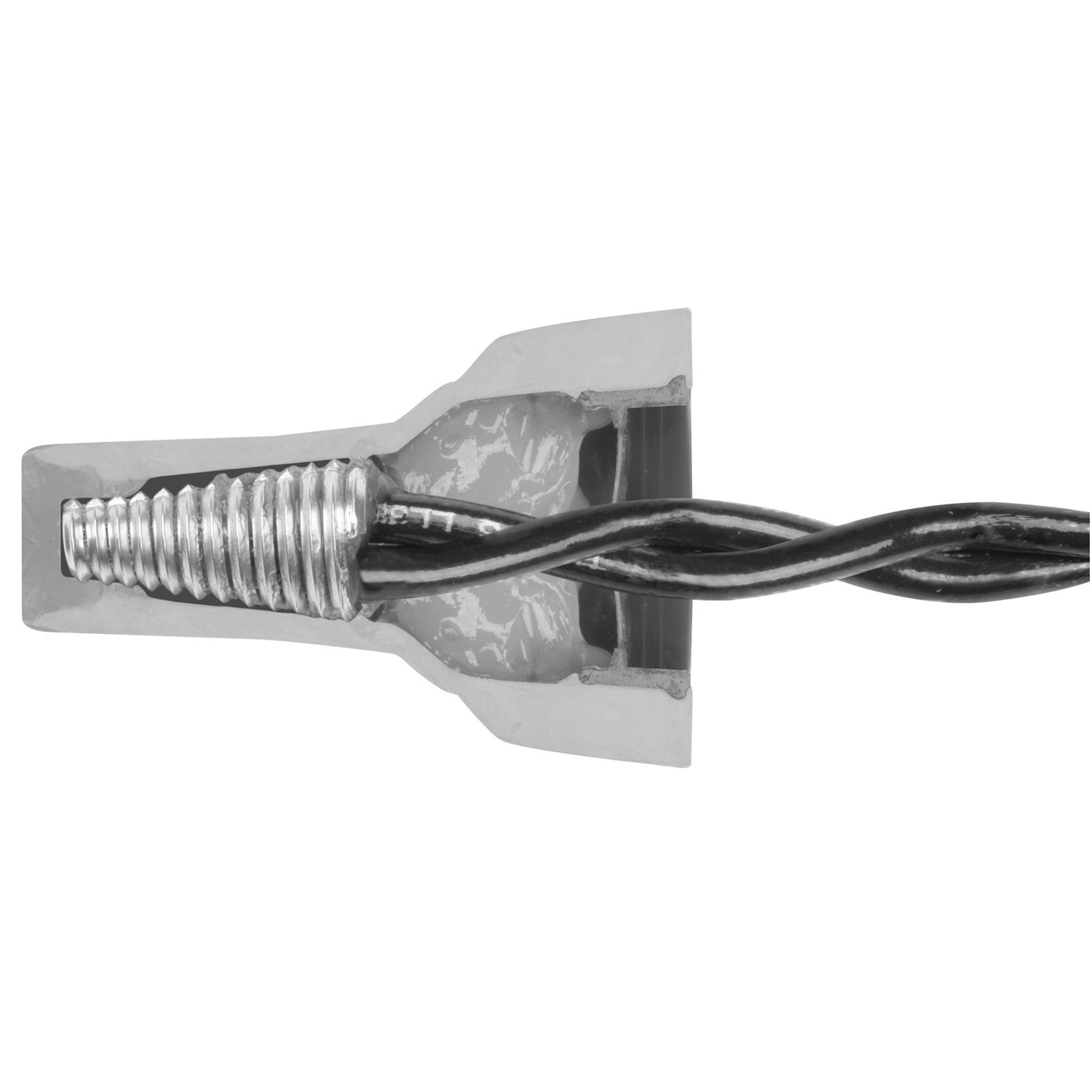

- 100% Silicone-based sealant protects against moisture and corrosion
- Easy to apply pre-filled twist-on wire connectors
- Eliminates the need for heat-shrink or excessive taping
- Tough UL 94V-2 flame-retardant shell rated at 105°C

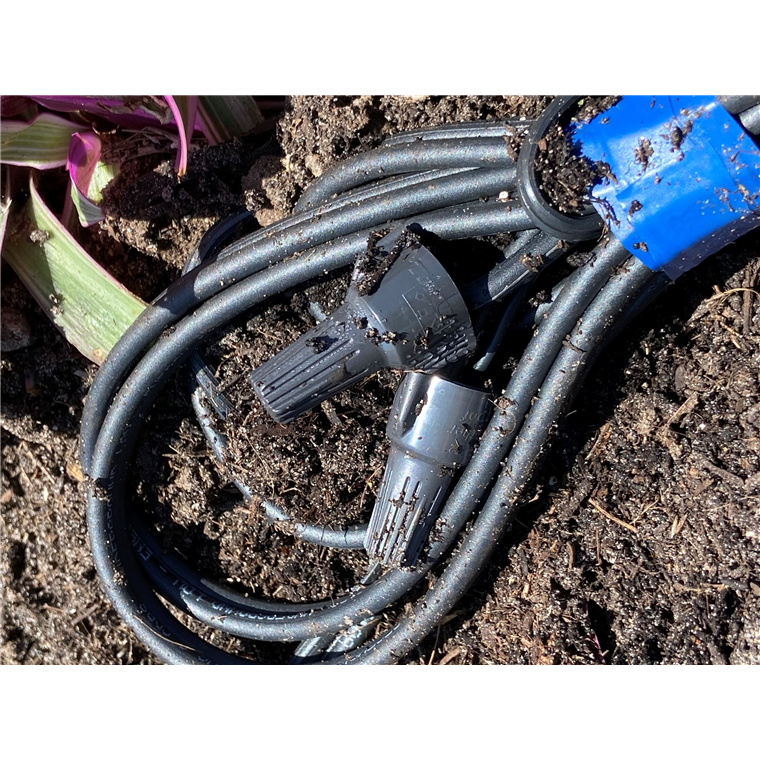

- For use in damp/wet locations above-ground or underground applications
Specifications
Brand
Ideal Industries
Product type
WeatherProof Twister Wire Connector
Model No.
IDL30-1163
Colour
Grey/Blue
Wire Range Capacity
Min - 3 x 2.5mm²; Max - 6 x 4.0mm²
Qty in pack
15pc
