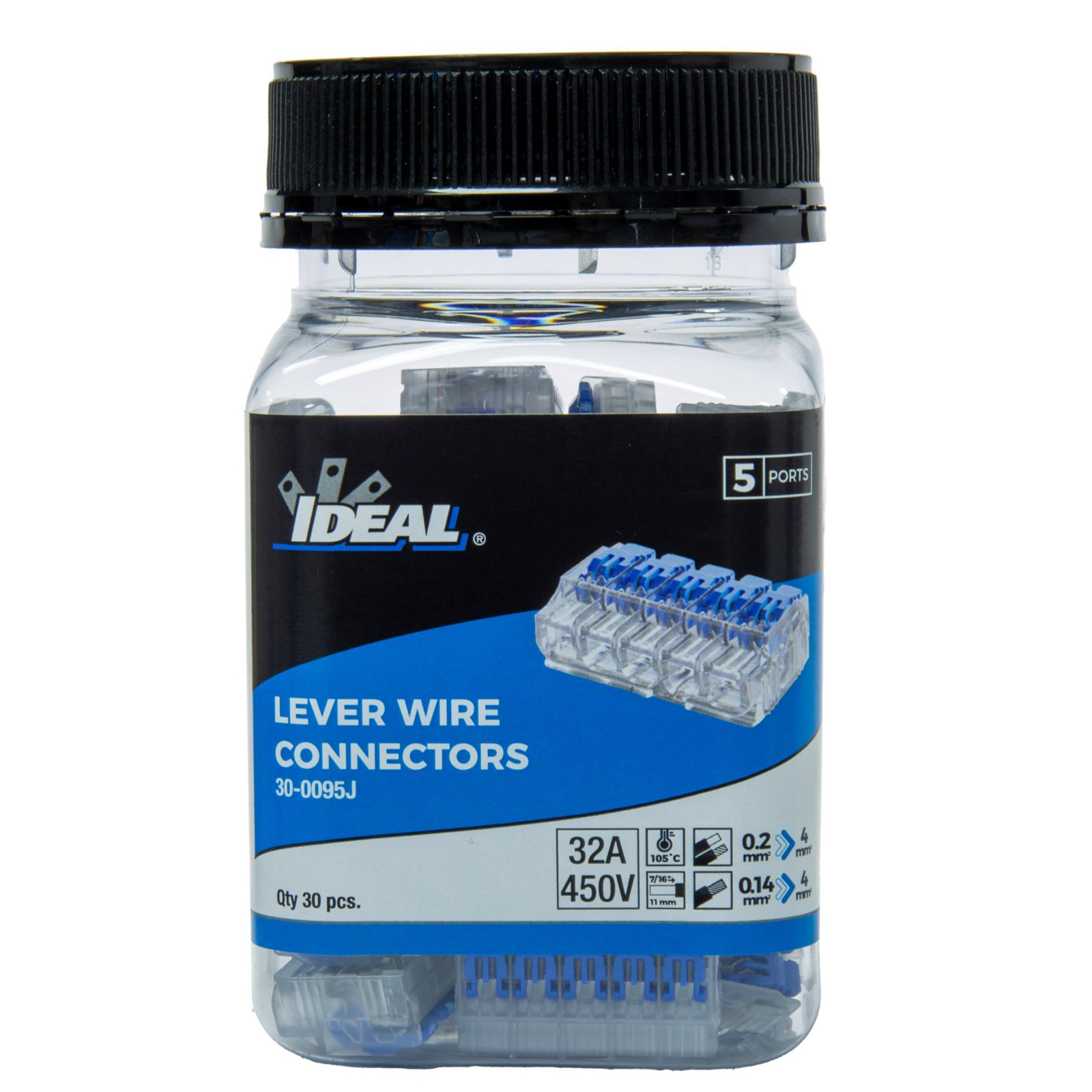

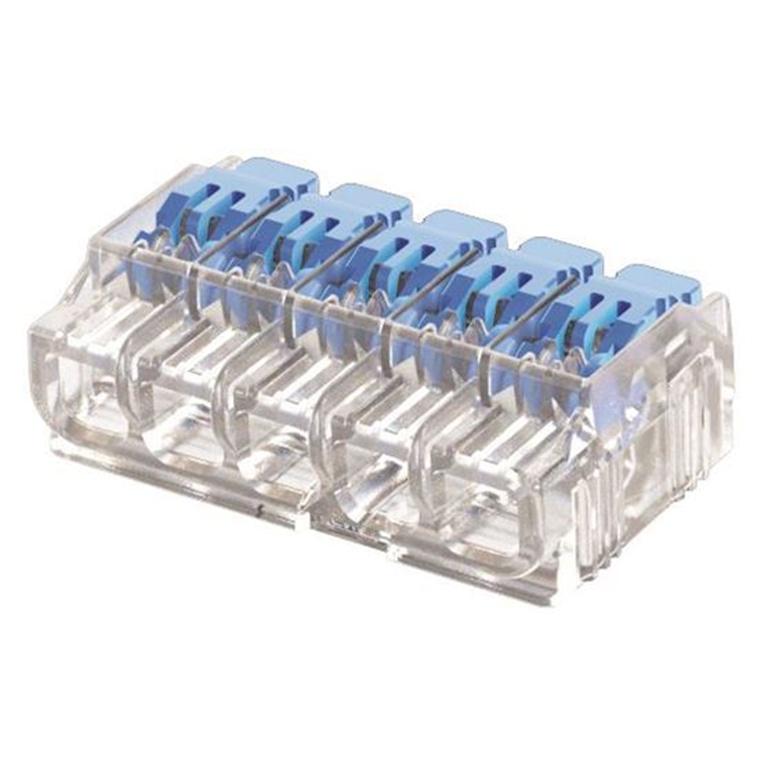

Ideal Industries IDL30-0095J 32A 5 Port Wire Connector Gen II Lever - 30pc Jar
The IDEAL Lever connectors utilise the latest connection technologies and can accommodate multiple wires of different types of sizes.
It offers a fast, simple and cost-effective alternative to terminal strips allowing electrical professionals to save time and money on site while achieving easier, more consistent terminations for wires up to 4mm² (12AWG) and 32 Amps.
- For use in all applications up to 32A including lighting, access control, radial and final ring circuits
- Releasable connector - for solid, stranded and flexible wires
- Innovative levers - opens in the opposite direction of insertion points
- Compact design - suits tight spaces
- Easy to use - no need to lift the levers when using on solid wire
- Continuity check port - for testing
- Clear shell - allows for verification of connection

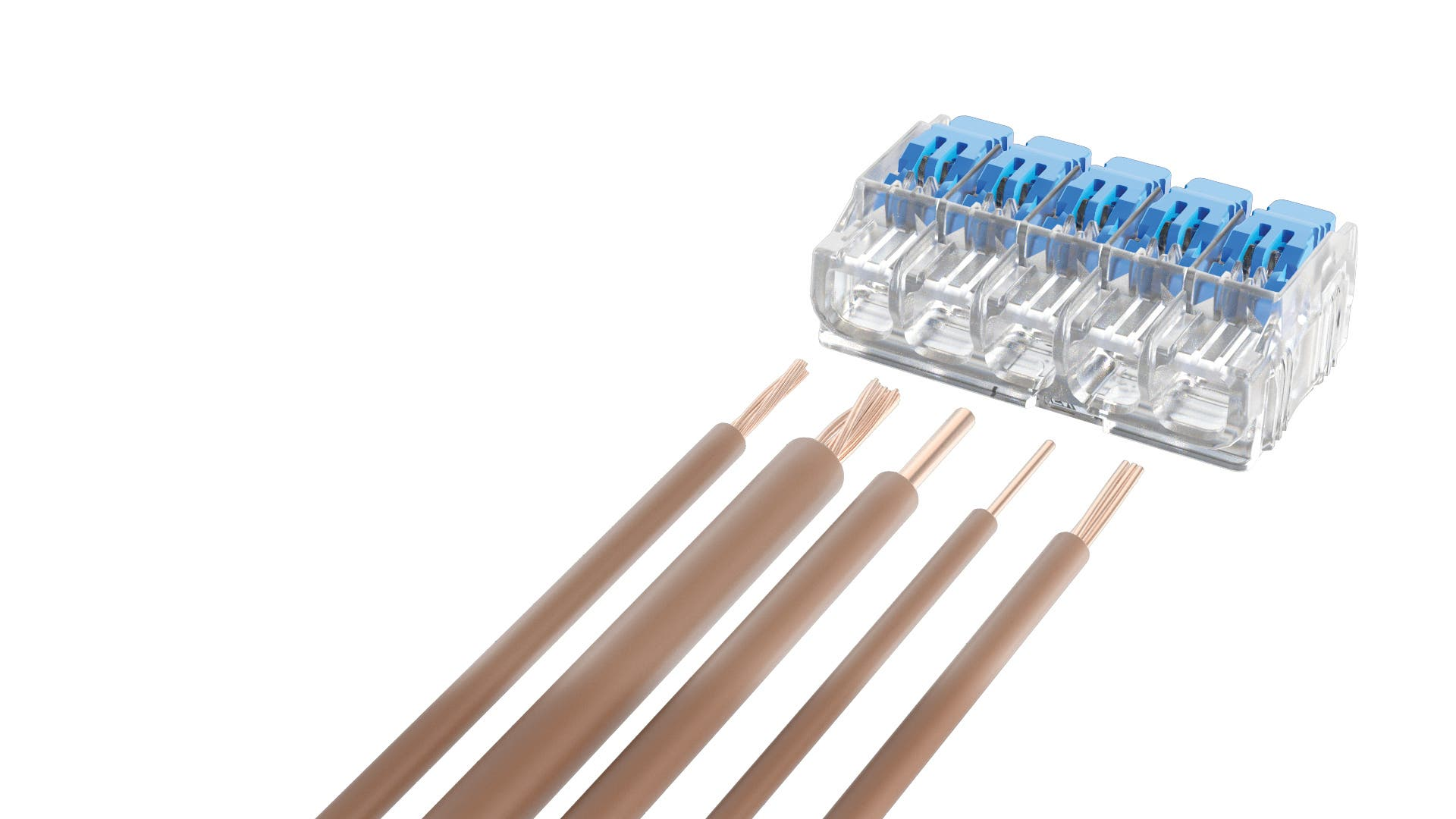

- Secure your cables in seconds - no screwdriver, no crimping, just strip, push, connect
- Wire clamping range:
0.2 mm² to 4.0 mm² (24 - 12 AWG for solid and rigid stranded wires (7 strands)
0.14 mm² to 4.0 mm² (24 - 12 AWG) for flexible wires
- Ratings:
IEC 60998: 32A | 450V | 85° C (ambient)
UL 486C: 20A | 600V | 105° C (working)
- Strip Length: 11-12mm | 0.45"
- Compliant with AS/NZS IEC 60998.1 and AS/NZS 60998.2.2 connecting device standards and UL 486C
- CE, UKCA, UL and ENEC approved

Specifications
Manufacturer
Ideal Industries
MPN
IDL30-0095J
Product Type
5 Port Wire Connector Gen II Lever
Colour
Clear/Blue
Qty
30 pc
Wire clamping range
0.2 mm² to 4.0 mm² (24 - 12 AWG for solid and rigid stranded wires (7 strands)
0.14 mm² to 4.0 mm² (24 - 12 AWG) for flexible wires
