Arduino A000093 Micro Board without Headers - ATmega32u4 - Assembled

PB Tech price
PB Tech price
$ 46 .00
 +GST
$ 52 .90
 inc GST

Out of stock

Arduino A000093 Micro Board without Headers - ATmega32u4 - Assembled

  • Brand: Arduino
  • MPN: 2285196
  • Part #: SEVARD0010
  • UPC:
PB Tech price
$ 46 .00 $ 52 .90
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: Arduino
  • MPN: 2285196
  • Part #: SEVARD0010
  • UPC:

Case Colour

N/A

Memory Size

N/A

PSU Colour

N/A

Features

Product Overview

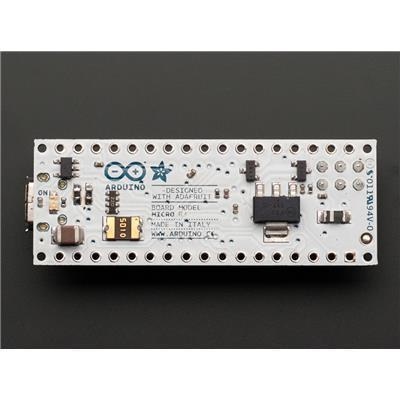

The Arduino Micro board without headers is based on ATmega32u and developed in conjunction with Adafruit. It has 20 digital I/O pins (of which 7 can be used as PWM outputs and 12 as analogue inputs), 16MHz crystal oscillator, micro USB connection, ICSP header and a reset button. It contains everything needed to support the microcontroller, simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard. The Micro is similar to the Arduino Leonardo in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial/COM port. It also has other implications for the behaviour of the board.

- Onboard ATmega32u4 microcontroller with 32KB flash memory, 2.5KB SRAM and 1KB EEPROM
- Support TWI and SPI communication
- Board size is 48mm x 18mm
- Micro USB connection
- 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs)
- Input voltage (recommended) range from 7V to 12V
- Input Voltage (limit) range from 6V to 20V
- 32KB flash memory of which 4KB used by bootloader
- 2.5KB SRAM
- 1KB EEPROM

The recommended range is 7 to 12 volts, if using more than 12V the voltage regulator may overheat and damage the board.

Product Information

- Silicon Manufacturer: Atmel
- Core Architecture: AVR
- Core Sub-Architecture: megaAVR
- Silicon Core Number: ATmega32U4
- Silicon Family Name: ATmega
- Kit Contents: Development Board ATmega32U4 no headers

Technical Data Sheet (157.32KB) EN
