Arduino Shield - MEGA Proto PCB Rev3

Arduino Shield - MEGA Proto PCB Rev3

PB Tech price: PB Tech price:
$9 00 $10 35
 +GST  inc GST

Store Pickup: Pick-up disabled during Alert Level 4

Features

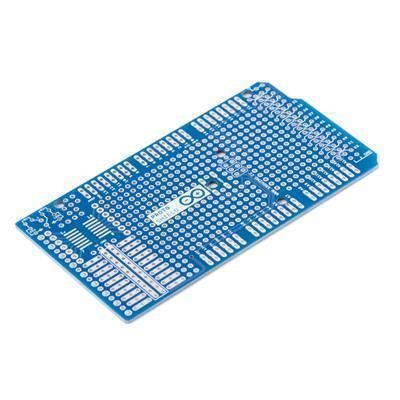

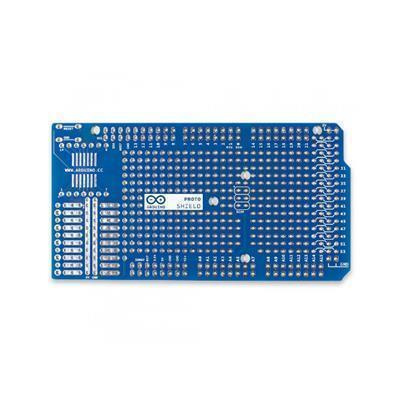

The Arduino MEGA Proto Shield Rev3 PCB makes easy for user to design their custom circuits. The user can solder parts to the prototyping area to create their project or use it with a small solderless breadboard to quickly test circuit ideas without solder. The PCB has extra connections for all of the Arduino I/O pins and has a space to mount through hole and surface mount integrated circuits. It's a convenient way for the user to make own custom circuit and Arduino MEGA into a single module.

 - Board size is 101.52mm x 53.3mm
 - ICSP header and two 14 pin SOIC prototyping areas
 - Long and easy shield to solder ground/5V rails

Technical Data Sheet (263.82KB) EN

Specifications

Manufacturer Part No: A000080 Brand: Arduino Product Type: -
UPC - Product Family: - Shipping Weight: 1 kg
PB Part No: SEVARD0011 Product Model: -

Warranty: 12 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product
