Raspberry Pi Display 1.3inch OLED Module for Raspberry Pi Pico, 64x128, SPI/I2C

PB Tech price
PB Tech price
$ 22 .68
 +GST
$ 26 .08
 inc GST
$22.68  +GST
$26.08

Raspberry Pi Display 1.3inch OLED Module for Raspberry Pi Pico, 64x128, SPI/I2C

1
PB Tech price
$ 22 .68 $ 26 .08
 +GST  inc GST
Tax free price $24.04*
*Price includes surcharge


Click & Collect: Available from 1 store.
Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
$22.68  +GST
$26.08

PSU Colour

N/A

Memory Size

N/A

Case Colour

N/A

What PB Tech customers are saying about this product...

See More Reviews

"This product is awesome for testing and prototyping with the pi pico. Super easy to use and understand"

KS
By: KhanS1 31/01/25
Verified Owner

Features

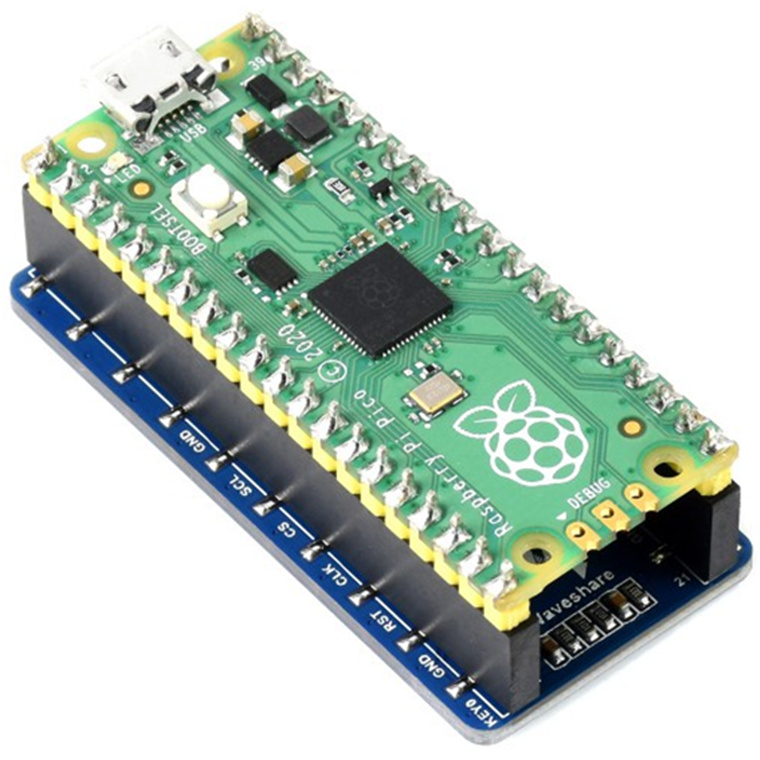

NOTE: Raspberry Pi Pico is NOT included. The pictures are for reference ONLY.

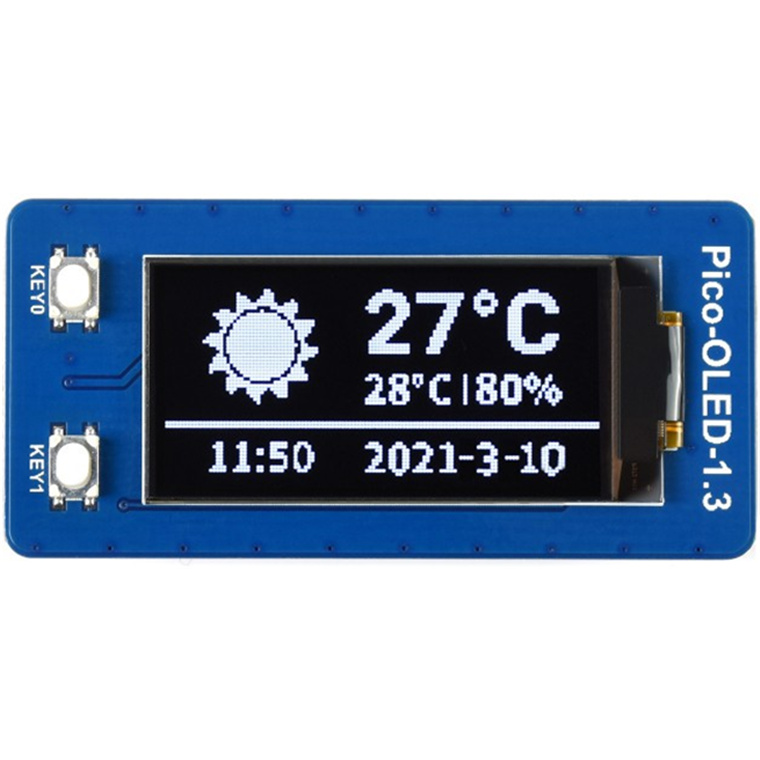

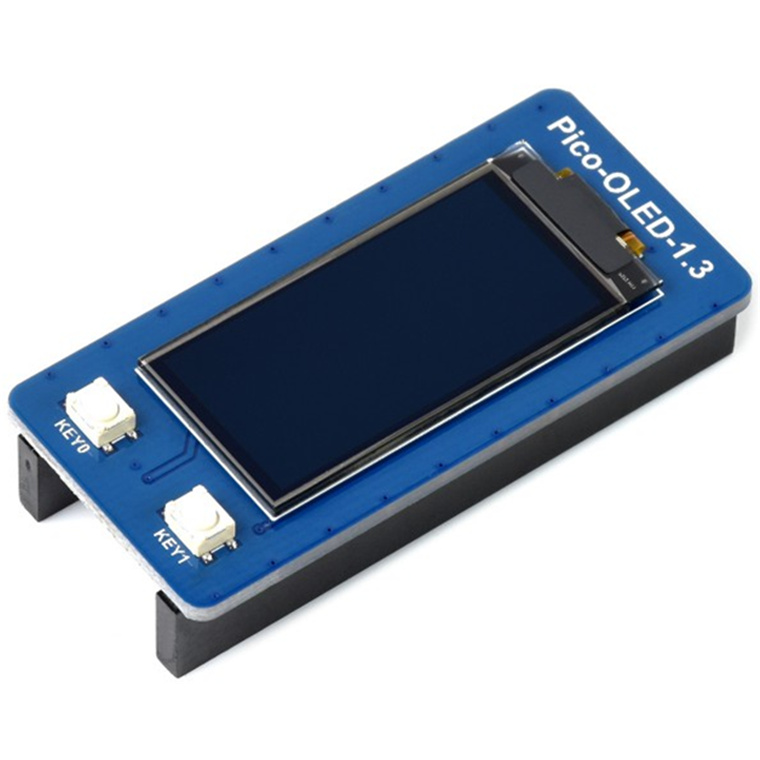

1.3inch OLED Display Module For Raspberry Pi Pico, 64x128 Pixels, SPI/I2C Interface

 - Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate
 - 2 x user buttons for easy interacting
 - Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards






OLED and its controller:

 - This OLED integrates the SH1107 controller which has 128x128 bits SRAM, supports 128x128 resolution. The controller features SPI/IIC/ 6800/8080 interface and 256 brightness levels. The resolution of this 1.3inch OLED is only 64x128, only half of the SRAM is used.
 - This OLED uses four-line SPI and I2C interface for communicating, which supports higher compatibility and speed.

Protocol:

Note: The MISO pin is hidden, for more details, you can refer to Datasheet Page11.

 - CS: Chip selection of the slaver, the chip is activated when CS is Low;
 - SI(D1): This is MOSI pin, the pin is used to transmit data from master to slaver;
 - SCL(D0)is the SPI clock
 - A0: This is the DC pin, it is used to determine the data input, DC=0: command is sent;
 - SPI communication has data transfer timing, which is combined by CPHA and CPOL.
 - CPOL determines the level of the serial synchronous clock at an idle state. When CPOL = 0, the level is Low. However, CPOL has little effect on the transmission.
 - CPHA determines whether data is collected at the first clock edge or at the second clock edge of the serial synchronous clock; when CPHL = 0, data is collected at the first clock edge.
 - According to the figure, SCL is high in idle and it starts to transmit data at the second edge. therefore the timing is Mode 3 (0x11). Data is transmitted in MSB format.

User Guides, Resoures, please check HERE

Specifications

Operating voltage

3.3V

Communication Interface

4-wire SPI, I2C

Display Panel

OLED

Driver

SH1107

Resolution

64×128 pixels

Display size

14.70 × 29.42mm

Pixel size

0.15 × 0.15mm

Dimensions

52.00 × 25.00mm

Manufacturer Part No:
19376
Brand:
Product Type:
Module
UPC
-
Product Family:
Display
Shipping Weight:
1 kg
PB Part No:
SEVRBP0341
Product Model:
1.3inch OLED
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
