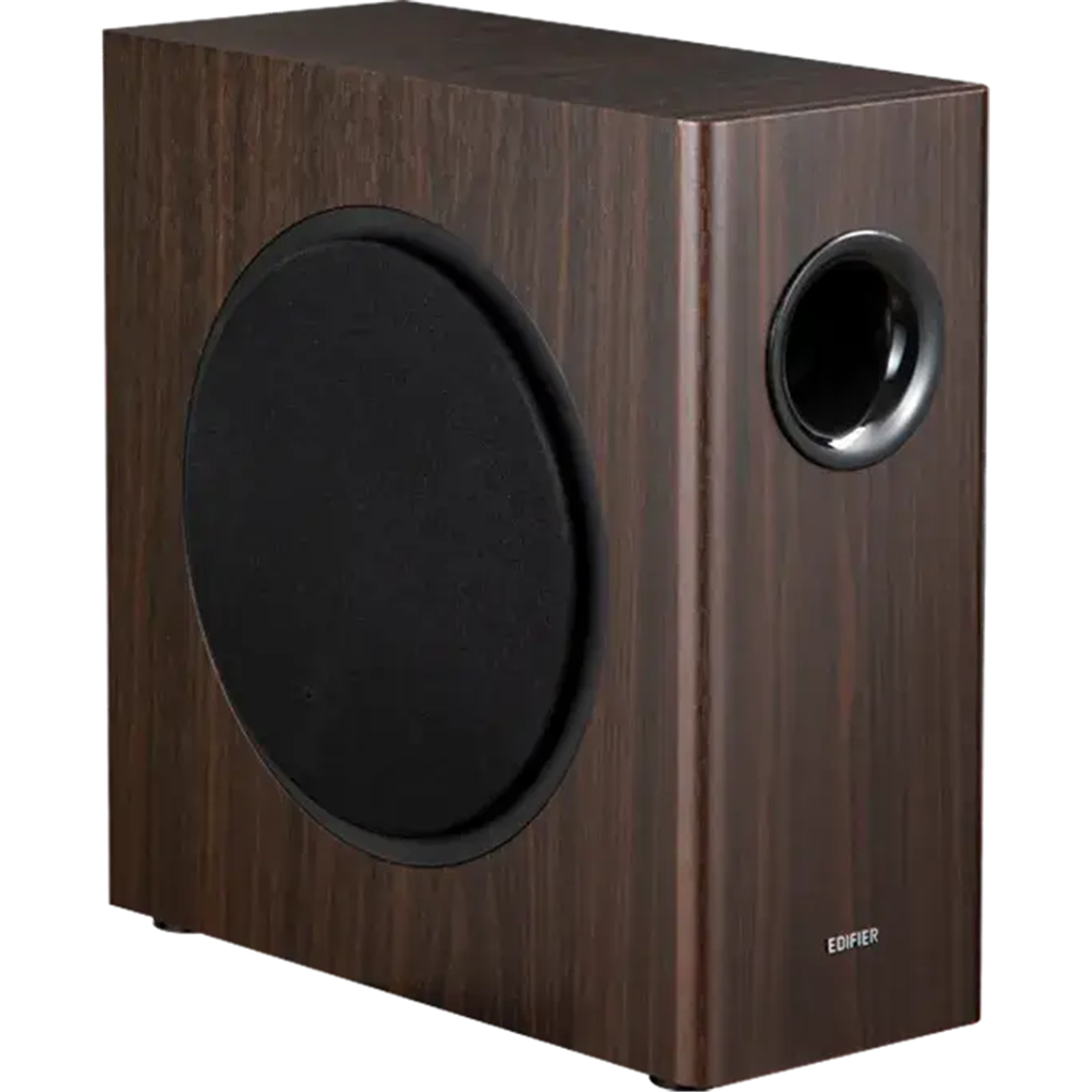

Edifier T5s 8" 70W Slim Powered Subwoofer - Brown
Low Pass Filter with Frequency Response Down to 38Hz - Phase Control - RCA Line Input / Output
Ex-demo stock unavailable
Edifier T5s 8" 70W Slim Powered Subwoofer - Brown
Low Pass Filter with Frequency Response Down to 38Hz - Phase Control - RCA Line Input / Output
- Brand: Edifier
- MPN: Edifier T5s Brown
- Part #: SPKEDI00052
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
What PB Tech customers are saying about this product...
See More Reviews
"Note: Purchased on sale
Bought this to go with a pair of Edifier MR4s on my desk to fill out the bottom end and it sounds great for what I paid, it's not super tight or anything b ...view more"
"Got this to complement by R1700BT speakers and it didn't disappoint! Running at around 30% volume, more than enough for quite powerful bass filling in my living room. Great upgrade"
Features
T5s - Powered Subwoofer
- 8" front-firing long-throw woofer
- Reproducing low frequencies down to 35Hz
- 70W RMS total output power
- High-performance front end and closed-loop class-D amplifier
- Volume, low pass filter and phase control
- Signal In input and Signal Out pass-through output for maximum compatibility
- Auto standby feature for energy saving
- Slim vertical MDF cabinet with compact size

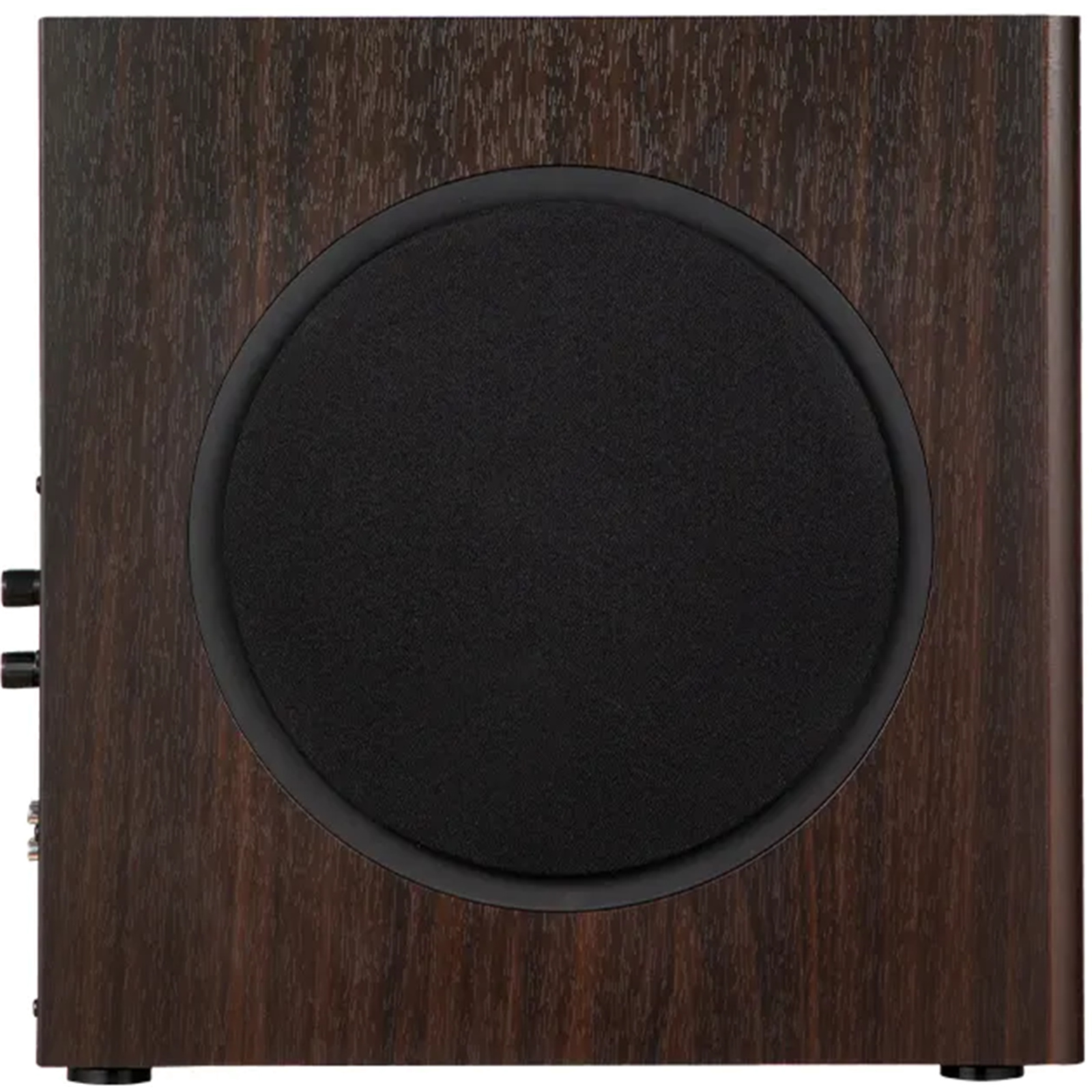

Deep and Powerful Bass
Equipped with an 8-inch long-throw woofer, this subwoofer delivers deep, room-filling bass with frequency response down to 35Hz. A high-efficiency switching power supply and a closed-loop Class-D amplifier provide 70W RMS output for powerful and consistent performance.
Precision Digital Signal Processing
Featuring a high-performance analog front end and digital amplifier, the subwoofer ensures accurate audio conversion and amplification. The built-in digital signal processor (DSP) enables precise low-pass filtering and phase alignment for seamless integration with your speaker system.

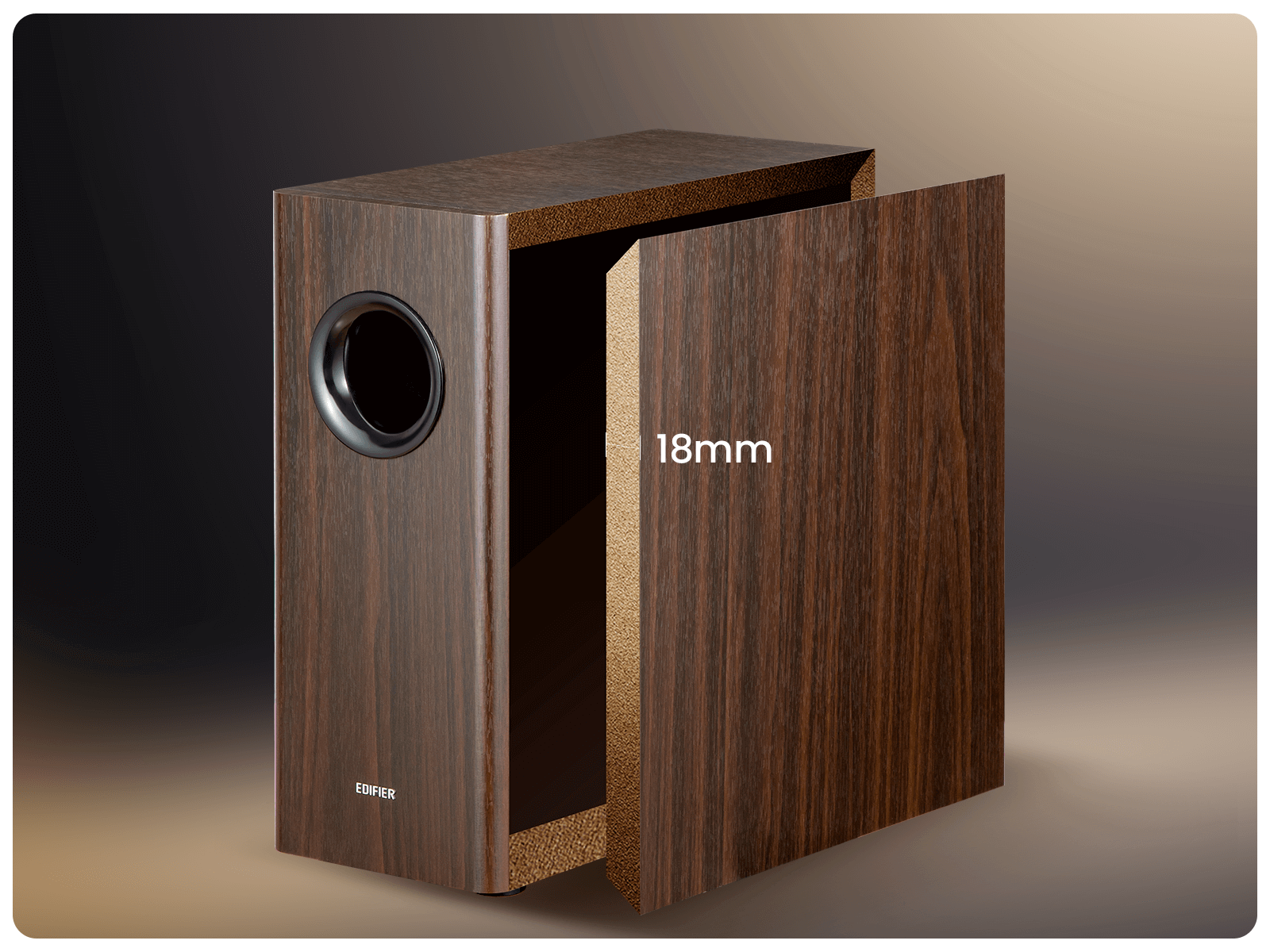

Low Distortion Design
An 18mm MDF (medium-density fiberboard) enclosure minimizes resonance and distortion, resulting in tight, clean, and well-defined bass response.

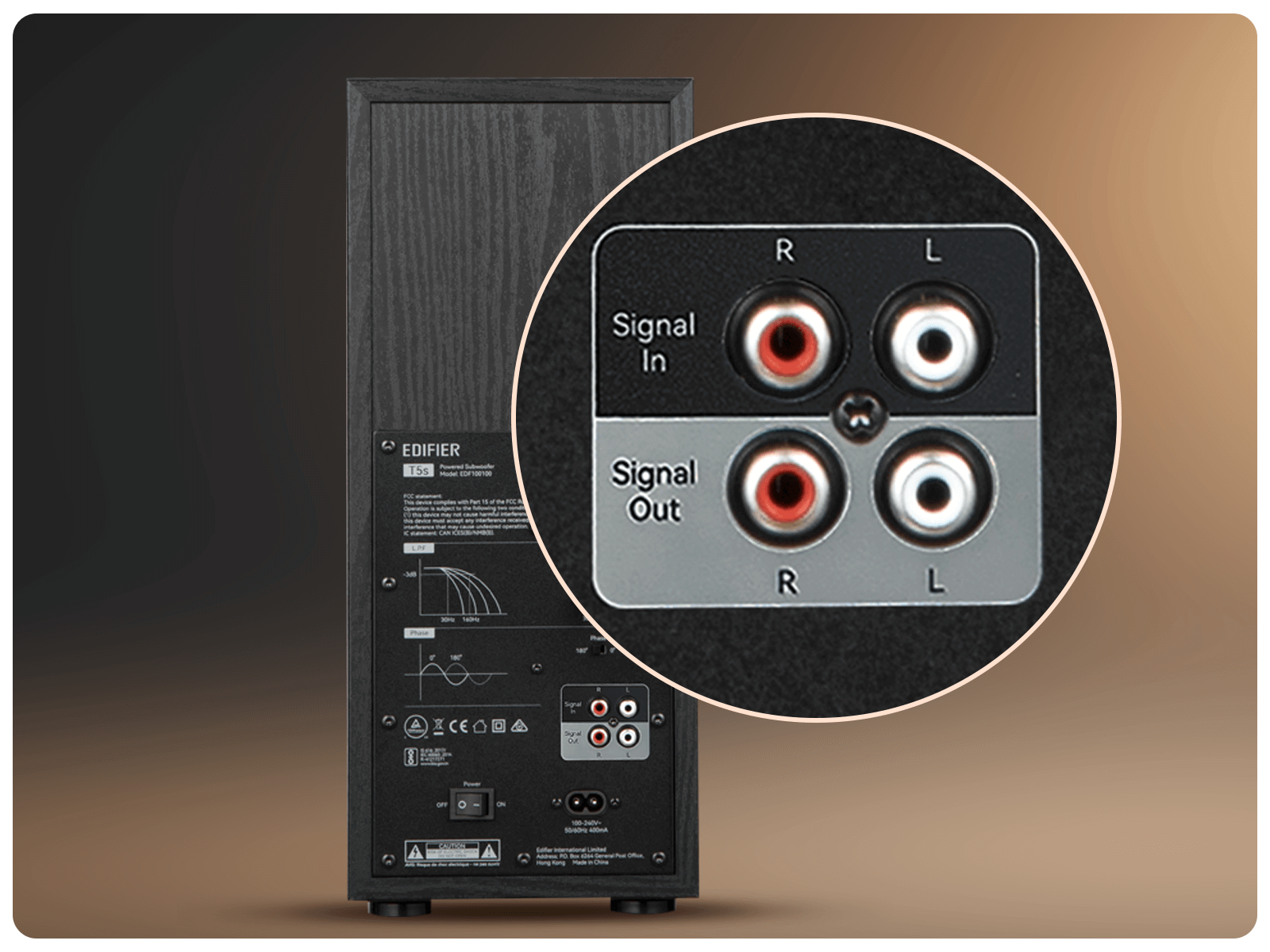

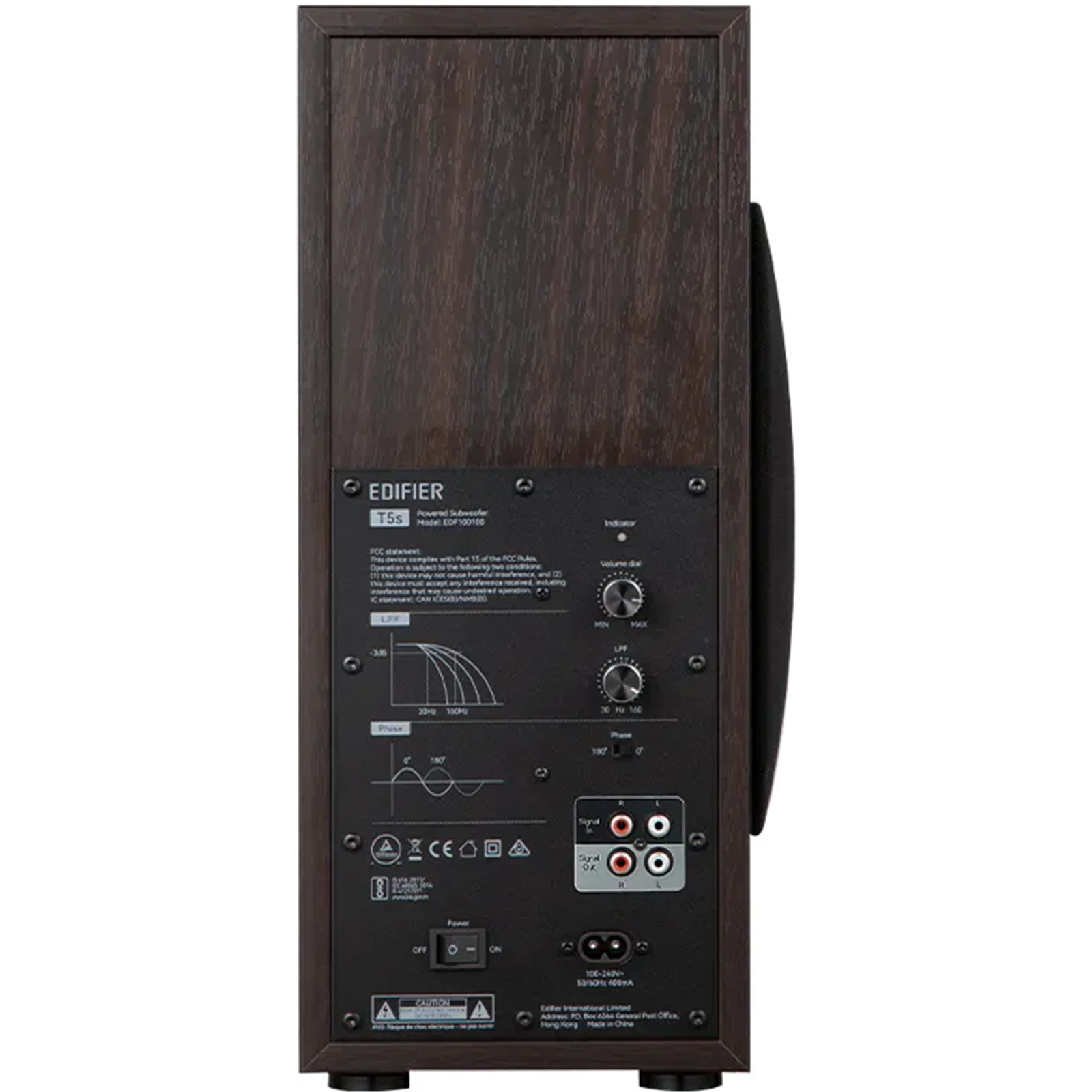

Versatile Connectivity
Signal In and Signal Out ports ensure broad compatibility with desktop speakers, bookshelf systems, and home theater receivers.

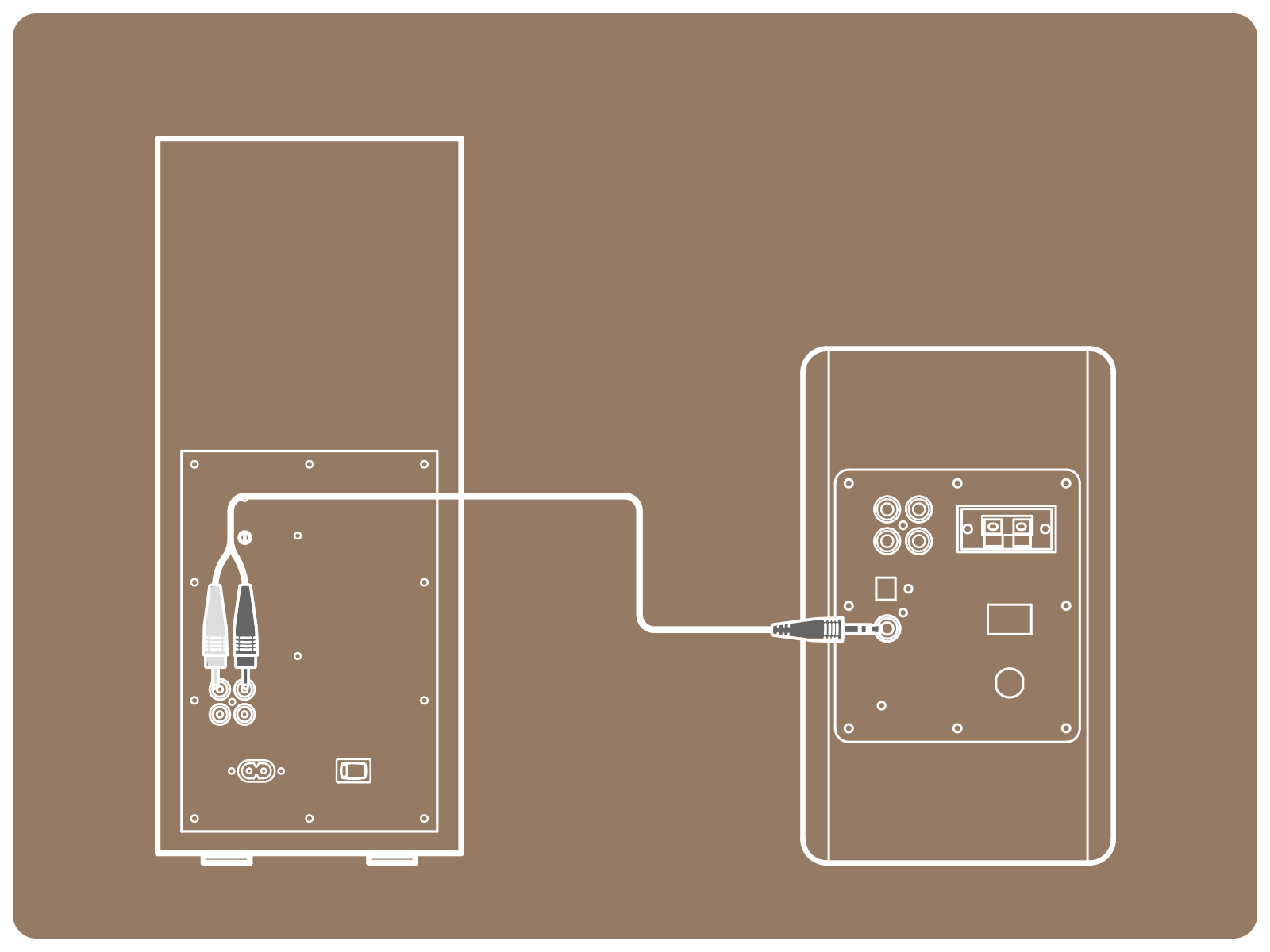

Method 1:
If your main speaker system includes a dedicated subwoofer output, connect it to the subwoofer's Signal In ports. Then connect the main speaker system directly to the audio source.
* Compatible EDIFIER speaker models: EDIFIER R1280Ts, EDIFIER R1280DBs, EDIFIER R1700BTs, EDIFIER R1850DB, EDIFIER R1855DB, EDIFIER R2750DB, EDIFIER R2850DB, EDIFIER S880DB MKII, EDIFIER D12, EDIFIER QR65

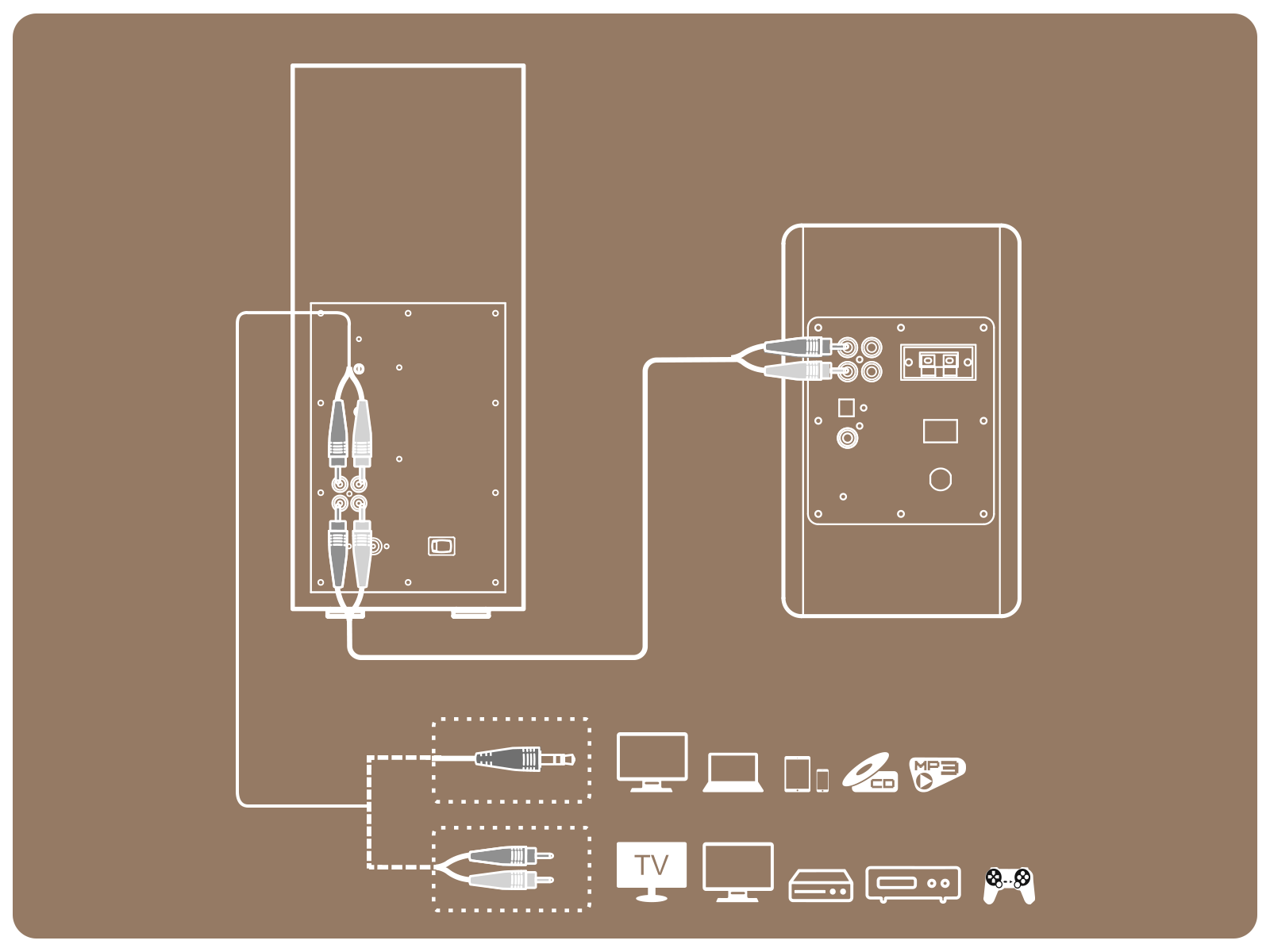

Method 2:
If your speaker system does not have a subwoofer port, connect its input to the subwoofer's Signal Out ports. Then connect the Signal In ports of the subwoofer to the audio source.

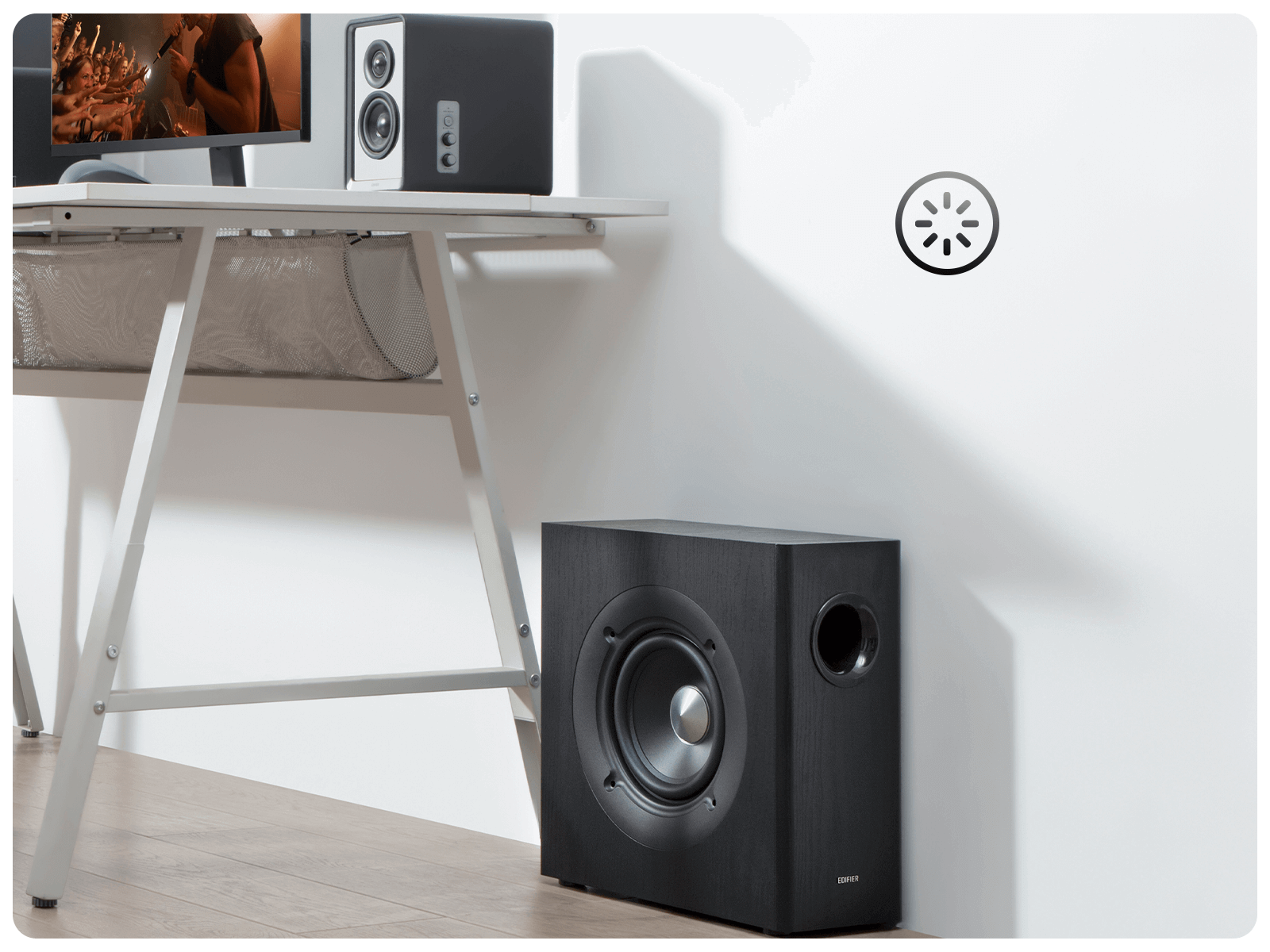

Auto Standby Function
To conserve energy, the subwoofer automatically enters standby mode after 15 minutes of inactivity and wakes when audio playback resumes.

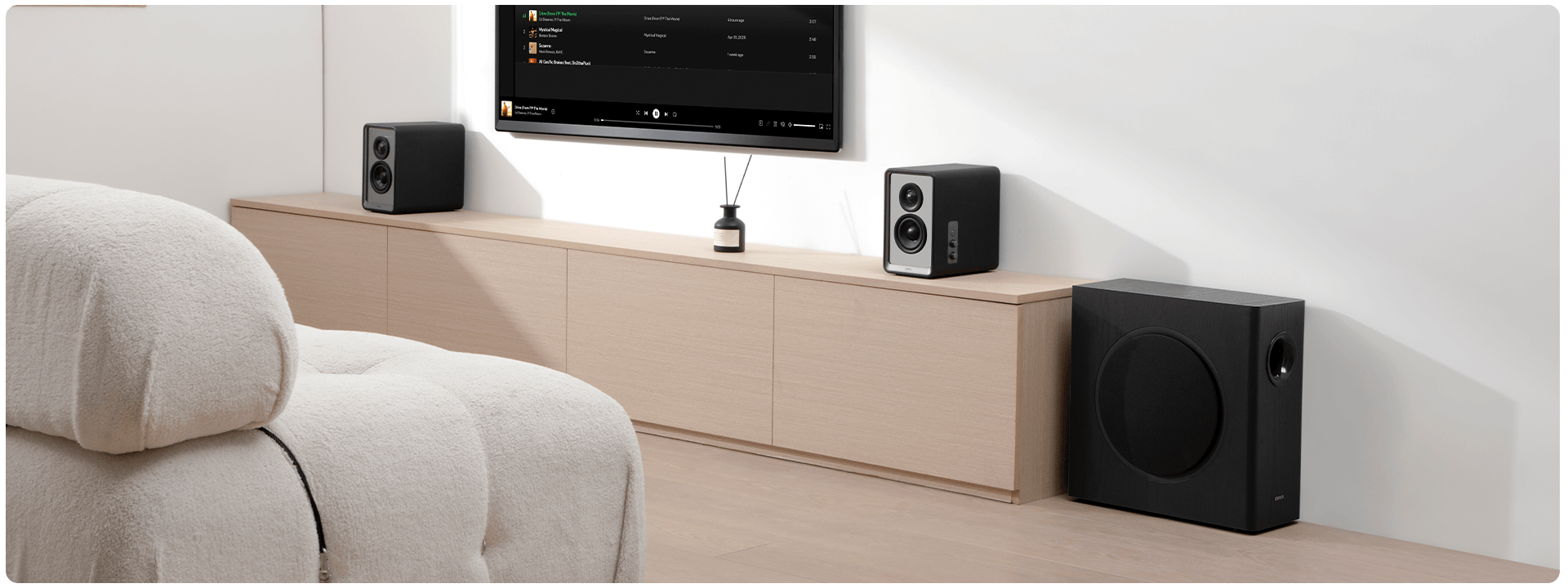

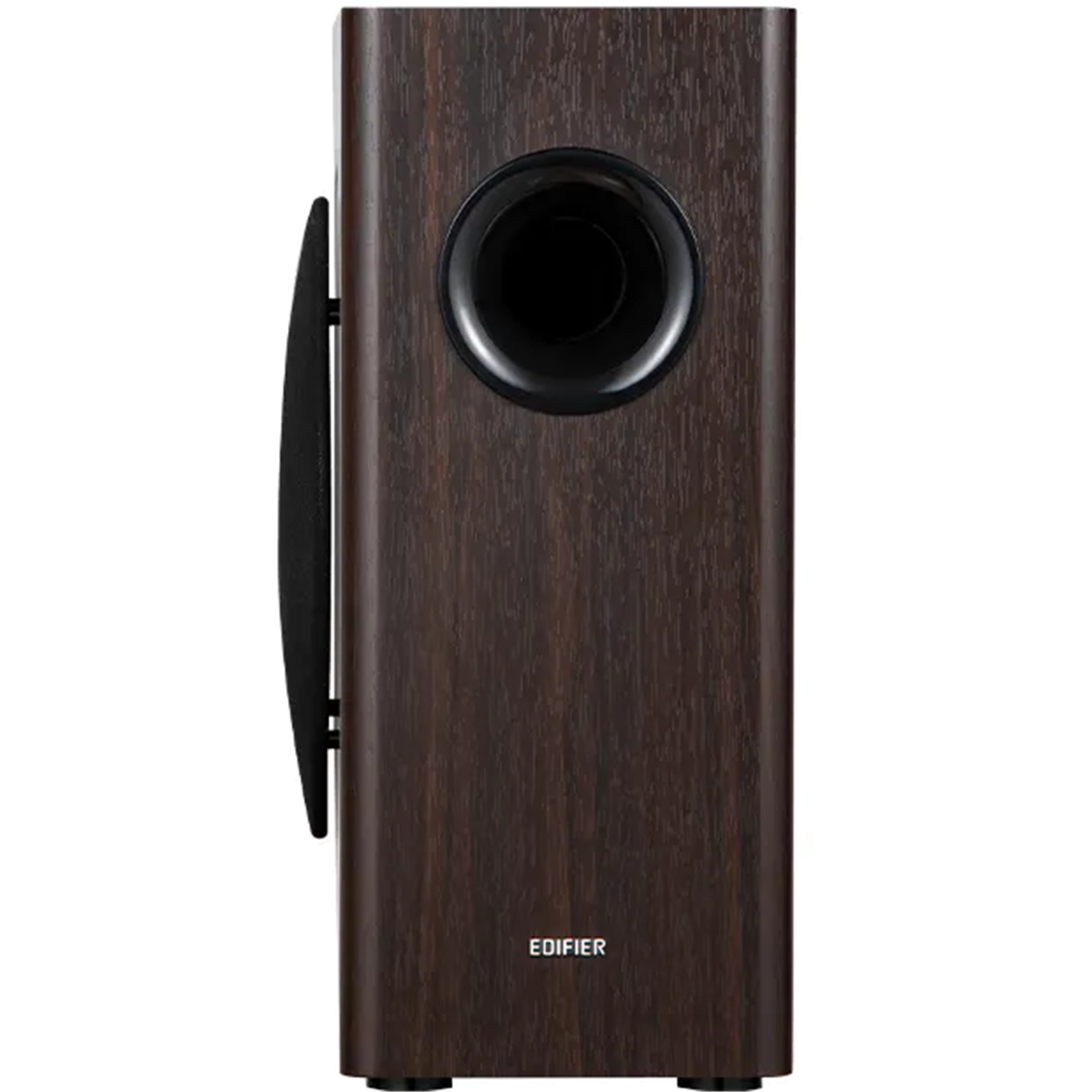

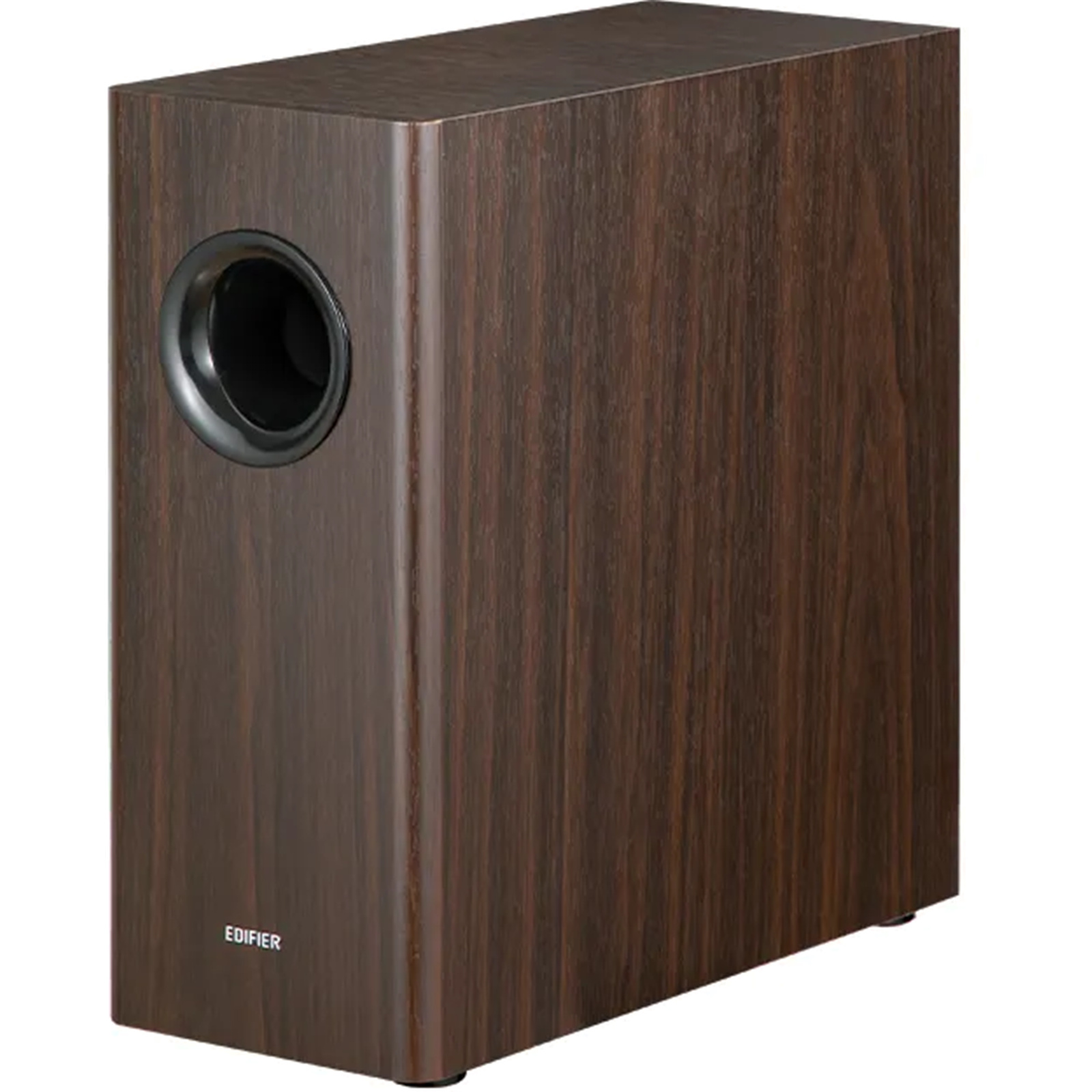

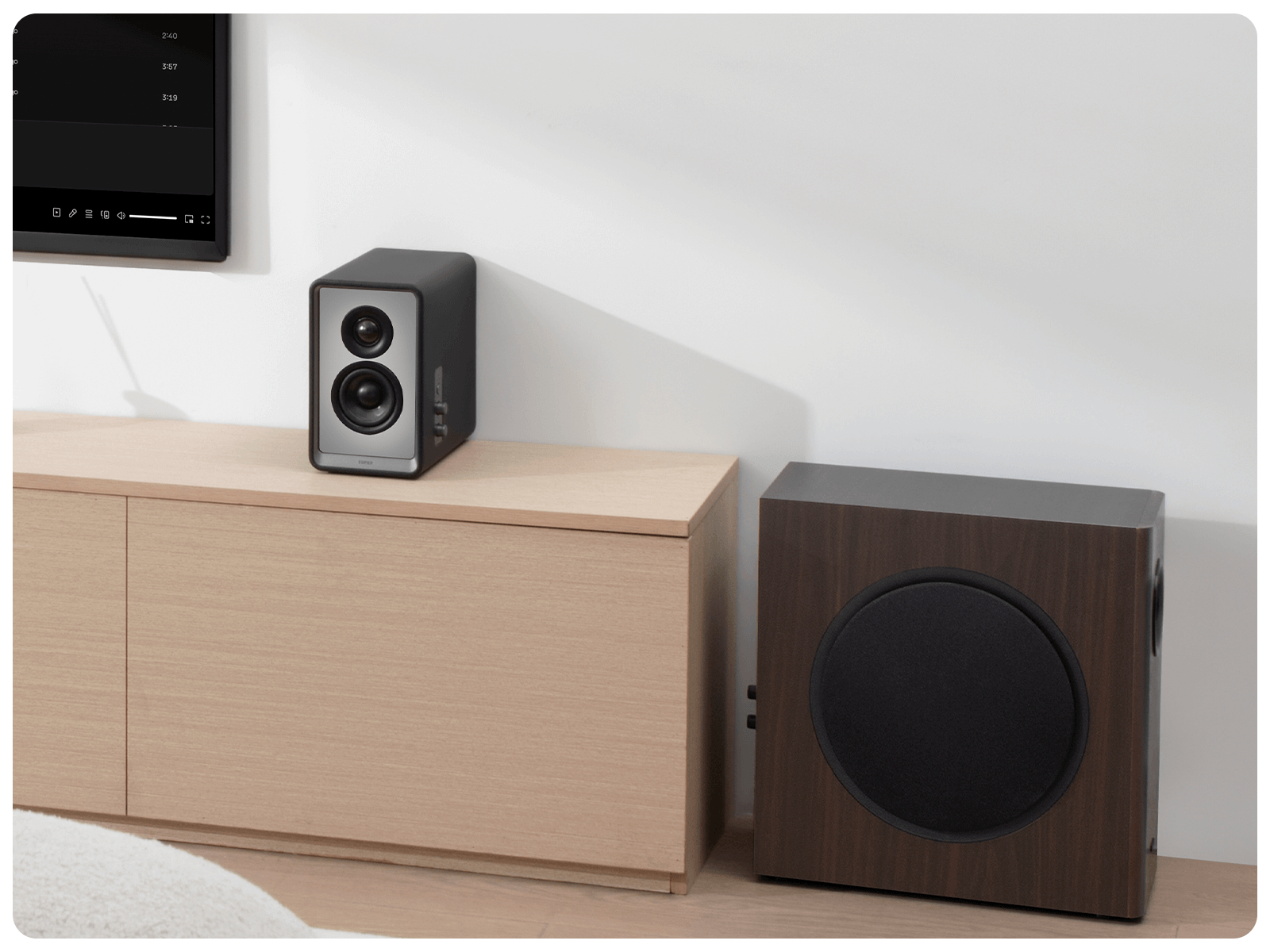

Stylish and Space-Saving Design
Wrapped in a wood grain vinyl finish with a low-profile grille, this subwoofer blends seamlessly into any room décor. The slim vertical cabinet design allows for flexible placement in tight or unconventional spaces.
Specifications
Reviews
Do you own this product?
Decent Cheap Sub
Note: Purchased on sale
Bought this to go with a pair of Edifier MR4s on my desk to fill out the bottom end and it sounds great for what I paid, it's not super tight or anything but does a good job for its size.
My only negative point is that the minimum volume seems high to me. I've had to turn my system volume down and the MR4's volume up to about halfway on the dial to make the volume match the speakers.
Great compact sub
Got this to complement by R1700BT speakers and it didn't disappoint! Running at around 30% volume, more than enough for quite powerful bass filling in my living room. Great upgrade
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Home Theatre Speaker Systems
Panasonic SC-HTB100 45W Soundbar Slim Wall-Mountable Design -...
Philips TAB5109/98 120W 2.0 Channel Soundbar with Bluetooth 5.4 ...
Samsung SWA-9500S Premium Wireless Rear Speakers for Selected...
Logitech Z906 5.1 Surround Speaker System THX-Certified - 500W ...
LG S40T 300W 2.1 Channel Soundbar
Edifier T5s 8" 70W Slim Powered Subwoofer - Brown Low Pass Filter with Frequency Response Down to 38Hz - Phase Control - RCA Line Input / Output
- Brand: Edifier
- MPN: Edifier T5s Brown
- Part #: SPKEDI00052
Product URL: https://www.pbtech.co.nz/product/SPKEDI00052/Edifier-T5s-8-70W-Slim-Powered-Subwoofer---Brown-L?type=ex-demo
| Branch | Ex-Demo Stock | On Display |
|---|---|---|
| Auckland - Albany | ||
| Auckland - Glenfield | ||
| Auckland - Queen Street | ||
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | ||
| Auckland - Penrose | ||
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | ||
| Auckland - Manukau | ||
| Hamilton | ||
| Tauranga | ||
| New Plymouth | 0 | |
| Palmerston North | ||
| Petone | ||
| Wellington | ||
| Auckland - Head Office | ||
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | ||
| Christchurch - Christchurch Central | ||
| Dunedin | 0 |
Features
T5s - Powered Subwoofer
- 8" front-firing long-throw woofer
- Reproducing low frequencies down to 35Hz
- 70W RMS total output power
- High-performance front end and closed-loop class-D amplifier
- Volume, low pass filter and phase control
- Signal In input and Signal Out pass-through output for maximum compatibility
- Auto standby feature for energy saving
- Slim vertical MDF cabinet with compact size
Deep and Powerful Bass
Equipped with an 8-inch long-throw woofer, this subwoofer delivers deep, room-filling bass with frequency response down to 35Hz. A high-efficiency switching power supply and a closed-loop Class-D amplifier provide 70W RMS output for powerful and consistent performance.
Precision Digital Signal Processing
Featuring a high-performance analog front end and digital amplifier, the subwoofer ensures accurate audio conversion and amplification. The built-in digital signal processor (DSP) enables precise low-pass filtering and phase alignment for seamless integration with your speaker system.
Low Distortion Design
An 18mm MDF (medium-density fiberboard) enclosure minimizes resonance and distortion, resulting in tight, clean, and well-defined bass response.
Versatile Connectivity
Signal In and Signal Out ports ensure broad compatibility with desktop speakers, bookshelf systems, and home theater receivers.
Method 1:
If your main speaker system includes a dedicated subwoofer output, connect it to the subwoofer's Signal In ports. Then connect the main speaker system directly to the audio source.
* Compatible EDIFIER speaker models: EDIFIER R1280Ts, EDIFIER R1280DBs, EDIFIER R1700BTs, EDIFIER R1850DB, EDIFIER R1855DB, EDIFIER R2750DB, EDIFIER R2850DB, EDIFIER S880DB MKII, EDIFIER D12, EDIFIER QR65
Method 2:
If your speaker system does not have a subwoofer port, connect its input to the subwoofer's Signal Out ports. Then connect the Signal In ports of the subwoofer to the audio source.
Auto Standby Function
To conserve energy, the subwoofer automatically enters standby mode after 15 minutes of inactivity and wakes when audio playback resumes.
Stylish and Space-Saving Design
Wrapped in a wood grain vinyl finish with a low-profile grille, this subwoofer blends seamlessly into any room décor. The slim vertical cabinet design allows for flexible placement in tight or unconventional spaces.
Specifications
Total Output Power (RMS)
70W
Driver
8-inch (220 mm)
Frequency Response
35Hz - 115Hz
Signal-to-Noise Ratio
= 85dB (A)
Audio Inputs
RCA
lnput Sensitivity
150 ± 20mV
Dimensions (W x H x D)
399 mm × 400 mm × 170 mm
Net Weight
10.38kg
