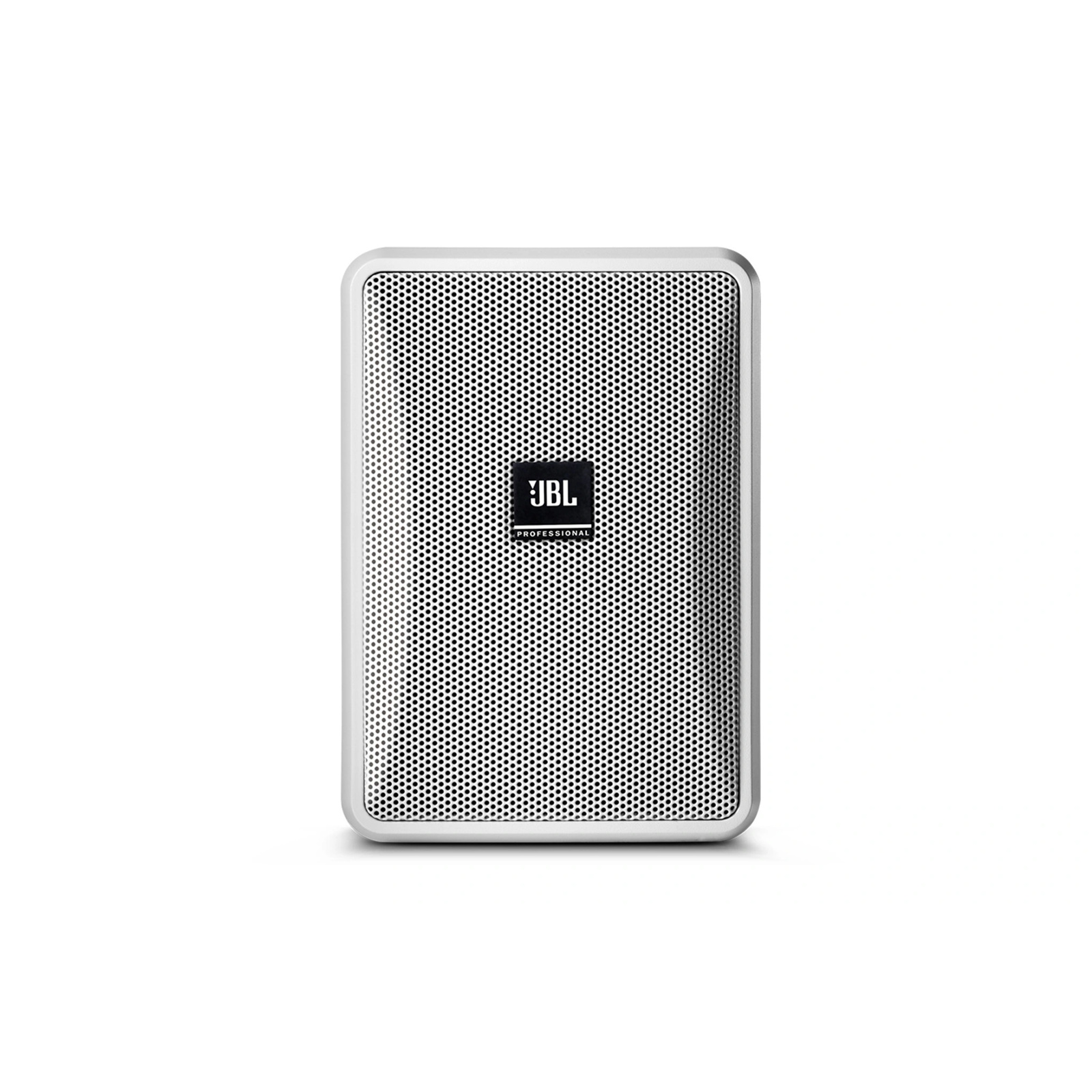

JBL PRO CONTROL23-1-WH 2 WAY 100W 3IN DUAL IMP SPEAKER W/BRK WHITE

JBL PRO CONTROL23-1-WH 2 WAY 100W 3IN DUAL IMP SPEAKER W/BRK WHITE

  • Brand: JBL PRO
  • MPN: CONTROL23-1-WH
  • Part #: SPKJBL1103
  • UPC:
No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 30 Sep When will I receive it?
Sign in to your commercial account or apply online now to view the price and order this product
  • Brand: JBL PRO
  • MPN: CONTROL23-1-WH
  • Part #: SPKJBL1103
  • UPC:

Colour

White

Sound Mode

N/A

Power Output (RMS)

100 Watts

Wireless Technology

N/A

3.5mm Connector

None

Optical Connector

None

RCA Connector

None

TRS Connector

N/A

Features

Ultra-Compact Indoor/Outdoor Background/Foreground Speaker

The Control® 23-1 is a two-way 3" speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 23-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality compact indoor/outdoor foreground/background music (and/or paging) speaker is required.

- Contemporary, high-design appearance
- Built-in InvisiBall® mounting hardware*, plus available U-bracket
- Weather resistant enclosure and transducers
- Wide 100° x 100° coverage
- 50 Watt power handling (100 Watt program) in direct 8O setting, plus built-in 15 Watt 70V/100V multi-tap transformer.
- High fidelity sound character with broad frequency response of 70 Hz - 20 kHz.

Components:

- 3" woofer with woven fiberglass cone
- 1/2" PEI diaphragm tweeter with fluid cooling

Specifications

Frequency Range (-10dB)

70 Hz to 20 kHz

Frequency Response (±3 dB)

95 Hz - 19 kHz

Power Rating

100W Continuous Program (2 hrs)50 W (200W peak), Continuous Pink Noise (2 hrs) 40 W (160W peak) Continuous Pink Noise (100 hrs)

Maximum Input Voltage

17.2 V RMS (2 hrs), 34.4 V peak

Maximum SPL (1m)

103 dB ave. Continuous Pink Noise (109 dB peak)

Sensitivity

86 dB, 1W/1m (ave. 100 Hz - 10 kHz)

Coverage Angle

100°H x 100°V

Directivity Factor (Q)

5.8 (averaged 1kHz - 16kHz)

Directivity Index (DI)

7.2 dB (averaged 1kHz - 16kHz)

Impedance

8 ohms (THRU setting)

Crossover Type

2nd order low-pass, 2nd order high-pass

Transformer Taps

70V: 15W, 7.5W, 3.7W, 1.8W100V: 15W, 7.5W, 3.7W Insertion Loss <0.43 dB at any tap settingThru Setting: 8O nominal

Recommended Protective High-Pass

70 Hz high-pass (24 dB/oct) (for 8O operation and for all 70V/100V taps settings).

Drivers

LF: 76 mm (3.0 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp Kapton™ voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
HF: 13 mm (0.5 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.

Enclosure

High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.

Grille

Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-23WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.

Mounting Hardware

InvisiBall™ wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-23UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.

Outdoor Capability

IP-44 per IEC529 (IP-55 when installed with the optional MTC-23WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-23WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments.

Input Connectors

Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.

Agency Rating

ROHS-compliant; Transformer UL Recognized per UL1876

Colour

White

Dimensions (H x W x D)

200 x 141 x 111 mm (7.9 x 5.6 x 4.4 in); 141 mm (5.6 in) deep total when mounted on InvisiBall wall-mount bracket.

Net Weight

1.8 kg (4.0 lbs)

Included Accessories

InvisiBall™ wall-mounting system), 4 mm x 80 mm hex key

Manufacturer Part No:
CONTROL23-1-WH
Brand:
JBL PRO
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
5 kg
PB Part No:
SPKJBL1103
Product Model:
-
Warranty: 12 months *
