JBL PRO CONTROL52 SATELLITE SPEAKER FOR CONTROL50ST SUB
JBL PRO CONTROL52 SATELLITE SPEAKER FOR CONTROL50ST SUB
- Brand: JBL PRO
- MPN: CONTROL52
- Part #: SPKJBL1110
- UPC:
- Brand: JBL PRO
- MPN: CONTROL52
- Part #: SPKJBL1110
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Ceiling & Wall Mounted Speakers





JBL PRO CONTROL52 SATELLITE SPEAKER FOR CONTROL50ST SUB
- Brand: JBL PRO
- MPN: CONTROL52
- Part #: SPKJBL1110

Product URL: https://www.pbtech.co.nz/product/SPKJBL1110/JBL-PRO-CONTROL52-SATELLITE-SPEAKER-FOR-CONTROL50S?srsltid=AfmBOoqQW1KzKOyevEDqjTI2VghCLoinueYPn_401gjBnTM0rceMs0B7
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

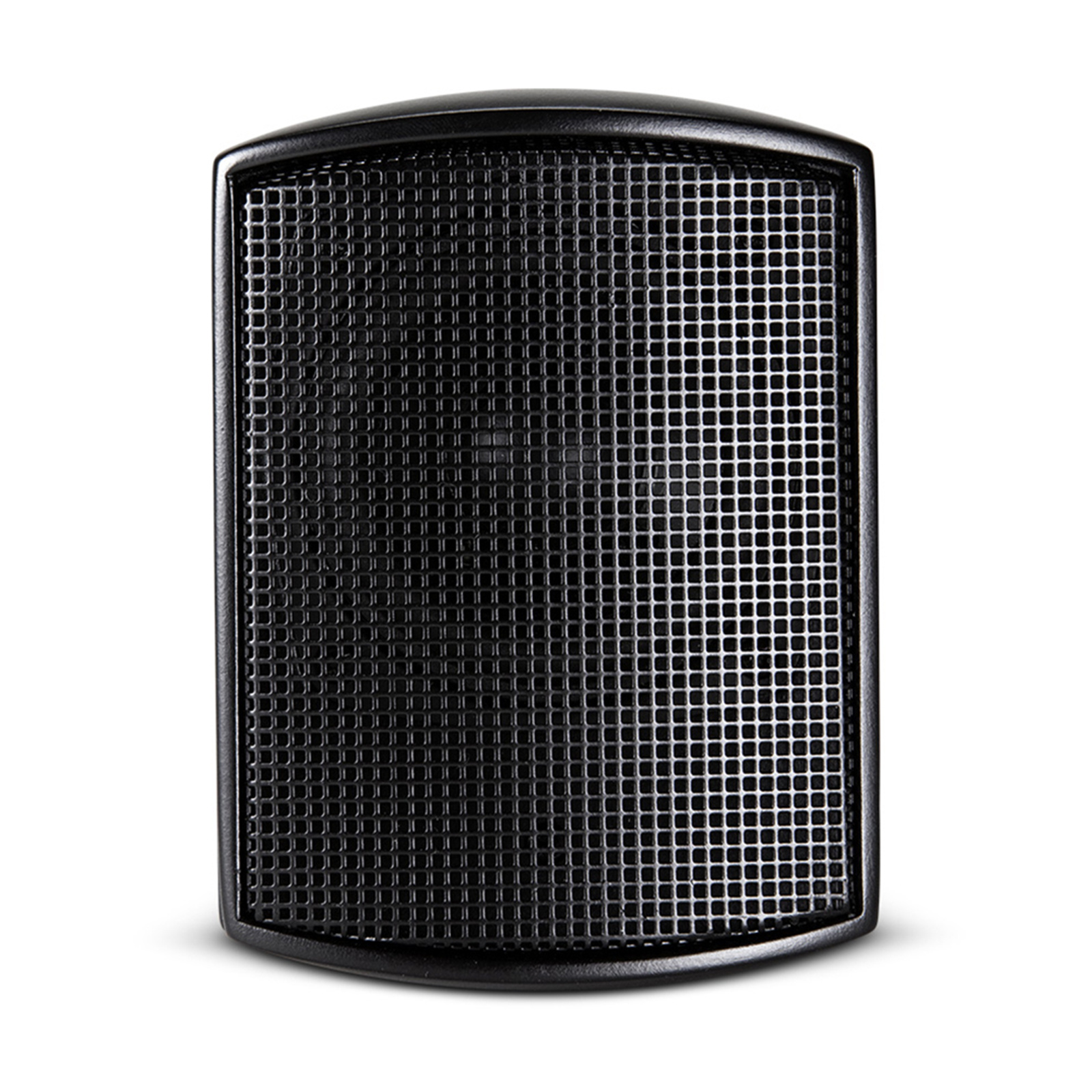

Surface-Mount Satellite Speaker for Subwoofer-Satellite Loudspeaker System

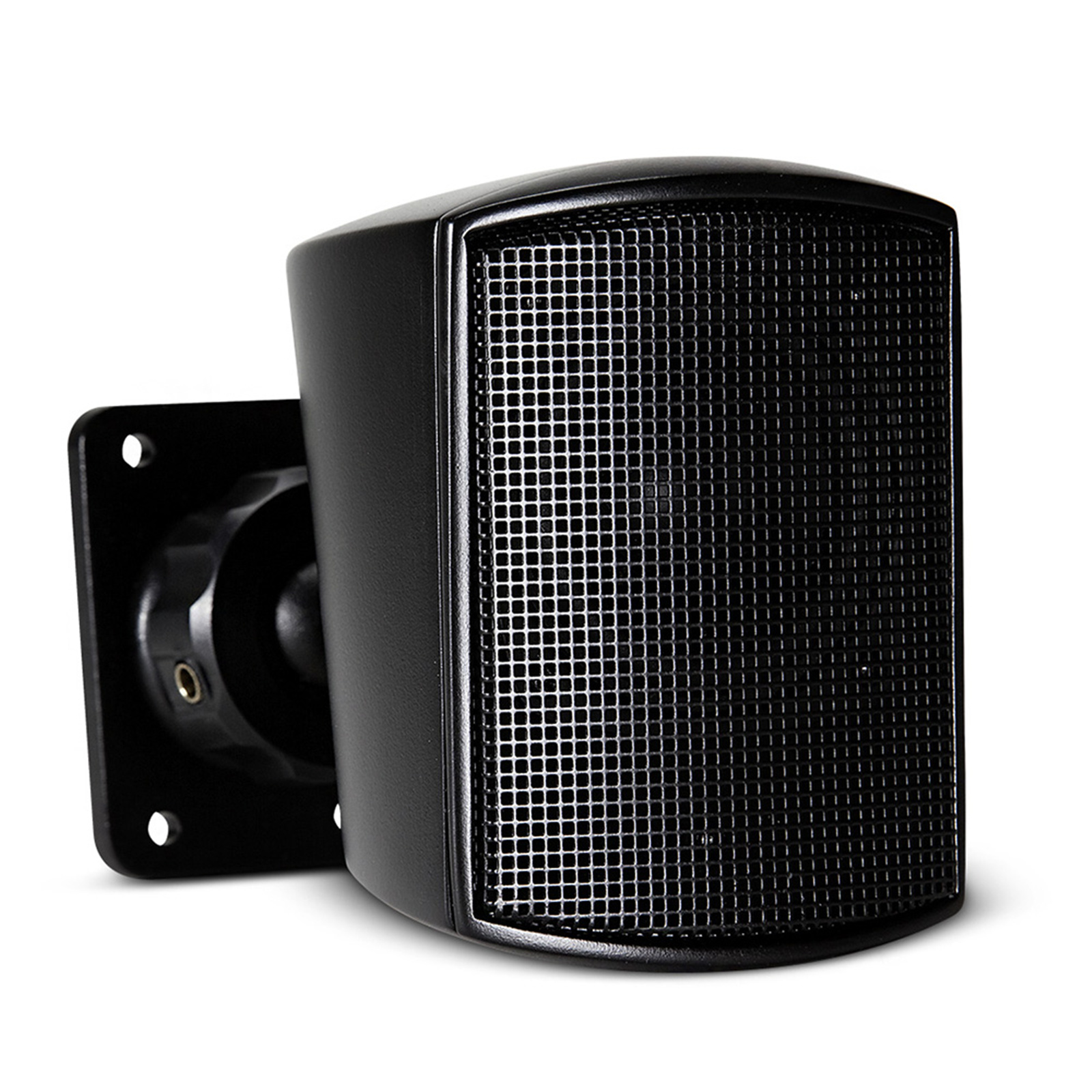

The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.

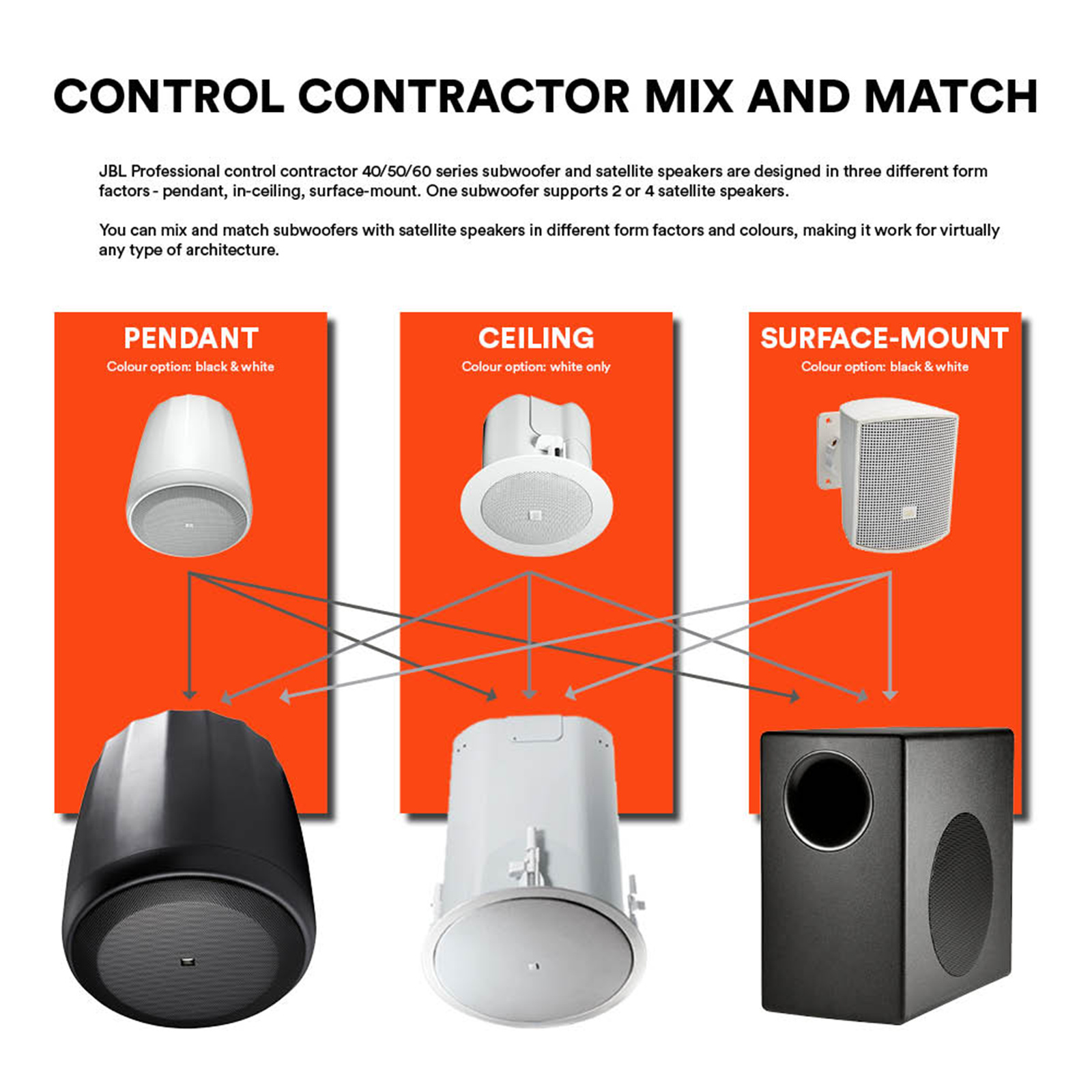

For full-range wide-bandwidth performance, either 2 or 4 Control 52P mid-high speakers can be driven from the Control 50S/T pendant subwoofer (or from a Control 60PS/T pendant or Control 40CS/T in-ceiling subwoofer). The crossover for this subwoofer-satellite system is included in the subwoofer, and the system can be driven either low-impedance or from a 70V/100V distributed speaker line.
- Stylish, unobtrusive design fits into a wide variety of decors
- Ability to intermix with Control 42C in-ceiling and Control 62P pendant satellite speakers
- 16 ohms impedance
- Wall-mount brackets included
Specifications
Frequency Range (-10dB)
140 Hz - 20 kHz
Frequency Response (±3 dB)
180 Hz - 17 kHz
Power Rating
50 Watts Continuous Program Power (2 hrs)
25 Watts Continuous Pink Noise (2 hrs)30 Watts Continuous Program Power (100 hrs)15 Watts Continuous Pink Noise (100 hrs)
Sensitivity
85 dB (4.0V/1m = 1W), 82 dB (2.83V, 1m)
Coverage Angle
Omnidirectional
Maximum SPL (1m)
94 dB average, 100 dB peak
Impedance
16 ohms
Drivers
60 mm (2.5 in) with polypropylene cone, butyl rubber surround, 19 mm (0.75 in) copper-clad coil, vented Nomex® former, secondary bucking magnet, and copper sleeved pole piece for high frequency extension.
Input Connectors
Removable locking 2-pin connector with screw-down terminals. Max wire 12 AWG (2.5 mm2)
Enclosure High impact polystyrene, painted zinc-plated metal grille.
Dimensions (H x W x D)
Cabinet: 115 x 84 x 96 mm (4.5 x 3.3 x 3.75 in)Wall bracket: 51 mm (2.0 in)
Net Weight (each)
0.7 kg (1.5 lbs)
Shipping Weight
0.8 kg (1.8 lbs)
Included Accessories
Wall bracket (both speaker and wall parts), 2-pin locking connector.
Grille
Zinc-plated steel
Mounting Hardware
Included wall swivel ball bracket
