JBL PRO CONTROLSB2210 DUAL 10IN 500W SUBWOOFER BLACK
JBL PRO CONTROLSB2210 DUAL 10IN 500W SUBWOOFER BLACK
- Brand: JBL PRO
- MPN: CONTROLSB2210
- Part #: SPKJBL1119
- UPC:
- Brand: JBL PRO
- MPN: CONTROLSB2210
- Part #: SPKJBL1119
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Ceiling & Wall Mounted Speakers





JBL PRO CONTROLSB2210 DUAL 10IN 500W SUBWOOFER BLACK
- Brand: JBL PRO
- MPN: CONTROLSB2210
- Part #: SPKJBL1119

Product URL: https://www.pbtech.co.nz/product/SPKJBL1119/JBL-PRO-CONTROLSB2210-DUAL-10IN-500W-SUBWOOFER-BLA
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Dual 10" Compact Subwoofer
The Control SB2210 provides low frequency reinforcement for a wide variety of sound system applications. Its compact size, high output and outdoor capable design makes it one of the most versatile subwoofers in the installation market.
- 2 x 250 mm (10 in.) Woven Fiberglass Cone LF Drivers
- 500 Watts Power handling
- Frequency Response Down to 38 Hz
- 13 x M6 Insert Points Including Inserts for Optional U-Bracket
- Compact, Low Profile Design
Specifications
Frequency Range (-10dB)
38 Hz - 500 Hz
Frequency Response (-3 dB)
48 Hz - 95 Hz
Power Rating
500W (2000W peak) Continuous Pink Noise (2 hrs) 1000W Continuous Program(2 hrs) 400W (1600W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage
60.0VRMS (2 hrs), 120V peak
Sensitivity
95 dB, 1W @ 1m in half-space (2p loading, average 50 - 90 Hz)
Maximum SPL (1m)
122 dB in half-space (2p loading)
Impedance
8O
Minimum Impedance
7.2O at 160 Hz
Recommended Filter
45 Hz, 24 dB/oct high-pass filter
Drivers
Two 250 mm (10 inch) diameter LF drivers, long-excursion design, woven fiberglass cone, highly damped butyl rubber surround, linear suspension spider , high temperature anodized aluminum voice coil former, high-temp voice coil wire and coil adhesive, FEA optimized motor construction, aluminum conductive ring.
Enclosure
High Impact PolyStyrene (HIPS) w/ 10% glass fill and internal 8 mm polyurethane co-mold, painted with highly-UV-resistant paint on white (-WH) model for maximum UV fade resistance.
Grille
Thermoset composite coated steel, zinc-plated, 3-layer foam backing.
Outdoor Capability
IP-45 rating per IEC529 when installed with included MTC-PC2 terminal panel cover. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray.

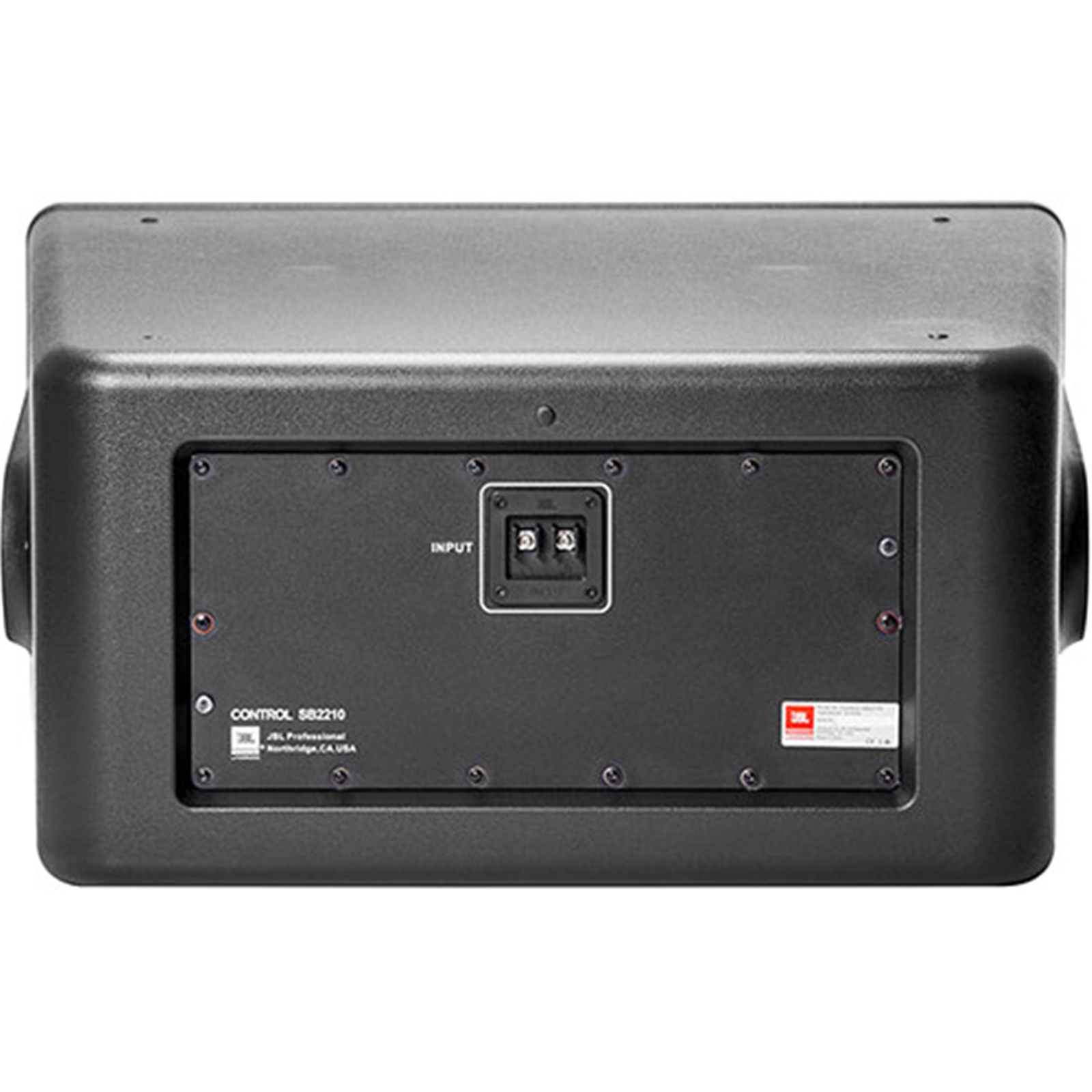

Input Connectors
Screw-down terminal strip, zinc plated copper base, nickel-plated metal screws/washers. Accepts up to 9 mm outside, 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5mm2). Included MTC-PC2 and optional MTC-PC3 protective covers available to provide sealed entrance for additional weather protection.
Safety Agency
ROHS-compliant. Optional MTC-SBT300 transformer is UL recognized per UL1876.
Colour
Black
Dimensions (H x W x D)
355 x 590 x 570 mm (14 x 23.3 x 22.5 in.)
Net Weight (each)
23.31 kg (51.4 lb)
Included Accessories
1 pc MTC-PC2 input panel cover, 4 pcs floor standing feet 4 pcs beveled washers.
Mounting Hardware
Optional U-bracket, insert points on top & bottom.
Coverage Angle
Omnidirectional
