JBL PRO CSA180Z 1 X 80W COMMERCIAL AUDIO AMPLIFIER
JBL PRO CSA180Z 1 X 80W COMMERCIAL AUDIO AMPLIFIER
- Brand: JBL PRO
- MPN: CSA180Z
- Part #: SPKJBL1123
- UPC:
- Brand: JBL PRO
- MPN: CSA180Z
- Part #: SPKJBL1123
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Amplifiers





JBL PRO CSA180Z 1 X 80W COMMERCIAL AUDIO AMPLIFIER
- Brand: JBL PRO
- MPN: CSA180Z
- Part #: SPKJBL1123

Product URL: https://www.pbtech.co.nz/product/SPKJBL1123/JBL-PRO-CSA180Z-1-X-80W-COMMERCIAL-AUDIO-AMPLIFIER?srsltid=AfmBOorH2N4ofaOcqy5Rd6orNQ2shmekGDSguRhKgm-olVrGGOS9iAX1
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

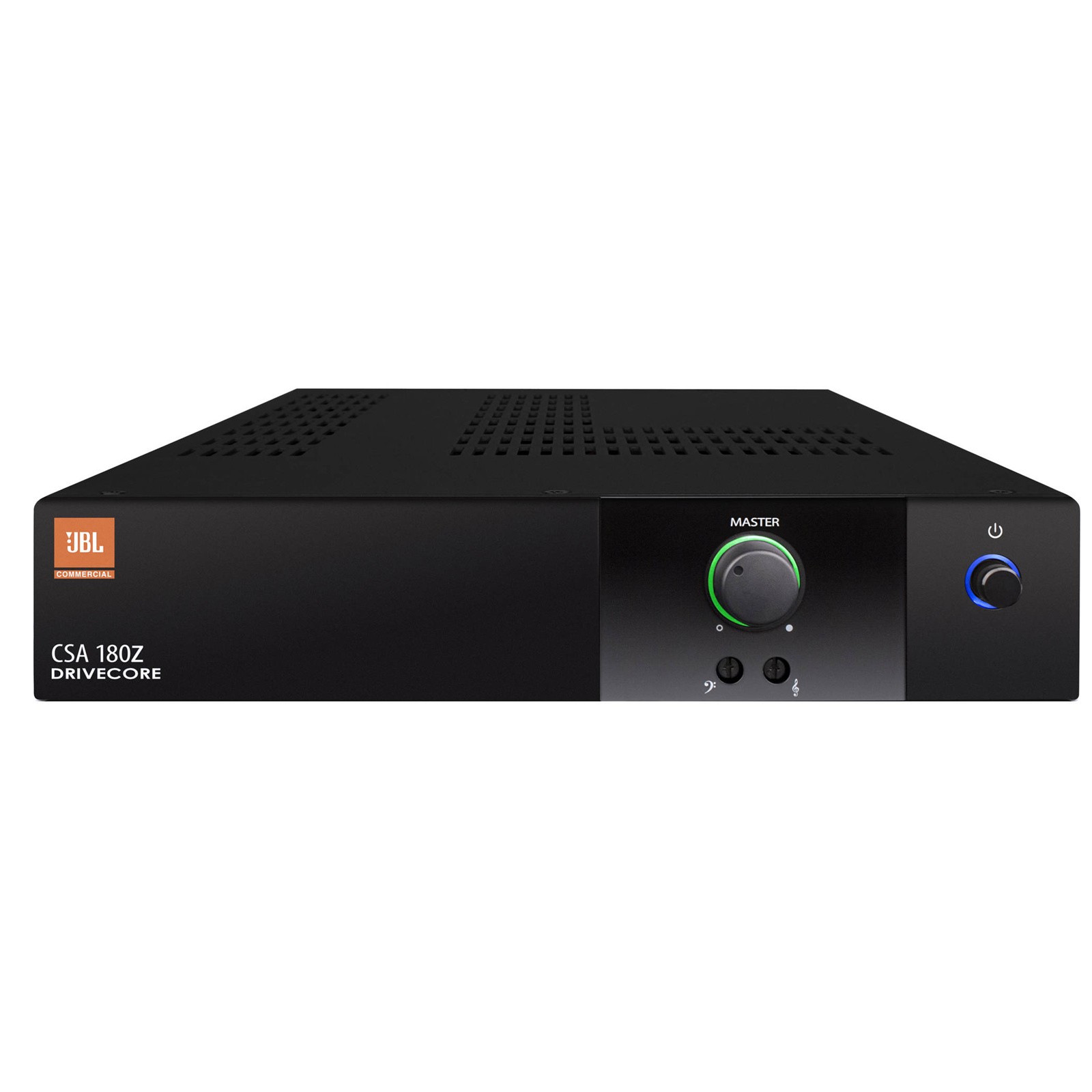

CSA180Z 80W Commercial Audio Amplifier
By combining years of innovation, invention and insight from HARMAN brands, JBL® Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound.
From the switch-mode universal power supply to the efficient performance of Crown's DriveCore™ Technology, we continue to set new standards in commercial power amplifier technology.
Simple to configure, the CS amp provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance.

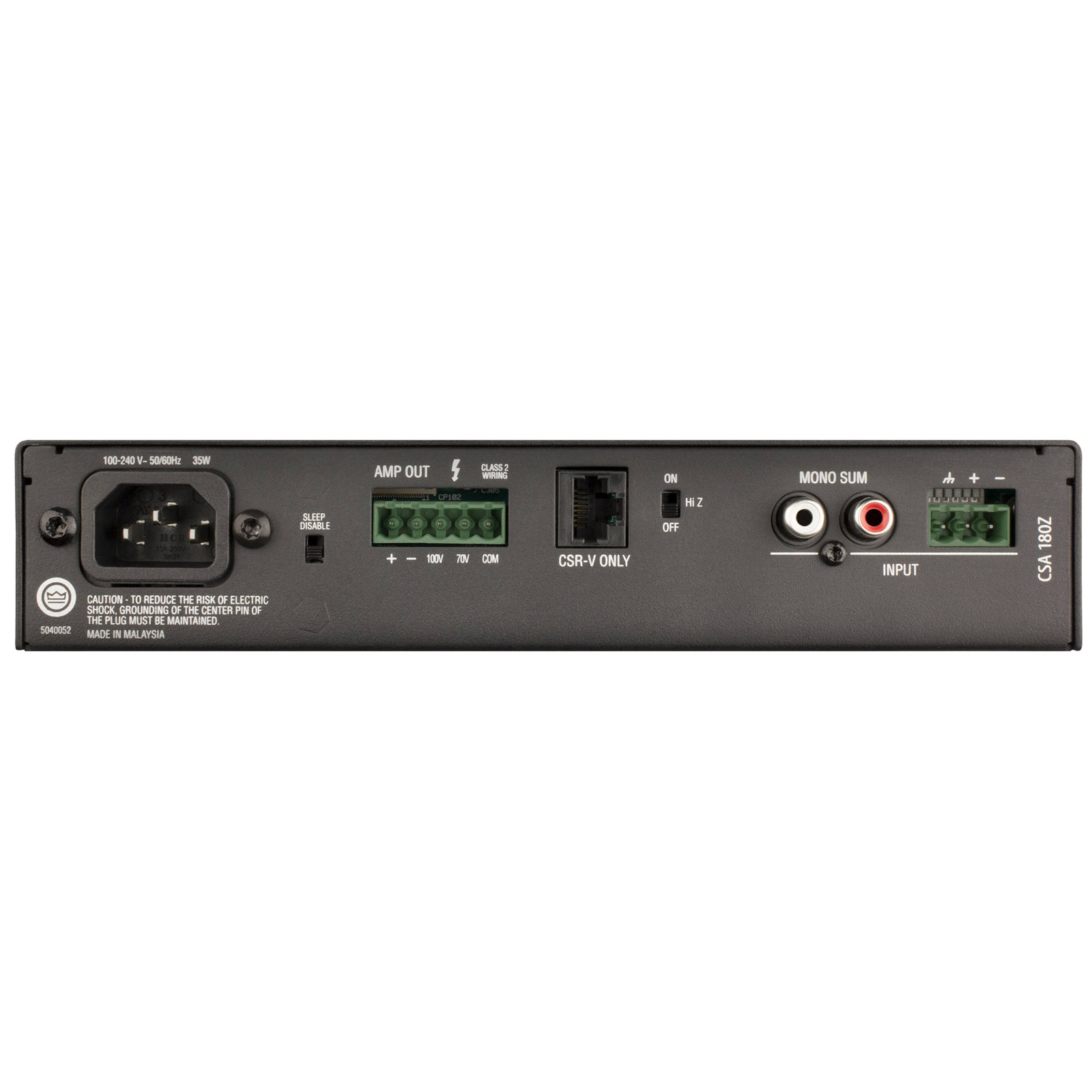

Supporting 70V and 100V installations out of the box, CS amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls. Its universal power supply allows every CS amp to accept AC voltages from 100 to 240 VAC, 50/60 Hz.
- 1 output channel with 80W per channel
- Built-in 70V and 100V
- Fanless, space-saving 1U design
- Sleep mode disable function
- Energy-efficient amplifier
- Sleek industrial look with illuminated rings making knobs easy to see and use
- Supports the JBL CSR-V wall controller via Ethernet cable
- Universal power supply
Specifications
Brand
JBL PRO
Manufacturer Part Number
CSA180Z
Power Output
80W
Output Channels
1
Input Sensitivity
1.4Vrms for 8-ohms
Phantom Power
27VDC
AC Line Voltage
100 - 240V, 50/60 Hz
Input Impedance
20K ohms/50K ohms
SNR
> 100 dB
THD
< 0.5%
Crosstalk
> 70 dB
Dimensions
1.7" x 8.6" x 11.9" (43.3mm x 218.5mm x 303.4mm)
