JBL PRO CSM-14 4CH 1 ZONE COMMERCIAL RACK MIXER
JBL PRO CSM-14 4CH 1 ZONE COMMERCIAL RACK MIXER
- Brand: JBL PRO
- MPN: CSM-14
- Part #: SPKJBL1128
- UPC:
- Brand: JBL PRO
- MPN: CSM-14
- Part #: SPKJBL1128
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Audio Accessories





JBL PRO CSM-14 4CH 1 ZONE COMMERCIAL RACK MIXER
- Brand: JBL PRO
- MPN: CSM-14
- Part #: SPKJBL1128

Product URL: https://www.pbtech.co.nz/product/SPKJBL1128/JBL-PRO-CSM-14-4CH-1-ZONE-COMMERCIAL-RACK-MIXER
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

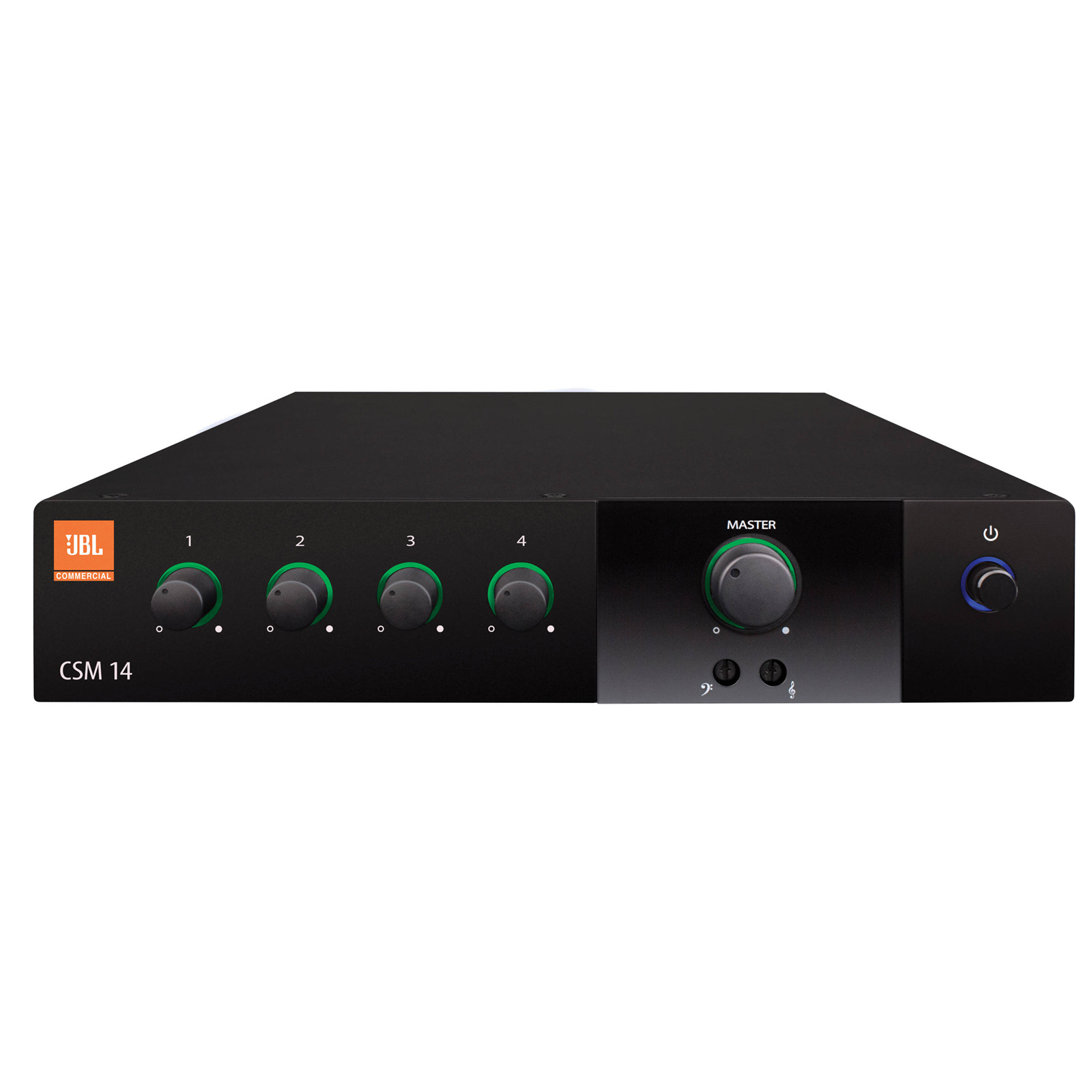

Commercial Rack Mixer with 4 inputs and 1 output. Fanless 1U design, independent bass/treble controls, GreenEdge energy-efficiency, priority muting, VOX ducking and phantom power on all models. Optional JBL CSR-V wall controller via Ethernet cable.
The JBL® Commercial Series Mixers (CSM) deliver unsurpassed quality in commercial sound.
Easily configured for a range of applications, such as background music, security and paging, CSM units are designed for everything from schools and hospitals to restaurants and fitness facilities.
They feature RJ45 connectors for use with JBLCSR-V in-wall volume controls, and a universal power supply that accepts AC voltages from 100 to 240 VAC, 50/60 Hz. Plus, they're built using HARMAN's GreenEdge™ clean standards to offer numerous energy-efficient benefits, including a lighter weight, space-saving design, and conforming to RoHS standards.
- 4 inputs with 1 channel output
- Fanless, space-saving 1U design
- Independent bass/treble controls

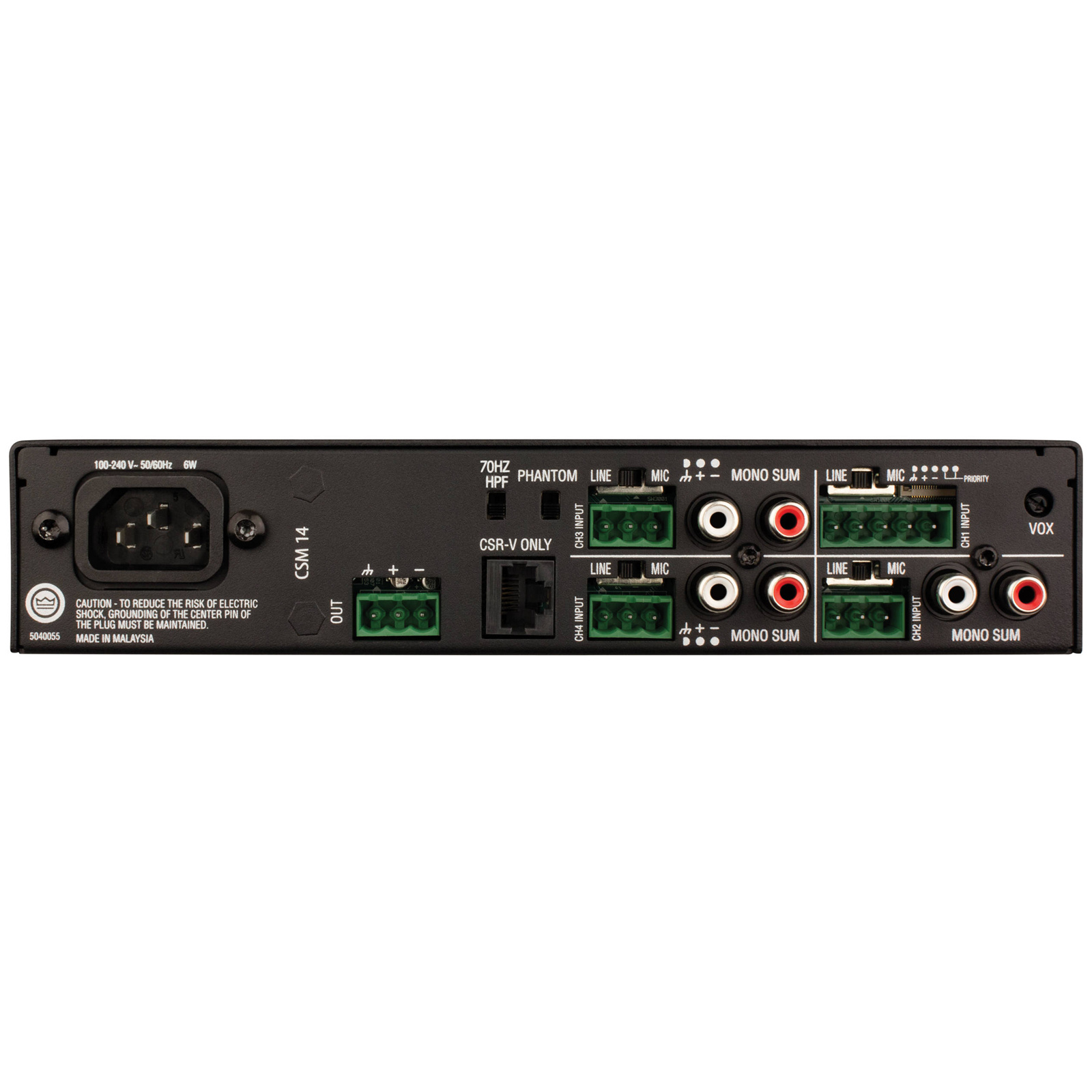

- Euro-block type mic/line input and output connectors, and unbalanced RCA inputs for consumer connection
- Supports JBL CSR-V wall controller via Ethernet cable
- Priority muting, VOX ducking, and phantom power for all models
- Includes a rack mounting kit for installations to a cabinet
Specifications
Manufacturer Part Number
CSM-14
Inputs
4
Output Channels
1
Input Sensitivity (Mic)
3mVrms
Input Sensitivity (Line)
775mVrms
Input Sensitivity (RCA)
300mVrms
Phantom Power
27VDC
Priority Muting
Yes
Configurable Output Routing
No
AC Line Voltage
100 - 240V, 50/60 Hz
Dimensions
1.7" x 8.6" x 11.9" (43.3mm x 218.5 mm x 303.4mm)
