Features
3 stereo source inputs, mic and line inputs and 2 full range stereo zone outputs with dedicated subwoofer outputs.
The JBL® Commercial CSM-32 offers fixed I/O, pre-configured architecture, full stereo or mono operation, flexible routing and control of multiple audio sources, simple front-panel configuration and control without the need for a computer, compatibility with the CSR wall controllers, compatibility with the CSPM paging microphones, and optional duplication of audio channels to another device via a Cat5 cable.
The CSM-32 features three stereo music inputs with gain control and clip LEDs, and two stereo outputs with active crossovers and dedicated subwoofer outputs.
Two additional inputs are provided for music override. First, a mic input with phantom power and gain control allows page steering to different zones, ducking the music by a user-configurable amount. Second, a line input allows high-priority routing to all zones, which is ideal for alarms.
An additional transformer-isolated mono output is provided for connection of a music-only mono output, which is ideal for music-on-hold systems.
Dedicated controls for music EQ and mic EQ allow the frequency content of each input type to be customized independently. In each output channel, LevelGuard™ is provided to retain consistent volumes between the various inputs, and AutoWarmth™ is provided to ensure full fidelity at all zone volume levels.
Zone Remote ports 1 and 2 facilitate connection of the CSR wall controllers, which can provide source selection and/or volume control in each output zone. Source select per zone, music level per zone, and mic level per zone can also be controlled on the front panel. For additional control, two logic inputs facilitate page steering and music muting via contact closure.
Two RJ-45 Link ports allow multiple CSM devices to be linked to increase the number of output zones. Linking CSM devices shares the inputs from the main devices over Cat5 cable and eliminates the need for Y-cables.

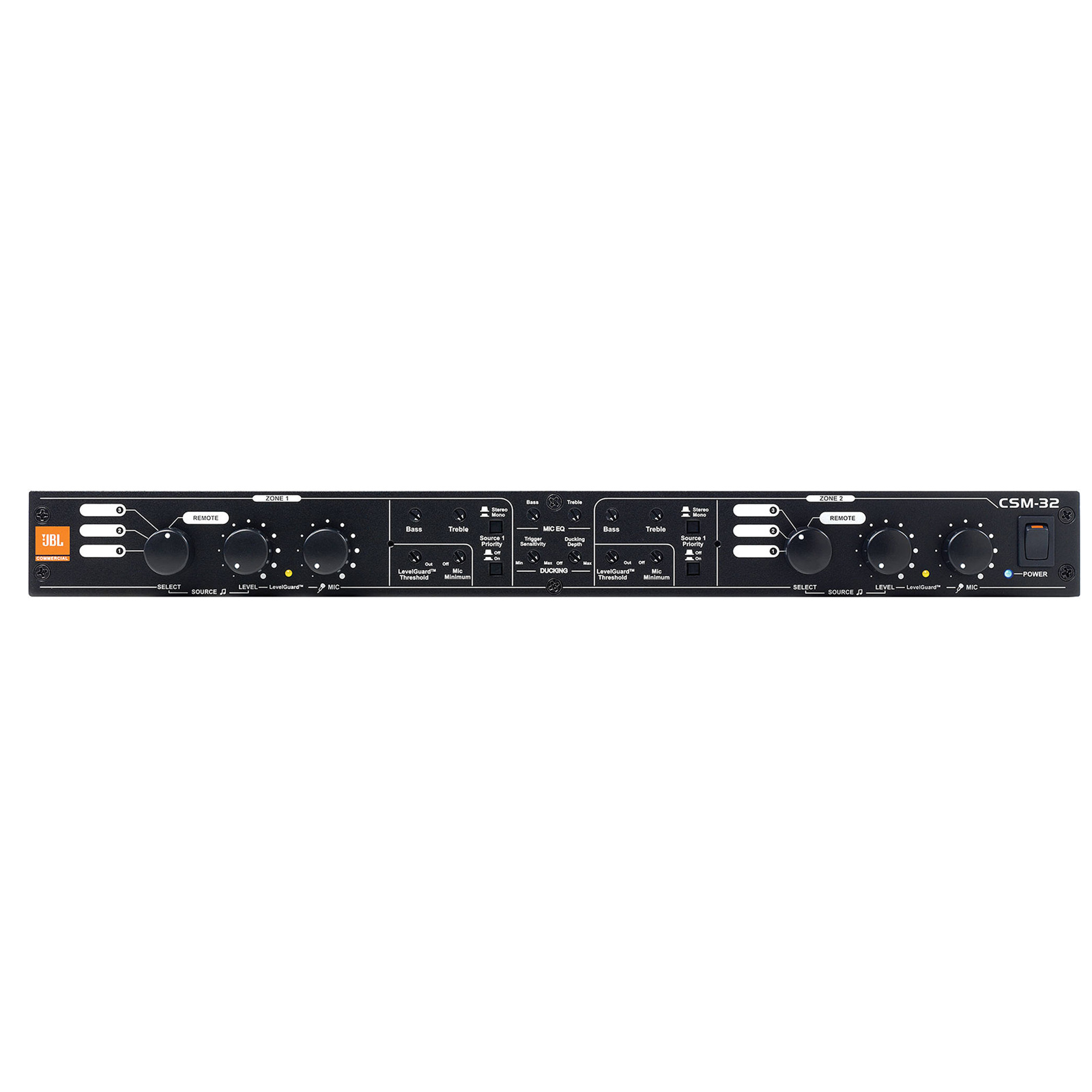

An included security plate can be placed over the front panel controls to avoid uninvited changes to a commissioned system.
- 3 Stereo Inputs
- 1 Mic Input
- 1 Line Input for Priority Audio
- 2 Stereo Output with Dedicated Subwoofer Output
- 1 Mono Isolated Output for Music-On-Hold System
- Quick and Simple Configuration via Front/Rear Panel Controls
- Digital Processor with Analog-Style Control
- Separate EQ for Mic and Music Inputs
- AutoWarmth™ and LevelGuard™
- Optional CSR Controllers
- Contact Closure Control
- Link Bus for Input Sharing
- Security Plate for Front Panel Lockout (included)
Specifications
Line Inputs
Type
3 stereo, unbalanced RCA connectors
Nominal Sensitivity
-10dBV
Input Impedance
20k ohms
Maximum Input
+12dBu
Equalization
Bass +/- 10dB @ 80Hz, Treble +/- 10dB @ 8kHz, 6dB/Octave Shelf
Mic Input
Type
Balanced, 5.08 mm, Euroblock connector
Input Impedance
2k ohms
Noise
EIN <117 dB, 150 ohm, DSP band-limited 120Hz-8kHz, BW24
Maximum Input
+20dBu
Equalization
Bass +/-6dB @ 250Hz, Treble +/-6dB @ 2kHz, 6dB/Octave Shelf
CMRR
>40dB, typically >55dB @ 1kHz
Pre-Amp Gain
+30dB to +60dB adjustable
Phantom Power
+48VDC, 10mA
Zone Outputs
Type
2 stereo, balanced 3.5mm, Euroblock connectors; Each Zone = Left, Right, Sub
Output Impedance
120 ohm balanced
Max. Output Level
+20dBu
Rear Panel LED Indicators
Source Inputs
Signal Present LED (turns on at -20dBu)
Signal Clip LED (turns on at +10dBu)
Mic Input
Signal Present LED (turns on at -20dBu)
Signal Clip LED (turns on at +18dBu)
System Performance
Frequency Response
20Hz - 20kHz, +/- 0.1dB
Dynamic Range
104dB, A-Weighted, 20Hz-20kHz
Converter Type
Mic input implements dbx Type IV™ Conversion System
Sample Rate
48kHz
Crosstalk
>75 dB
THD+N
0.005% typical at +4dBu, 20Hz-20kHz, 0dB gain
General
Power Consumption
10W
Power Requirements
100-240V Thermal fuse in external transformer
Dimensions (WxHxD)
19.0"(483mm) x 1.8"(46mm) (no feet) x 7.0"(178mm) (including knobs and connectors)
Weight
5.3 lbs (2.4kg)
