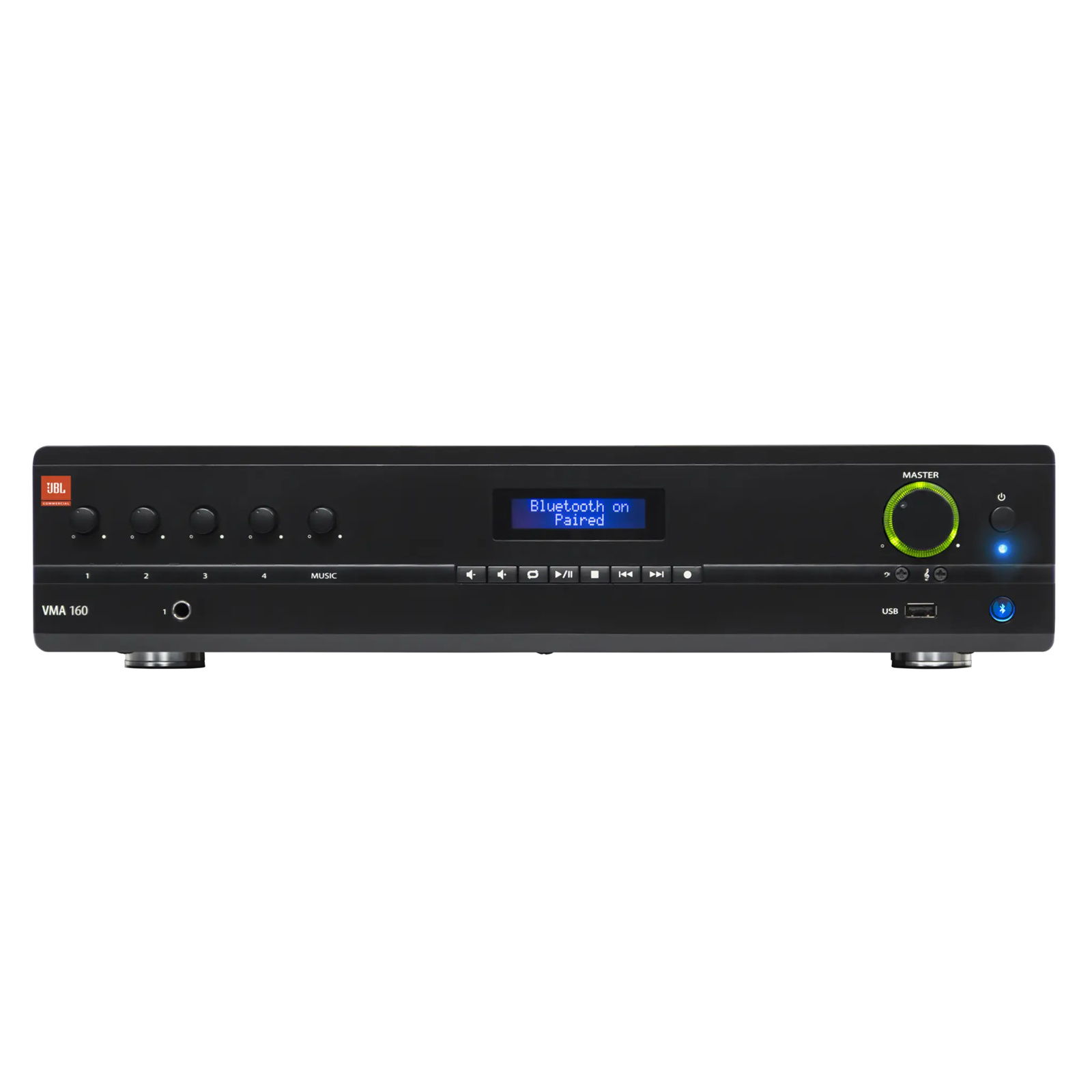

JBL PRO VMA160 5 IN/1 OUT 60W BLUETOOTH MIXER/AMPLIFIER
JBL PRO VMA160 5 IN/1 OUT 60W BLUETOOTH MIXER/AMPLIFIER
- Brand: JBL PRO
- MPN: VMA160
- Part #: SPKJBL1180
- UPC:
- Brand: JBL PRO
- MPN: VMA160
- Part #: SPKJBL1180
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Amplifiers





JBL PRO VMA160 5 IN/1 OUT 60W BLUETOOTH MIXER/AMPLIFIER
- Brand: JBL PRO
- MPN: VMA160
- Part #: SPKJBL1180

Product URL: https://www.pbtech.co.nz/product/SPKJBL1180/JBL-PRO-VMA160-5-IN1-OUT-60W-BLUETOOTH-MIXERAMPLIF
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4O, 8O) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.
- 5 inputs with 1 output of 60, 120, or 240-watts of power
- Independent bass and treble controls for each output channel
- 100V and 70V output, or 4O/8O
- Paging Chime, and Priority muting
- Works with JBL CSR-V wall controllers
- Balanced mic/line inputs; RCA (.775V) inputs
- Rack mounting hardware included
Specifications
Max Output Power per Channel
Into 4 O or 8 O; 1kHz, = 0.5% THD - VMA160: 60W
Insertion Loss
(70V & 100V outputs) 1dB maximum
Number of Inputs
5
Number of Outputs
1
Tone Controls
(Bass and Treble non-detented potentiometers on each channel) Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
Input Sensitivity
(to obtain full rated power into 8 O load) Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
Frequency Response
(measured at 2.83VRMS into rated load impedance at any output) 4/8 O Output: 20Hz - 20kHz, +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB
Total Harmonic Distortion (THD)
(measured at 2.83VRMS into rated load impedance at any output) Power Amp Output: <0.5%, 20Hz - 20kHz
Signal to Noise Ratio
(Ref. Rated Power, mixer levels @ min., master volume @ max. A-weighted) >76dB
Input Impedance
(nominal) Mic: 400 O Line: 20 kO (balanced) RCA: 50 kO
Phantom Power
27VDC
Crosstalk
(reference rated power, volume at mid position, 1kHz) -70 dB
Nominal AC Line Voltages
100V, 120V, 220V, 220-240V, 50/60 Hz
Minimum Load Impedance
(Low Impedance Output, 70V Output, 100V Output) VMA160: 4 O, 80 O,160 O VMA1120: 4 O, 40 O, 80 O VMA1240: 4 O, 20 O, 40 O
Operating Temperature/Humidity
0°C to 35°C @ 95% R.H. (non-condensing)
Storage Temperature
-20°C to 85°C
Net Weight
VMA160: 19.4 lb
