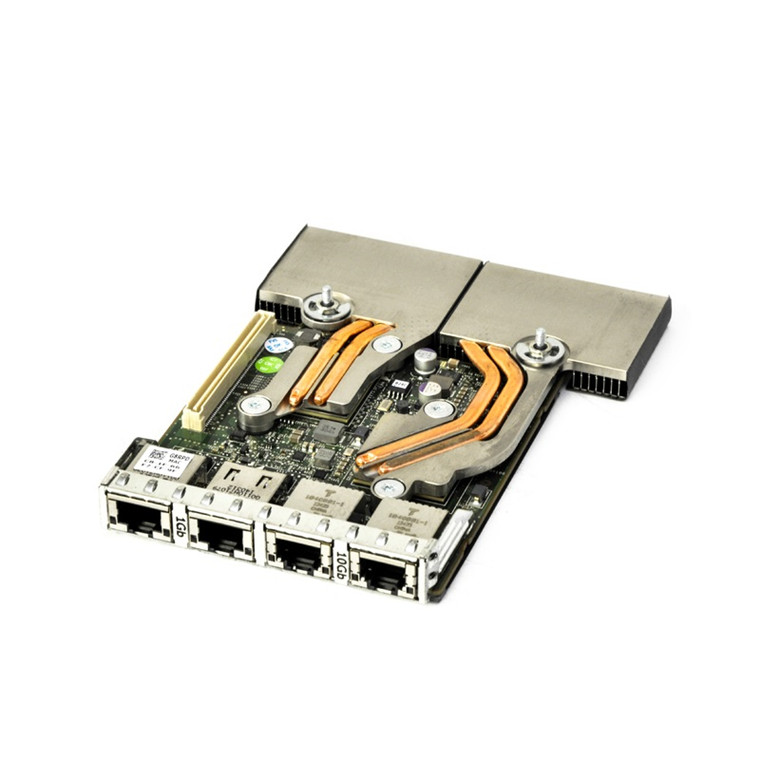

Dell NIC 10GbE RJ-45 2-Port/1GbE RJ-45 2-Port PCI-E-2.0x8 QLogic 57800S CNA Module for R-Series - SPN - Gen 12

Dell NIC 10GbE RJ-45 2-Port/1GbE RJ-45 2-Port PCI-E-2.0x8 QLogic 57800S CNA Module for R-Series -...

PB Tech price:PB Tech price:
$45391$52200
 +GST  inc GST

Store Pickup: Click & Collect not available during sale
Delivery: Order now and it ships on 02/04/2019
When will I receive it?

No payments or interest for 12 months available

Features

QLogic® offers a quad-port Converged Network Daughter Card that provides two 1-gigabit Ethernet (GbE) and two 10GbE connectivity ports for Dell™ PowerEdge™ rack servers. The 57800S card leverages QLogic's long-standing industry leadership in Ethernet, providing the highest levels of performance, efficiency, and scalability for the enterprise data center.

For more effective utilization of the 10GbE bandwidth, the QLogic 57800S-based rack Converged Network Daughter Card (rNDC) offers Dell Switch Independent Partitioning, which enables the segmentation of a single 10GbE port into two virtual ports, with flexible allocation of bandwidth to each port. Segmentation allows IT organizations to improve resource utilization while lowering infrastructure and operational costs.

Virtualization, cloud computing, High-Performance Computing (HPC), convergence, and clustering initiatives are increasing workload demands. The QLogic 57800S-based rack Converged Network Daughter Card is the solution of choice for workload-intensive computing environments, providing a reliable, high-performance 10GbE connectivity solution.

- Delivers full line-rate 10GbE performance across both 10Gbps ports
- Provides 1GbE and 10GbE connectivity options for greater deployment flexibility
- Consolidates network storage traffic over converged 10GbE connections
- Enables provisioning of 10GbE ports for greater deployment flexibility through Dell Switch Independent Partitioning
- Boosts host CPU efficiency with hardware offload for network (TCP/IP) and storage (FCoE and iSCSI) data traffic
- Interoperable with 100Mbps, 1000Mbps, and 10Gbps

Specifications

Bus Interface

PCI Express Gen2 x8

Host Interrupts

MSI-X supports independent queues

I/O Virtualization - 10GbE Ports Only

- SR-IOV (128 maximum virtual functions per device)
- Switch Independent Partitioning (NPAR)
- Network virtualization using generic routing encapsulation (NVGRE) packet task offloads
- Virtual extensible LAN (VXLAN) packet task offloads

Compliance

- PCI Express base specification 2.0
- PCI bus power management interface (rev 1.2)
- Advanced configuration and power interface (ACPI) v2.0

Ethernet Throughput

10Gbps full-duplex line rate per port

Ethernet Frame

1,500 bytes and larger (jumbo frames)

Manufacturer Part No: 430-4427 Brand: Dell Product Type: -
UPC - Product Family: - Shipping Weight: 1 kg
PB Part No: SVPDEL1071 Product Model: -

Warranty: 12 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
