Supermicro 520P-WTR Barebone, 2U, 1x LGA4189, 8 DIMM, 8x 3.5" Hot-Swap, 2x 10G RJ-45, 2x PCIe 4.0 x16, 2x PCIe 4.0 x8, 1x PCIe 3.0 M.2 2280/22110, 2x 650W Redundant Power Supplies

Supermicro 520P-WTR Barebone, 2U, 1x LGA4189, 8 DIMM, 8x 3.5" Hot-Swap, 2x 10G RJ-45, 2x PCIe 4.0 x16, 2x PCIe 4.0 x8, 1x PCIe 3.0 M.2 2280/22110, 2x 650W Redundant Power Supplies
PB Tech price: PB Tech price:
$2,502 35  +GST $2,877 70  inc GST

Generating Print Page
Home Computers & Tablets Servers Barebone Servers Supermicro 520P-WTR Barebone, 2U,...

Supermicro 520P-WTR Barebone, 2U, 1x LGA4189, 8 DIMM, 8x 3.5" Hot-Swap, 2x 10G RJ-45, 2x PCIe 4.0 x16, 2x PCIe 4.0 x8, 1x PCIe 3.0 M.2 2280/22110, 2x 650W Redundant Power Supplies

Part #: SVRSPM720100
PB Tech price: PB Tech price:
$2,502 35 $2,877 70
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 24/02/2022 When will I receive it? View delivery times over the holiday period

Pay only $1,714.03 and then five easy payments of $250.00 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Pay only $612.81 and then 25 easy payments of $97.35 per fortnight*

humm lets you spread the cost of your purchase over 26 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Finance from $25.35 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*An Establishment fee of $55 applies to your first LTF transaction, a $35 Advance Fee applies to all subsequent LTF transactions. Standard Interest Rate, currently 25.99% p.a. applies to any outstanding balance at end of the interest free period. Lending criteria, $50 annual account fee, fees, terms and conditions apply.
Learn more about Q Card

  • Brand: Supermicro
  • MPN: SYS-520P-WTR
  • Part #: SVRSPM720100
  • UPC: 672042421480
  • Server Type: Barebone
  • Form Factor: 2U Rackmount
  • CPU Sockets: 1
  • CPU Physical Cores: None
  • DIMM Slots: 8
  • System Memory: None
  • RAID Support: RAID 0, 1, 5, 10
  • Power Supply: Dual Redundant
  • View more

Features

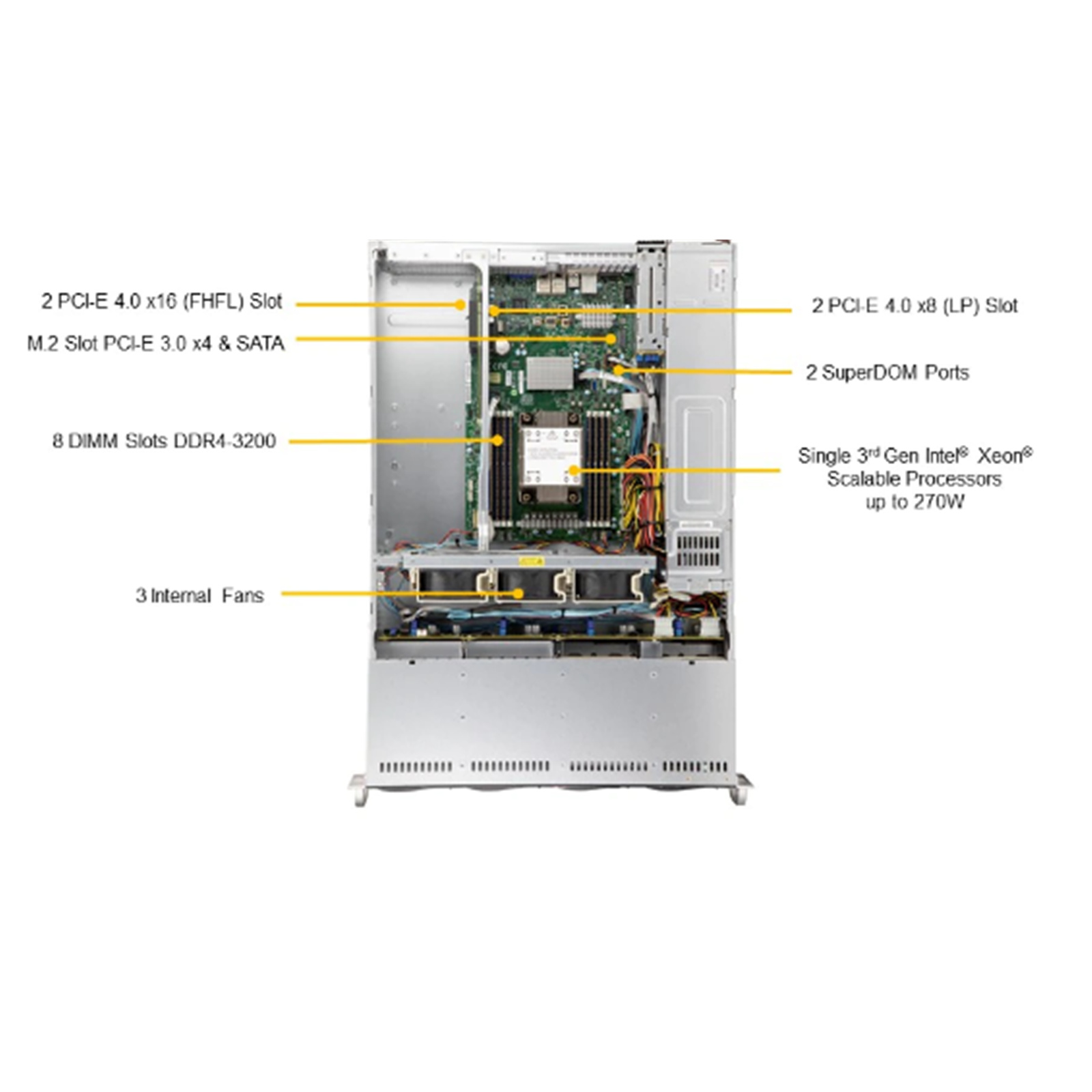

Key Features

- Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.

- 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM

- 2 PCI-E 4.0 x16 (FHFL) slots, 2 PCI-E 4.0 x8 (LP) slots

- Intel® Ethernet Controller X550 2x 10GbE RJ45

- 8x hot-swap 3.5'' SATA3 drive bays, SAS3 with additional SAS controller card, Optional 2x 2.5'' Gen4 NVMe drives at rear; Onboard 1x NVMe/SATA M.2

- Redundant Platinum 650W Power Supply

Specifications

Product SKUs

SYS-520P-WTR

SuperServer SYS-520P-WTR (Black)


Motherboard

Super X12SPW-TF


Processor

CPU

Single Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
Support CPU TDP 270W

Cores

Up to 36C/72T; Up to 60MB Cache


System Memory

Memory

Memory Capacity: 8 DIMM slots
Up to 2TB: 8x 256 GB DRAM
Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem
Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
Intel® Optane™ persistent memory 200 series

Memory Voltage

1.25 V

Error Detection

Yes


On-Board Devices

SATA

SATA3 (6Gbps); RAID 0/1/5/10 support

NVMe

NVMe; RAID 0/1 support

Chipset

Intel® C621A

Network Connectivity

2x 10GbE BaseT with Intel® X550

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support


Input / Output

SATA

10 SATA (6Gbps) port(s)

LAN

1 RJ45 Dedicated IPMI LAN port
2 RJ45 10GBase-T LAN ports

USB

3 USB port(s) (2 headers; 1 Type A)
4 USB 3.2 Gen 1 port(s) (2 headers; 2 rear)
2 USB 2.0 port(s) (2 rear)

Video

1 VGA 2 port(s)

Serial Port

2 COM Port(s) (1 header; 1 rear)

DOM

2 SuperDOM (Disk on Module) port with built-in power


System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM


Management

Software

IPMI2.0
Redfish API
SSM
SPM
KVM with dedicated LAN
SUM
NMI

Power Configurations

ACPI/APM Power Management


PC Health Monitoring

CPU

7+1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory

FAN

Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors


Chassis

Form Factor

2U Rackmount

Model

CSE-825BTS-R609WP


Dimensions and Weight

Height
3.5" (89mm)
Width
17.2" (437mm)
Depth
25.5" (647mm)

Package

11" (H) x 26.5" (W) x 34" (D)

Weight

Net Weight: 34 lbs (15.42 kg)
Gross Weight: 59 lbs (26.76 kg)

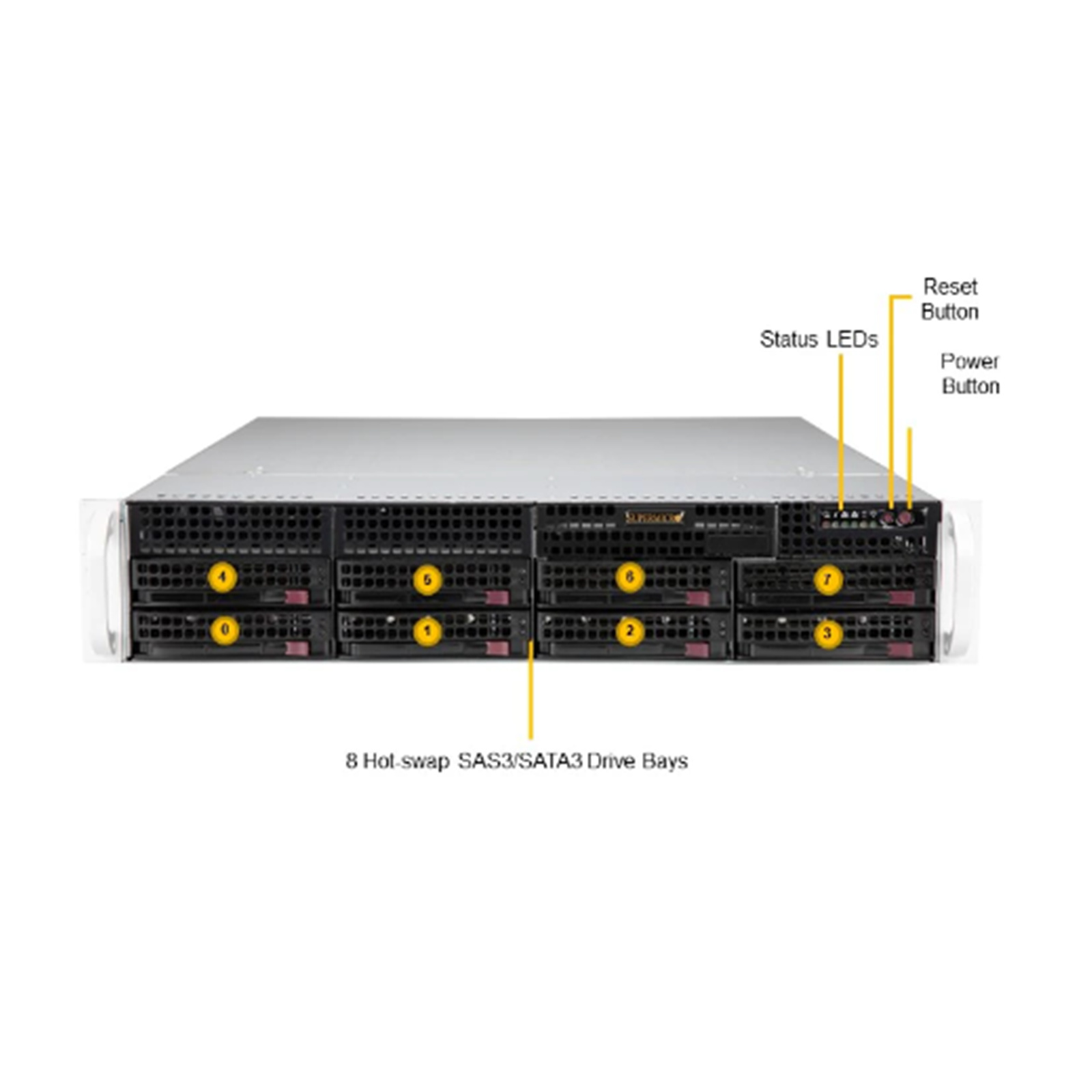

Front Panel

Buttons

Power On/Off
System Reset

LEDs

Device Activity
LAN 1 Activity
LAN 2 Activity
Power Failure LED
Power status
System information


Expansion Slots

PCI-Express (PCI-E)

Slot 1: PCI-E 4.0 x16 FHFL
Slot 2: PCI-E 4.0 x16 FHFL
Slot 3: PCI-E 4.0 x8 LP
Slot 4: PCI-E 4.0 x8 LP


Drive Bays / Storage

Drive Bays

8x 3.5" SATA drive bays (2x 2.5" NVMe dedicated)

M.2

1x PCI-E 3.0 x 4 and SATA
M-key, 2280, 22110

Peripheral Bays

2x 2.5" drive bays


System Cooling

Fans

3 heavy duty PWM 80x80x38mm Fan(s)


Power Supply

Platinum efficiency, 600W/650W, AC input: 100-127/200-240Vac.

Total Output Power

650W

Dimension

(W x H x L)
76 x 40 x 360 mm

AC Input

650W: 200-240Vac / 3A-4A / 50-60Hz

+12V

Max: 54A / Min: 0.5A

5V SB

Max: 4A / Min: 0A

Output Type

Gold Finger Connector

Certification Platinum Level

Certified94%+  Platinum Level


Operating Environment

Environmental Spec.

Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity:
   8% to 90% (non-condensing)

Non-operating Relative Humidity:
   5% to 95% (non-condensing)

Manufacturer Part No:
SYS-520P-WTR
Brand:
Product Type:
Barebone,
UPC
672042421480
Product Family:
-
Shipping Weight:
27.7 kg
PB Part No:
SVRSPM720100
Product Model:
520P-WTR
Warranty: 36 months *
