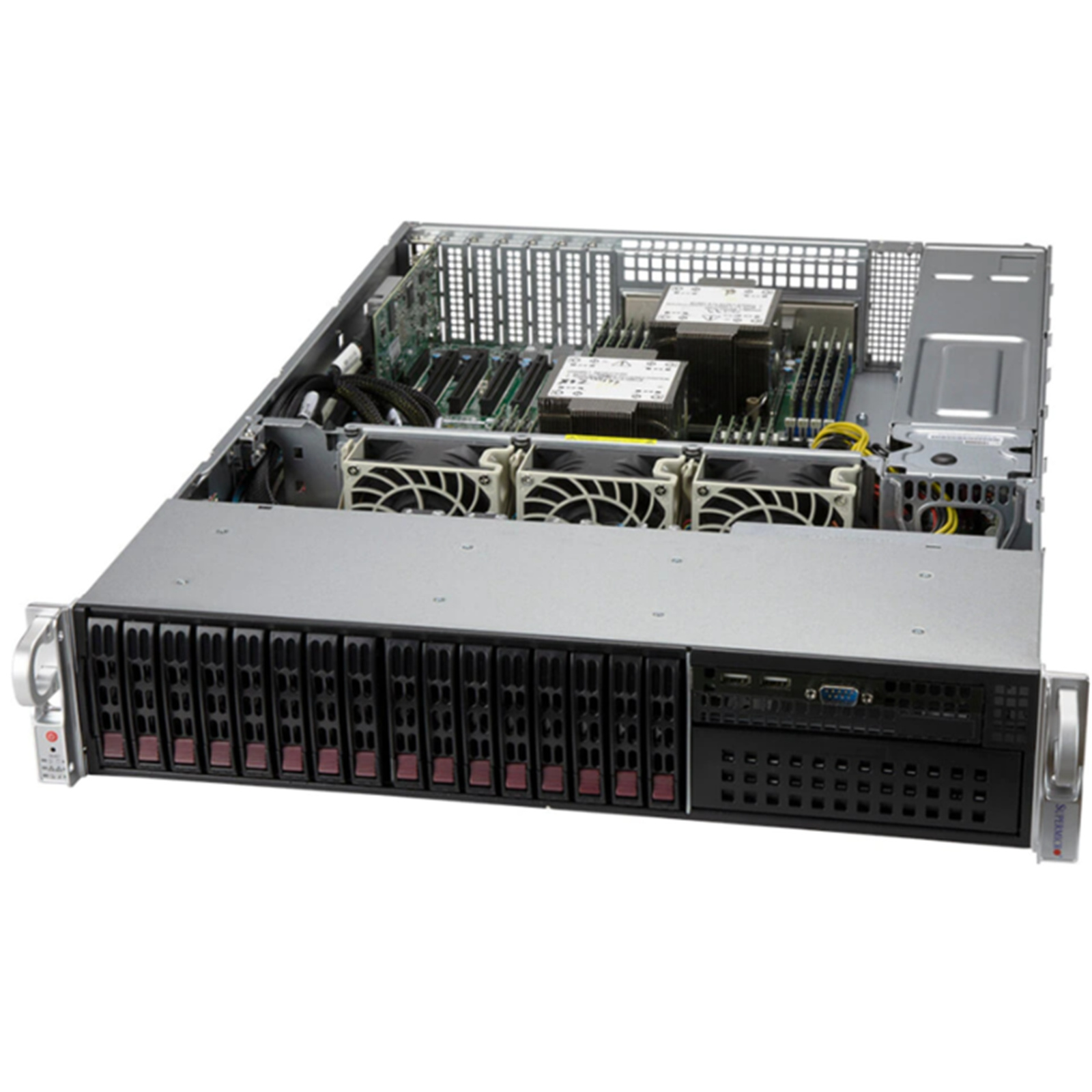

Supermicro 220P-C9RT Barebone, 2U, 2x LGA4189, 16 DIMM, 16x 2.5" Hot-Swap, 2x 10G RJ-45, Broadcom 3908 HW RAID (8 Ports), 2x 1200W Redundant Power Supplies
Out of stock
Supermicro 220P-C9RT Barebone, 2U, 2x LGA4189, 16 DIMM, 16x 2.5" Hot-Swap, 2x 10G RJ-45, Broadcom 3908 HW RAID (8 Ports), 2x 1200W Redundant Power Supplies
- Brand: Supermicro
- MPN: SYS-220P-C9RT
- Part #: SVRSPM720102
- UPC: 672042438938
- Brand: Supermicro
- MPN: SYS-220P-C9RT
- Part #: SVRSPM720102
- UPC: 672042438938
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Servers
Supermicro 521R-T Mini Server - 1x Xeon E-2434 4C/8T 3.4GHz, 16GB...
HPE ProLiant ML350 Gen11 with Intel Xeon-S 4410Y 12C/24T, 32 GB...
Supermicro 220P-C9RT Barebone, 2U, 2x LGA4189, 16 DIMM, 16x 2.5" Hot-Swap, 2x 10G RJ-45, Broadcom 3908 HW RAID (8 Ports), 2x 1200W Redundant Power Supplies
- Brand: Supermicro
- MPN: SYS-220P-C9RT
- Part #: SVRSPM720102
- UPC:672042438938
Product URL: https://www.pbtech.co.nz/product/SVRSPM720102/Supermicro-220P-C9RT-Barebone-2U-2x-LGA4189-16-DIM
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Key Features
- Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
- CPU TDP supports Up to 270W TDP
- 3 UPI up to 11.2 GT/s
- Intel® C621A Chipset
- Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
- Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)
- 4 PCI-E 4.0 x16 Low Profile (LP)
- 1 PCI-E 4.0 x8 Low Profile (LP)
* PCi-E slot#1 is populated with 1x AOC-S3908L-H8IR-16DD-P to support 8x SAS drives
- Dual 10GBase-T LAN with Intel® X550 Ethernet Controller
- 16 hotswap 2.5" drive bays
- 8 SAS drives wih Broadcom® 3908 Gen4 HW RAID controller for RAID 0, 1, 5, 6, 10, 50, 60
- 8 SATA drives with Intel® C621A controller for RAID 0,1,5,10
1 M.2 support:
- M.2 Interface: PCI-E 3.0 x4
- M.2 Form Factor: 2260, 2280, 22110
- M.2 Key: M-Key
- Optional 1 slim or 5.25" DVD-ROM drive
- Optional 4x hotswap 2.5" NVMe or 2 fixed 2.5" NVMe/SSD/HDD/SuperDOM
- 3 heavy duty Hot-swappable 13.5K RPM Middle Cooling Fans with optimal fan speed control
- 1 air shroud
- 1200W Redundant Power Supplies Titanium level 100-240Vac and 200-240 Vdc
- 1 rear VGA, 1 Type A port, 2 COM Ports (1 front; 1 rear) and 6 USB ports (2 front USB 2.0 and 4 rear USB 3.0)
Specifications
Motherboard
Model
Super X12DPi-NT6
Processor
CPU
Dual Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
Support CPU TDP 270W
System Memory
Memory
Memory Capacity: 16 DIMM slots
Up to 4TB: PMem and DRAM
Memory Type: 3200MHz ECC LRDIMM/RDIMM DDR4
Intel® Optane™ persistent memory 200 series
On-Board Devices
Chipset
Intel® C621A
Network Connectivity
2x 10GbE port(s)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
1 decicated IPMI LAN port
USB
2 USB 2.0 port(s) (2 front)
4 USB 3.0 port(s) (4 rear)
Video
1 VGA port(s)
Serial Port
2 COM Port(s) (1 front; 1 rear)
DOM
2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
AMI 32MB SPI Flash EEPROM
Management
Software
Supermicro Out of Band (OOB) License (included in the unit)
IPMI2.0
Redfish API
SSM
Intel® Node Manager
SPM
KVM with dedicated LAN
SUM
NMI
Power Configurations
ACPI/APM Power Management
PC Health Monitoring
CPU
4+1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
FAN
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor
2U Rackmount
Model
CSE-213BTS-R1K23LPBP3-1
Dimensions and Weight
Height
3.5" (89mm)
Width
17.2" (437mm)
Depth
24.8" (630mm)
Package
11" (H) x 29" (W) x 38.7" (D)
Weight
Net Weight: 38 lbs (17.4 kg)
Gross Weight: 63 lbs (28.8 kg)
Front Panel
Buttons
Power On/Off;System Reset
LEDs
HDD activity
Network activity
Power status
System information (overheat/UID)
Expansion Slots
PCI-Express (PCI-E)
Slot 2: PCI-E 4.0 x16 LP
Slot 3: PCI-E 4.0 x16 LP
Slot 4: PCI-E 4.0 x16 LP
Slot 5: PCI-E 4.0 x16 LP
Slot 6: PCI-E 4.0 x8 LP
Drive Bays / Storage
Hot-swap
16x 2.5" hot-swap drive bays (8x SAS drive bays with Broadcom® 3908 HW RAID controller(backplane port# 0~7) and 8x SATA drive bays (backplane port# 8~15) with Intel® C621A (4x SATA drive bays (backplane port# 8~11) can be converted to NVMe drives with optional 2x CBL-SAST-0821-1)
M.2
1 M.2 NVMe
Peripheral Bays
1x (slim or 5.25") DVD drive bays (optional)
System Cooling
Fans
3 heavy duty fans with optimal fan speed control
Power Supply
Type
AC
1200W, Titanium Level, Redundancy,PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
Dimension
(W x H x L)
76 x 40 x 336 mm
Output Type
Gold Finger
Certification
Titanium Level 94%+ Titanium Level
Operating Environment
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (Non-Condensing)
Non-operating Relative Humidity:
5% to 95% (Non-Condensing)
