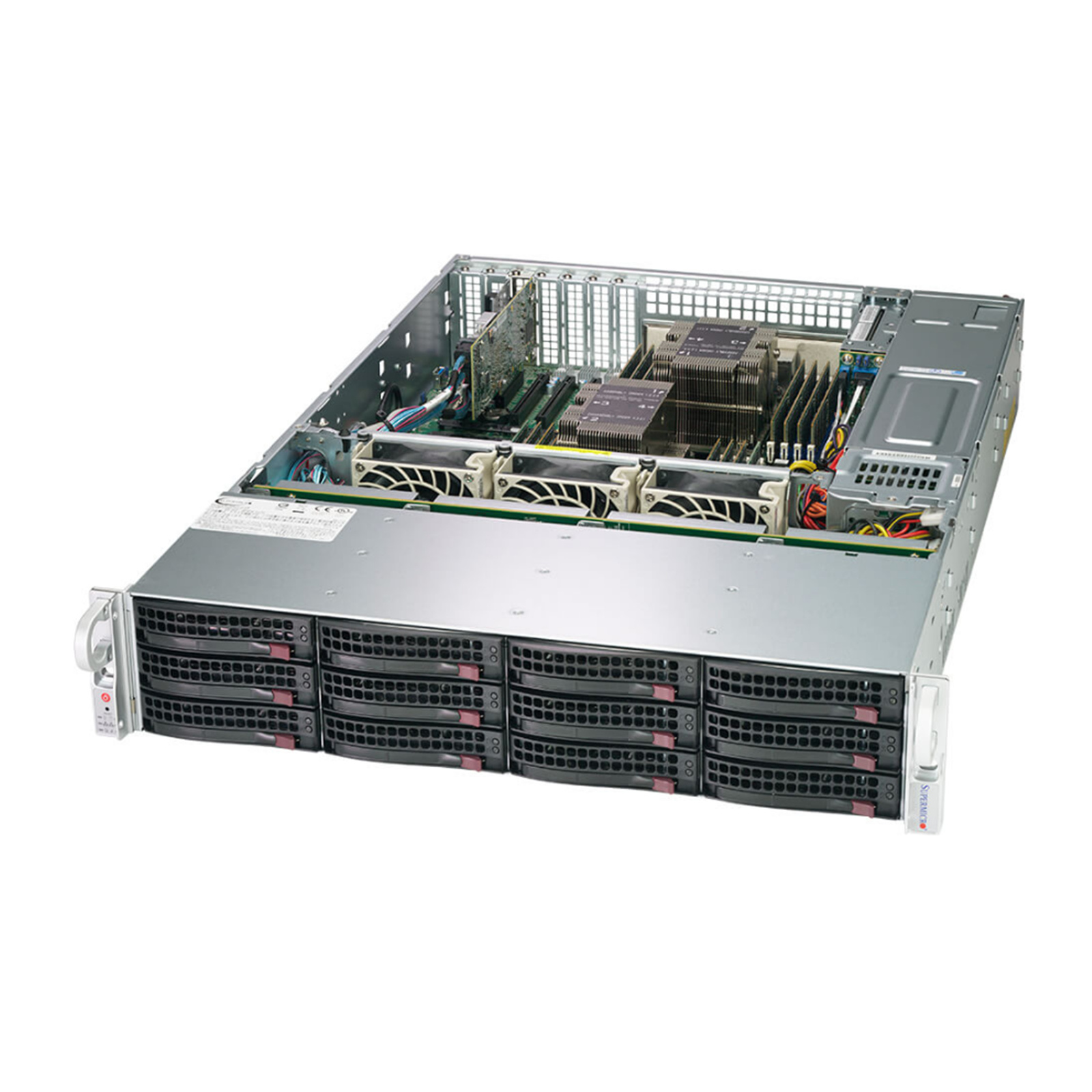

Supermicro 620P-ACR12H Barebone, 2U, 2x LGA4189, 16 DIMM, 12x 3.5" Hot-Swap / 4x Hybrid NVMe, Broadcom 3916 HW RAID, 2x 10G RJ-45, 1x M.2 2280/22110, 2x 1200W Redundant Power Supplies
Out of stock
Supermicro 620P-ACR12H Barebone, 2U, 2x LGA4189, 16 DIMM, 12x 3.5" Hot-Swap / 4x Hybrid NVMe, Broadcom 3916 HW RAID, 2x 10G RJ-45, 1x M.2 2280/22110, 2x 1200W Redundant Power Supplies
- Brand: Supermicro
- MPN: SSG-620P-ACR12H
- Part #: SVRSPM720104
- UPC: 672042453078
- Brand: Supermicro
- MPN: SSG-620P-ACR12H
- Part #: SVRSPM720104
- UPC: 672042453078
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Servers
Supermicro 521R-T Mini Server - 1x Xeon E-2434 4C/8T 3.4GHz, 16GB...
HPE ProLiant ML350 Gen11 with Intel Xeon-S 4410Y 12C/24T, 32 GB...
Supermicro 620P-ACR12H Barebone, 2U, 2x LGA4189, 16 DIMM, 12x 3.5" Hot-Swap / 4x Hybrid NVMe, Broadcom 3916 HW RAID, 2x 10G RJ-45, 1x M.2 2280/22110, 2x 1200W Redundant Power Supplies
- Brand: Supermicro
- MPN: SSG-620P-ACR12H
- Part #: SVRSPM720104
- UPC:672042453078
Product URL: https://www.pbtech.co.nz/product/SVRSPM720104/Supermicro-620P-ACR12H-Barebone-2U-2x-LGA4189-16-D
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features

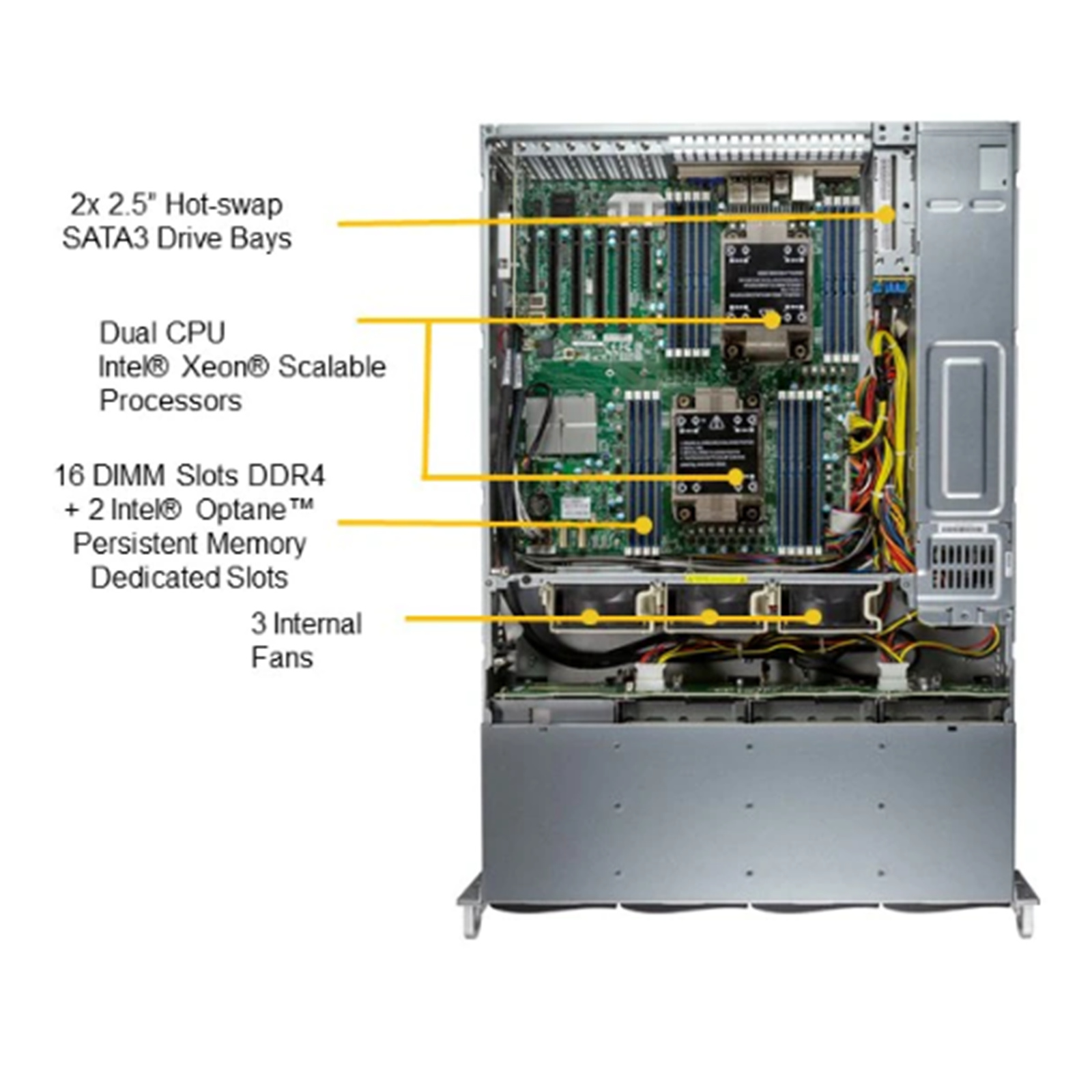

Key Features
- Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
- 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
- 2x 10Gbe
- 12x 3.5" hot-swap hybrid SATA/SAS drive bays (4 NVMe Hyprid Ports); 2 rear SATA 2.5" slots; onboard 1 M.2 NVMe
- 3 heavy duty fans with optimal fan speed control; 1 Air Shroud
- Broadcom® 3916 controller
Specifications
Motherboard
Motherboard
Super X12DPi-NT6
Processor
CPU
Dual Socket P+ (LG-4189)
3rd Gen Intel® Xeon® Scalable processors
Support CPU TDP 120-270W
System Memory
Memory
Memory Capacity: 16 DIMM slots
Up to 4TB: 16x 256 GB DRAM and 8x 512 GB PMem
Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM;DCPMM
Intel® Optane™ persistent memory 200 series
Note
2 extra DIMM slots available for Intel® Optane™ DCPMM @ 2666MHz
Memory Voltage
1.2 V
Error Detection
ECC
On-Board Devices
Chipset
Intel® C621A
Network Connectivity
2x 10GbE BaseT with Intel® X550
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
1 RJ45 Dedicated IPMI LAN port
2 RJ-45 10Gbase-T ports
USB
4 USB 3.0 port(s) (4 Rear_USB)
Video
1 VGA port(s)
Serial Port
1 COM Port(s) (1 rear)
DOM
2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
AMI 128MB SPI Flash EEPROM
Management
Software
IPMI 2.0
SUM
NMI
Watch Dog
SuperDoctor® 5
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
CPU
4+1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
FAN
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor
2U Rackmount
Model
CSV-826BTS-R1K23LPBP2
Dimensions and Weight
Dimensions
Height
3.5"
Width
17.3"
Depth
25.5"
Package
12" (H) x 27" (W) x 35" (D)
Weight
Net Weight: 34 lbs (15.4 kg)
Gross Weight: 61 lbs (27.7 kg)
Available Color
Black
Front Panel
Buttons
Power On/Off
LEDs
HDD activity
Network activity
Power status
System information (overheat/UID)
Expansion Slots
PCI-Express (PCI-E)
Slot 1: PCI-E 4.0 x8 LP
Slot 2: PCI-E 4.0 x16 LP
Slot 3: PCI-E 4.0 x16 LP
Slot 4: PCI-E 4.0 x16 LP
Slot 5: PCI-E 4.0 x16 LP
Slot 6: PCI-E 4.0 x8 LP
Note
PCIe slot 1 is occupied by the Storage Controller
Drive Bays / Storage
Hot-swap
12x 3.5" hot-swap SATA3/SAS3 drive bays (4x 3.5" NVMe hybrid)
M.2
1 M.2 NVMe
System Cooling
Fans
3 Heavy Duty 8cm Fan(s)
Power Supply
Power
AC 1200W, Titanium Level, Redundancy,PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
Dimension (W x H x L)
76 x 40 x 336 mm
Output Type
Gold Finger
Certification
Titanium Level94%+ Titanium Level
Operating Environment
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (Non-Condensing)
Non-operating Relative Humidity:
5% to 95% (Non-Condensing)
