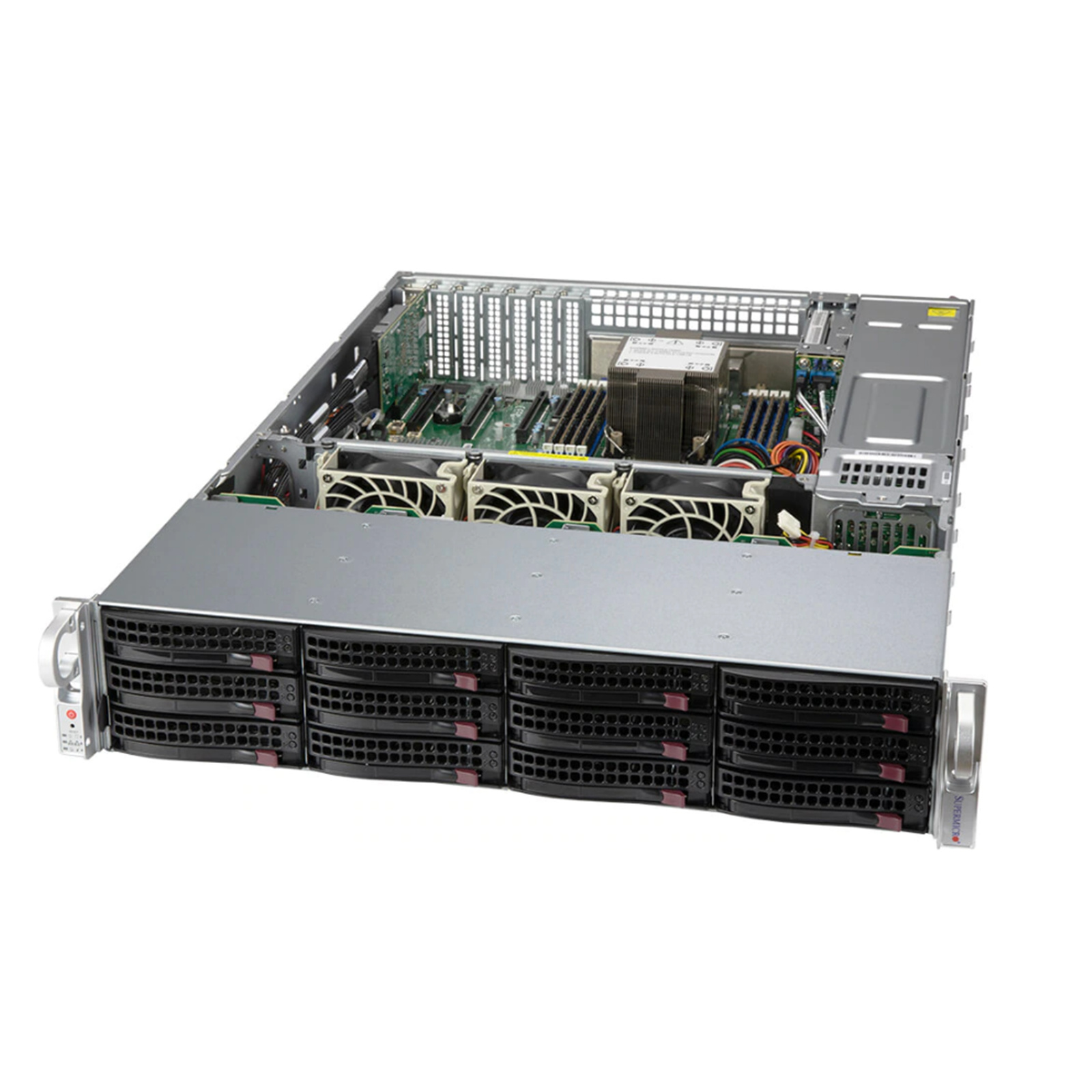

Supermicro 520P-ACTR12H Barebone, 2U, 1x LGA4189, 8 DIMM, 12x 3.5" Hot-Swap, Broadcom 3916 HW RAID, 2x 10G RJ-45, 1x M.2 2280/22110, 2x 800W Redundant Power Supplies
Out of stock
Supermicro 520P-ACTR12H Barebone, 2U, 1x LGA4189, 8 DIMM, 12x 3.5" Hot-Swap, Broadcom 3916 HW RAID, 2x 10G RJ-45, 1x M.2 2280/22110, 2x 800W Redundant Power Supplies
- Brand: Supermicro
- MPN: SSG-520P-ACTR12H
- Part #: SVRSPM720108
- UPC: 672042443796
- Brand: Supermicro
- MPN: SSG-520P-ACTR12H
- Part #: SVRSPM720108
- UPC: 672042443796
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Servers
Supermicro 521R-T Mini Server - 1x Xeon E-2434 4C/8T 3.4GHz, 16GB...
HPE ProLiant ML350 Gen11 with Intel Xeon-S 4410Y 12C/24T, 32 GB...
Supermicro 520P-ACTR12H Barebone, 2U, 1x LGA4189, 8 DIMM, 12x 3.5" Hot-Swap, Broadcom 3916 HW RAID, 2x 10G RJ-45, 1x M.2 2280/22110, 2x 800W Redundant Power Supplies
- Brand: Supermicro
- MPN: SSG-520P-ACTR12H
- Part #: SVRSPM720108
- UPC:672042443796
Product URL: https://www.pbtech.co.nz/product/SVRSPM720108/Supermicro-520P-ACTR12H-Barebone-2U-1x-LGA4189-8-D
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Key Applications
- Enterprise Server
- Database Processing & Storage
- Appliance Optimized Storage
Key Features
Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
2 PCI-E 4.0 x16 (LP) slots, 2 PCI-E 4.0 x8 (LP) slots
Intel® Ethernet Controller X550 2x 10GbE RJ45
12x Direct-attached hot-swap 3.5" SAS3/SATA3 drive bays, Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5" NVMe/SATA (rear, optional)
Redundant Titanium 800W Power Supply
Specifications
Motherboard
Model
Super X12SPI-TF
Processor
CPU
Single Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
Support CPU TDP 270W
System Memory
Memory
Memory Capacity: 8 DIMM slots
Up to 2TB: 8x 256 GB DRAM
Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem
Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
Intel® Optane™ persistent memory 200 series
Memory Voltage
1.25 V
Error Detection
Yes
On-Board Devices
SATA
SATA3 (6Gbps) via C621A Chipset; RAID 0, 1, 5, 10 support
SAS
SAS3 (12Gbps) via Broadcom 3916; RAID 0, 1, 5, 6, 10, 50, 60 support
Chipset
Intel® C621A
Network Connectivity
2x 10GbE BaseT with Intel® X550
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
1 RJ45 Dedicated IPMI LAN port
2 RJ45 10GBase-T LAN ports
USB
4 USB 2.0 port(s) (2 headers; 2 rear)
5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A)
Video
1 VGA port(s)
Serial Port
1 COM Port(s) (1 header)
DOM
2 SuperDOM (Disk on Module) port with built-in power
System BIOS
BIOS Type
AMI 32MB SPI Flash EEPROM
Management
Software
IPMI2.0
Redfish API
SSM
Intel® Node Manager
SPM
KVM with dedicated LAN
SUM
NMI
Power Configurations
ACPI/APM Power Management
PC Health Monitoring
CPU
7+1 Phase-switching voltage regulator module (VRM)
Monitors for CPU Cores, Chipset Voltages, Memory
FAN
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor
2U Rackmount
Model
CSE-826BTS-R802LPB
Dimensions and Weight
Height
3.5" (89mm)
Width
17.2" (437mm)
Depth
25.6" (650mm)
Package
11.5" (H) x 26.5" (W) x 34" (D)
Weight
Net Weight: 34 lbs (15.4 kg)
Gross Weight: 58 lbs (26.3 kg)
Available Color
Black

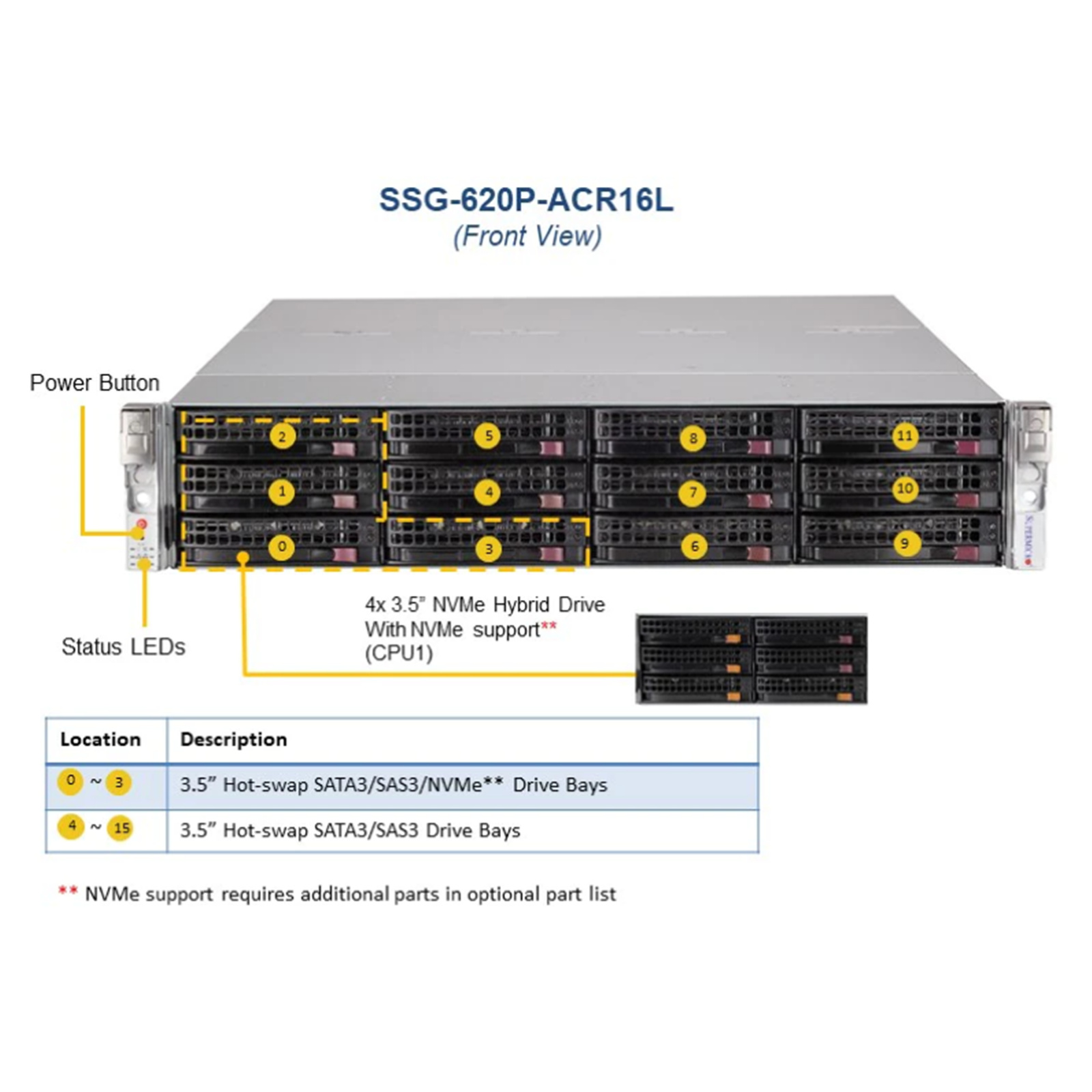

Front Panel
Buttons
Power On/Off
System Reset
LEDs
Device Activity
LAN 1 Activity
LAN 2 Activity
Power Failure LED
Power status
System information
Expansion Slots
PCI-Express (PCI-E)
Slot 2: PCI-E 4.0 x8 LP
Slot 4: PCI-E 4.0 x16 LP
Slot 6: PCI-E 4.0 x16 LP
Slot 7: PCI-E 4.0 x8 LP
Drive Bays / Storage
Hot-swap
12x 3.5" hot-swap SATA/SAS drive bays
M.2
1x PCI-E 3.0 x4 and SATA
Form Factor: 2280, 22110
Key: M-key
Peripheral Bays
2x 2.5" SATA or NVMe drive bays (optional)
System Cooling
Fans
3x (8cm x8cm x3.8cm) heavy duty fans with optimal fan speed control
Air Shroud
1 Air Shroud(s)
Power Supply
Type
AC 800W, Titanium Level, 100-240Vac/47-63Hz, and DC240 input
Dimension(W x H x L)
76 x 40 x 336 mm
Operating Environment
Environmental Spec.
Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
