Supermicro 1114S-WTRT Barebone 1U, 1x Socket SP3, 8 DIMM, 10x 2.5" Hot-Swap, 2x 10GbE, 2x 500W Redundant Power Supplies

Supermicro 1114S-WTRT Barebone 1U, 1x Socket SP3, 8 DIMM, 10x 2.5" Hot-Swap, 2x 10GbE, 2x 500W Redundant Power Supplies
PB Tech price: PB Tech price:
$2,104 17  +GST $2,419 80  inc GST

Generating Print Page

Supermicro 1114S-WTRT Barebone 1U, 1x Socket SP3, 8 DIMM, 10x 2.5" Hot-Swap, 2x 10GbE, 2x 500W Redundant Power Supplies

Part #: SVRSPM81004
PB Tech price: PB Tech price:
$2,104 17 $2,419 80
 +GST  inc GST
Hurry, only 5 units left!


Click & Collect: Click & Collect unavailable
Delivery: Order now and it ships tomorrow When will I receive it?

Pay only $1,242.39 and then five easy payments of $250.00 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Pay only $518.48 and then 25 easy payments of $82.26 per fortnight*

humm lets you spread the cost of your purchase over 26 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Finance from $21.43 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Repayments shown above are indicitive only and may vary. Ts and Cs and lending criteria apply.
Learn more about Finance Now

No payments or interest for 12 months available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email finance@pbtech.co.nz to chat with our finance team.

*Ts and Cs and lending criteria apply.
Learn more about Q Card

  • Brand: Supermicro
  • MPN: AS -1114S-WTRT
  • Part #: SVRSPM81004
  • UPC: 672042367023
  • Server Type: Barebone
  • Form Factor: 1U Rackmount
  • CPU Sockets: 1
  • CPU Physical Cores: None
  • DIMM Slots: 8
  • System Memory: None
  • RAID Support: None
  • Power Supply: Dual Redundant
  • View more

Features

Key Features

DB Processing & Storage
Data Center Applications
Firewall Applications

1. Single AMD EPYC™ 7002 Series Processor
2. 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
3. 2 PCI-E 4.0 x16 (FHFL) slots, 1 PCI-E 4.0 x16 (LP) slot
4. Integrated IPMI 2.0 + KVM with? dedicated LAN
      - Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
5. 10 Hot-swap 2.5" SATA3 drive bays, Optional 2 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices
6. 2x 10GBase-T LAN ports via Broadcom BCM57416 Controller
7. 1 VGA, 7 USB 3.0 (4 rear, 2 front, 1 Type A)
8. 2 SuperDOM (Disk on Module) ports
9. 500W Redundant Power Supplies Platinum Level High-efficiency (Full redundancy based on configuration and application load)

Specifications

Product SKUs

AS -1114S-WTRT - A+ Server 1114S-WTRT (Black)

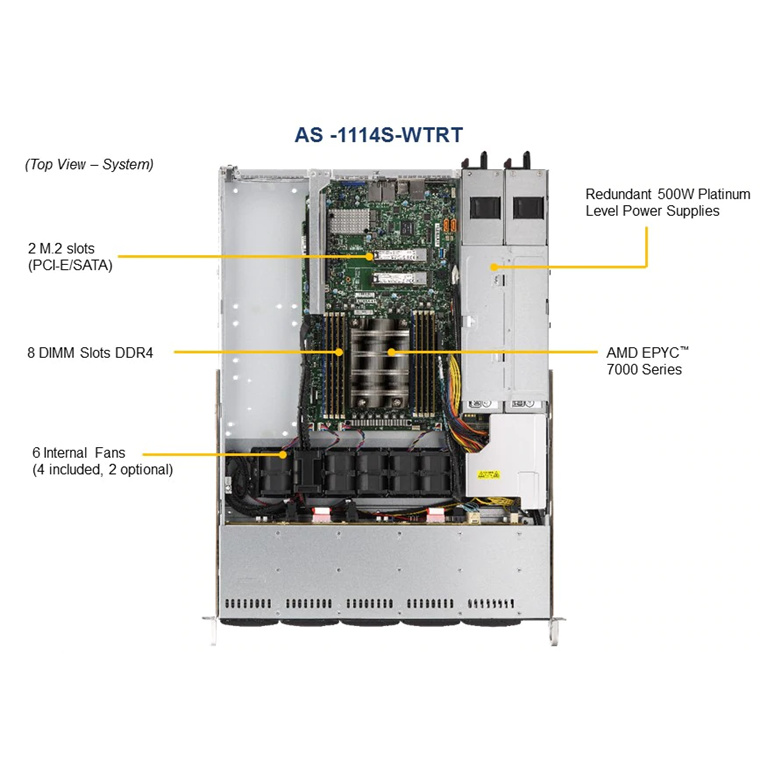

Motherboard

Super H12SSW-NT

Processor/Cache

CPU

Single AMD EPYC™ 7002 Series Processor
Socket SP3
Support CPU TDP up to 280W

Cores

Up to 64 Cores

System Memory

Memory Capacity

8 DIMM slots
Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM

Memory Type

DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

On-Board Devices

Chipset

System on Chip

SATA

SATA3 (6Gbps)

Network Controllers

Dual 10GBase-T LAN with via Broadcom BCM57416

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Video

ASPEED AST2500 BMC

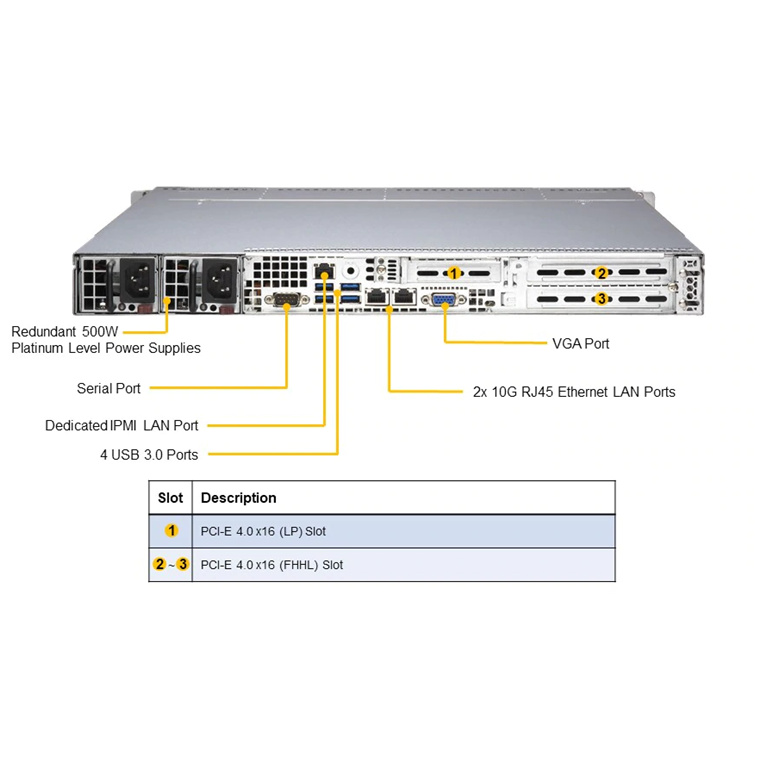

Input / Output

SATA

2 SATA3 (6 Gbps) ports

LAN

2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port

USB

7 USB 3.0 ports (4 rear, 2 front, 1 Type A)

Video

1 VGA port

DOM

2 SuperDOM (Disk on Module) ports

System BIOS

BIOS Type

AMI 32Mb SPI Flash ROM

Management

Software

Super Doctor 5
Watch Dog
NMI
SUM
IPMI 2.0, KVM with dedicated LAN

Power Configurations

ACPI / APM Power Management

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment
Thermal Control for fan connectors

Chassis

Form Factor

1U Rackmount

Model

CSE-116TS-R504WBP

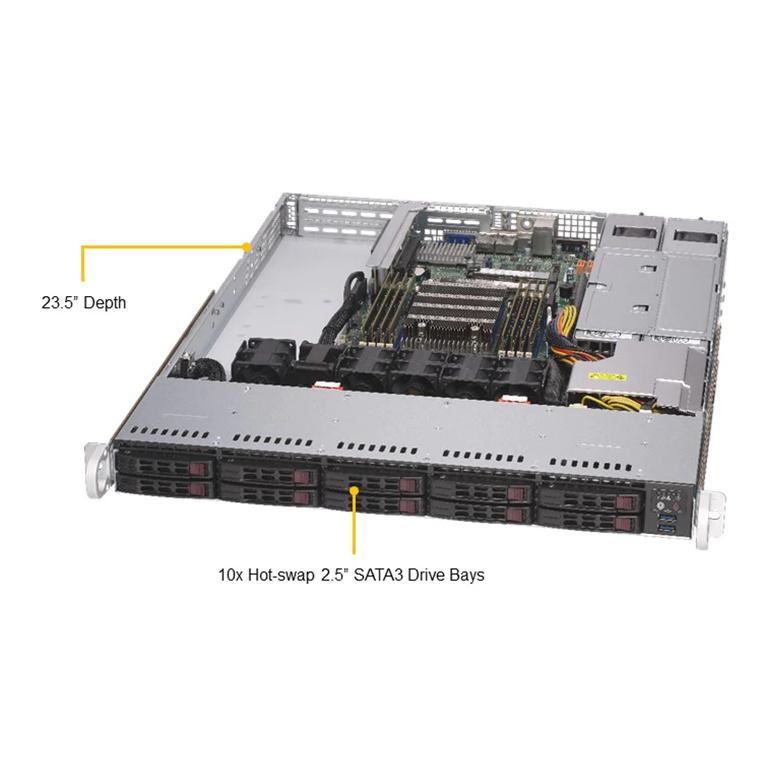

Dimensions and Weight

Width

17.2" (437mm)

Height

1.7" (43mm)

Depth

23.5" (597mm)

Gross Weight

46 lbs (20.9kg)

Available Colors

Black

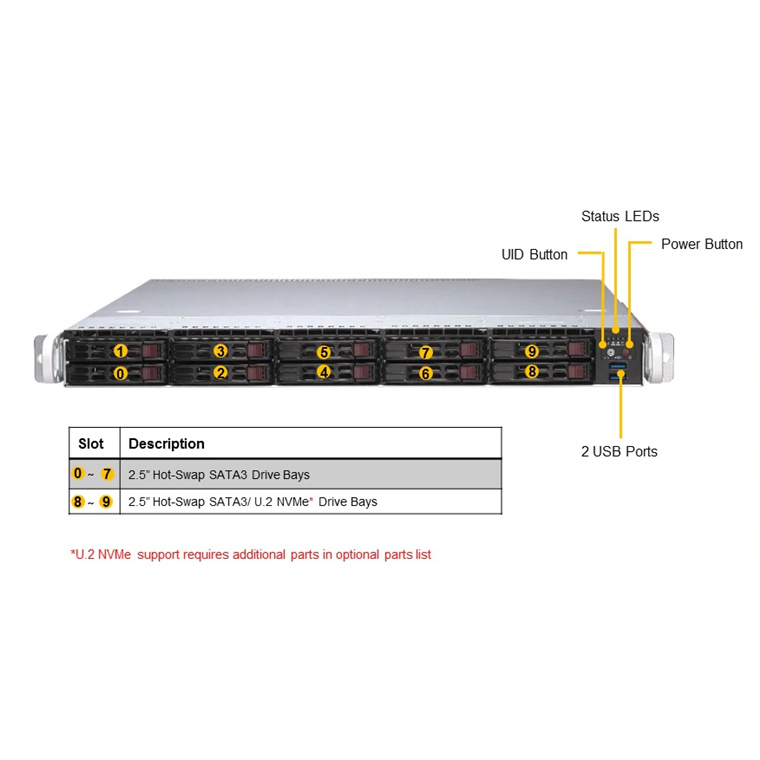

Front Panel

Buttons

Power On/Off button
UID button

LEDs

Power status LED
HDD activity LED
Network activity LEDs
Universal Information (UID) LED

Expansion Slots

PCI-Express

2 PCI-E 4.0 x16 (FHHL) slots
1 PCI-E 4.0 x16 (LP) slot
2 PCI-E / SATA 3.0 x2 NVMe M.2 slots

Drive Bays

Hot-swap

10 Hot-swap 2.5" SATA3 drive bays
Optional 2 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices

Backplane

SAS/SATA HDD Backplane

System Cooling

Fans

4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC

Power Supply

PSU

500W Redundant Power Supplies with PMBus

Total Output Power

500W

Dimension (W x H x L)

54.5 x 40.25 x 320 mm

Input

100-240Vac, 50-60Hz, 6.1-2.6A

+12V

Max: 42A / Min: 0.5A

+5Vsb

Max: 4A / Min: 0A

Output Type

Gold Finger Connector Mating with Molex 45984-4343

With Power Distributor

+5V: 25A
+3.3V: 12A
-12V: 0.6A

Certification

Platinum Level Certified  Platinum Certified

Operating Environment

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)

Manufacturer Part No:
AS -1114S-WTRT
Brand:
Product Type:
Barebone 1U,
UPC
672042367023
Product Family:
-
Shipping Weight:
22 kg
PB Part No:
SVRSPM81004
Product Model:
1114S-WTRT
Warranty: 36 months *
